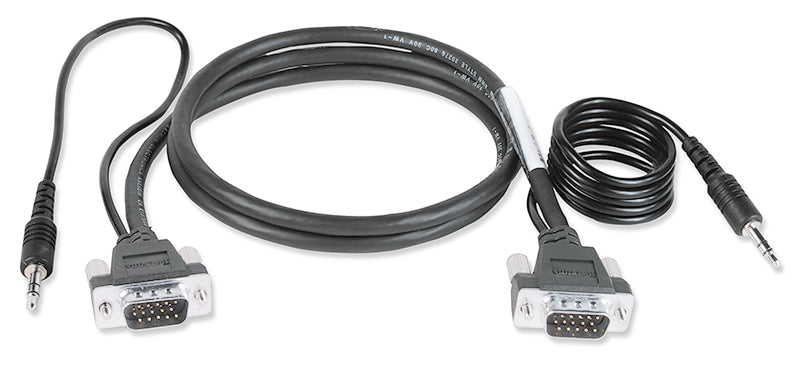

Extron MVGA-A M-M/6 (part number 26-566-02) — a 6 ft (1.8 m) micro VGA cable with analogue stereo audio built into the same assembly.

Two signals, one cable to pull and one cable to stow. The video path uses low-profile moulded 15-pin HD connectors on Extron's extremely thin micro VGA cable; the audio path adds a 3.5 mm mini plug at each end, on tails of 24 inches and 8 inches so the assembly suits a table box at one end and a switcher at the other. Grounded VGA shells give ESD protection and an overall foil shield under the injection moulding keeps electromagnetic interference out of the picture.

Key Capabilities

• 6 ft (1.8 m) combined VGA and analogue audio assembly
• 3.5 mm mini plugs on 24 in and 8 in audio tails
• Pin 9 passed through for ID bits and +5 VDC
• ESD-grounded VGA shells at both ends
• Overall foil shield for EMI isolation
• AWM 20276 rated; certified for AVEdge, Cable Cubby and HSA enclosures

Where It Is Used

Meeting room and classroom table boxes, huddle spaces, and training rooms where the presenter's laptop feeds VGA video and headphone-jack audio into a switcher under the table or in a nearby credenza.

Specifications at a Glance

• Cable length: 6 ft (1.8 m)
• Connectors: moulded 15-pin HD male plus 3.5 mm audio per end
• Signals: computer video, ID bits and analogue audio
• Rating: AWM 20276

Also referenced as Extron MVGA-AM-M/6, MVGA-A-M-M-6, part number 2656602.
