Extron MPA 152 Plus Stereo Mini Power Amplifier 60-844-03
Extron MPA 152 Plus Stereo Mini Power Amplifier 60-844-03

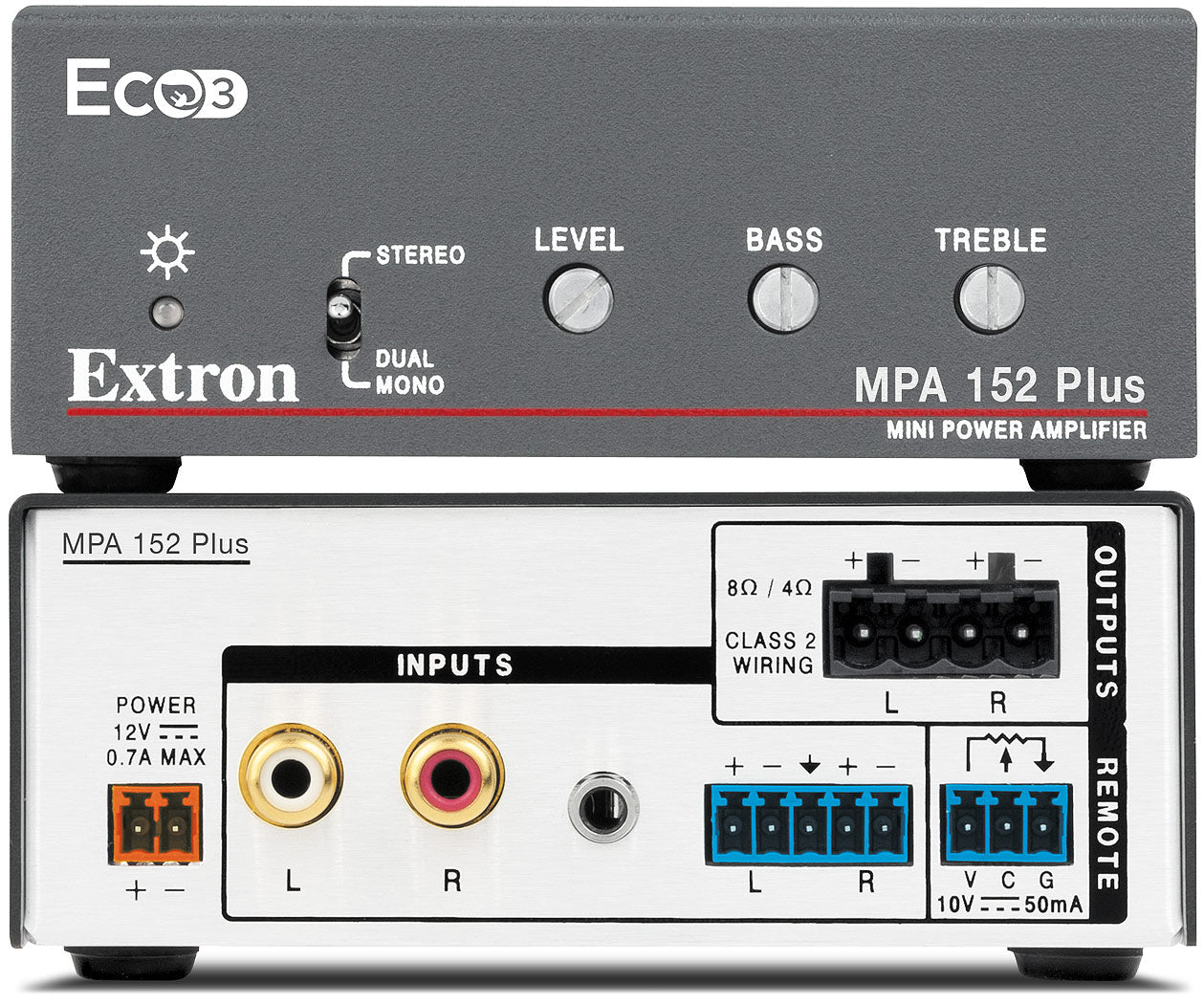

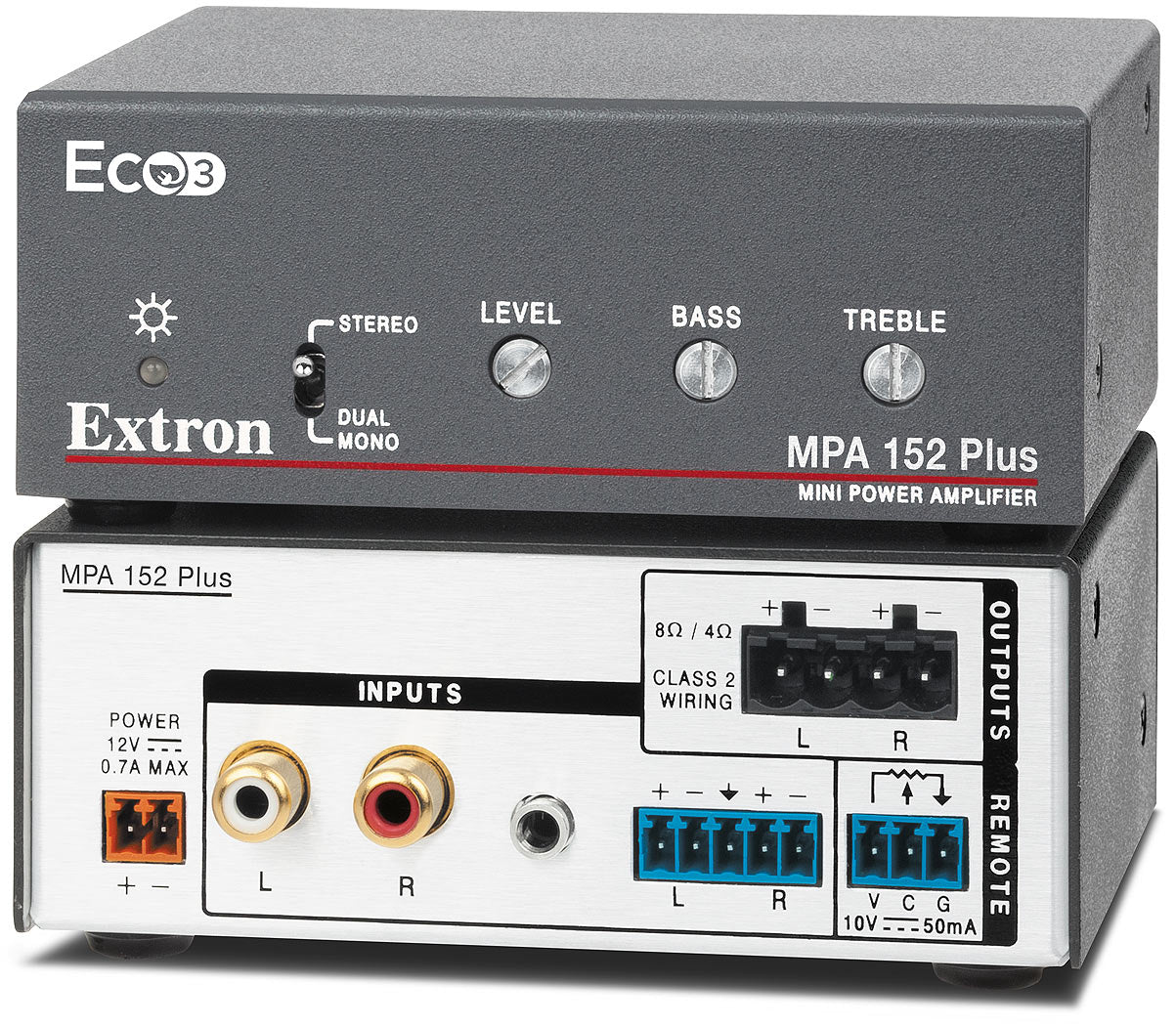

Extron MPA 152 Plus 60-844-03 Stereo Mini Power Amplifier
- • 15 W rms per channel into 4 ohms, 8 W rms into 8 ohms — Class D stereo amplification
- • Quarter-rack 1U metal enclosure, only 3.0 in deep, for space-constrained installs
- • 3 buffered/summed audio inputs: captive screw, 3.5 mm mini jack, and RCA pair
- • Rack, under-desk, or pole mounting with optional Extron mounting kits
- • 3-year product warranty plus 7-year Everlast power supply warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Part number 60-844-03 — Stereo Mini Power Amplifier, 15 W per Channel
The MPA 152 Plus delivers 2 channels of Class D amplification — 8 watts rms per channel into 8 ohms, or 15 watts rms per channel into 4 ohms — from a compact quarter-rack 1U metal enclosure just 3.0 in deep. It accepts one balanced/unbalanced 3.5 mm captive screw input, one 3.5 mm mini jack, and a pair of RCA inputs, individually buffered and summed together, making it suited to background music and paging in small rooms, huddle spaces, and offices where a full-size amplifier is impractical.
Mounting is flexible: an optional 1U rack shelf or back-of-rack kit, a mini under-desk kit, or a pole mount all allow the MPA 152 Plus to disappear into the room. The amplifier runs from an external 12 VDC, 2 A power supply, draws under 8 W at idle, and is backed by a 3-year product warranty plus Extron's 7-year Everlast power supply warranty.
Specifications
Specifications

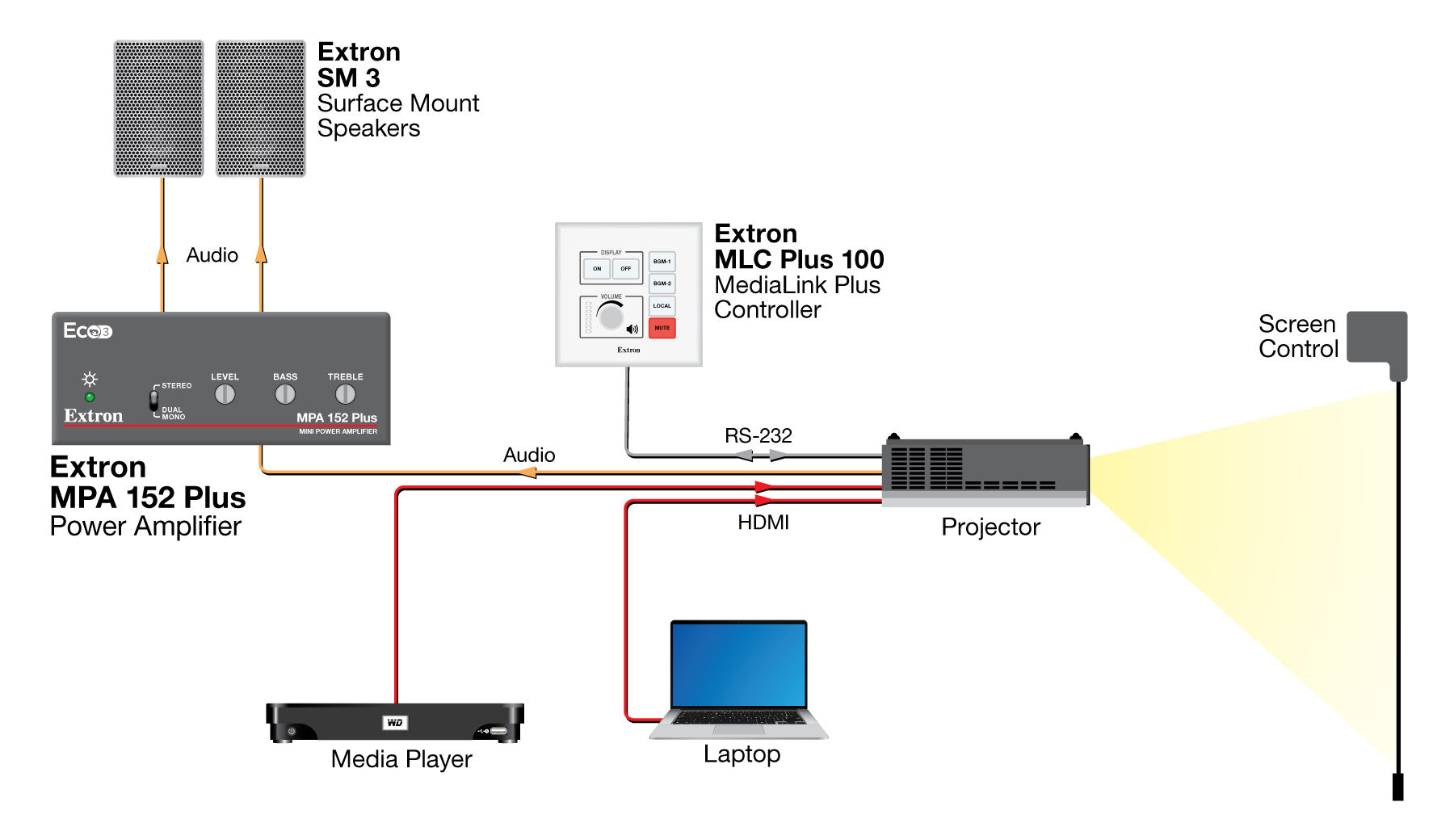

Diagram
Diagram
Resources
Resources
