Extron MP 101 Microphone to Line Level Preamplifier
- • Adjustable +25 dB to +72 dB microphone to line gain
- • Equivalent input noise below -126 dBV
- • 92 dB signal to noise at maximum output
- • 75 Hz low cut filter at 18 dB per octave
- • Contact closure volume and mute over a 0 to 10 V range
- • Dedicated port for an Extron remote keypad
- • One-eighth rack metal chassis, 1.7 x 2.2 x 3.0 in., 0.3 lb
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

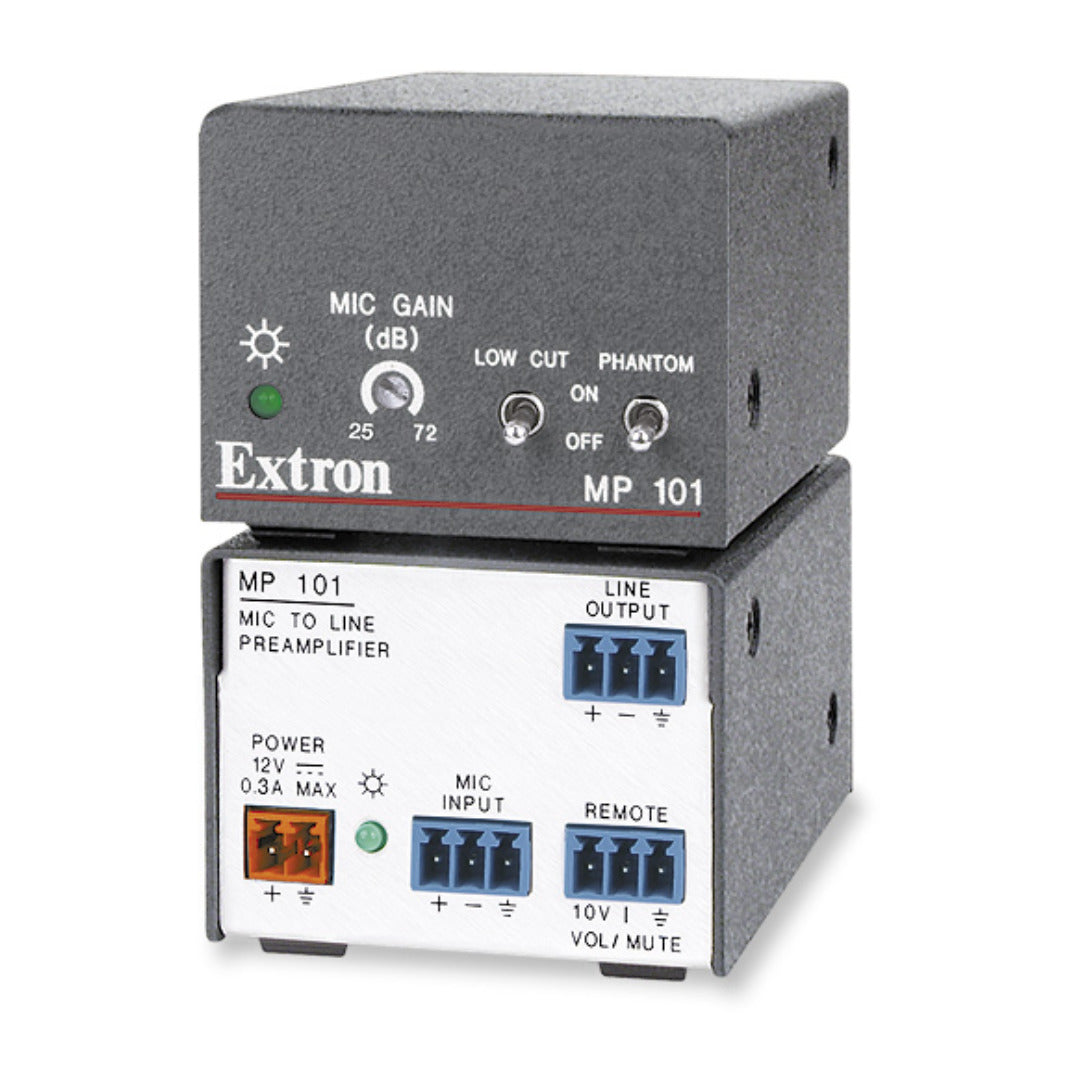

Extron MP 101 (part number 60-718-10) — a single-channel microphone to line level preamplifier in a one-eighth rack chassis, for rooms where a bare microphone has to feed a line level input.
A microphone output is roughly 60 dB below what a switcher or mixer input expects, and bridging that gap with a passive adapter simply buries the signal in noise. The MP 101 provides between +25 dB and +72 dB of adjustable gain with an equivalent input noise floor below -126 dBV, so the lift comes without hiss. A 75 Hz low cut filter rolling off at 18 dB per octave clears stage rumble and handling noise before it reaches the amplifier. The balanced input arrives on a 3-pole 3.5 mm captive screw connector at 2k ohms, and the balanced output can drive above +25 dBu into a high impedance load.
Key Capabilities
- Adjustable gain from +25 dB to +72 dB for mic-to-line conversion
- Equivalent input noise below -126 dBV; S/N of 92 dB at maximum output
- 75 Hz low cut filter at 18 dB per octave
- Frequency response 20 Hz to 20 kHz within 0.1 dB; CMRR above 70 dB
- Contact closure volume and mute control over a 0 to 10 V range
- Separate port for an Extron remote keypad control
Where It Is Used

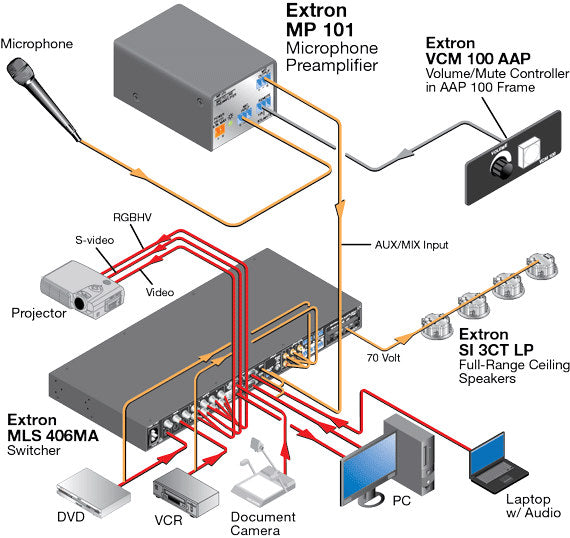

Classrooms, lecture halls, courtrooms and houses of worship where a lectern or ceiling microphone connects to a switcher, DSP or amplifier that only accepts line level. Its one-eighth rack size lets it hide inside a lectern or under a table close to the microphone, which is where the gain stage belongs.
Specifications at a Glance
- Input: 1 mono balanced, 3-pole 3.5 mm captive screw, 2k ohms, -60 dBV or -48 dBV nominal
- Output: 1 mono balanced, 3-pole 3.5 mm captive screw, below 150 ohms, above +25 dBu Hi-Z
- THD+N: 0.03% at -48 dBV in / +4 dBu out
- Enclosure: metal, 1.7 in. H x 2.2 in. W x 3.0 in. D, 0.3 lb (0.1 kg)
- Power: external 12 VDC, 0.3 A; 3 year warranty, 7 year Everlast power supply warranty
Also referenced as Extron MP101, MP-101, part number 6071810.
