Extron MMK 5 (part number 70-1333-28) — aluminum matte mullion mount kit for the Extron TLS 835M scheduling touchpanel.

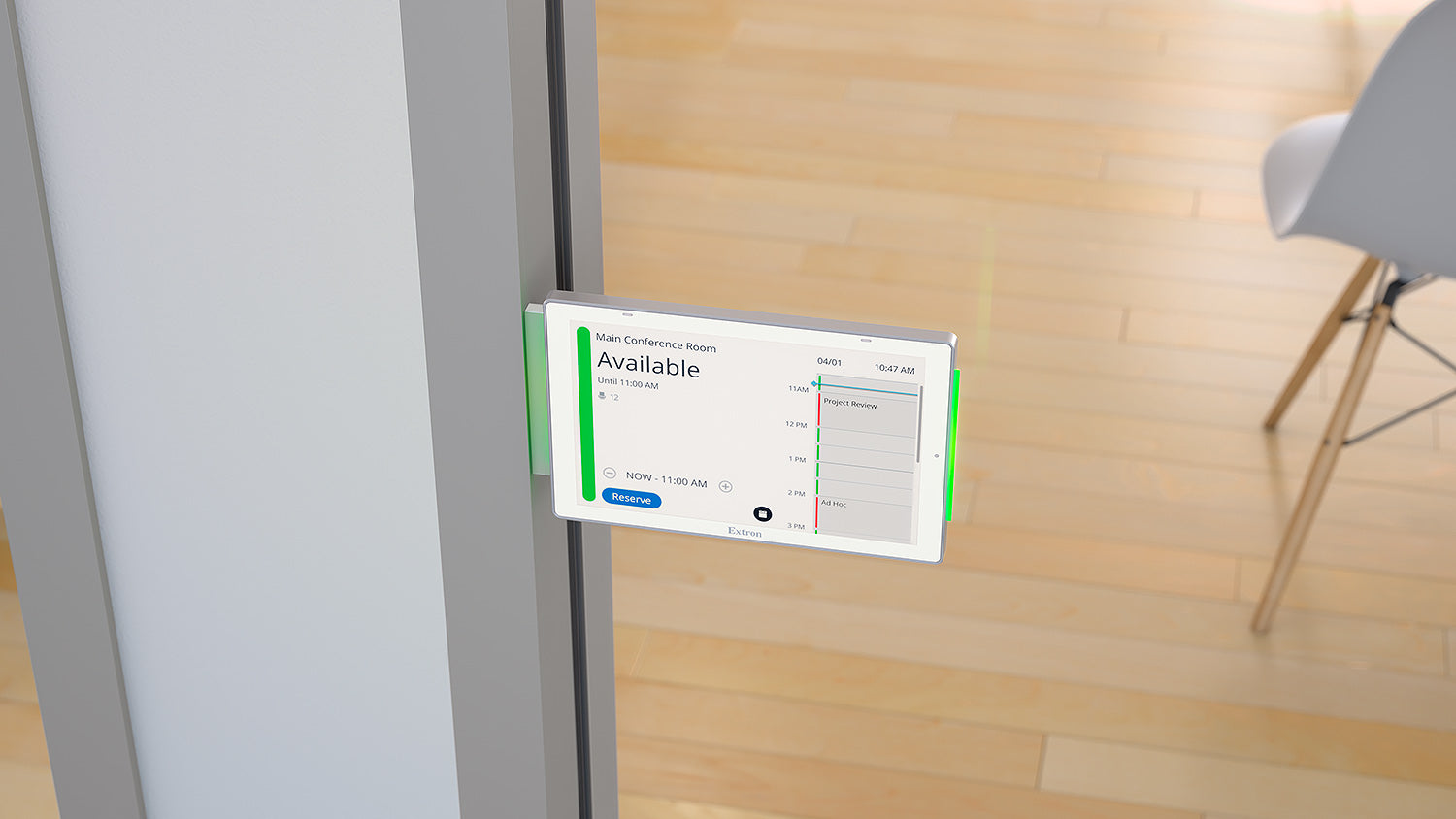

Glass-walled rooms push the scheduling panel onto the door frame, and this bracket is shaped to make that look intentional rather than improvised. It holds the TLS 835M flush against the mullion, keeps the availability LEDs readable from both approaches, and lets a technician lift the panel away later without disturbing the mount itself. The aluminum matte finish tracks anodized and brushed frame hardware.

Key Capabilities

• Dedicated mullion carrier for the Extron TLS 835M TouchLink scheduling panel.
• Metal enclosure, 4.26 in H x 7.97 in W x 0.83 in D (108 x 202 x 21 mm), 0.50 lbs.
• Panel removable for end-user serviceability without disassembling the mount.
• Projects less than 4 inches from the mullion frame, meeting ADA requirements.
• Aluminum matte finish; the black version is Extron part 70-1333-22.
• Optional MMK 5/6 Angle Brackets provide an upward display tilt at ADA-compliant heights.

Where It Is Used

Enterprise workplace rollouts, university and hospital scheduling programs, and architectural fit-outs with anodized aluminum door frames. A downloadable Extron mounting template keeps alignment consistent when dozens of rooms are being fitted at once.

Specifications at a Glance

• Compatible panel: TLS 835M
• Enclosure: metal, 4.26 in H x 7.97 in W x 0.83 in D
• Product weight: 0.50 lbs (0.23 kg)
• Shipping carton: 8.0 in x 10.0 in x 1.0 in, 0.59 lbs
• Mounting: into mullion frames

Also referenced as Extron MMK5, MMK-5, part number 70133328.
