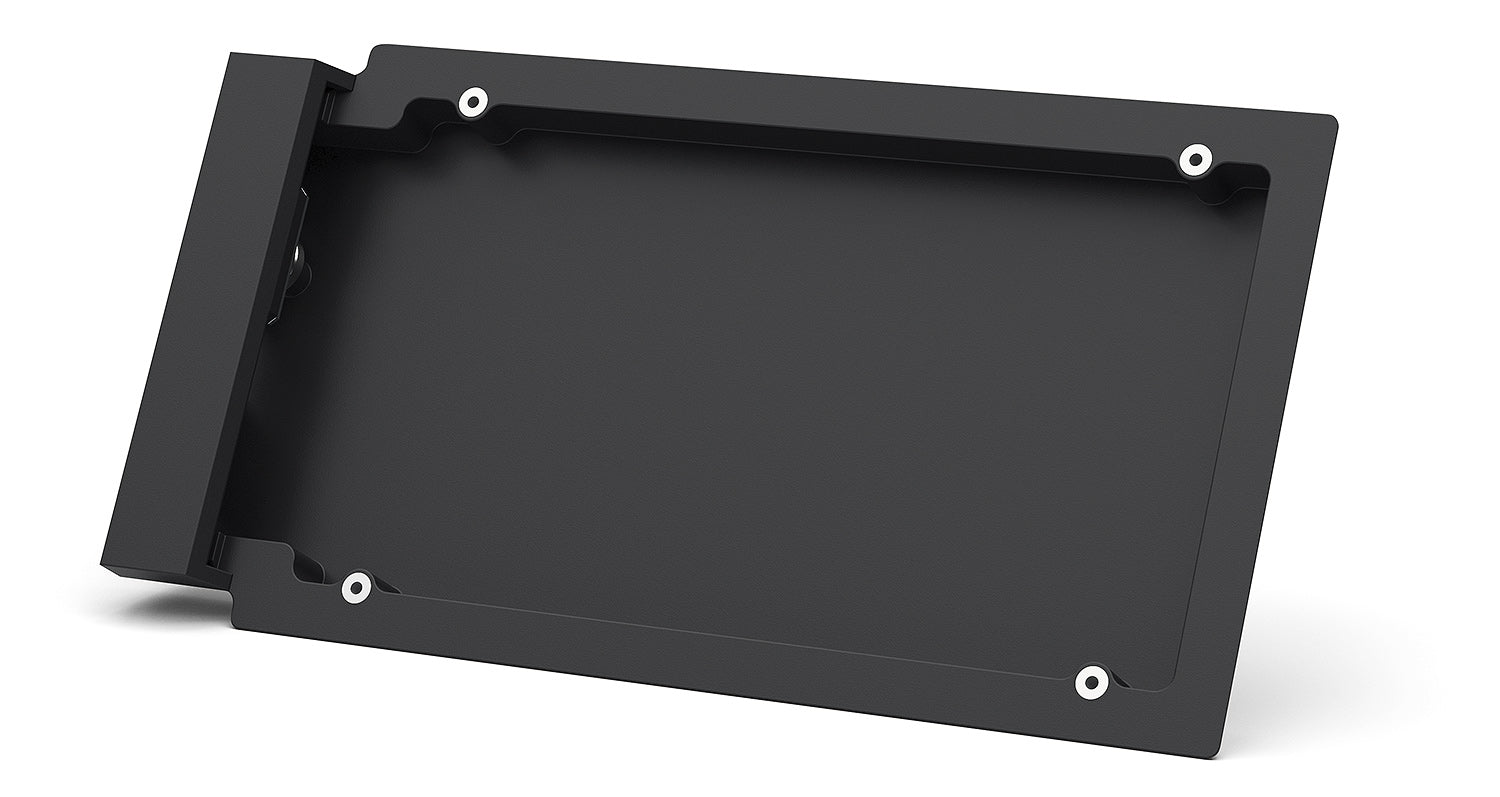

Extron MMK 5 (part number 70-1333-22) — black mullion mount kit for the Extron TLS 835M 8 in wall mount TouchLink scheduling panel.

This is Extron's current-generation mullion mount, and it adds something the earlier kits did not offer: the panel can be detached for end-user servicing without removing or disassembling the mounting accessory. The low-profile body projects less than four inches from the mullion, which keeps a corridor installation inside accessibility limits, and optional angle brackets are available when the display needs an upward tilt.

Key Capabilities

• Built specifically for the Extron TLS 835M 8 in wall mount TouchLink scheduling panel.
• Metal enclosure of 4.26 in H x 7.97 in W x 0.83 in D (108 x 202 x 21 mm) at 0.50 lbs.

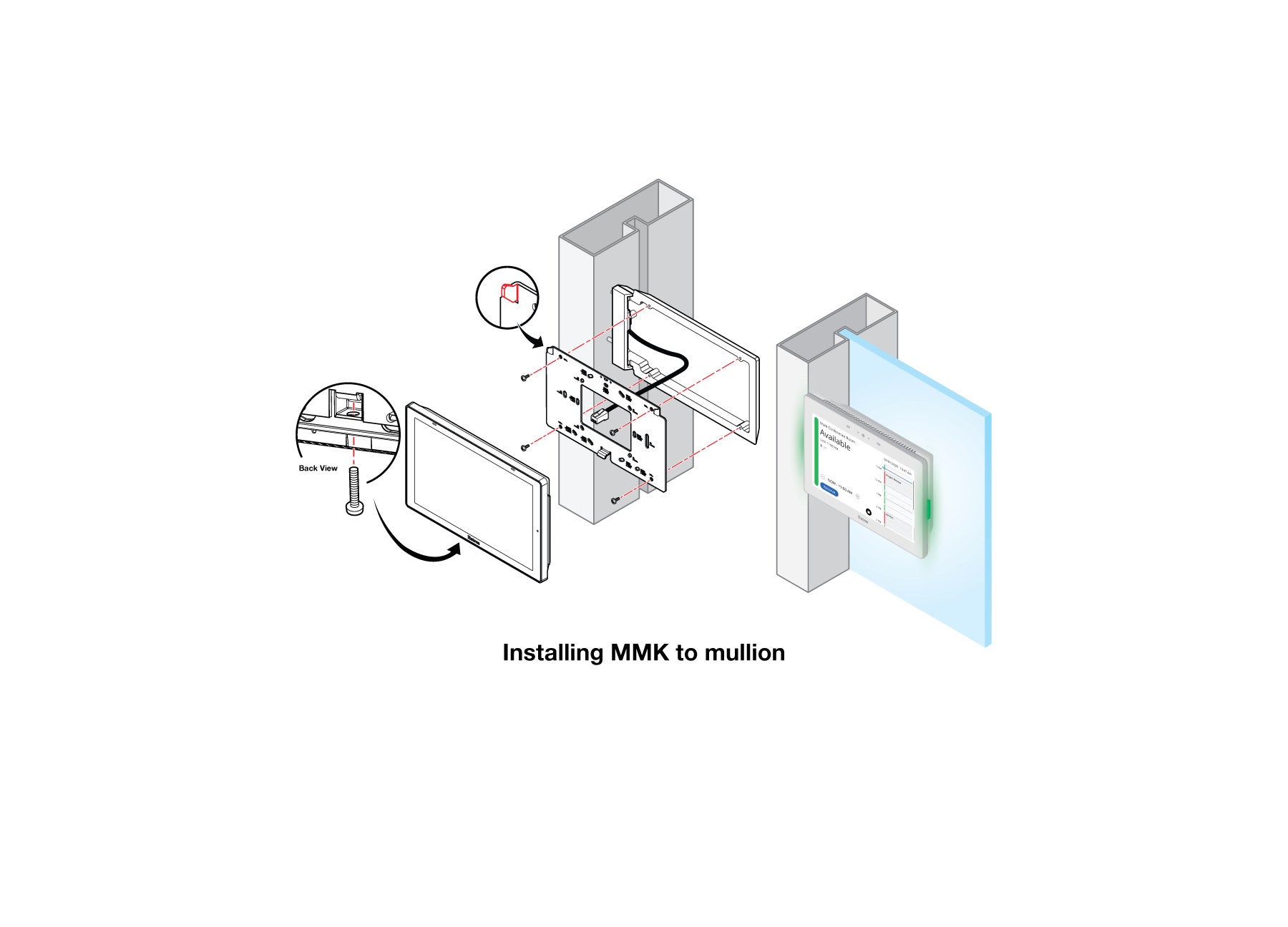

• Panel detaches for servicing while the mount stays fixed to the frame.
• Low-profile, ADA-compliant projection of less than 4 inches from the mullion.
• Room-status LEDs stay visible on either side of the panel.
• Optional MMK 5/6 Angle Brackets (70-1371-22 black, 70-1371-28 aluminum) add upward tilt.

Where It Is Used

Modern glazed meeting-room floors, innovation centers, clinical education suites and corporate campuses standardizing on the TLS 835M. It suits sites that expect to swap or service panels in place over the life of the installation.

Specifications at a Glance

• Compatible panel: TLS 835M
• Enclosure: metal, 4.26 in H x 7.97 in W x 0.83 in D
• Product weight: 0.50 lbs (0.23 kg)
• Shipping carton: 8.0 in x 10.0 in x 1.0 in, 0.59 lbs
• Compliance: RoHS and WEEE; 3 years parts and labor

Also referenced as Extron MMK5, MMK-5, part number 70133322.
