Extron MMK 2 Mullion Mount Kit for TLS 725M
- • Aluminum matte mullion mount kit for the Extron TLS 725M panel
- • Metal build, 4.08 in H x 7.08 in W x 0.71 in D, weighing 0.40 lbs
- • LED overlay supplied for an unobtrusive interior appearance
- • Under 4 in of projection from the mullion face for ADA compliance
- • Availability LEDs remain visible from both sides of the panel
- • Aluminum finish; the black equivalent is part 70-1264-22
- • 3-year parts and labor warranty, CE, RoHS and WEEE compliant
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

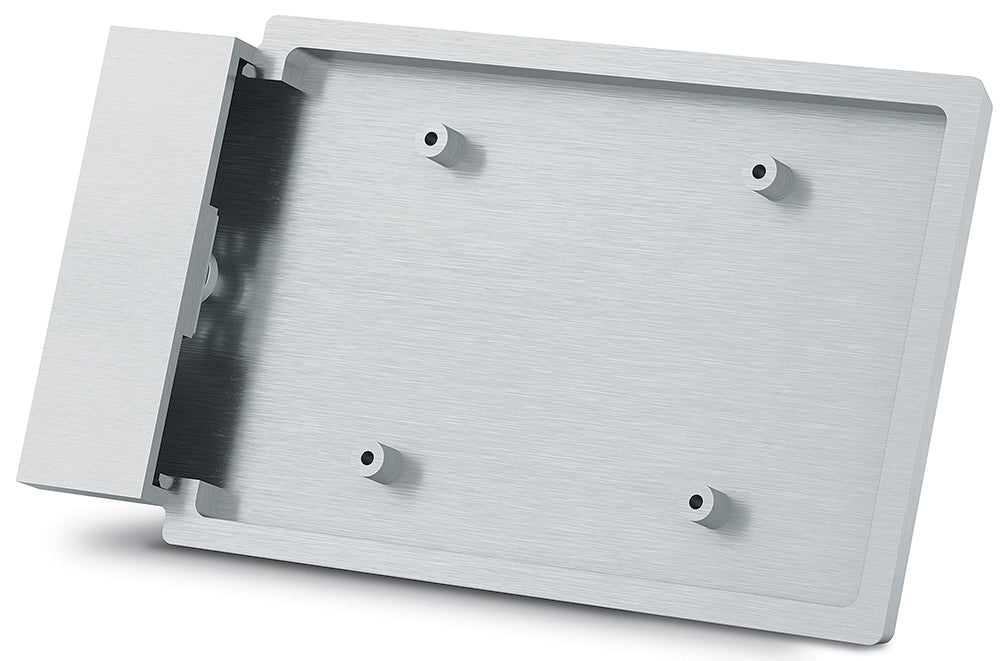

Extron MMK 2 (part number 70-1264-28) — aluminum matte mullion mount kit for the Extron TLS 725M scheduling panel.

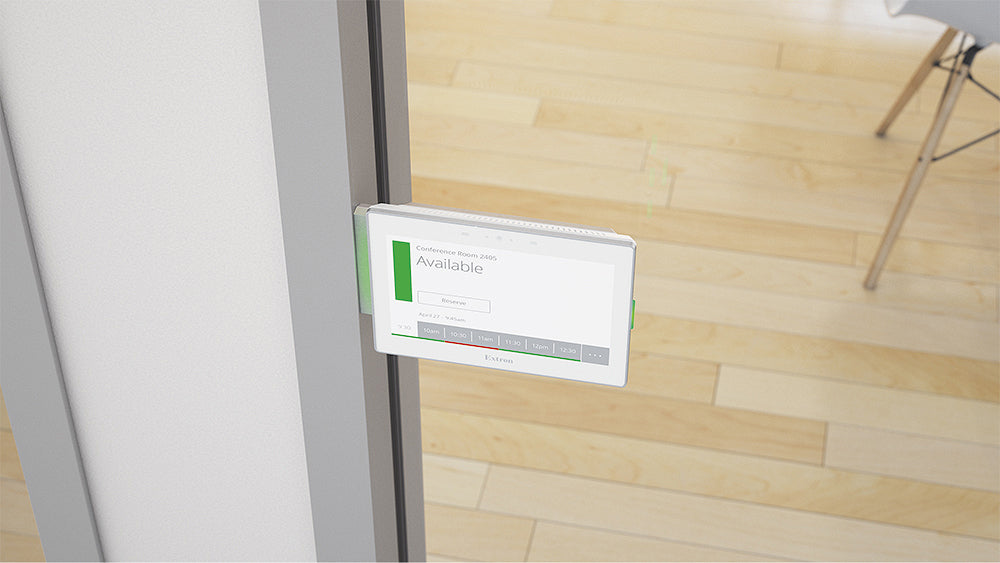

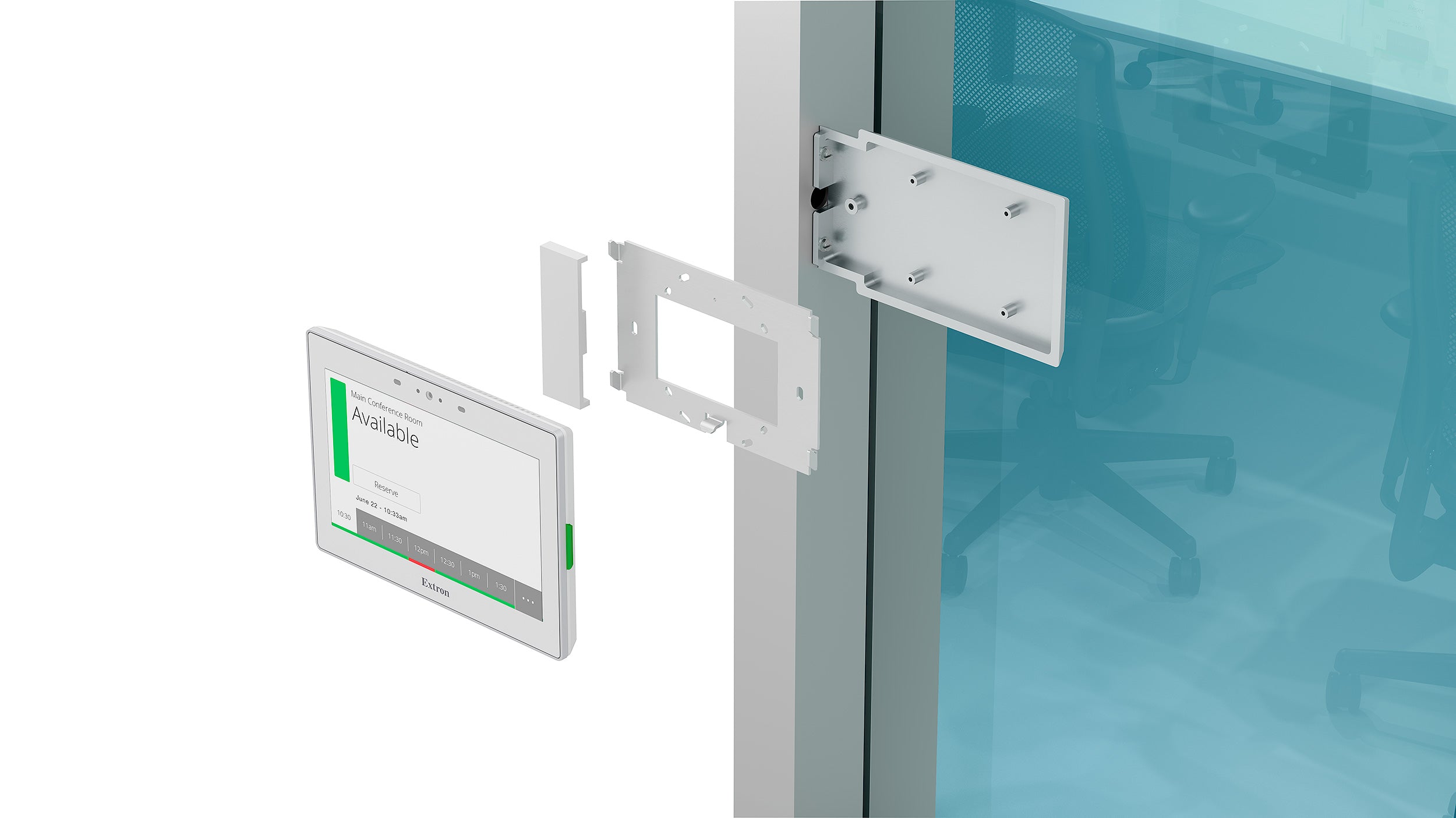

Scheduling panels belong where people look for them: at the door. In a glazed room that means the mullion, and this bracket is cut to fit it. The kit fastens with two sheet-metal screws, takes the panel cable through one pass-through hole, and closes with a magnetic cover plate. An LED overlay is supplied so the interior side of the installation stays visually quiet.
Key Capabilities
- Purpose-made carrier for the Extron TLS 725M TouchLink scheduling panel.
- Metal build measuring 4.08 in H x 7.08 in W x 0.71 in D (104 x 180 x 18 mm) at 0.40 lbs.
- Aluminum matte finish to match anodized or brushed door hardware.
- ADA-conscious profile that does not project more than 4 inches from the mullion face.
- LED overlay included for an unobtrusive appearance inside the room.
- CE, RoHS and WEEE compliant, with a 3 year parts and labor warranty.
Where It Is Used
Enterprise meeting-room programs, higher-education group study rooms, clinical and administrative suites, and any refurbishment where glass partitions removed the wall the scheduler used to occupy. The downloadable Extron template makes repeat installs across a floor consistent.
Specifications at a Glance
- Compatible panel: TLS 725M
- Enclosure: metal, 4.08 in H x 7.08 in W x 0.71 in D
- Product weight: 0.40 lbs (0.18 kg)
- Shipping carton: 1.0 in x 8.0 in x 10.0 in, 0.5 lbs
- Mounting: into mullion frames
Also referenced as Extron MMK2, MMK-2, part number 70126428.
