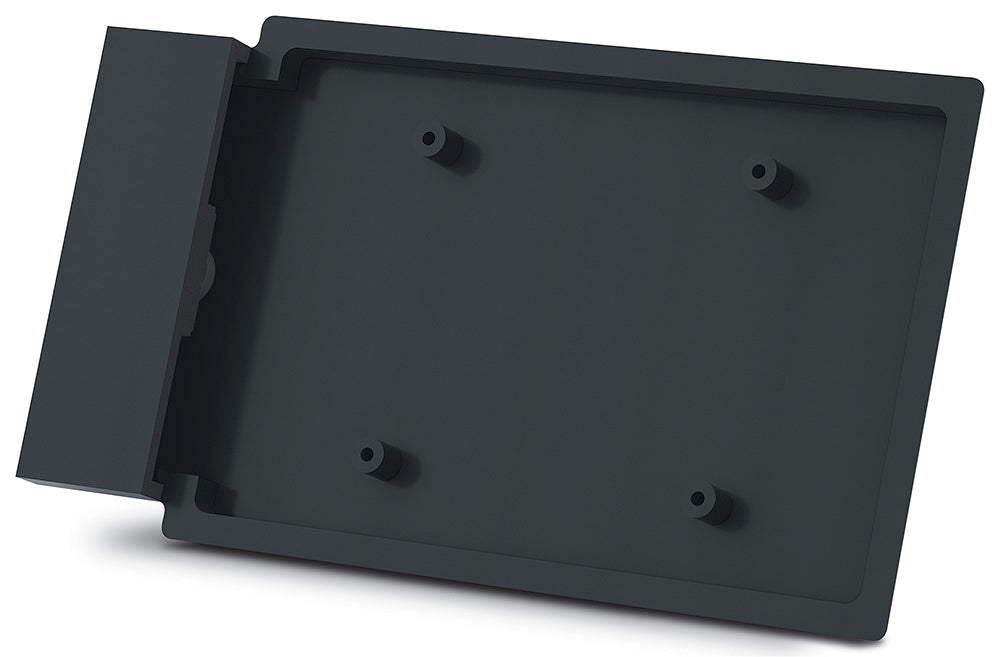

Extron MMK 2 (part number 70-1264-22) — black mullion mount kit sized for the Extron TLS 725M scheduling touchpanel.

This kit solves the same problem as the smaller MMK 1, but for the TLS 725M: it puts the scheduler on the door mullion when the surrounding wall is glass. Unlike the MMK 1, it ships with an LED overlay, so the inside-facing view of the installation stays clean and unobtrusive while the outward-facing indicators do their job.

Key Capabilities

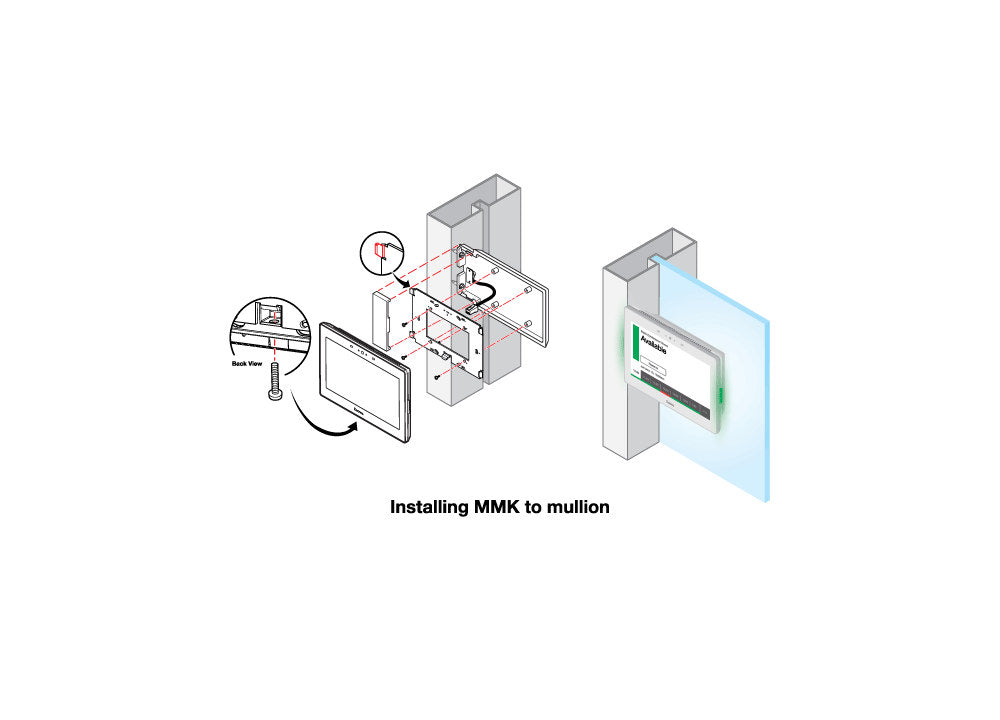

• Mounts the Extron TLS 725M scheduling panel to a vertical mullion frame.
• Metal enclosure of 4.08 in H x 7.08 in W x 0.71 in D (104 x 180 x 18 mm), 0.40 lbs.
• Includes an LED overlay for a clean, inconspicuous look from inside the room.
• Stays under the 4 inch protrusion limit measured from the outside face of the mullion.
• Room-status LEDs remain visible on both sides of the panel.
• Black matte finish; the aluminum matte equivalent is part 70-1264-28.

Where It Is Used

Glass-walled boardrooms, agile-working floors, teaching hospitals and professional-services meeting suites — installations where the scheduling panel has to live on the door frame and still look deliberate from both sides of the glass.

Specifications at a Glance

• Compatible panel: TLS 725M
• Enclosure: metal, 4.08 in H x 7.08 in W x 0.71 in D
• Product weight: 0.40 lbs (0.18 kg)
• Shipping carton: 1.0 in x 8.0 in x 10.0 in, 0.51 lbs
• Compliance: CE, RoHS, WEEE; 3 years parts and labor

Also referenced as Extron MMK2, MMK-2, part number 70126422.
