Extron MLM 84 Flex55 (part number 70-1272-33) — a white three-gang mounting kit that puts an MLC Plus 84 EU controller and one Flex55 or EU module behind a single trim frame.

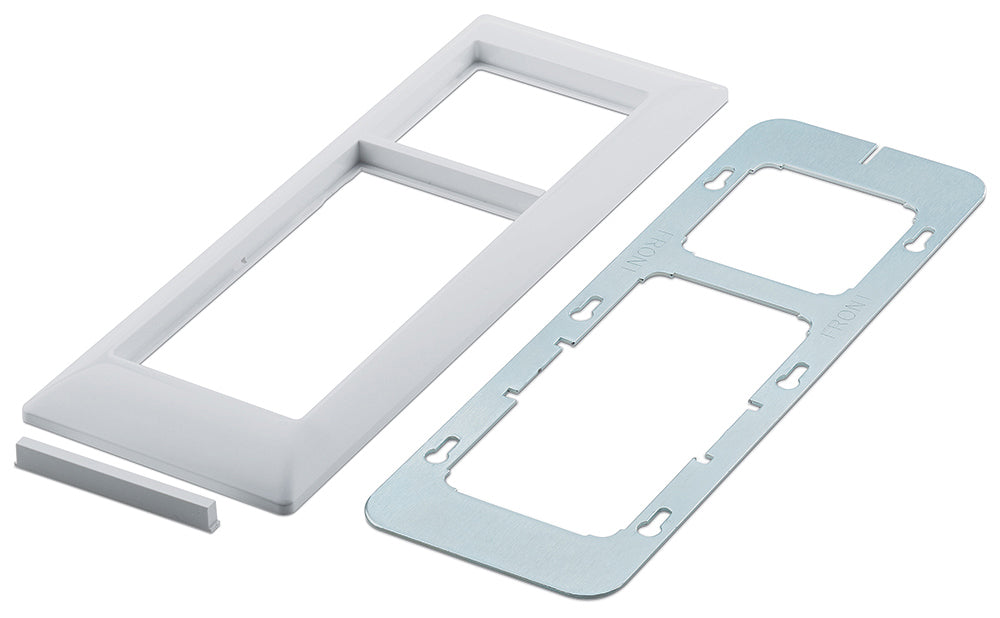

European junction-box installations tend to end up with control on one plate and connectivity on another. This kit merges the two. It pairs a metal mounting bracket with a high-impact plastic frame sized for a three-gang Flex55 enclosure, and the frame carries two openings: a large one for the MLC Plus 84 EU controller and a smaller one for a single-space Flex55 or active EU module. Extron supplies the mounting hardware, and module choices can be worked out in advance using its Connectivity Builder tool. The kit finishes in white and weighs only 0.3 lbs.

Key Capabilities

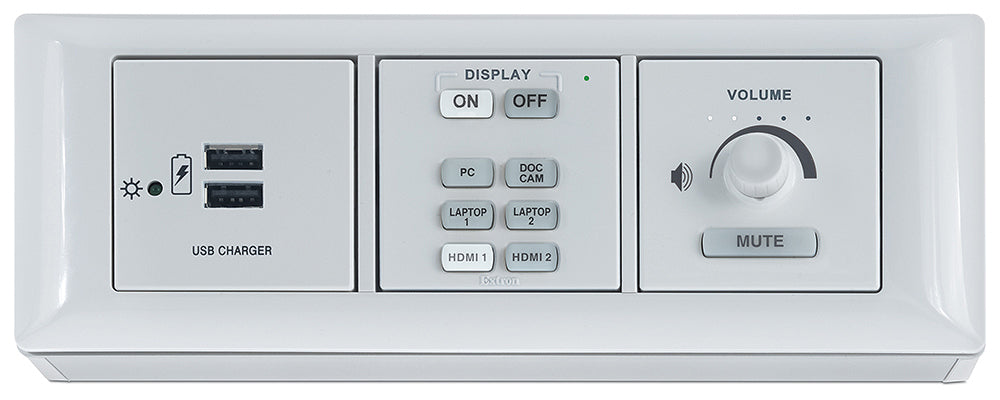

• Holds one MLC Plus 84 EU controller plus one single-space Flex55 or EU module
• Designed around a three-gang Flex55 enclosure such as the EWB 213 or SMB 213
• Also mounts to EU junction boxes for in-wall installations
• Metal mounting bracket paired with a high-impact plastic trim frame
• Accepts one-gang Flex55 modules and active EU modules including Flex55 100 Series power modules
• Mounting hardware supplied; backed by a 3-year Extron parts and labour warranty

Where It Is Used

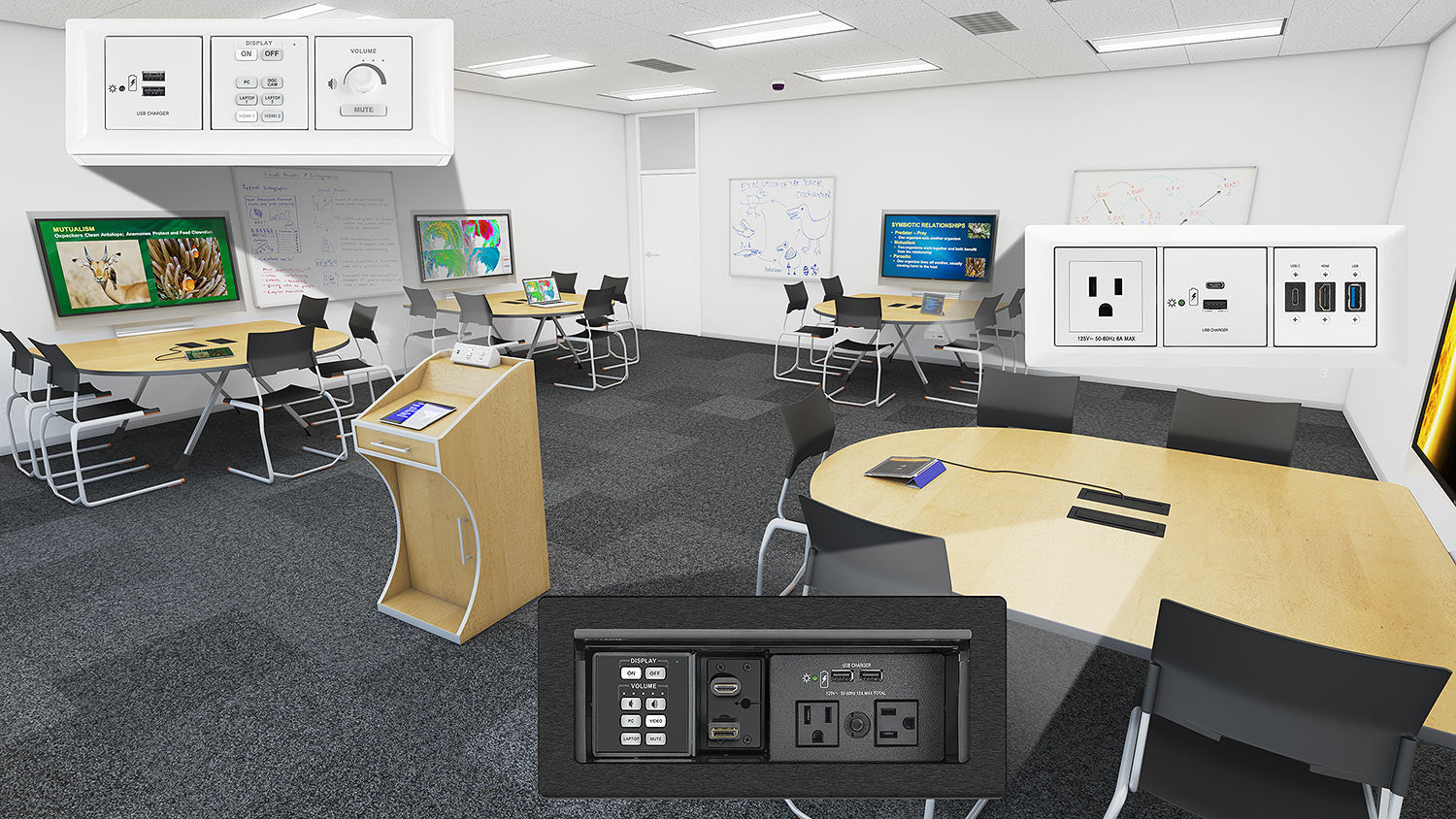

EU-standard classrooms, meeting rooms and training spaces where a wall or lectern position has to carry both a MediaLink Plus keypad and a power or connectivity module. It suits new-build wall boxes and surface-mounted enclosures equally, and keeps a single plate line across a room fit-out.

Specifications at a Glance

• Dimensions: 3.17 in H x 8.76 in W x 0.40 in D, three-gang (80.5 mm H x 222.5 mm W x 10.3 mm D)
• Product weight: 0.3 lbs (0.2 kg)
• Materials: metal mounting bracket, high impact plastic frame
• Regulatory compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labour

Note that the MLC Plus 84 EU controller and any Flex55 or EU modules are ordered separately from this kit.

Also referenced as Extron MLM84Flex55, MLM-84-Flex55, part number 70127233.
