Extron MLM 62 D 6B (part number 70-688-02) — the six-button bezel kit that reconfigures an MLC 62 D decorator-style MediaLink controller for two source selections.

The source buttons on an MLC 62 D can be arranged for either single or dual function operation, and the bezel is what decides which. Swap in this kit and an MLC 62 RS D, which leaves the factory as an eight-button unit covering four sources, becomes a six-button unit covering two. That matters in rooms with a single laptop input and one resident PC, where four labelled source keys invite the wrong press. Extron packs black and white bezels in every kit along with a matching assortment of power, volume, source input and function buttons, so the panel can be labelled to suit the room and finished to suit the wall. The controller itself is a separate purchase.

Key Capabilities

• Converts an eight-button MLC 62 RS D to a six-button layout
• Reduces the panel to two source selections for simpler AV systems

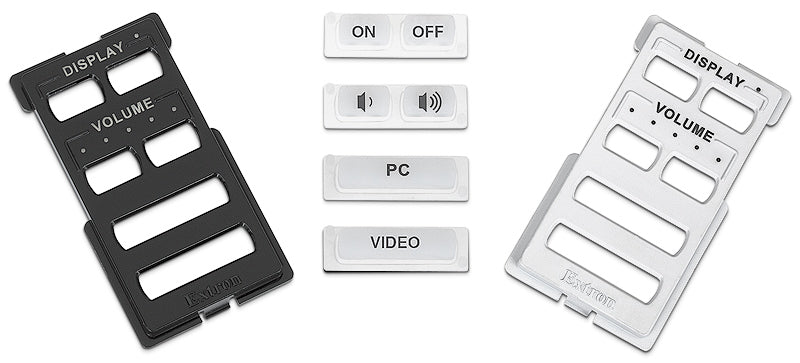

• Black and white bezels both supplied in the same kit

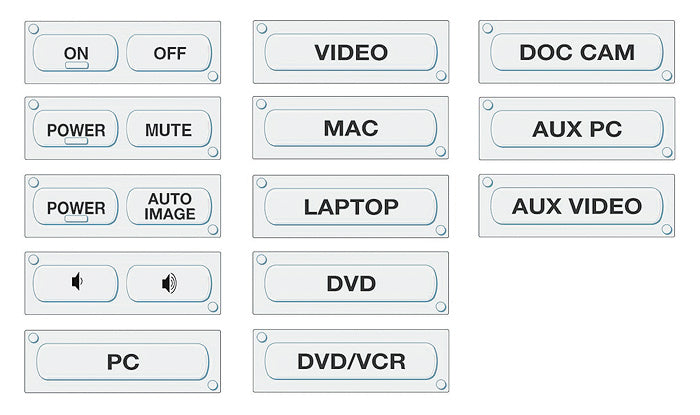

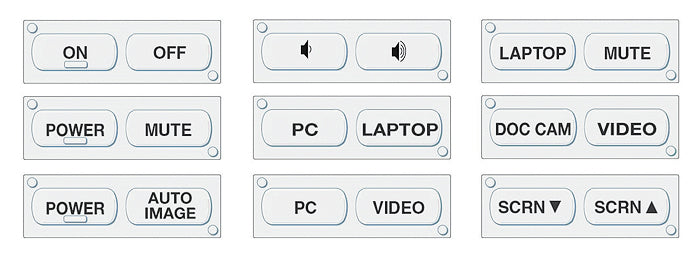

• Assortment of power, volume, source input and function buttons included
• Suits the MLC 62 IR D (60-1006-02) and MLC 62 RS D (60-1005-02)
• Keeps the decorator-style, one-gang appearance of the installed controller

Where It Is Used

Standardised classroom and meeting-room fleets, where one controller model is deployed everywhere but the smaller rooms only ever run two sources. Removing the unused keys cuts help-desk calls and shortens the instructions taped to the lectern.

Specifications at a Glance

• Button count after fitting: 6
• Source selections supported: 2
• Bezels included: black and white
• Buttons included: power, volume, source input and function
• Extron version description: Six button bezel kit w/ buttons for MLC 62 D

Its companion part is the MLM 62 D 8B (70-688-12), which moves in the other direction and takes an MLC 62 IR D up to eight buttons and four sources.

Also referenced as Extron MLM62D6B, MLM-62-D-6B, part number 7068802.
