Extron MLM 200 D (part number 70-1101-03) — the four-gang decorator-style mounting kit for Extron's three-gang MediaLink Plus controllers and button panels.

Where the smaller MLM 100 D serves two-gang devices, the MLM 200 D is the wider member of the pair: a four-gang frame whose decorator-style aperture is cut for the MLC Plus 200 and its matching button panels. The extra gang gives the trim room to sit square against the wall surface while the panel itself stays centred. Both a black and a white faceplate ship in the box, together with volume knobs and a mud-ring, which means one part number covers either finish. Controllers and panels are ordered separately.

Key Capabilities

• Four-gang frame with a decorator-style aperture cut for three-gang button panels

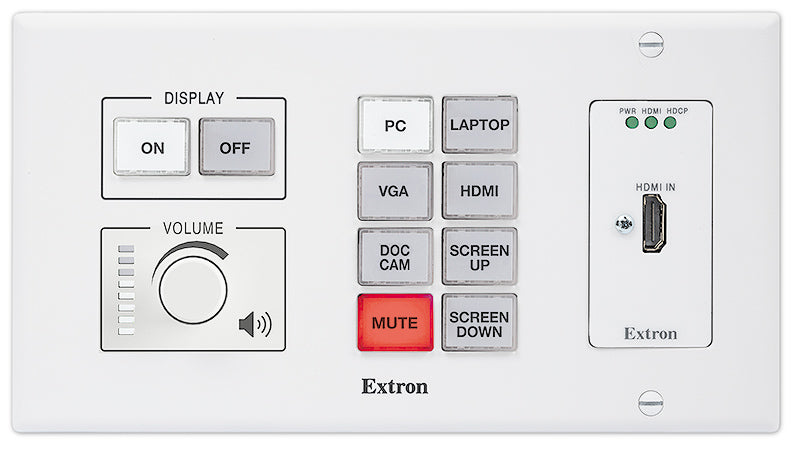

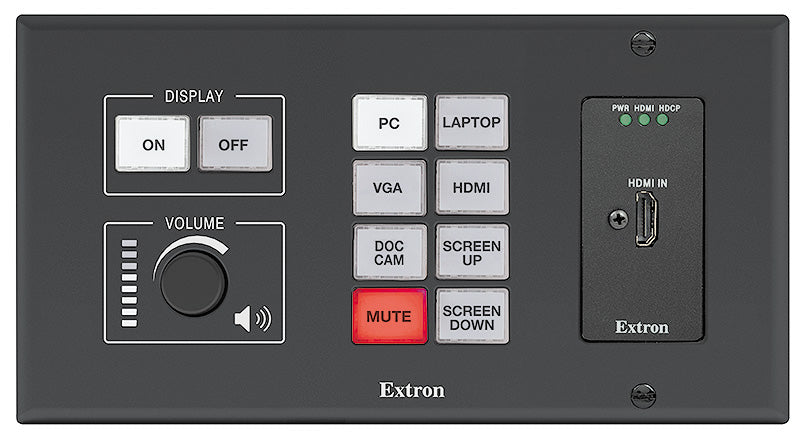

• Accepts the MLC Plus 200 controller, the EBP 200 eBUS panel or the NBP 200 Network Button Panel
• Installs in a wall opening, an Extron four-gang SMB Surface Mount Box, or into an EWB External Wall Box

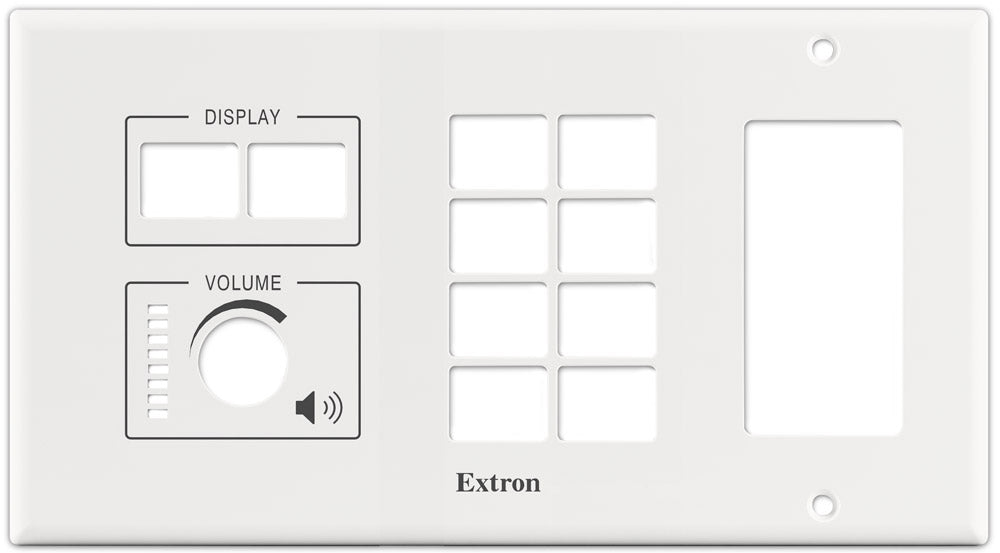

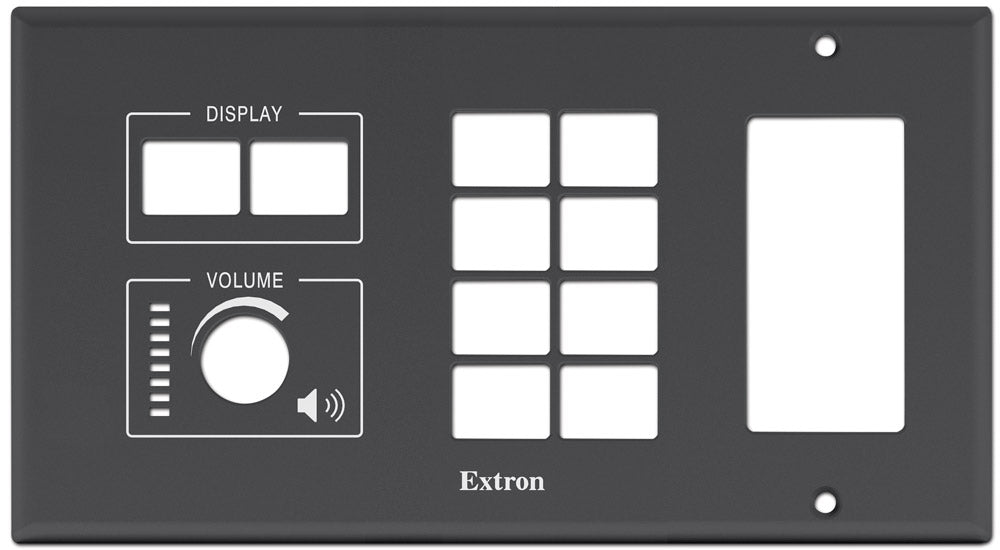

• Ships with black and white faceplates plus matching volume knobs
• Mud-ring included with the kit
• Magnetically retained faceplate hides the mounting screws

Where It Is Used

Larger lecture halls, divisible training rooms, boardrooms and control spaces that run a full MediaLink Plus keypad rather than a compact one. The four-gang footprint also suits equipment credenzas and podium panels built around an Extron surface-mount or external wall box.

Specifications at a Glance

• Gang size: four-gang, decorator-style aperture
• US gang mud ring cutout: 7.6 in W x 3.75 in H (193 mm W x 95 mm H)
• Direct mounting cutout: 7.3 in W x 2.9 in H (185 mm W x 74 mm H)
• Supplied: black and white faceplates, volume knobs, mud-ring
• Extron version description: Black and White Faceplates, 4-gang

Worth noting during rough-in: Extron requires the supplied plastic spacer whenever the panel is mounted without a mud ring, so that the magnetic faceplate pulls down flush.
