Extron MLC Plus 84 MK MediaLink Plus Controller
- • Nine backlit soft-touch buttons and a volume knob with LED indication
- • Built for two-gang MK junction boxes; MK 2-gang frame included
- • Ethernet control and monitoring of AV devices across the building network
- • Two bidirectional RS-232 ports plus an IR port for up to two emitters
- • Two normally open relays rated 24 VDC at 1 A for screens and shades
- • Remote volume output 0 to +10 VDC for Extron MPA and XTRA amplifiers
- • Draws 2.6 watts at 12 VDC; supports 802.3af Class 3 Power over Ethernet
- • Configured in Global Configurator Plus or Professional software
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron MLC Plus 84 MK (part number 60-1354-23) — the MK-wallplate build of the two-gang MediaLink Plus wall controller.

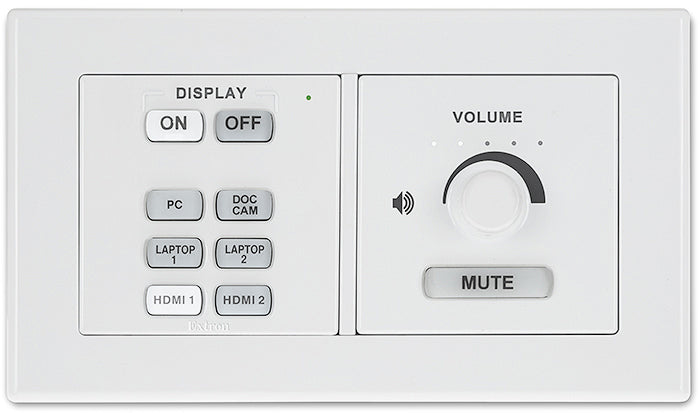

Choose this version for territories wired with MK-pattern back boxes. Nine backlit soft-touch buttons and a rotary volume knob with LED indication sit behind a white MK faceplate, and the supplied MK 2-gang frame handles the fitting. Display power, source changes and level moves travel to networked equipment over Ethernet, while two bidirectional RS-232 ports, two relays, an IR port and a digital input drive projectors, screens and amplifiers that have no network connection of their own. One 802.3af Class 3 PoE run supplies power and control together.
Key Capabilities
- Nine customizable backlit buttons plus a volume knob with LED feedback
- Fits a two-gang MK junction box; MK 2-gang frame supplied in the box

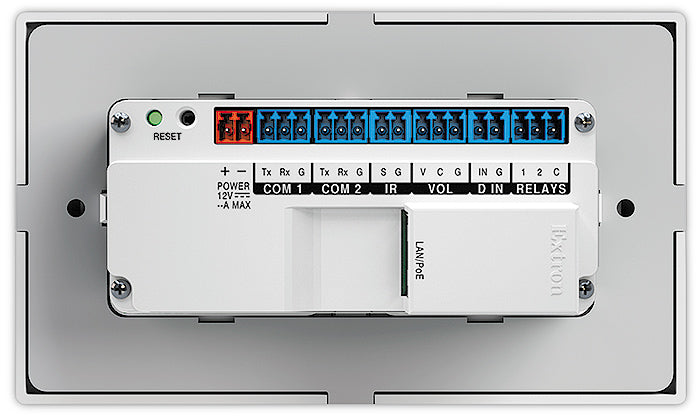

- Two bidirectional RS-232 ports on 3-pole 3.5 mm captive screw connectors
- Two normally open relays rated 24 VDC at 1 A, plus one digital input
- One IR port for up to two emitters, carrier range 30 kHz to 300 kHz
- Remote volume port, 0 to +10 VDC adjustable, for MPA Series and select XTRA Series amplifiers
- 2.6 watts at 12 VDC; accepts 802.3af Class 3 PoE or an external 12 VDC supply
Where It Is Used
Single-display rooms in UK-pattern and MK-standard installations — university teaching rooms, hotel meeting spaces, corporate training rooms and hospital briefing rooms. It suits sites that want identical operation on every wall while matching the electrical fittings already specified for the building.
Specifications at a Glance
- Ethernet: 1 female RJ-45, 10/100Base-T, half/full duplex with autodetect
- Faceplate: 3.38" H x 5.79" W x 0.39" D (86 x 147 x 9.9 mm)
- Device: 1.88" H x 4.37" W x 1.55" D; allow 1.6" (40 mm) behind the wall
- Power: 2.6 W at 12 VDC; PoE 802.3af Class 3, 48 VDC, 0.35 A
- Weight 0.4 lbs (0.2 kg); warranty 3 years parts and labor
Also referenced as Extron MLCPlus84MK, MLC-Plus-84-MK, part number 60135423.
Specifications
Specifications

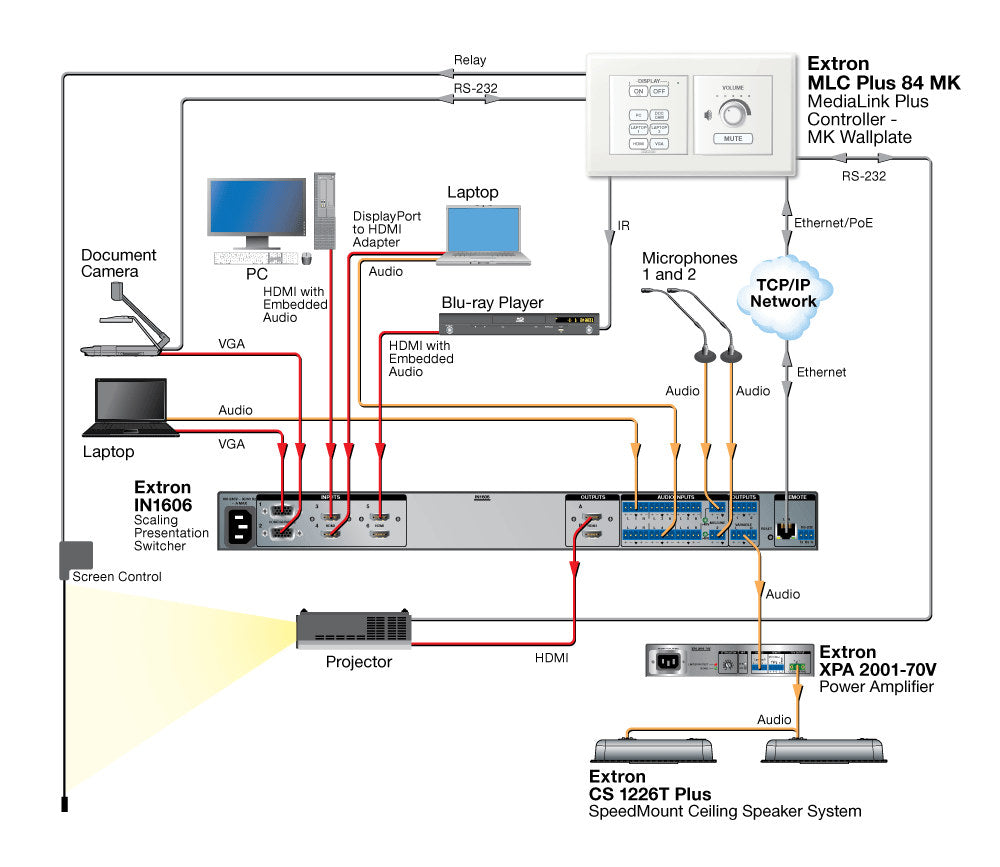

Diagram
