Extron MLC Plus 84 EU MediaLink Plus Controller
- • Nine backlit soft-touch buttons plus a volume knob with LED indication
- • Designed for two-gang European junction boxes; EU 2-gang frame included
- • Ethernet control of networked AV devices over the existing building LAN
- • Two bidirectional RS-232 ports and one IR port for non-networked gear
- • Two normally open relays rated 24 VDC at 1 A for screens and shades
- • Remote volume output 0 to +10 VDC for Extron MPA and XTRA amplifiers
- • Only 2.6 watts at 12 VDC; powered by 802.3af Class 3 PoE if preferred
- • Configured with Global Configurator Plus or Professional software
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron MLC Plus 84 EU (part number 60-1354-33) — the European-wallplate build of the two-gang MediaLink Plus wall controller.

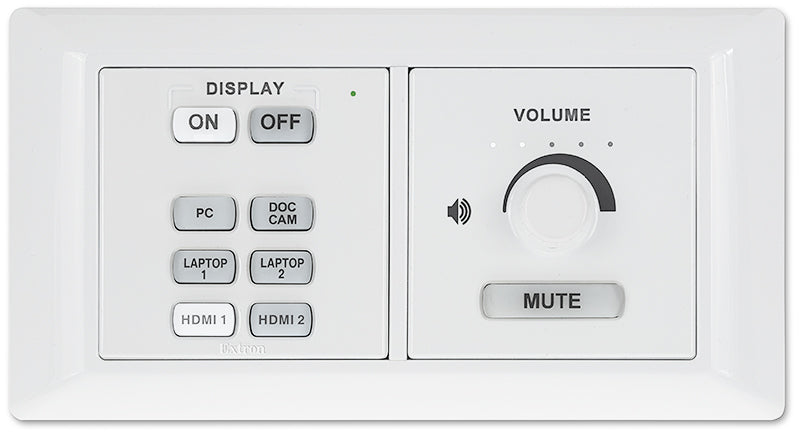

Specify this version when the room uses European back boxes rather than US junction boxes. Nine backlit soft-touch buttons and a volume knob with LED indication sit behind a white EU faceplate, and the whole panel drops into a two-gang EU box with the supplied frame. Commands reach networked displays and switchers over Ethernet, while two bidirectional RS-232 ports, two relays, an IR port and a digital input cover equipment that has no network stack. PoE at 802.3af Class 3 removes the need for a local mains supply.
Key Capabilities
- Nine customizable backlit buttons plus a rotary volume knob with LED feedback
- Mounts in a two-gang European junction box using the included EU 2-gang frame

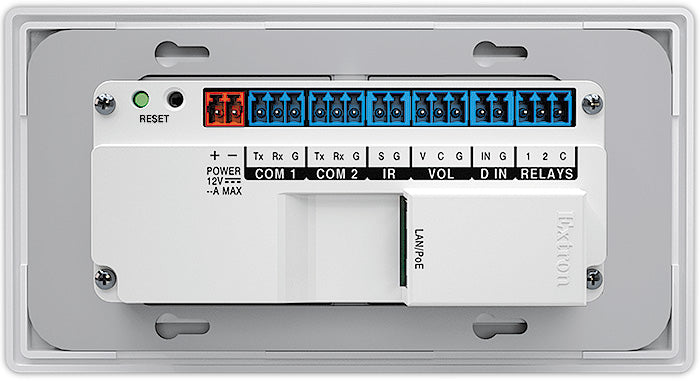

- Two bidirectional RS-232 ports on 3-pole 3.5 mm captive screw connectors
- Two normally open relays rated 24 VDC at 1 A, plus one digital input
- One IR port serving up to two emitters across a 30 kHz to 300 kHz carrier range
- Remote volume port, 0 to +10 VDC adjustable, for MPA Series and select XTRA Series amplifiers
- Draws only 2.6 watts at 12 VDC; runs on 802.3af Class 3 PoE or an external supply
Where It Is Used
European classrooms, lecture theatres, meeting rooms and training suites where a single display needs straightforward, repeatable operation. It also fits corporate sites standardizing one control panel across EU offices, and refurbishment work that must reuse existing two-gang back boxes.
Specifications at a Glance
- Ethernet: 1 female RJ-45, 10/100Base-T, half/full duplex with autodetect
- Faceplate: 3.17" H x 5.96" W x 0.39" D (81 x 152 x 9.9 mm)
- Device: 1.88" H x 4.37" W x 1.55" D; allow 1.6" (40 mm) behind the wall
- Power: 2.6 W at 12 VDC; PoE 802.3af Class 3, 48 VDC, 0.35 A
- Weight 0.4 lbs (0.2 kg); warranty 3 years parts and labor
Also referenced as Extron MLCPlus84EU, MLC-Plus-84-EU, part number 60135433.
Specifications
Specifications

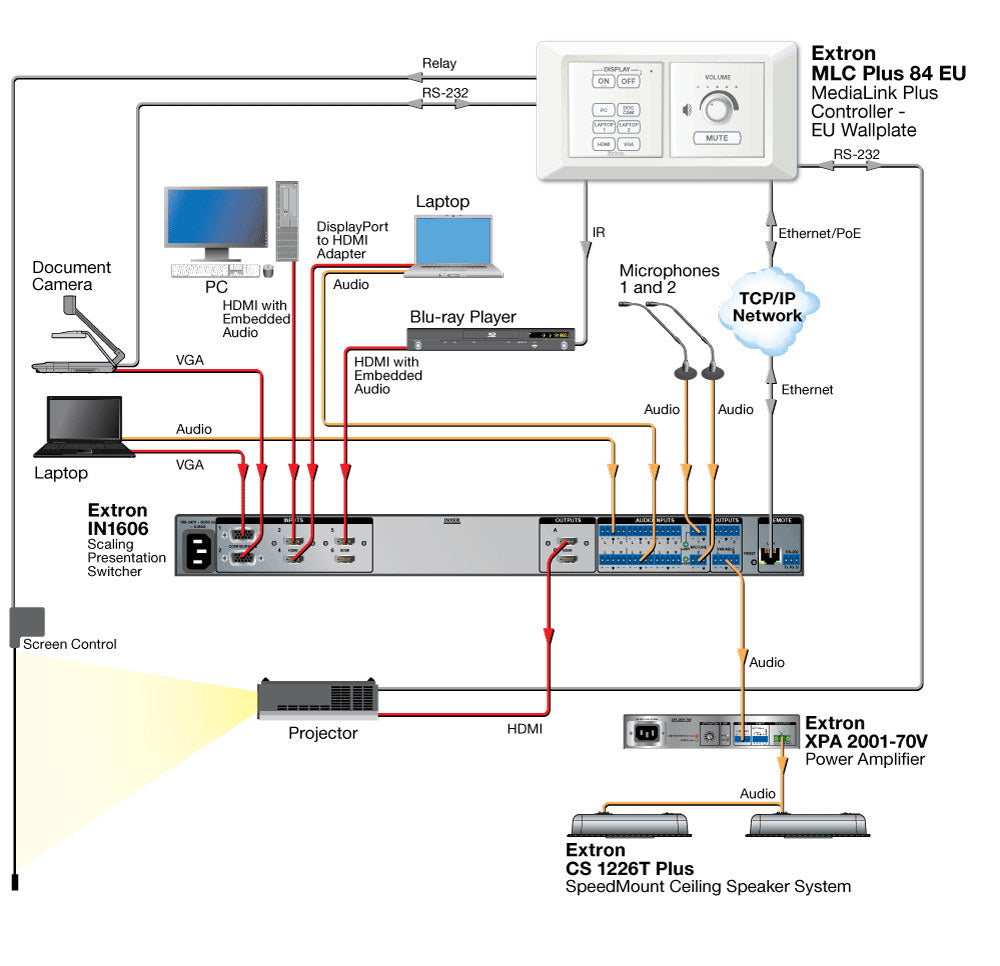

Diagram
