Extron MLC Plus 84 D MediaLink Plus Controller
- • Eleven backlit soft-touch buttons on an included white decorator-style wallplate
- • Ethernet control of networked AV gear over your existing LAN infrastructure
- • Two bidirectional RS-232 ports plus one IR port for legacy displays
- • Two normally open relays rated 24 VDC at 1 A for screens and shades
- • Remote volume port outputs 0 to +10 VDC for Extron MPA and XTRA amplifiers
- • Runs on 802.3af Class 3 PoE at 3.1 watts - one cable does everything
- • Fits a standard US 2-gang junction box or mud ring; 0.4 lbs
- • Configured with Global Configurator Plus or Professional software
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

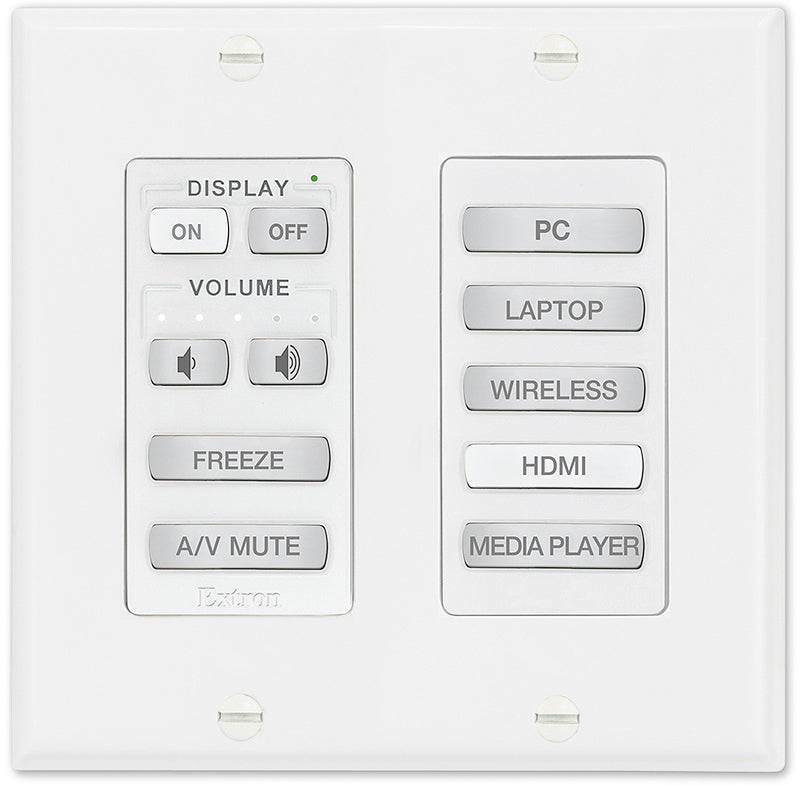

Extron MLC Plus 84 D (part number 60-1194-03) — a two-gang MediaLink Plus wall controller supplied with a white decorator-style wallplate.
Where a room needs dependable, repeatable AV control rather than a touchpanel, this unit puts eleven backlit soft-touch buttons on the wall and reaches connected equipment across the building network. Display power, source selection and level changes travel as Ethernet commands, while two bidirectional RS-232 ports, two normally open relays, an IR port and a digital input take care of projectors, screens, amplifiers and other gear that never joined the network. One Cat cable carrying 802.3af Class 3 PoE can deliver both power and control.
Key Capabilities
- Eleven customizable backlit buttons behind a white decorator-style wallplate
- Ethernet control of networked AV devices; configured in Global Configurator Plus or Professional

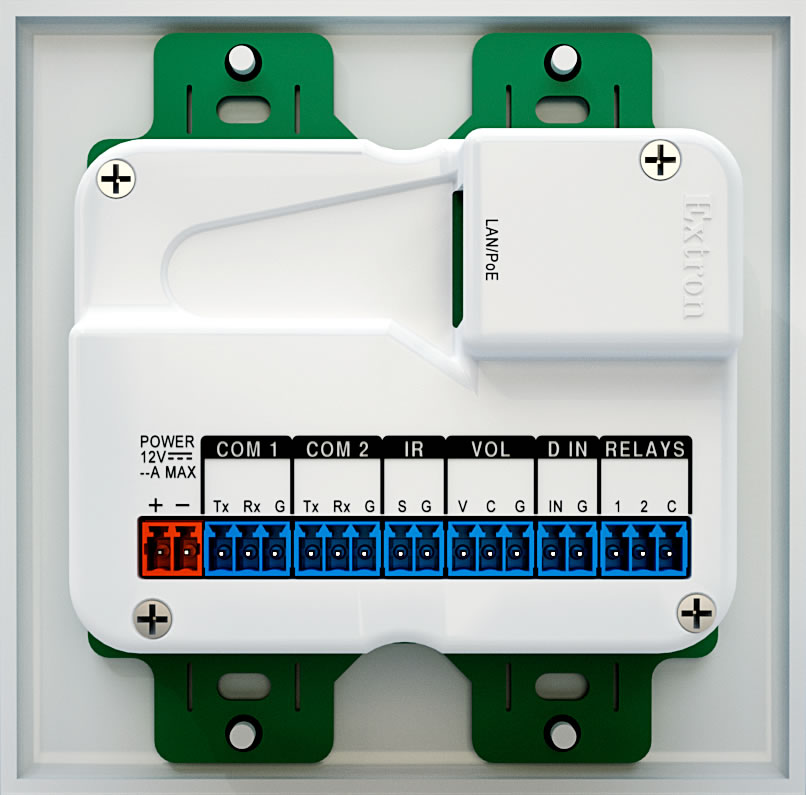

- Two bidirectional RS-232 ports on 3-pole 3.5 mm captive screw connectors
- Two normally open relays rated 24 VDC at 1 A for screens, lifts and shades
- One IR port feeding up to two emitters, with a 30 kHz to 300 kHz carrier range
- Remote volume port, 0 to +10 VDC adjustable, for MPA Series and select XTRA Series amplifiers
- 802.3af Class 3 PoE or an external 12 VDC supply — both ordered separately
Where It Is Used

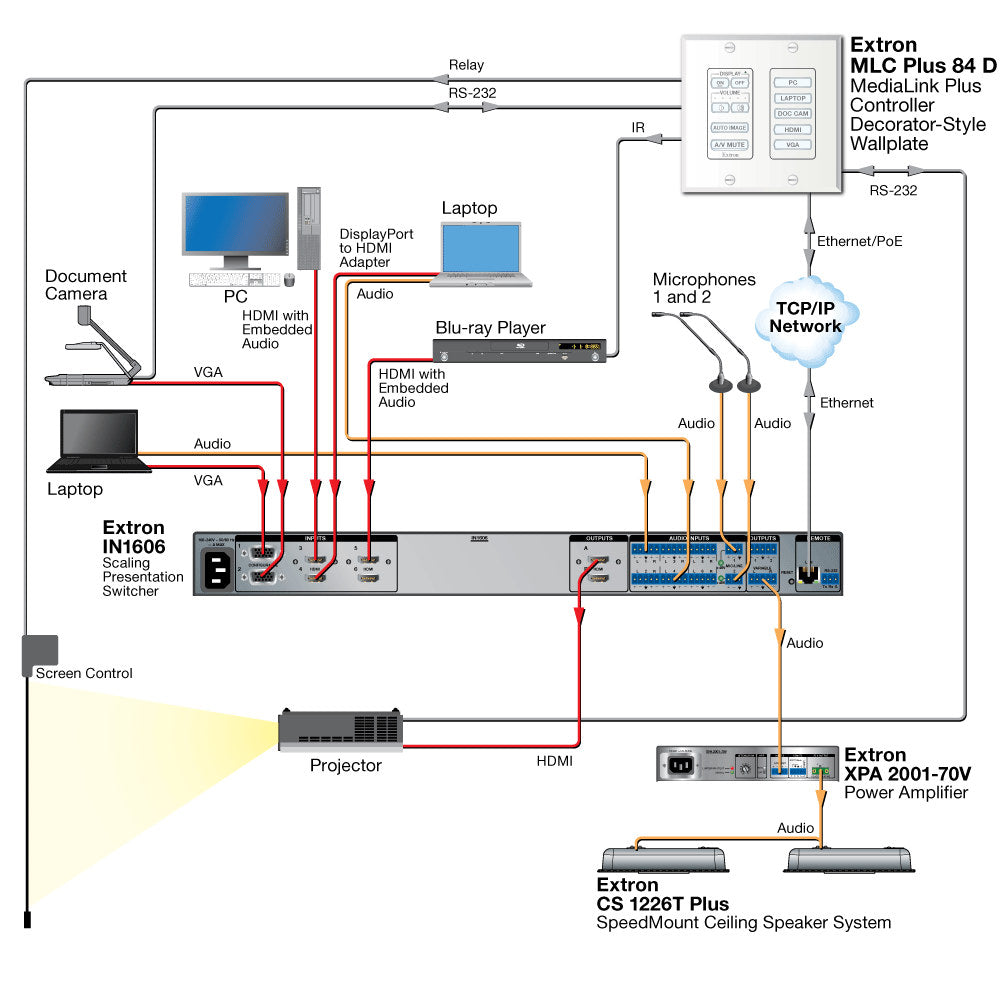

Single-display rooms: classrooms, training suites, huddle spaces and mid-size conference rooms where staff simply bring the display up, pick a laptop or document camera, set the level and walk away. The included decorator trim also suits refurbished spaces that already standardize on decorator-style wallplates throughout.
Specifications at a Glance
- Ethernet: 1 female RJ-45, 10/100/1000Base-T, half/full duplex with autodetect
- Power draw: 3.1 watts at 12 VDC; PoE 802.3af Class 3 supported
- Device size: 2.75" H x 3.52" W x 1.80" D; overall height 4.1" with mounting tabs
- Mounting: US 2-gang junction box or mud ring; optional AAP 424 panel
- Weight 0.4 lbs (0.2 kg); warranty 3 years parts and labor
Also referenced as Extron MLCPlus84D, MLC-Plus-84-D, part number 60119403.
