Extron MLC Plus 50 MediaLink Plus Wall Controller
- • Six fully configurable backlit buttons behind a screwless magnetic faceplate
- • One bidirectional RS-232 port on a 3-pole 3.5 mm captive screw connector
- • Two normally open relays rated 24 VDC, 1 A for screens, lifts and shades
- • IR output with a 30 kHz to 300 kHz carrier range, wired for up to two emitters
- • Runs on 802.3af Class 3 PoE or an external 12 VDC power supply
- • Draws just 2.1 watts at 12 VDC and weighs only 0.8 lb (0.4 kg)
- • Mounts in a standard US 2-gang junction box or mud ring
- • Covered by a 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron MLC Plus 50 (part number 60-1468-03) — a compact MediaLink Plus wall controller that hands a room's display, source and level commands to six labelled backlit buttons.

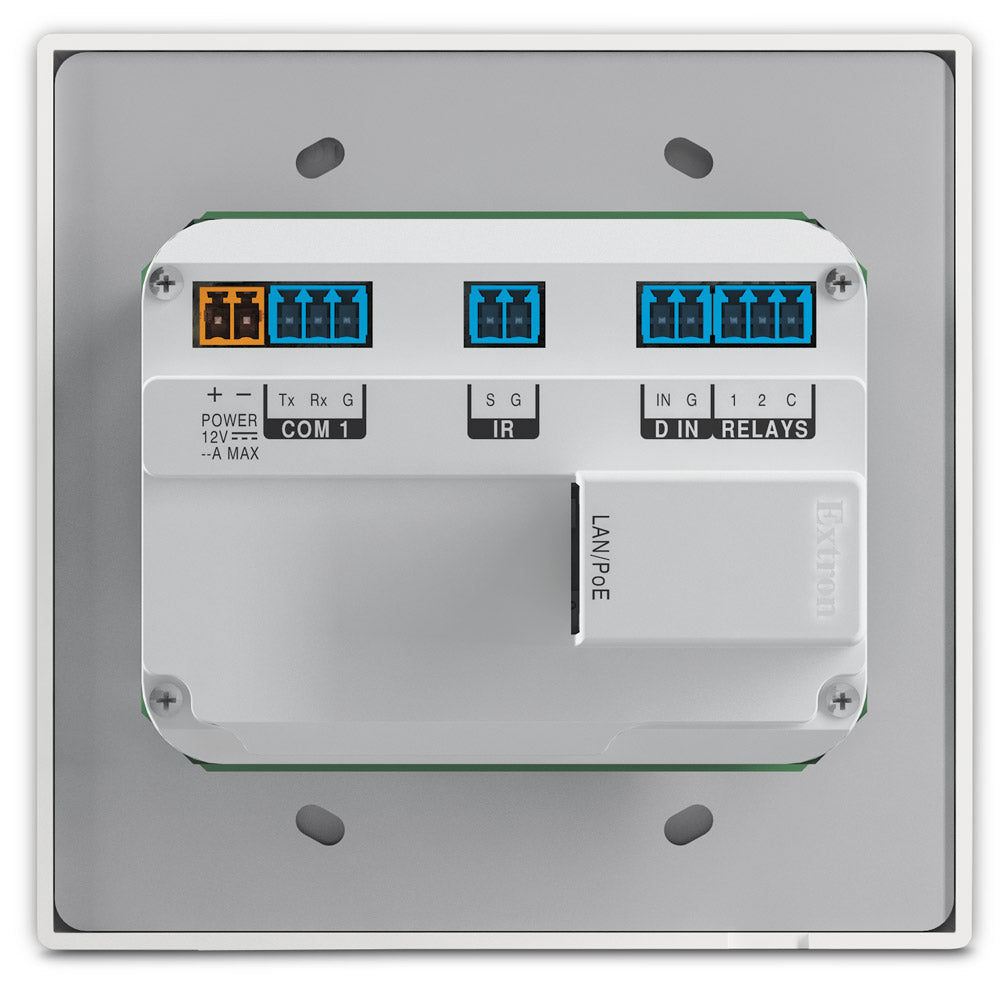

Not every space justifies a touchpanel. Where an operator only has to power a projector, pick between a couple of sources and set the level, the MLC Plus 50 covers it from a single 2-gang opening. Behind a magnetically attached, screwless faceplate sit an IP Link Pro engine, one bidirectional RS-232 port, two normally open relays, an IR output wired for as many as two emitters, and one digital input. A single Cat cable to the RJ-45 jack carries both the control network and 802.3af Class 3 PoE, so no local outlet is needed. Global Configurator Plus drives up to four Ethernet-controlled devices; Global Configurator Professional raises that ceiling to eight.
Key Capabilities

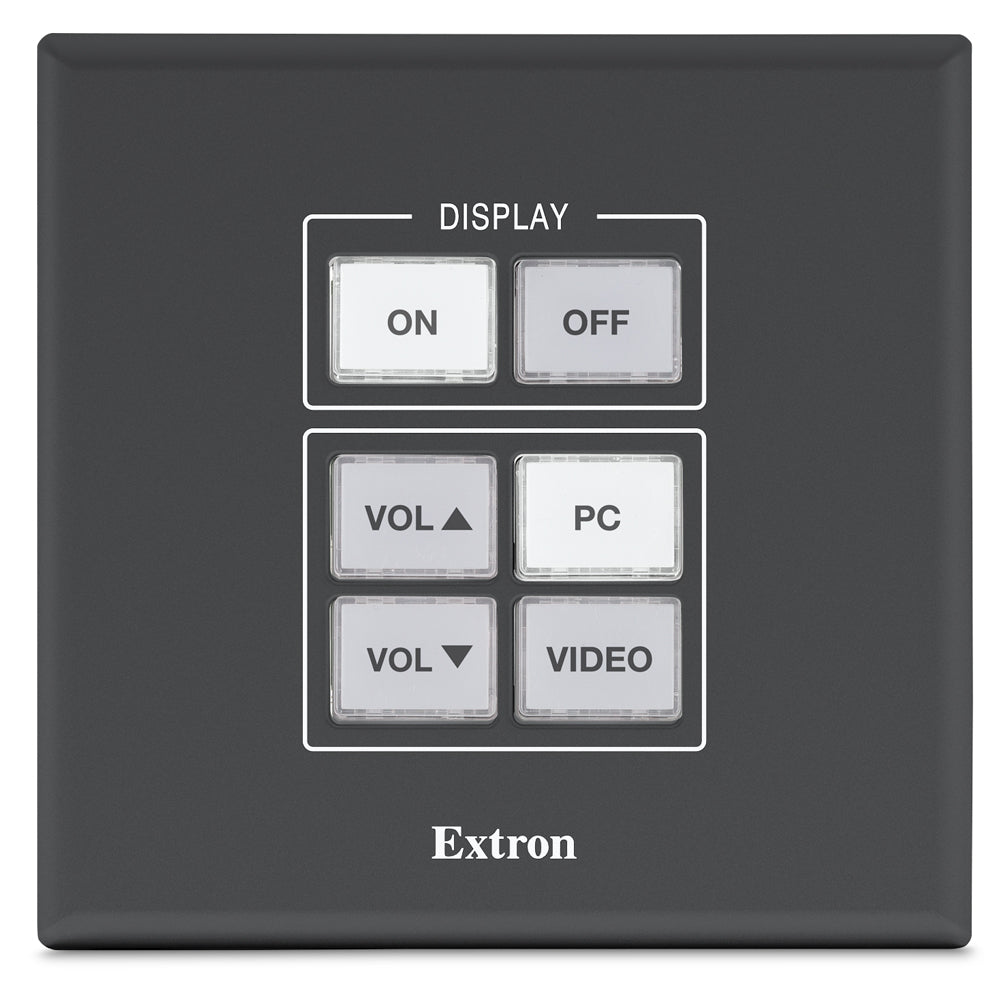

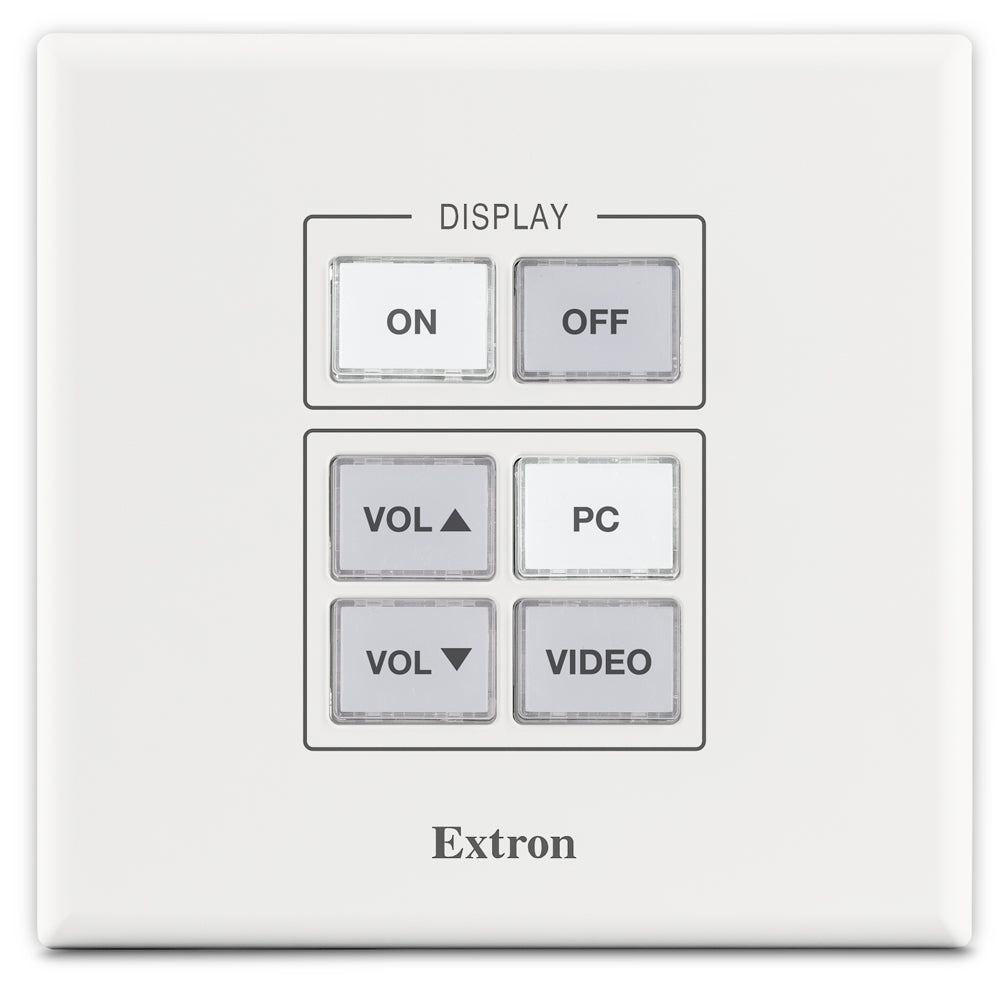

- Six backlit buttons, each freely assignable and relabelled using printed inserts
- One bidirectional RS-232 port on a 3-pole 3.5 mm captive screw connector
- Two normally open relays rated 24 VDC at 1 A for screens, lifts and shades
- IR output spanning a 30 kHz to 300 kHz carrier range, wired for up to two emitters
- One digital input accepting 0 to 24 VDC with a switchable 1k ohm pull-up to +5 VDC
- 10/100/1000Base-T RJ-45 port with 802.3af Class 3 PoE; hands off to a 12 VDC supply if PoE drops
- Configured in Global Configurator Plus or Professional and monitored via GlobalViewer Enterprise
Where It Is Used
Classrooms, training rooms, huddle spaces and small meeting rooms running a projector or flat panel from a short list of inputs. Because the mounting screws disappear beneath the faceplate, the unit also reads cleanly on lectern faces, furniture panels and lobby walls where the hardware sits in plain sight.
Specifications at a Glance
- Ethernet: 1 female RJ-45, 10/100/1000Base-T, half or full duplex with autodetect
- Power draw: 2.1 watts at 12 VDC, or 3.6 watts at 48 VDC over PoE
- Faceplate 4.50" H x 4.60" W x 0.30" D; body 2.73" H x 3.50" W x 2.16" D
- Product weight 0.8 lb (0.4 kg); fits a standard US 2-gang box or mud ring
- Warranty: 3 years parts and labor
Also referenced as Extron MLCPlus50, MLC-Plus-50, part number 60146803.
