Extron MLC Plus 400 (part number 60-2014-01) — a two-gang MediaLink Plus wall controller with a 4-inch color touch surface and the control processor built in.

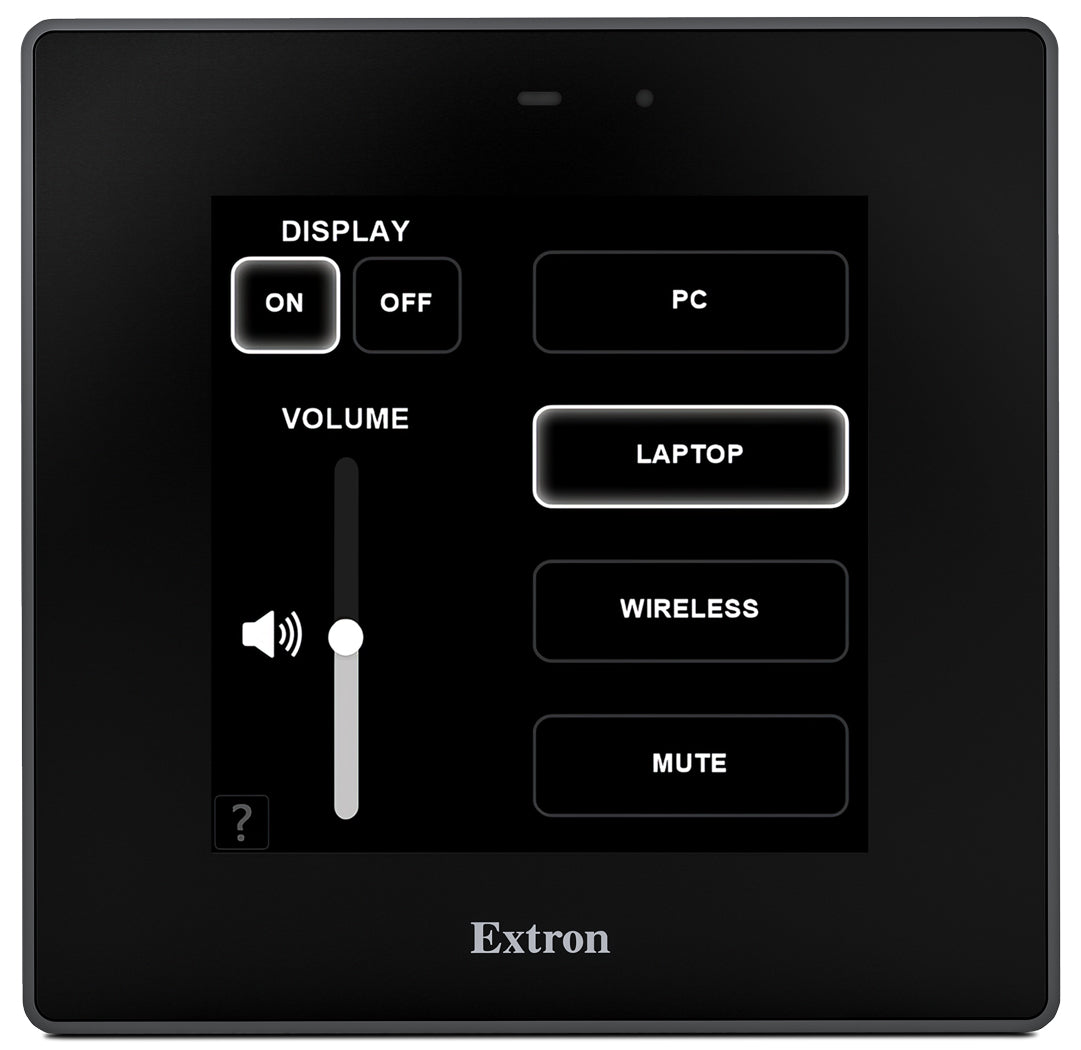

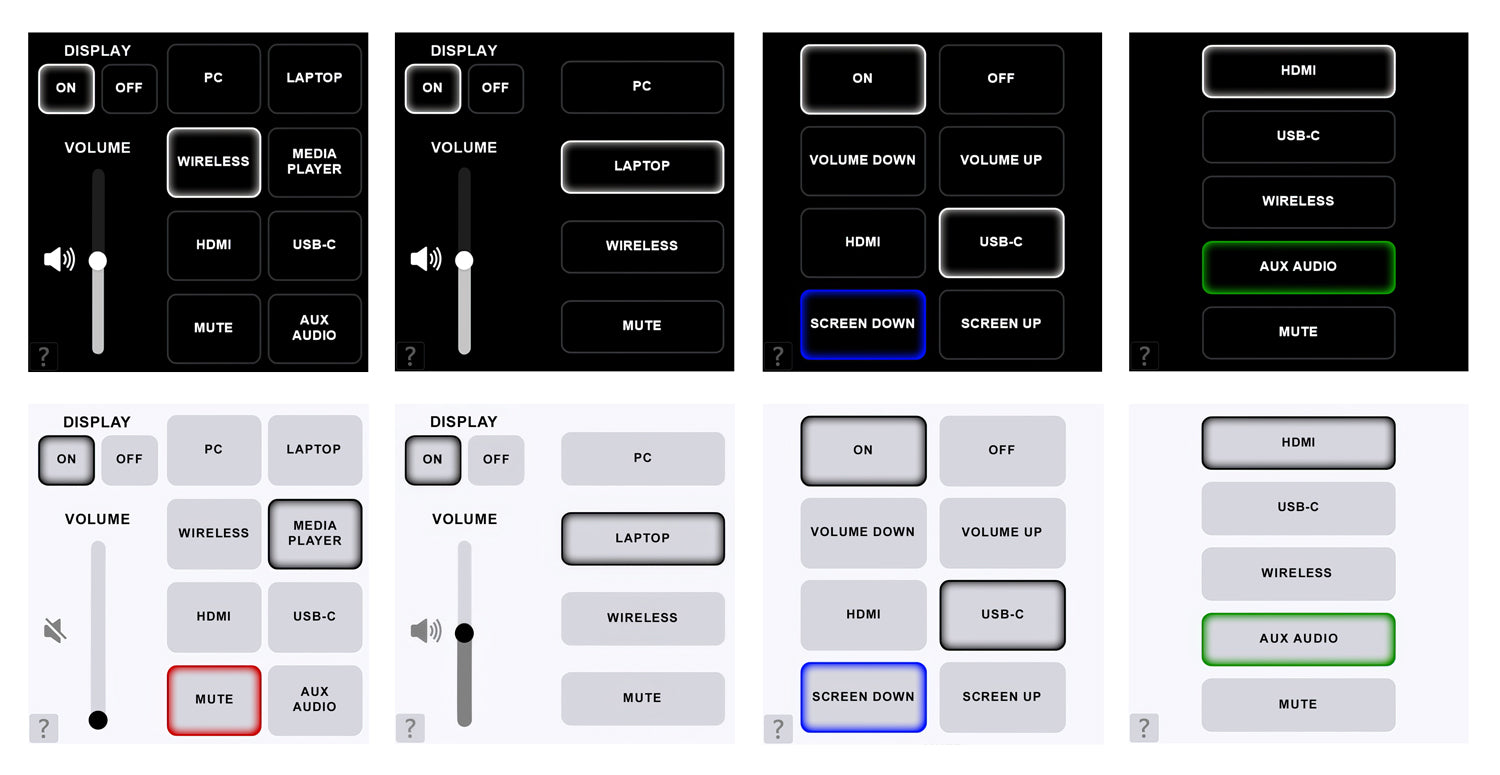

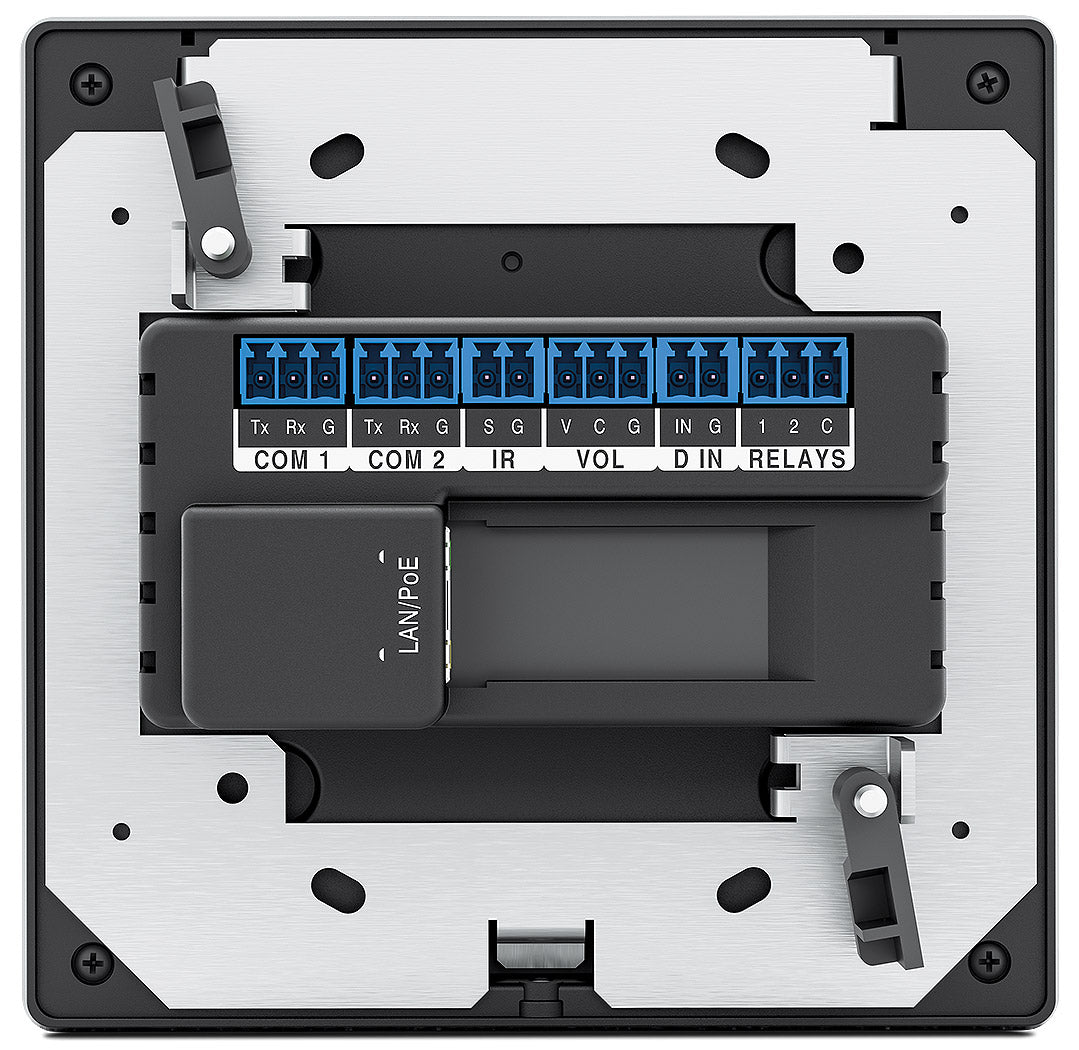

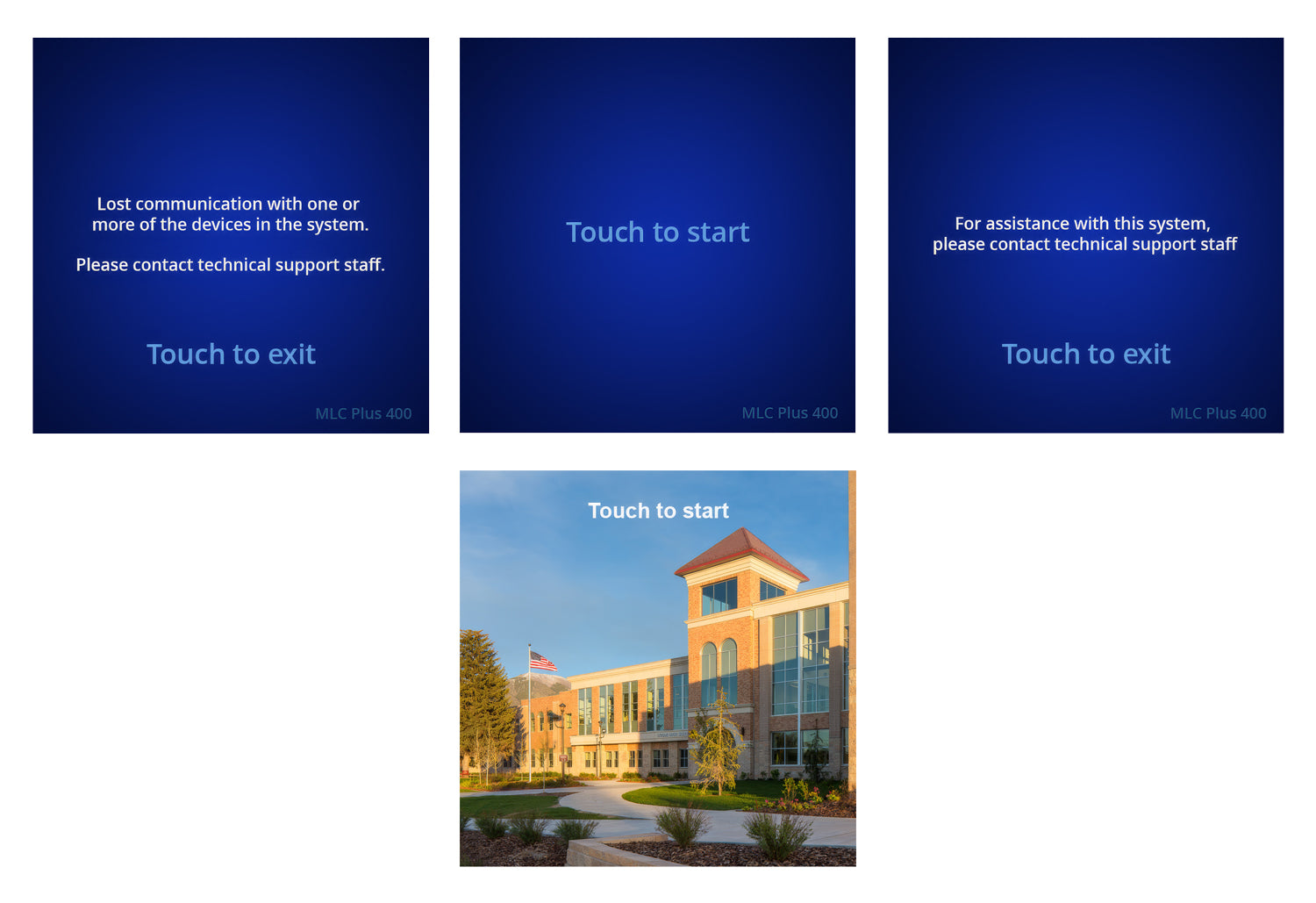

This is the touchscreen member of the MediaLink Plus line: one compact device supplies both the room interface and the processing behind it, so no separate control chassis is needed. The 4.17-inch capacitive IPS panel runs at 540 x 540 with 183 PPI behind a Gorilla Glass surface that shrugs off scratches and fingerprints. Ready-made button layouts inside Global Configurator cover display power, input choice and volume, which keeps commissioning short. Networked equipment is reached over Ethernet; everything else connects to the two RS-232 ports, IR port, two relays, digital input and volume port on the back.

Key Capabilities

4.17" capacitive IPS touchscreen, 540 x 540, 400 nits, 1200:1 contrast, 16.7 M colors
Gorilla Glass surface resists scratching and smudging in high-traffic rooms
Control processor on board — no external chassis required
Two bidirectional RS-232 ports (COM 1 and COM 2), one IR port and one digital input
Two normally open relays rated 24 VDC at 1 A, plus a 0 to +10 VDC volume port
Built-in motion and light sensors for wake behavior and brightness
Powered entirely by 802.3af Class 3 PoE at 3.5 watts
1 GB SDRAM and 8 GB flash; managed through GlobalViewer Enterprise

Where It Is Used

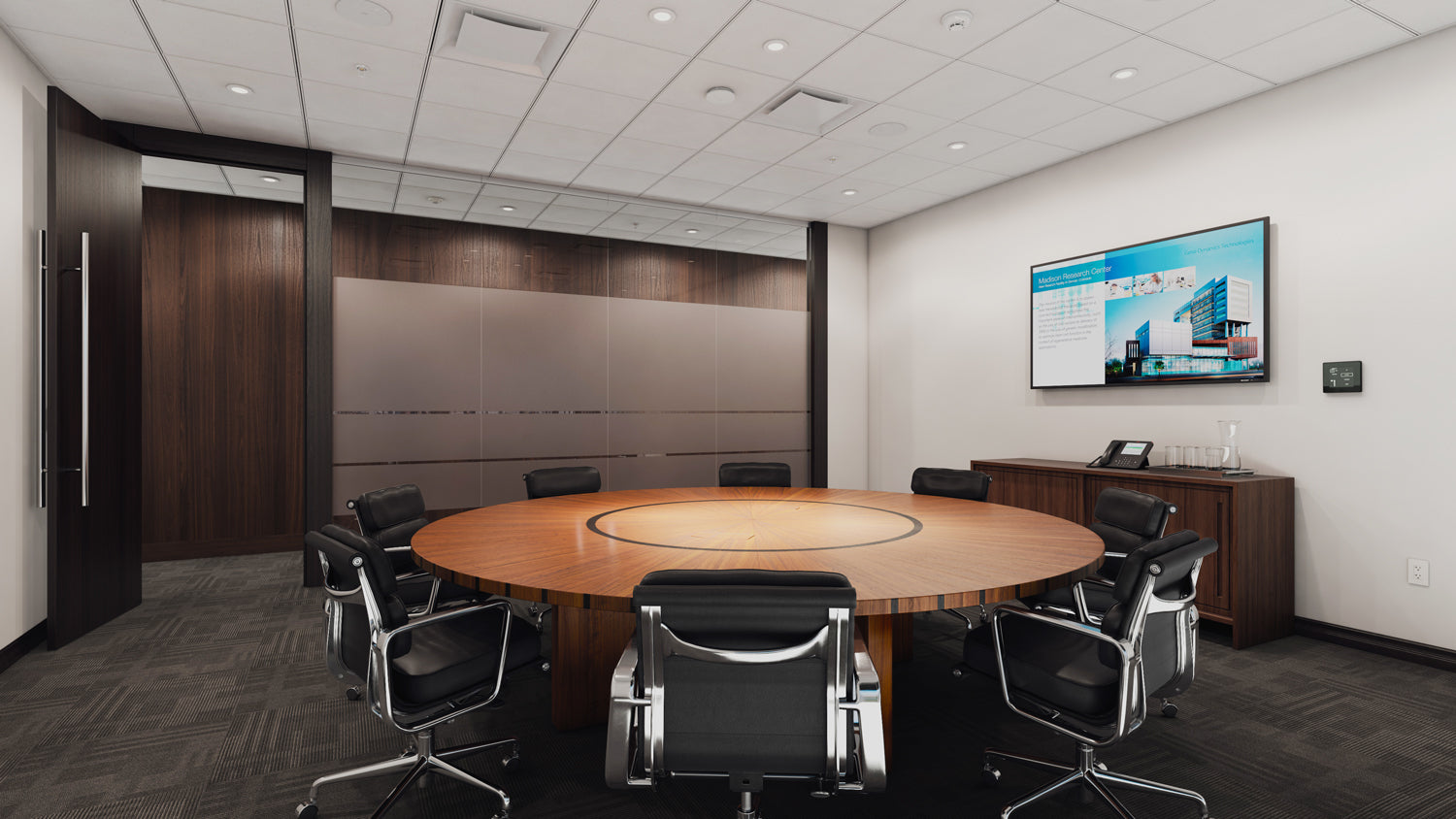

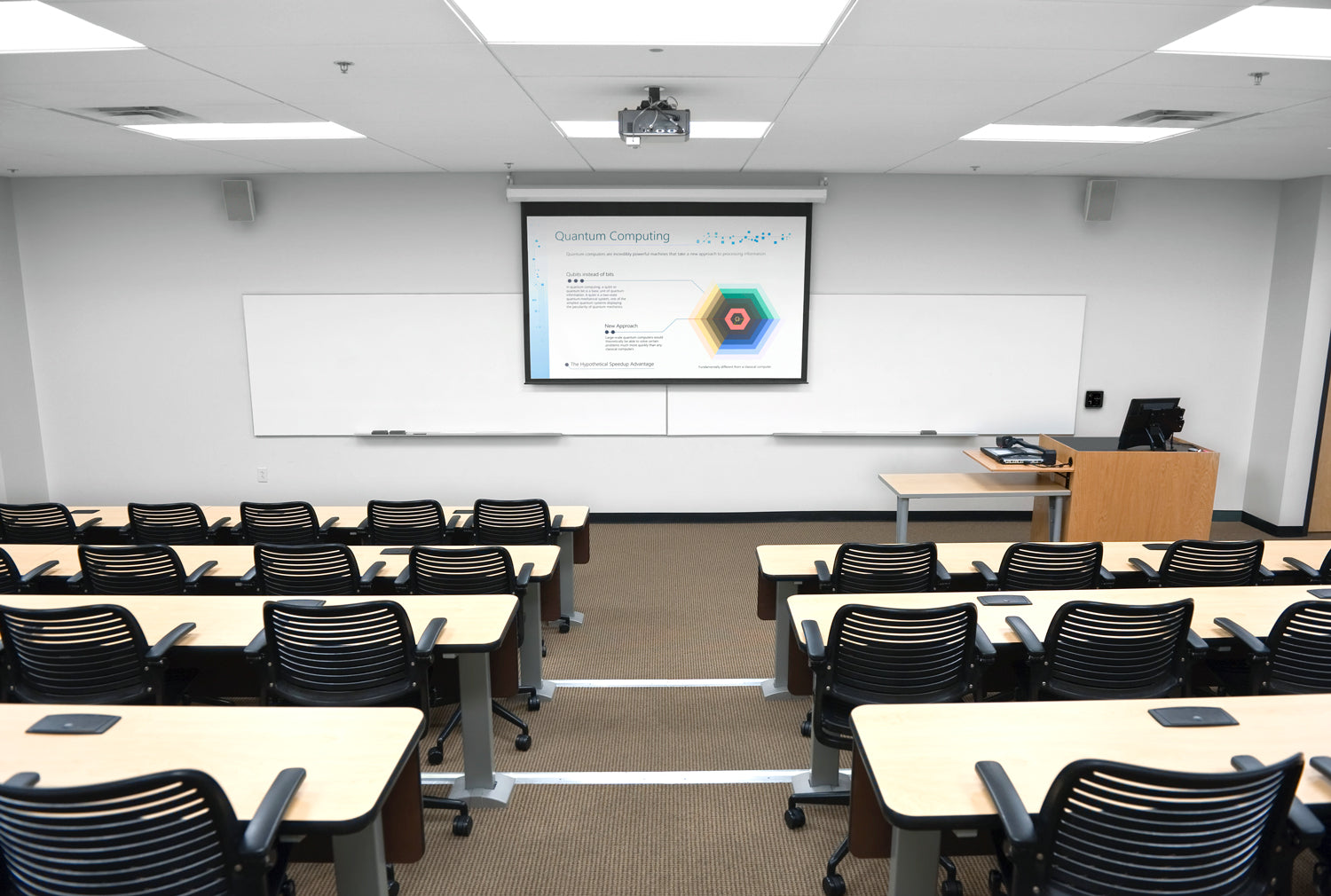

Classrooms, boardrooms, training rooms and huddle spaces that want a polished glass interface without the cost or rack space of a separate processor and touchpanel. Its two-gang footprint also fits lecture theatre lecterns, clinical briefing rooms and any wall where the panel is on constant public view.

Specifications at a Glance

Display: 4.17" (106 mm) diagonal IPS LCD, 1:1 aspect, +/-85 degree viewing angle
Ethernet: 1 female RJ-45, 10/100Base-T, half/full duplex with autodetect
Faceplate: 4.60" H x 4.70" W x 0.46" D; device 1.80" H x 3.50" W x 1.60" D
Mounting: 2-gang US junction box, 2-gang EU raceway, or surface clamps
Weight 0.75 lb (0.34 kg); 3 years parts and labor, 1 year on display and overlay

Also referenced as Extron MLCPlus400, MLC-Plus-400, part number 60201401.

Specifications

Part Number: 60-2014-01

Manufacturer: Extron

Model: MLC Plus 400

Version: Black, 4 in touch surface, 2-gang

Condition: New

Screen Type: IPS color LCD

Screen Size: 4.17 in (106 mm), measured diagonally

Resolution: 540 x 540

Pixel Density: 183 PPI

Aspect Ratio: 1:1

Color Depth: 16.7 M colors

Transparency: 8 bit

Brightness: 400 nits (cd/m2)

Contrast Ratio: 1200:1

Backlight: LED

Viewing Angle: Plus or minus 85 degrees horizontal, plus or minus 85 degrees vertical

Touch Screen: Capacitive

SDRAM: 1 GB

Flash Memory: 8 GB

Configuration Software: Global Configurator Plus and Professional

Control Apps: Extron Control

Resource Management Software: GlobalViewer Enterprise

Utilities: Toolbelt, embedded web page

Network Interface Controllers: 1

Ethernet Connector: 1 female RJ-45 connector

Ethernet Data Rate: 10/100Base-T, half/full duplex with autodetect

Network Protocols: ARP, DHCP, DNS, HTTP (redirect), HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Ethernet Default Settings: Link speed and duplex autodetected; IP address 192.168.254.250; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; DNS 127.0.0.1

Serial Ports: 2 bidirectional RS-232

COM 1 Connector: (1) 3.5 mm captive screw, 3 pole

COM 2 Connector: (1) 3.5 mm captive screw, 3 pole

Serial Baud Rate and Protocol: 300 to 115200 baud (9600 default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even or odd

Serial Pin Configuration: Pin 1 = Tx, 2 = Rx, 3 = Gnd

IR Port: (1) 3.5 mm captive screw, 2 pole, for TTL level (0 to 5 V) infrared control up to 300 kHz, carrier and non-carrier

IR Output Carrier Frequency: 30 kHz to 300 kHz

IR Pin Configuration: Pin 1 = signal, 2 = Gnd

Digital Input: 1 digital input (configurable)

Digital Input Connector: (1) 3.5 mm captive screw, 2 pole

Digital Input Voltage Range: 0 to 24 VDC

Digital Input Impedance: Greater than 10k ohms

Digital Input Programmable Pullup: 1k ohms to +5 VDC

Digital Input Threshold Low to High: Greater than 2.8 VDC

Digital Input Threshold High to Low: Less than 2.0 VDC

Digital Input Pin Configuration: 1 = digital input, 2 = Gnd

Relays: 2 normally open relays

Relay Connector: (1) 3.5 mm captive screw, 3 pole

Relay Contact Rating: 24 VDC, 1 A

Volume Control: 1 volume control, compatible with select Extron amplifiers

Volume Control Connector: (1) 3.5 mm captive screw connector, 3 pole

Volume Control Pin Configuration: Pin 1 = 10 VDC or less reference voltage input, pin 2 = 0 to +10 VDC control voltage output, pin 3 = Gnd

Control Voltage Output Range: 0 to +10 VDC (plus or minus 0.2 volts), adjustable

Motion Sensor: On/off

Light Sensor: Auto/manual

Power Supply: External, not included

Power over Ethernet: Complies with PoE 802.3af, class 3

Power over Ethernet Supply: Optional; supplied by an external PoE inserter power supply. Input 100-240 VAC, 50-60 Hz; output PoE 802.3af, 48 VDC, 0.35 A, 16.8 watts

Power Input Requirements: Power over Ethernet (complies with PoE 802.3af, class 3)

Power Consumption, Device: 3.5 watts

Power Consumption, Device and PoE Injector: 4.5 watts

Temperature and Humidity: Storage -40 to +158 F (-40 to +70 C) at 10% to 90% noncondensing; operating +32 to +122 F (0 to +40 C) at 10% to 90% noncondensing

Cooling: Convection, no vents

Thermal Dissipation, Device: 12.0 BTU/hr

Thermal Dissipation, Device and PoE Injector: 15.3 BTU/hr

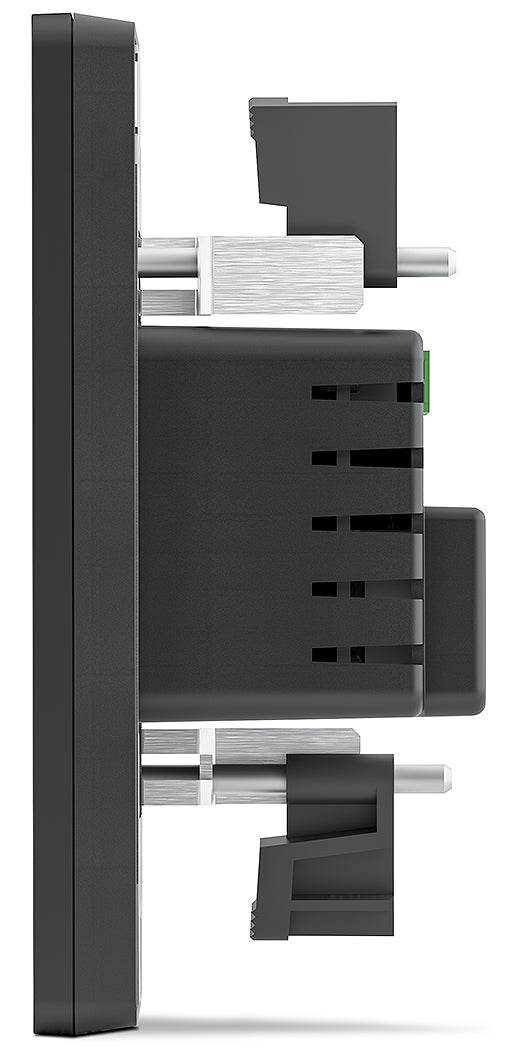

Furniture or Wall Mount: Mounts in a standard 2-gang US electrical junction box and 2-gang EU cable channel or raceway, or directly onto a surface with the integrated clamps using the provided mounting plate

Enclosure Type: Plastic

Faceplate Dimensions: 4.60 in H x 4.70 in W x 0.46 in D (117 mm H x 120 mm W x 12 mm D)

Device Dimensions: 1.80 in H x 3.50 in W x 1.60 in D (46 mm H x 89 mm W x 40 mm D); depth excludes faceplate; fits most 2 gang US and 2 gang EU electrical junction boxes; allow at least 2.10 in (53 mm) depth in the wall or furniture

Product Weight: 0.75 lb (0.34 kg)

Regulatory Compliance: CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI class A, RoHS, WEEE

Product Warranty: 3 years parts and labor; touchscreen display and overlay components are covered for 1 year

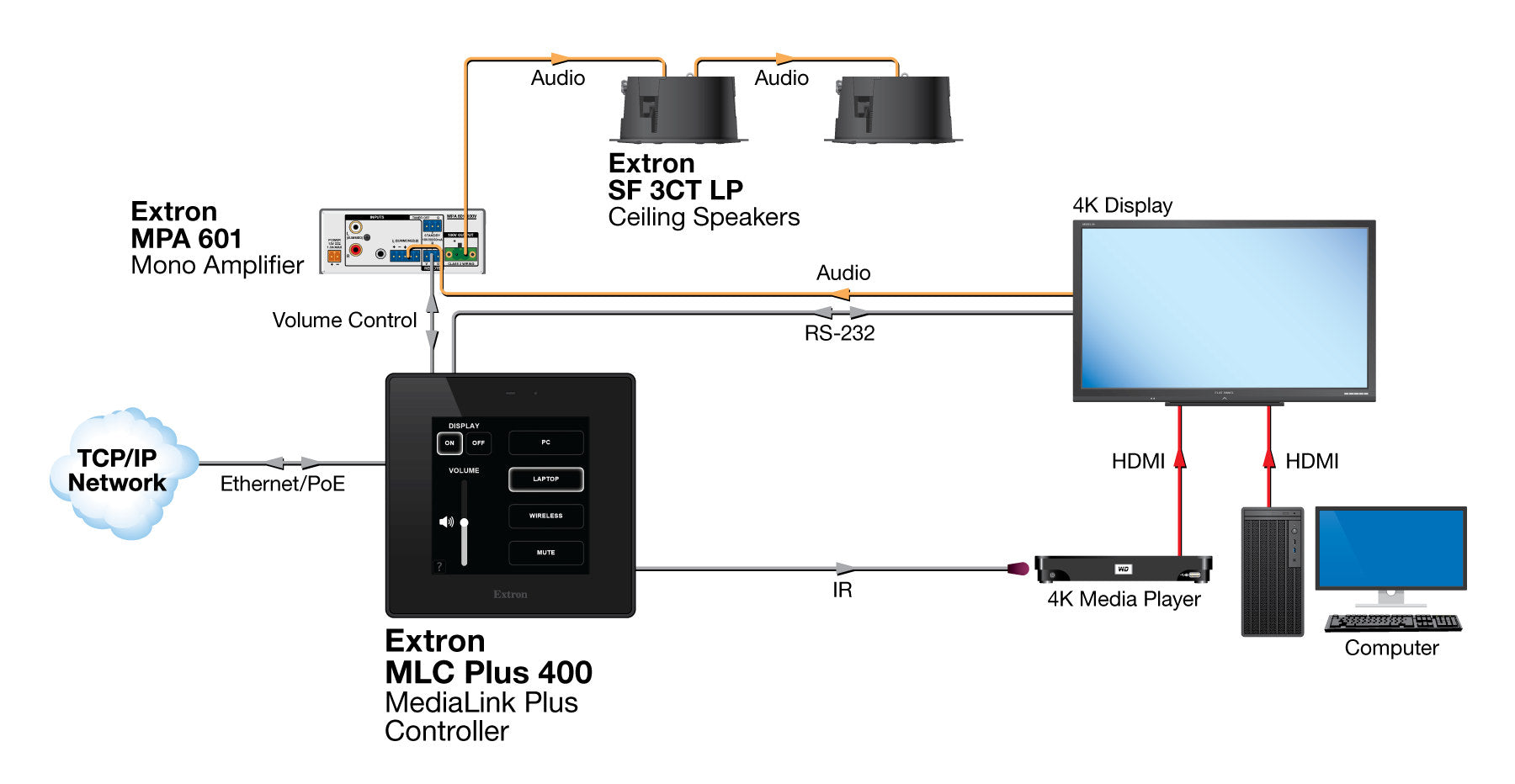

Diagram

Resources

Brochure | MLC Plus 400 60-2014-01 | MLC Plus 400 (mlc_plus_400_revA2.pdf)

Brochure | MLC Plus 400 60-2014-01 | MLC Plus 400 (MLC_Plus_400_Rev_A_CN_Online.pdf)

Brochure | MLC Plus 400 60-2014-01 | MLC Plus 400 (mlc_plus_400_revA1_IT.pdf)

Brochure | MLC Plus 400 60-2014-01 | MLC Plus 400 (mlc_plus_400_revA1_GE.pdf)

Brochure | MLC Plus 400 60-2014-01 | MLC Plus 400 (mlc_plus_400_revA1_SP.pdf)

Manual | MLC Plus 400 60-2014-01 | Control Systems Network Ports, Protocols, and Licenses

Manual | MLC Plus 400 60-2014-01 | MLC Plus 400 Setup Guide

Manual | MLC Plus 400 60-2014-01 | MLC Plus 400 User Guide

Specifications | MLC Plus 400 60-2014-01 | MLC Plus 400

Panel Drawing | MLC Plus 400 60-2014-01 | MLC Plus 400

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron MLC Plus 400 4" Touchscreen MediaLink Controller 60-2014-01

Name: Extron MLC Plus 400 4" Touchscreen MediaLink Controller 60-2014-01
Brand: Extron
SKU: EXTRON-MLCPLUS400-60201401
Availability: InStock

Manufacturer: Extron

Type: MediaLink Plus Controllers

Extron MLC Plus 400 Touchscreen MediaLink Plus Controller

• 4.17 in capacitive IPS touchscreen at 540 x 540 and 183 PPI
• Gorilla Glass surface resists scratches and fingerprint smudging
• Control processor built in - no separate control chassis to buy or rack
• Ready-made Global Configurator button layouts shorten commissioning
• Two RS-232 ports, one IR port, one digital input and two 24 VDC 1 A relays
• Motion and light sensors adjust wake behaviour and screen brightness
• Runs on 802.3af Class 3 PoE at just 3.5 watts - one cable install
• Fits a 2-gang US junction box, 2-gang EU raceway, or surface clamps
