Extron MLC Plus 200 AAP MediaLink Plus Wall Controller
- • Ten configurable backlit buttons plus a volume knob with LED indication
- • Faceplate aperture holds up to four single-space Extron AAP plates
- • Two bidirectional RS-232 ports on 3-pole 3.5 mm captive screw connectors
- • Remote volume port with adjustable 0 to +10 VDC output for Extron amps
- • Two normally open relays rated 24 VDC, 1 A, plus IR and a digital input
- • One cable does it all: gigabit Ethernet with 802.3af Class 3 PoE
- • Mounts in a standard US 5-gang junction box; 4.50 in x 10.04 in faceplate
- • Backed by a 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron MLC Plus 200 AAP (part number 60-1541-02) — the widest panel in the MediaLink Plus family, combining a ten-button control surface with a four-space AAP aperture in one five-gang opening.

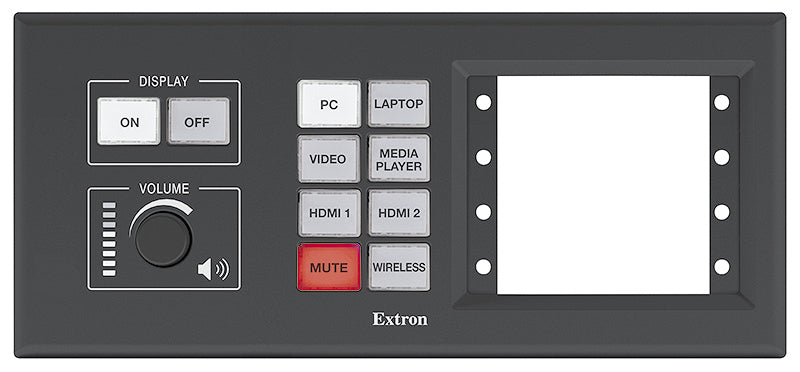

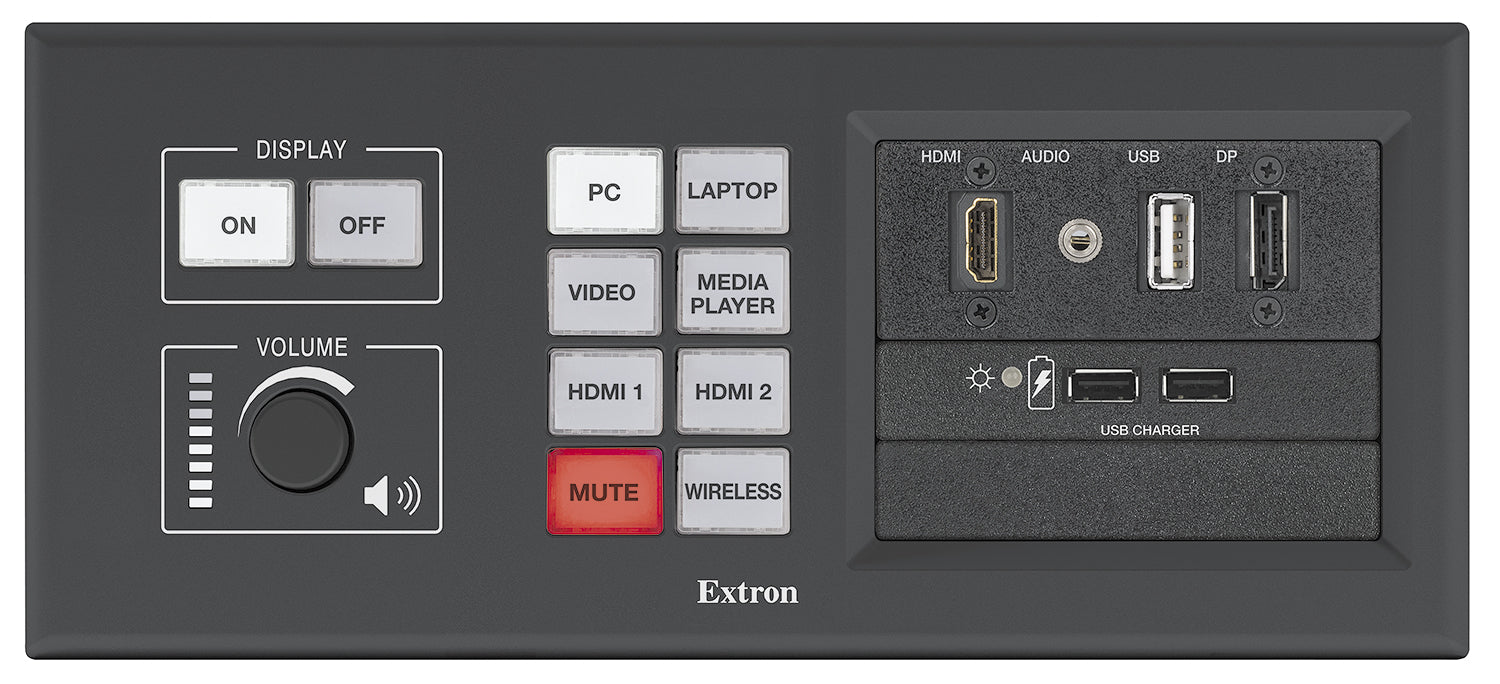

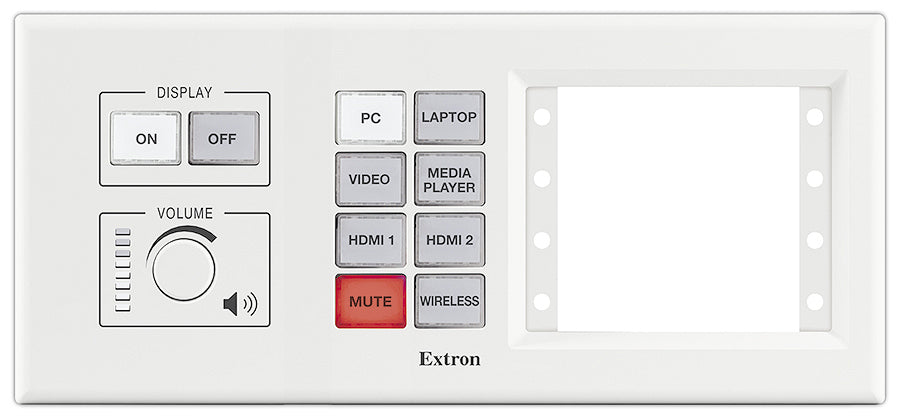

This is the model to specify when a room needs plenty of direct-access buttons and its connection plate in the same location. Ten backlit buttons and a volume knob with LED indication sit at the left of the magnetically held faceplate; the remaining aperture takes up to four single-space Architectural Adapter Plates for HDMI, VGA, audio, USB or charging terminations. Two bidirectional RS-232 ports, two normally open relays, an IR output and a digital input handle the room hardware, and a remote volume port drives Extron MPA Series and select XTRA Series amplifiers. Data and 802.3af Class 3 PoE share one RJ-45 run.
Key Capabilities
- Ten configurable backlit buttons plus a volume knob with LED indication
- Aperture for four single-space Extron AAP plates on a metal mounting bracket

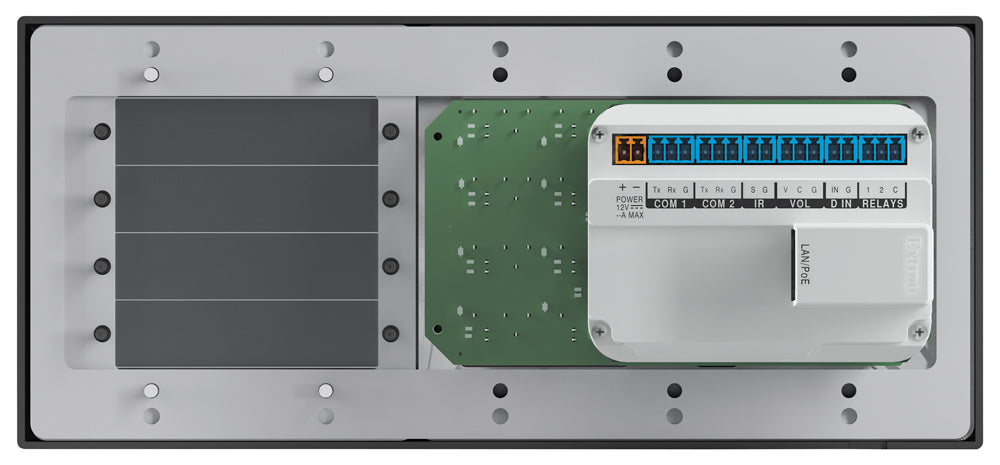

- Two bidirectional RS-232 ports on 3-pole 3.5 mm captive screw connectors
- Remote volume control port with an adjustable 0 to +10 VDC output
- Two normally open relays rated 24 VDC at 1 A, one IR output, one digital input
- Powered and networked over one 10/100/1000Base-T cable using 802.3af Class 3 PoE
- Drives up to four Ethernet devices in GC Plus, or eight in GC Professional

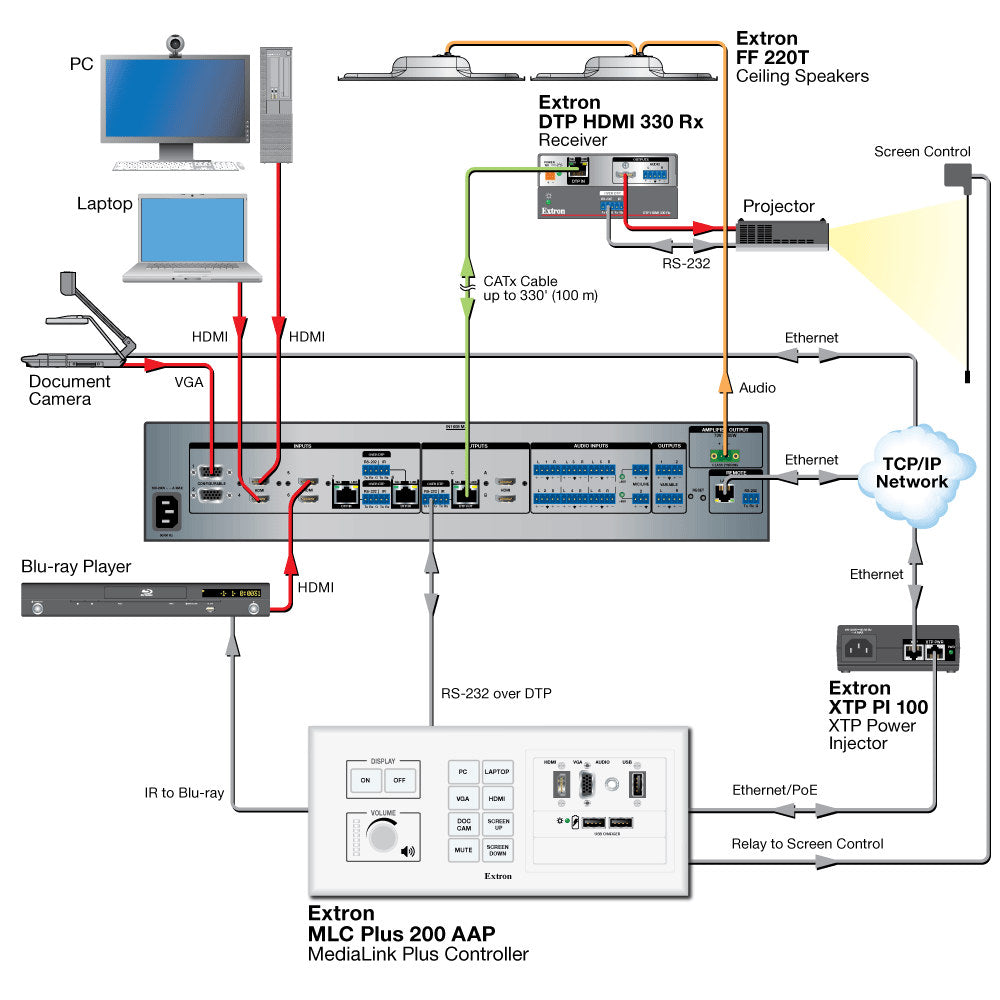

Where It Is Used
Auditoriums, large lecture theatres, boardrooms and multipurpose halls that switch several sources, raise and lower a screen, and still need laptop connectivity at the wall. The five-gang plate keeps the whole interface on one architectural surface rather than splitting it across two boxes.
Specifications at a Glance
- Serial: 2 bidirectional RS-232, 300 to 115200 baud, 9600 baud default
- Power draw: 2.2 watts at 12 VDC, or 4.0 watts at 48 VDC over PoE
- Faceplate 4.50" H x 10.04" W x 0.30" D; body 2.73" H x 5.18" W x 2.16" D
- Product weight 1.0 lb (0.5 kg); fits a standard US 5-gang box or mud ring
- Warranty: 3 years parts and labor
Also referenced as Extron MLCPlus200AAP, MLC-Plus-200-AAP, part number 60154102.
