Extron MLC Plus 200 MediaLink Plus Wall Controller
- • Ten backlit buttons for direct one-press access to every room source
- • Volume knob with LED indication and 0 to +10 VDC adjustable output
- • Two bidirectional RS-232 ports on 3-pole 3.5 mm captive screw connectors
- • Two normally open relays rated 24 VDC, 1 A for screens, lifts and shades
- • IR output spanning 30 kHz to 300 kHz, wired for up to two emitters
- • Single-cable install on 802.3af Class 3 PoE; 2.2 watts at 12 VDC
- • Mounts in a standard US 3-gang junction box or mud ring
- • Backed by a 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron MLC Plus 200 (part number 60-1470-02) — the ten-button member of the MediaLink Plus family, sized for rooms with more sources than a six-button panel can cover.

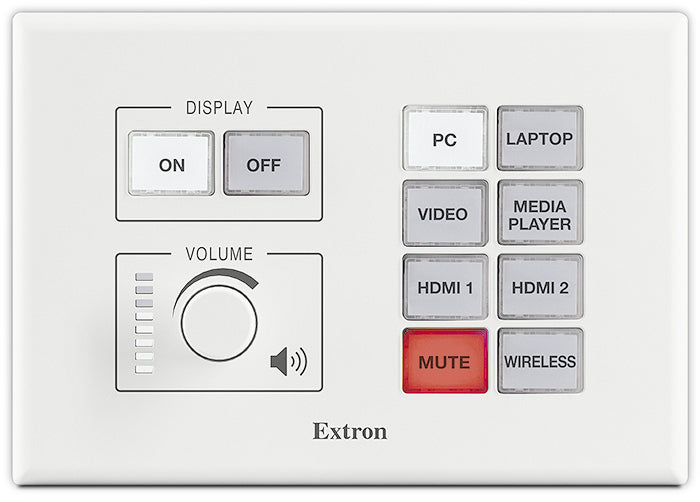

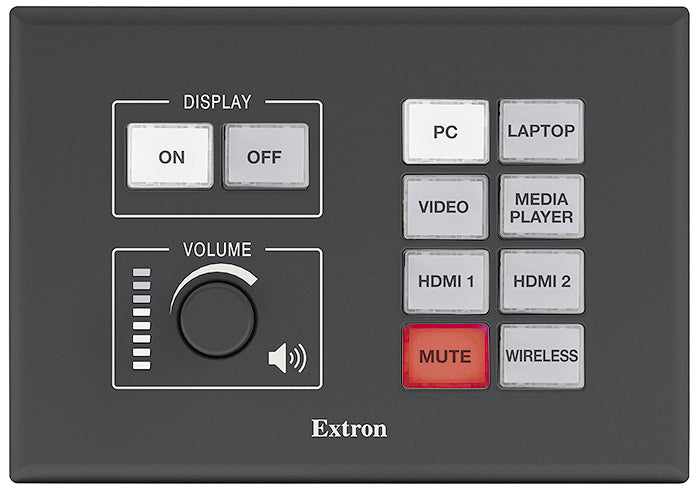

When a space runs a laptop, a resident PC, a document camera and a motorised screen, the operator needs a button for each rather than a menu. The MLC Plus 200 lays out ten backlit, individually labelled buttons alongside a volume knob with LED indication, all in a three-gang footprint. Two bidirectional RS-232 ports, two normally open relays, an IR output and a digital input reach the room hardware, while a remote volume port feeds Extron MPA Series and select XTRA Series amplifiers. One RJ-45 connection supplies both the control network and 802.3af Class 3 PoE.
Key Capabilities
- Ten backlit buttons, each configurable and relabelled with printed inserts
- Volume knob with LED indication and an adjustable 0 to +10 VDC control output

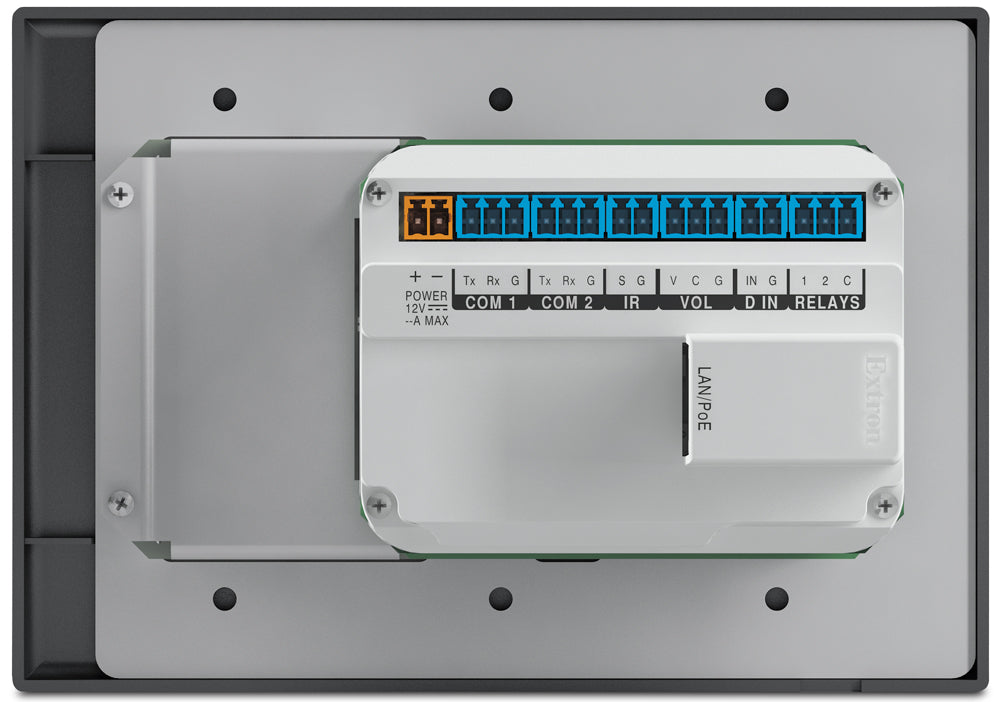

- Two bidirectional RS-232 ports on 3-pole 3.5 mm captive screw connectors
- Two normally open relays rated 24 VDC at 1 A for screens, lifts and shades
- IR output from 30 kHz to 300 kHz, wired for as many as two emitters
- 10/100/1000Base-T RJ-45 port carrying data and 802.3af Class 3 PoE together
- Programmed in Global Configurator Plus or Professional; monitored in GlobalViewer Enterprise
Where It Is Used
Lecture halls, divisible training rooms, boardrooms and command spaces with several sources plus screen or shade control. The three-gang plate gives room for direct-access source buttons, so presenters reach the input they want in one press instead of cycling through a list.
Specifications at a Glance
- Serial: 2 bidirectional RS-232, 300 to 115200 baud, 9600 baud default
- Power draw: 2.2 watts at 12 VDC, or 4.0 watts at 48 VDC over PoE
- Faceplate 4.50" H x 6.42" W x 0.30" D; body 2.73" H x 5.18" W x 2.16" D
- Product weight 1.0 lb (0.5 kg); fits a standard US 3-gang box or mud ring
- Warranty: 3 years parts and labor
Also referenced as Extron MLCPlus200, MLC-Plus-200, part number 60147002.
Specifications
Specifications

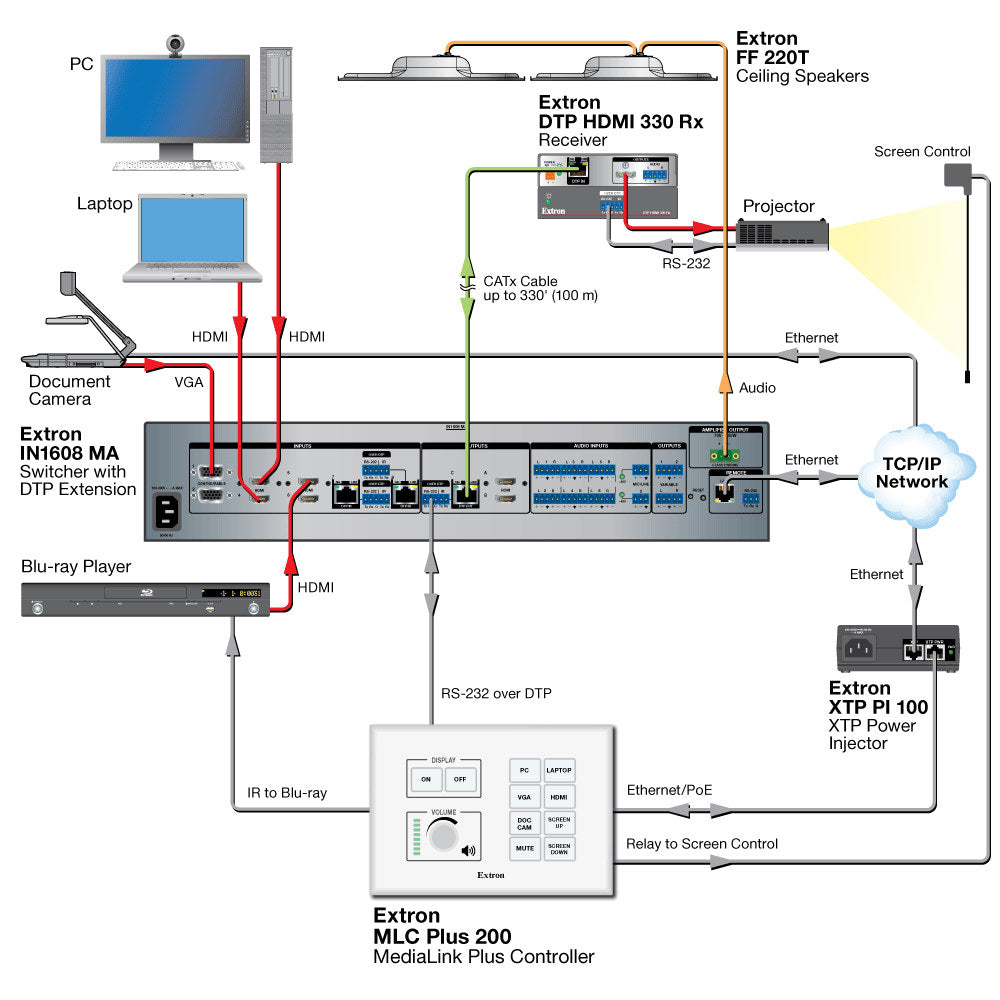

Diagram
