Extron MLC Plus 100 AAP MediaLink Plus Wall Controller
- • Six customizable backlit buttons plus a volume knob with LED feedback
- • Faceplate opening accepts up to four single-space Extron AAP plates
- • Two bidirectional RS-232 ports on 3-pole 3.5 mm captive screw connectors
- • Remote volume port with adjustable 0 to +10 VDC output for Extron amps
- • Two normally open relays rated 24 VDC, 1 A, plus IR and a digital input
- • Runs on 802.3af Class 3 PoE, drawing 2.2 watts at 12 VDC
- • Mounts in a standard US 4-gang junction box or mud ring
- • Backed by a 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

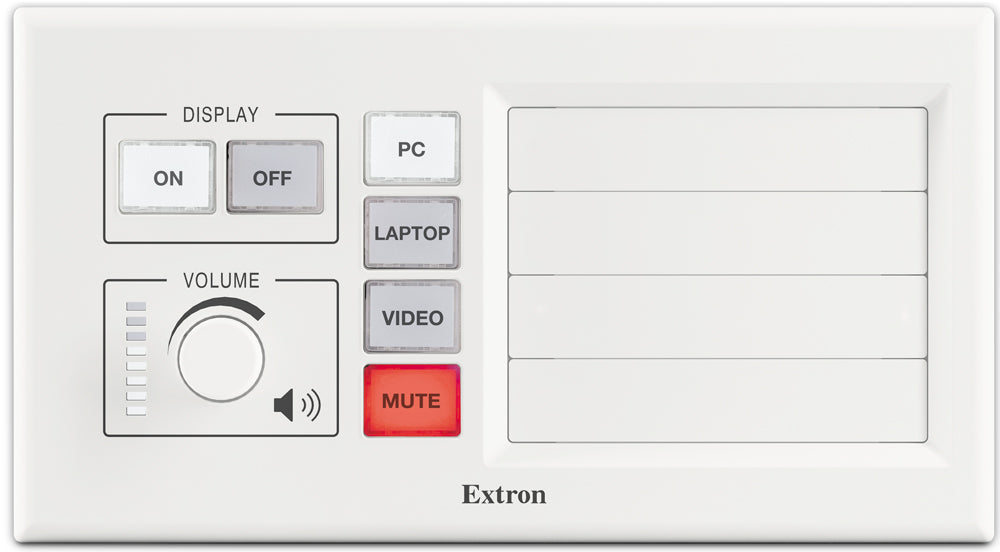

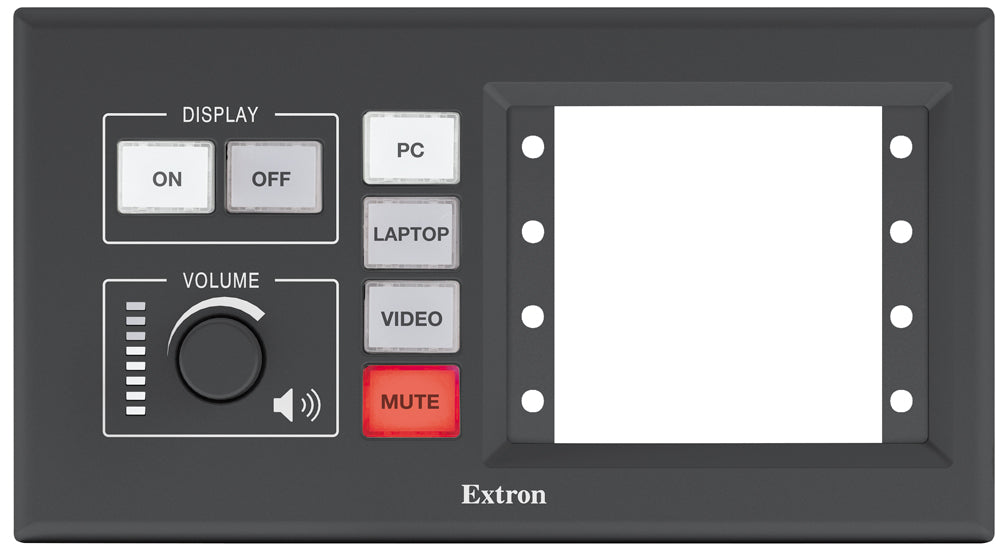

Extron MLC Plus 100 AAP (part number 60-1540-02) — a four-gang MediaLink Plus wall controller that pairs a six-button keypad and volume knob with an opening for four single-space AAP plates.

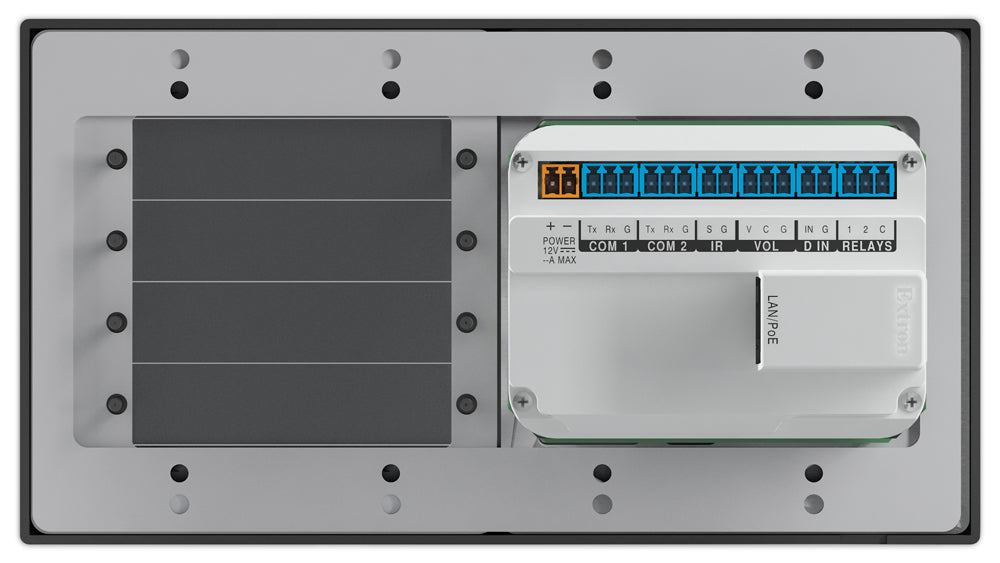

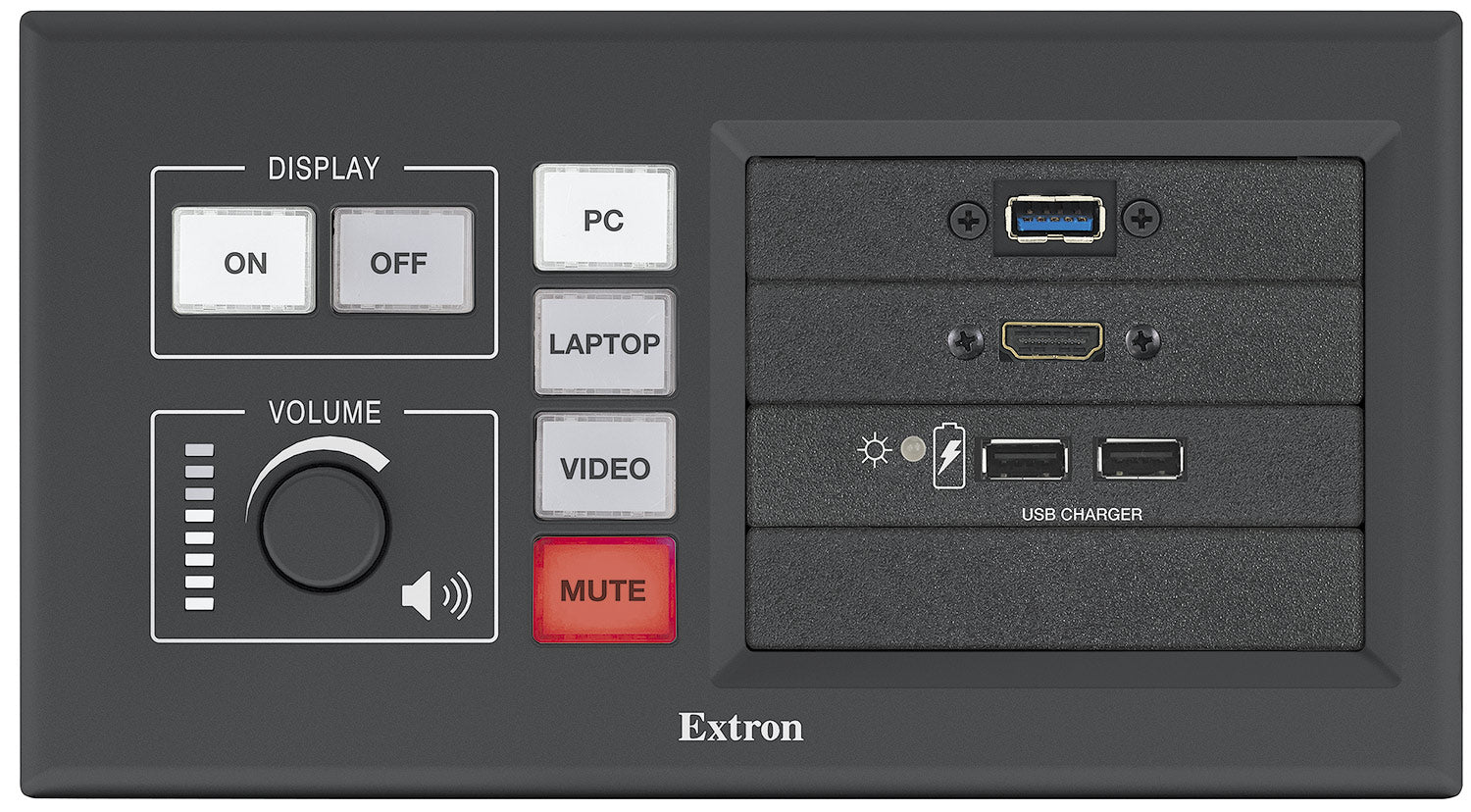

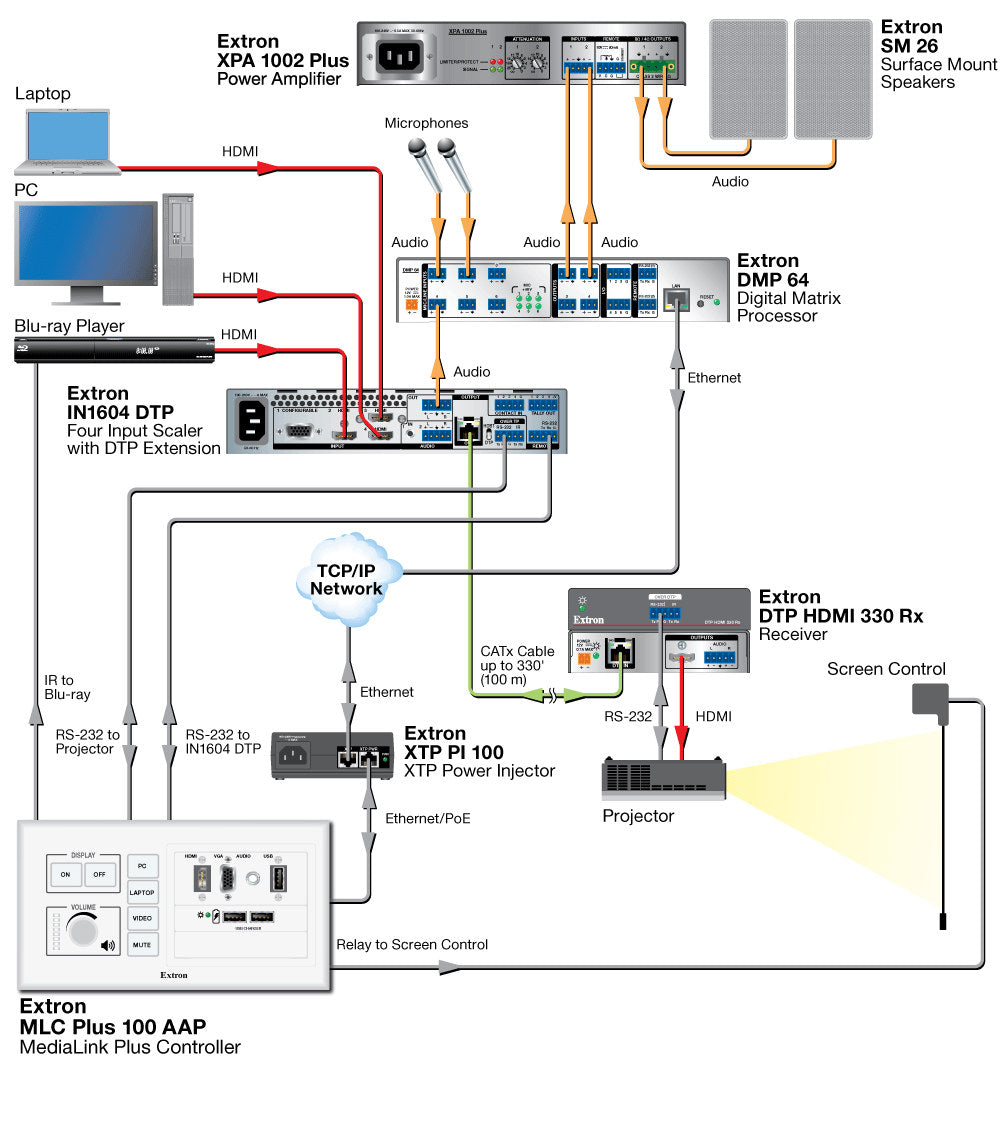

Rooms often need the control panel and the connection point in the same wall location. This model solves that in one cutout: the controller occupies the left portion of the faceplate while the remaining aperture accepts up to four single-space Architectural Adapter Plates, so HDMI, VGA, audio or USB terminations sit alongside the buttons rather than in a second box. Behind the plate are two bidirectional RS-232 ports, two normally open relays, an IR output, one digital input and a remote volume control port for Extron MPA Series and select XTRA Series amplifiers. Network traffic and 802.3af Class 3 PoE arrive on one RJ-45 jack.
Key Capabilities
- Six customizable backlit buttons plus a volume knob with LED feedback
- Faceplate aperture for up to four single-space AAP plates on a metal bracket
- Two bidirectional RS-232 ports on 3-pole 3.5 mm captive screw connectors
- Remote volume control port with an adjustable 0 to +10 VDC output
- Two normally open relays rated 24 VDC at 1 A, one IR output and one digital input
- Single-cable install: 10/100/1000Base-T Ethernet with 802.3af Class 3 PoE
- Handles up to four Ethernet-controlled devices in GC Plus, or eight in GC Professional
Where It Is Used
Lecture theatres, training rooms, divisible meeting spaces and technology-equipped classrooms where a presenter connects a laptop at the wall and drives the room from the same plate. The four-gang footprint also suits podium fronts and credenza panels that must carry both control and connectivity.
Specifications at a Glance
- Serial: 2 bidirectional RS-232, 300 to 115200 baud, 9600 baud default
- Power draw: 2.2 watts at 12 VDC, or 3.7 watts at 48 VDC over PoE
- Faceplate 4.50" H x 8.23" W x 0.30" D; fits a standard US 4-gang box or mud ring
- Product weight 0.8 lb (0.4 kg); allow 2.40" of depth behind the plate
- Warranty: 3 years parts and labor
Also referenced as Extron MLCPlus100AAP, MLC-Plus-100-AAP, part number 60154002.
