Extron MLC Plus 100 MediaLink Plus Controller
- • Six backlit, fully configurable buttons plus a rotary volume knob
- • Two bidirectional RS-232 ports on 3-pole captive screw connectors
- • Two normally open relays rated 24 VDC, 1 A for screens and shades
- • Powered by 802.3af Class 3 PoE or an external 12 VDC supply
- • One IR output, 30 kHz to 300 kHz carrier, plus one digital input
- • Fits a standard US 2-gang junction box or mud ring
- • Draws only 2.2 watts at 12 VDC and weighs 0.8 lb (0.4 kg)
- • Backed by a 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron MLC Plus 100 (part number 60-1469-03) — a two-gang MediaLink Plus wall controller that puts display power, source selection and volume on one backlit keypad.

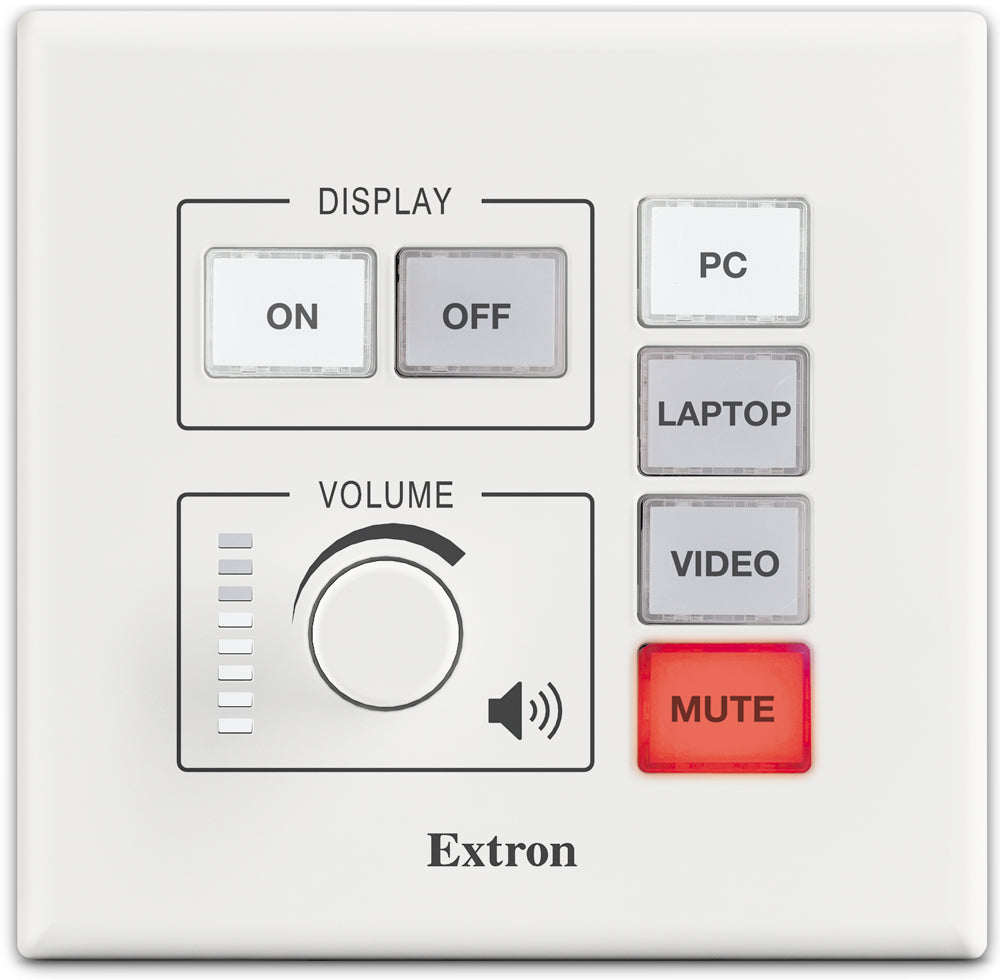

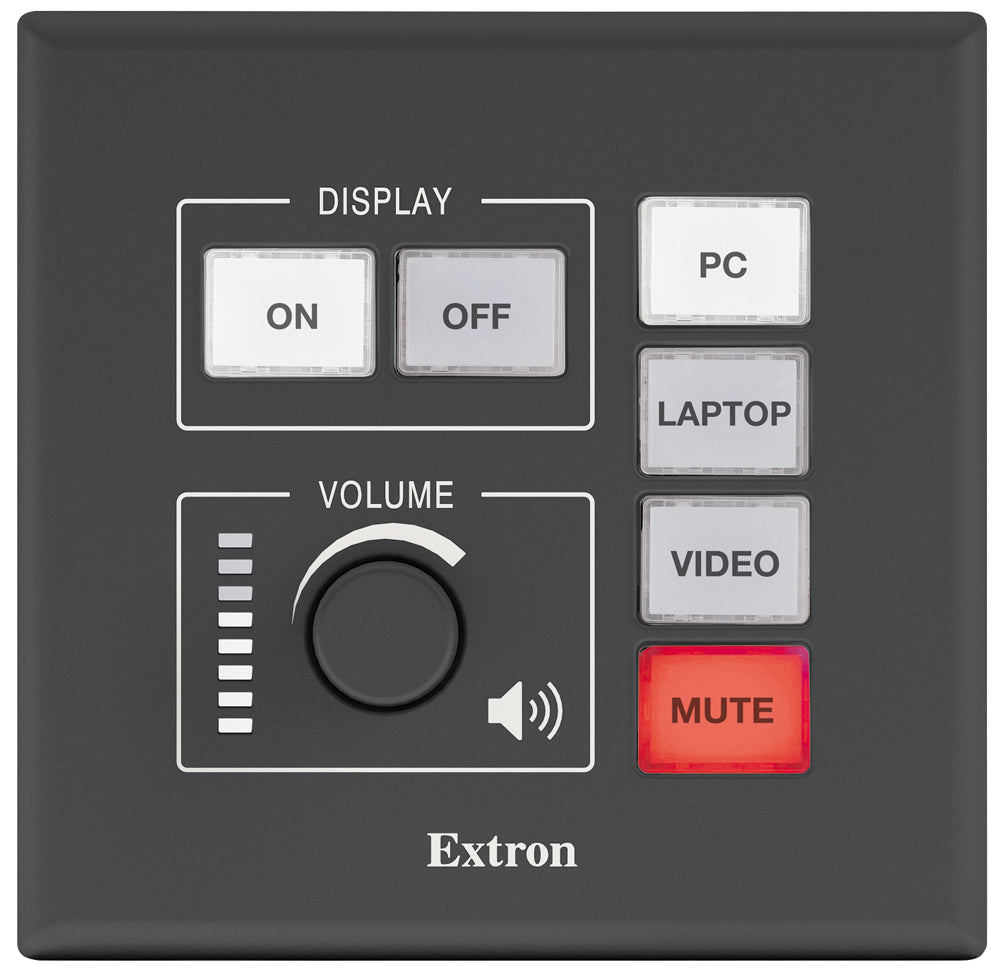

Rooms that need only a handful of dependable commands rarely justify a full control processor. The MLC Plus 100 answers that with six configurable backlit buttons plus a rotary volume knob with LED indication, all behind a screwless two-gang faceplate. Two bidirectional RS-232 ports, a pair of normally open relays, an IR output and a digital input drive projectors, screens and legacy gear, while the RJ-45 port carries control traffic and 802.3af PoE power over a single cable run.
Key Capabilities
- Six backlit, fully configurable buttons for display, input and mute commands
- Rotary volume knob with LED indication and a 0 to +10 VDC remote volume output

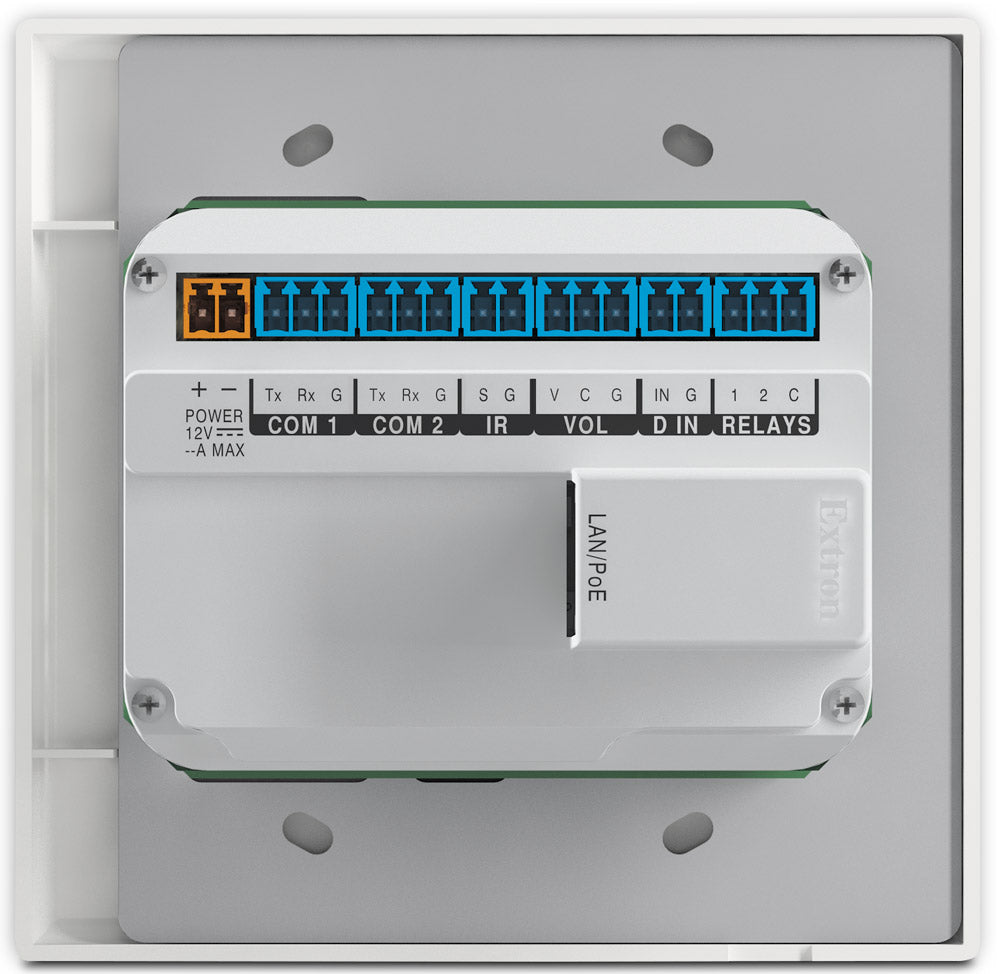

- Two bidirectional RS-232 ports on 3-pole 3.5 mm captive screw connectors
- Two normally open relays rated 24 VDC at 1 A for screens, lifts and shades
- One IR output with a 30 kHz to 300 kHz carrier range, plus one digital input
- RJ-45 port at 10/100/1000Base-T with 802.3af Class 3 PoE — one cable for power and control
- Set up in Global Configurator Plus or Professional; monitored through GlobalViewer Enterprise
Where It Is Used
Classrooms, lecture halls, huddle spaces and mid-size conference rooms where staff simply need to bring a projector or flat panel up, pick a source, set the level and walk away. Because the faceplate conceals its mounting screws, it also suits visible wall positions in corporate lobbies, training suites and technology carts.
Specifications at a Glance
- Ethernet: 1 female RJ-45, 10/100/1000Base-T, half/full duplex with autodetect
- Power: external 12 VDC supply (not included) or PoE 802.3af Class 3; 2.2 W at 12 VDC

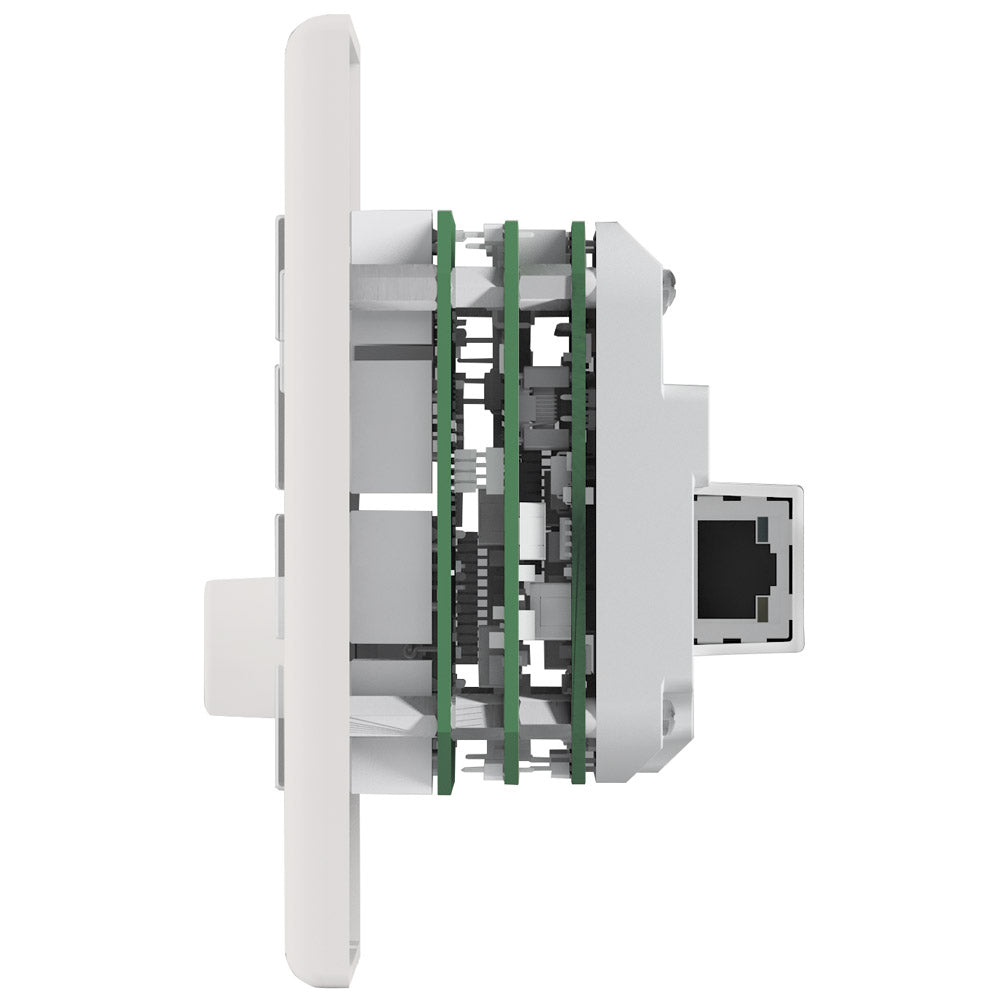

- Faceplate: 4.50" H x 4.60" W x 0.30" D; fits a standard US 2-gang box or mud ring
- Product weight: 0.8 lb (0.4 kg)
- Warranty: 3 years parts and labor
Also referenced as Extron MLCPlus100, MLC-Plus-100, part number 60146903.
Specifications
Specifications

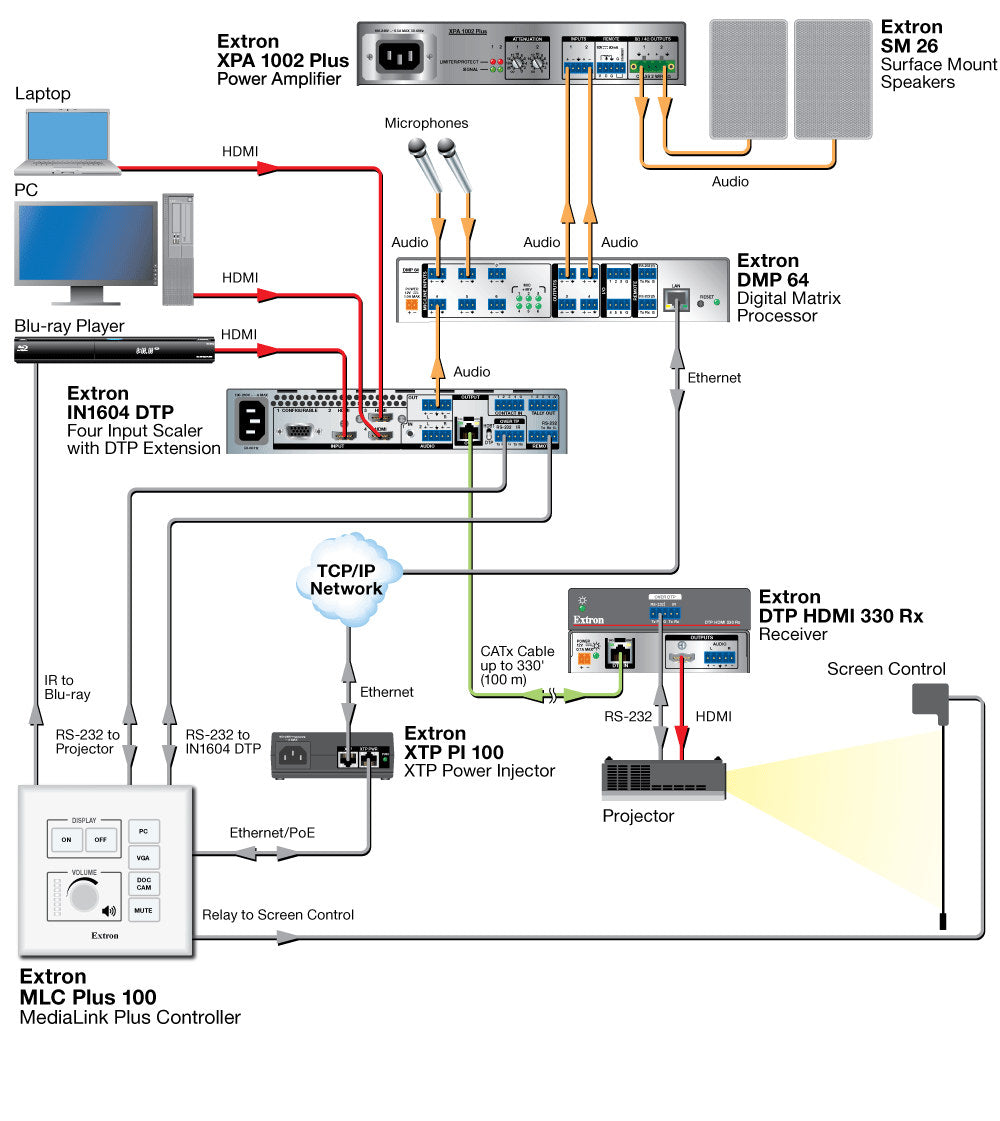

Diagram
