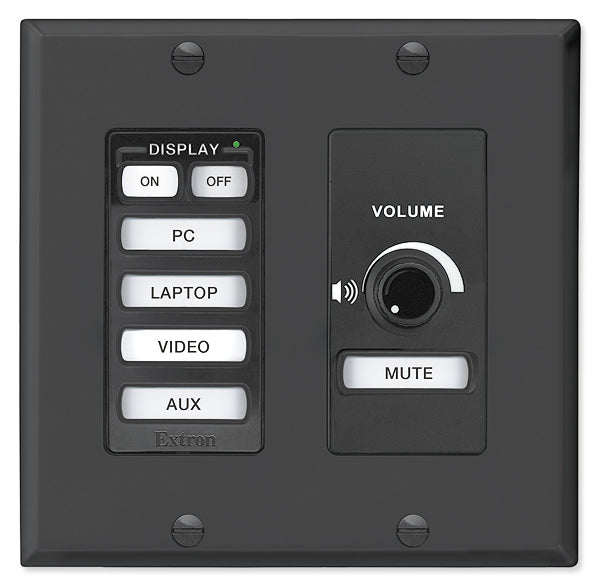

Extron MLC 64 RS VC D (part number 60-1182-02) — a two-gang MediaLink keypad controller with a continuous volume knob, supplied with both black and white decorator-style faceplates.

Small single-display rooms rarely need a networked processor; they need one wall panel that turns the projector on, picks a source and sets the level. That is what this controller does. Seven customizable backlit buttons handle power and input switching, while the rotary knob delivers 0 to 10 VDC positive-logic level control to any Extron amplifier or mic preamp with a remote volume port. A dual-colour illuminated mute button, front-panel lockout and an inactivity shutoff timer round out day-to-day operation. Display control travels over a unidirectional RS-232 port or a software-configurable IR/serial port, and IR Learning lets you build a driver straight from a handheld remote.

Key Capabilities

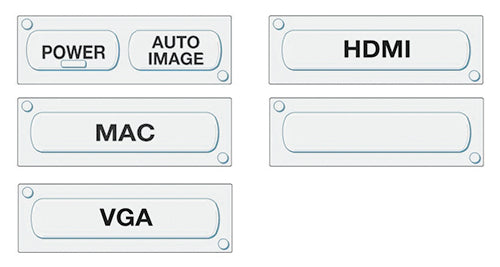

Seven backlit soft-touch buttons plus a continuous-gain volume knob
Unidirectional RS-232 display port and a configurable IR/serial port, 30 kHz to 60 kHz
IR Learning from a handheld remote at 4" to 14" (10 to 36 cm) from the receiver
Two relays, momentary or latching in software, rated 24 V at 1 A
One configurable digital input for occupancy sensors and contact devices
Volume knob outputs 0 to 10 VDC to Extron amplifiers with a remote volume port
Front-panel USB mini B plus bidirectional RS-232 host port for setup
Everlast power supply carries a 7-year parts and labor warranty

Where It Is Used

Single-projector classrooms, seminar rooms, small meeting spaces and training rooms that want one obvious point of control on the wall. The included black and white faceplates let the same part suit either trim scheme, which simplifies stocking across a campus or multi-room rollout.

Specifications at a Glance

Device: 4.19" H x 3.61" W x 1.5" D (1.9" D including the knob)
Mounting: standard 2-gang US junction box of 1.50" depth, or the included mud ring
Power: external supply, 12 VDC 0.5 A 6.0 W; device draws 1.8 W max
Weight 1.1 lb (0.5 kg); enclosure plastic, convection cooled
Warranty: 3 years parts and labor; Everlast power supply 7 years

Also referenced as Extron MLC64RSVCD, MLC-64-RS-VC-D, part number 60118202.

Specifications

Part Number: 60-1182-02

Manufacturer: Extron

Model: MLC 64 RS VC D

Version: IR and RS-232 control, decorator-style wallplate

Condition: New

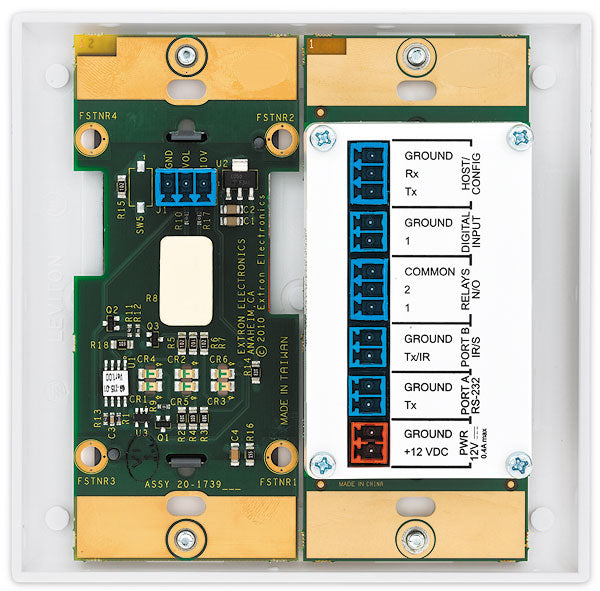

Host Serial Control Port: 1 bidirectional RS-232 on a 3.5 mm captive screw connector, 3 pole

Host Baud Rate and Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Host Serial Pin Configuration: Pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd

USB Control Port: 1 front panel female USB mini B

USB Standards: USB 2.0, low speed

IR Learning Frequencies: 30 kHz to 60 kHz

IR Learning Distance: 4 in (10 cm) to 14 in (36 cm) from the receiver

Program Control: Extron configuration program for Windows; Extron Simple Instruction Set (SIS)

Display Control Port: (1) 3.5 mm captive screw connector, 2 pole, for unidirectional RS-232 control (plus or minus 5 V)

Display Control Baud Rate and Protocol: 9600 (default), 19200, 38400, 57600, 115200 baud; 8 (default) or 7 data bits; 1 stop bit; no parity (default), even or odd

IR/Serial Control Port: (1) 3.5 mm captive screw connector, 2 pole, transmit only. TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz, or plus/minus 5 V RS-232 control, transmit only. Configurable in software; serial is the default

Relays: 2 momentary or latching, configurable via software

Relay Connector: (1) 3.5 mm captive screw connector, 3 pole

Relay Contact Rating: 24 V, 1 A

Digital Input: 1 digital input (configurable)

Digital Input Connector: (1) 3.5 mm captive screw connector, 2 pole

Digital Input Voltage Range: 0-24 VDC

Digital Input Impedance: 12k ohms

Digital Input Programmable Pullup: 2k ohms to +5 VDC

Digital Input Threshold Low to High: Greater than 1.5 VDC

Digital Input Threshold High to Low: Less than 1.0 VDC

Volume Control: 0 to 10 VDC variable voltage, positive logic (higher voltage means higher volume)

Mute Control: Momentary push switch with latching contact closure during mute; LED mute indication

Volume Control Pin Configuration: Pin 1 = +10 VDC, pin 2 = volume/mute (variable voltage), pin 3 = Gnd

Reference Voltage: 10 VDC

Power Supply: External. Input 100-240 VAC, 50-60 Hz; output 12 VDC, 0.5 A, 6.0 watts

Remote Volume Control Device Power: 10 VDC, supplied by the Extron device being controlled

Power Consumption, Device: 1.8 watts, 12 VDC max

Power Consumption, Device and Power Supply: 2.6 watts, 100-240 VAC, 50-60 Hz

Power Consumption, Remote Volume Control Device: Unmute mode 0.2 watts; mute mode 0.5 watts

Temperature and Humidity: Storage -40 to +158 F (-40 to +70 C) at 10% to 90% noncondensing; operating +32 to +122 F (0 to +50 C) at 10% to 90% noncondensing

Cooling: Convection, no vents

Thermal Dissipation, Device: 6.2 BTU/hr

Thermal Dissipation, Device and Power Supply: 8.8 BTU/hr

Thermal Dissipation, Remote Volume Control Device: 1.7 BTU/hr

Rack Mount: No

Furniture or Wall Mount: Mounts in a standard 2 gang US electrical junction box (1.50 in depth) or with the included mud ring

Enclosure Type: Plastic

Faceplate: Fits the opening in a 2 gang decorator-style wallplate

Device Dimensions: 4.19 in H x 3.61 in W x 1.5 in D, or 1.9 in D including the knob (106 mm H x 92 mm W x 37 mm D, or 48 mm D with knob); depth includes connectors and buttons; allow enough depth in the junction box for the device plus cable clearance

Product Weight: 1.1 lb (0.5 kg)

Regulatory Compliance: CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Class A; complies with RoHS, WEEE and Section 508 of the Rehabilitation Act (29 U.S.C. 794d)

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

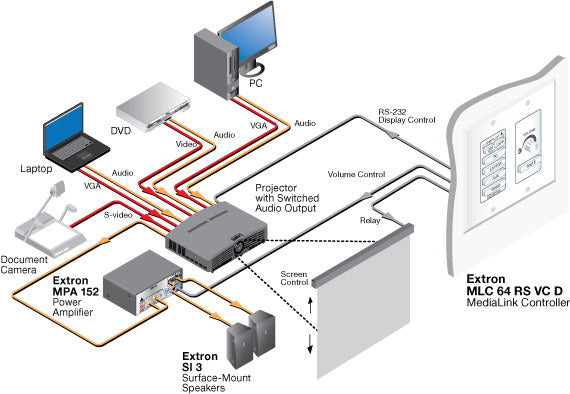

Diagram

Resources

Brochure | MLC 64 RS VC D 60-1182-02 | MLC 64 RS VC D (mlc_64_rs_vc_d_bro_revA1.pdf)

Brochure | MLC 64 RS VC D 60-1182-02 | Everlast Power Supplies

Brochure | MLC 64 RS VC D 60-1182-02 | MLC 64 RS VC D (BROCHURE_MLC_64_RS_VC_D_RevA_NP_Spanish_LoRes.pdf)

Brochure | MLC 64 RS VC D 60-1182-02 | MLC 64 RS VC D (MLC-64-RS-VC-D_BR_A4_IT_RevA.pdf)

Brochure | MLC 64 RS VC D 60-1182-02 | Alimentatori Everlast

Brochure | MLC 64 RS VC D 60-1182-02 | Everlast 电源

Brochure | MLC 64 RS VC D 60-1182-02 | Everlast-Netzteile

Brochure | MLC 64 RS VC D 60-1182-02 | Fuentes de alimentación Everlast

Brochure | MLC 64 RS VC D 60-1182-02 | Sources d'alimentation Everlast

Manual | MLC 64 RS VC D 60-1182-02 | Cleaning Instruction Card

Manual | MLC 64 RS VC D 60-1182-02 | MLC 60 D Series Setup Guide

Manual | MLC 64 RS VC D 60-1182-02 | MLC 60 Series User Guide

Specifications | MLC 64 RS VC D 60-1182-02 | MLC 64 RS VC D

Panel Drawing | MLC 64 RS VC D 60-1182-02 | MLC 64 RS VC D
