Extron MLC 62 RS D RS-232/IR Keypad Controller 60-1005-02

Details

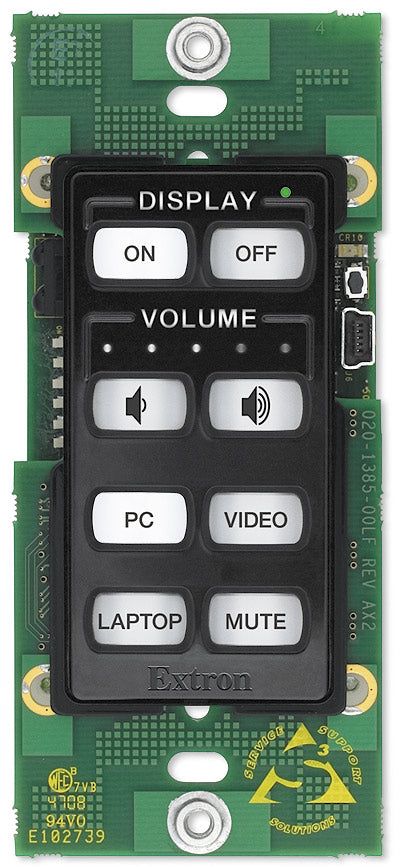

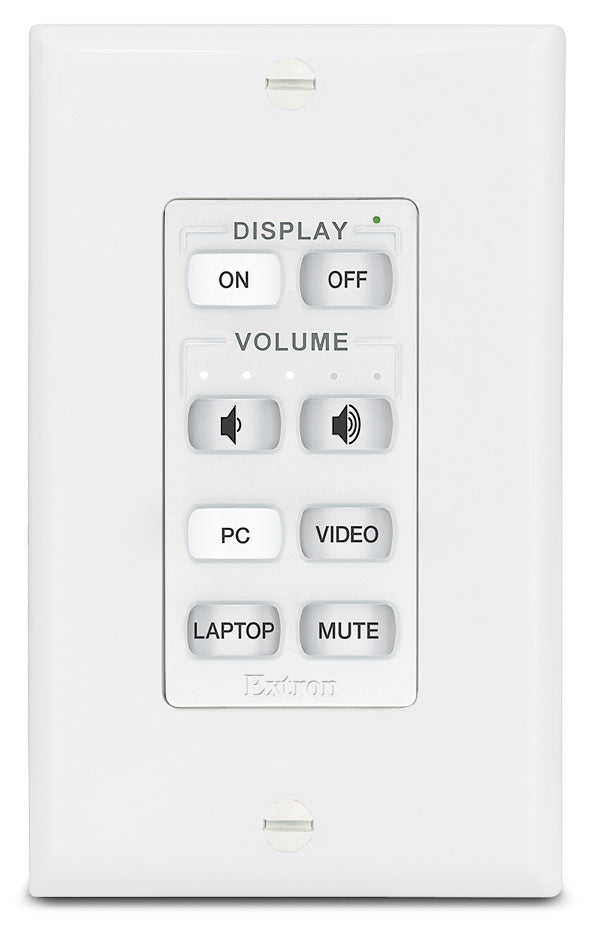

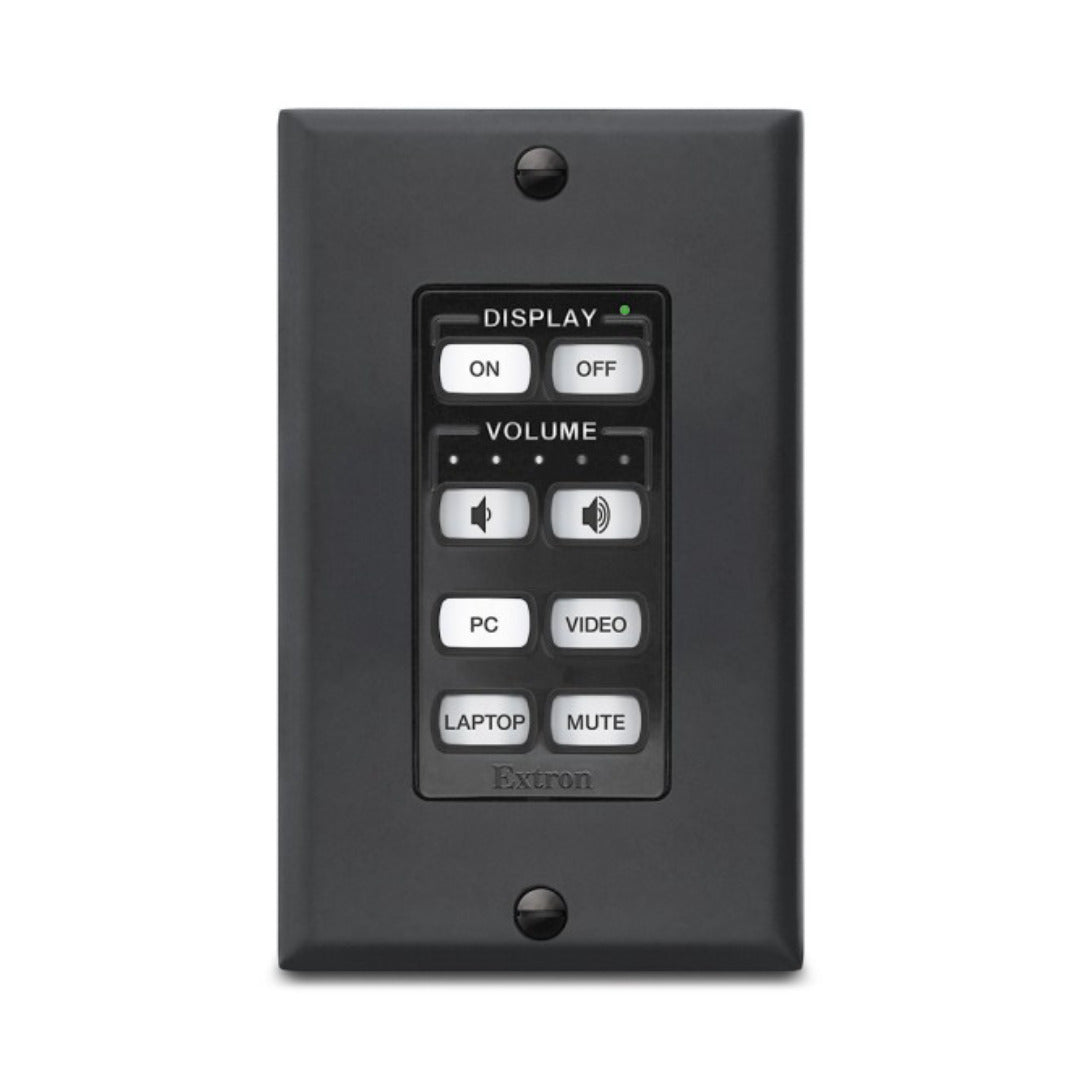

Extron MLC 62 RS D (part number 60-1005-02) — an eight-button backlit keypad that gives a single display unidirectional RS-232 and IR control from one wall or table position.

The keypad's buttons are field-configurable for power, source switching, and volume commands sent out over its serial or infrared port, so one hardware SKU can drive almost any display brand once the correct driver is loaded through Extron's configuration software. Two software-configurable relays and one digital input let the same unit trigger lighting or screen control or monitor a contact closure elsewhere in the room, removing the need for a separate control processor in single-display spaces. Mounts in a standard 1 gang US electrical junction box or with the included mud ring, with the faceplate filling the opening of a standard decorator-style wallplate. The plastic device measures 4.19" H x 1.84" W x 1.5" D (106 mm H x 47 mm W x 37 mm D) and weighs 1.0 lb (0.5 kg). It draws 2.1 watts, 12 VDC (7.0 BTU/hr) at the device and is set up over USB with Extron's MLC 62 Series configuration program.

Key Capabilities

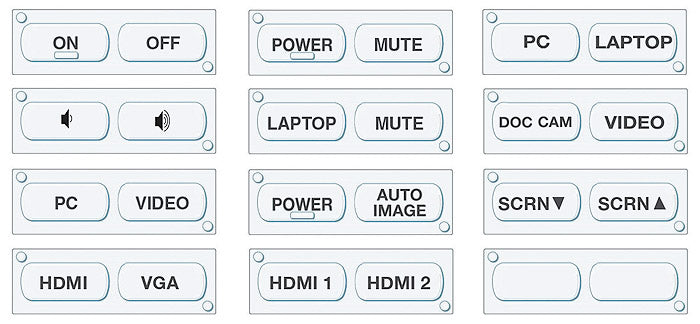

Unidirectional RS-232 and IR display control from eight backlit, relabelable buttons
Two software-configurable relays (24 V, 1 A) plus one digital input for room monitoring
Mounts in a standard 1 gang US electrical junction box or with the included mud ring
Draws 2.1 watts, 12 VDC at the device (7.0 BTU/hr)

Where It Is Used

Fits single-display classrooms, huddle rooms, and conference rooms that need simple power, source, and volume control without a full control processor.

Also referenced as Extron MLC62RSD, MLC-62-RS-D-60-1005-02, part number 60100502.

Specifications

Part Number: 60-1005-02

Manufacturer: Extron

Model: MLC 62 RS D

Condition: New

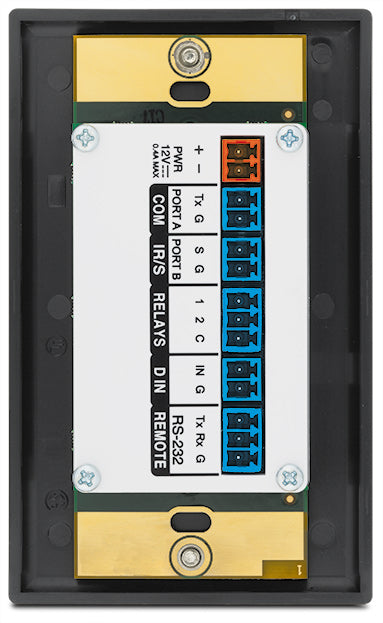

Serial control port: 1 bidirectional RS-232 on a 3.5 mm captive screw connector, 3 pole

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Serial control pin configuration: Pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd

Display control port (RS-232 output): (1) 3.5 mm captive screw connector, 2 pole, unidirectional RS-232 control (±5 V)

Baud rate and protocol (RS-232 output): 9600 (default), 19200, 38400, 57600, or 115,200 baud; 8 (default) or 7 data bits; 1 stop bit; no parity (default), or even or odd parity

IR control port: (1) 3.5 mm captive screw connector, 2 pole, transmit only, TTL level (0 to 5 V) modulated infrared from 30 kHz up to 60 kHz, or ±5 V RS-232 (configurable via software; serial is the default)

IR learning distance: 4" (10 cm) to 14" (36 cm) from the receiver (on front panel)

IR learning frequencies: 30 kHz to 60 kHz

USB control port: 1 front panel female USB mini B

USB standards: USB 2.0, low speed

Relay outputs: 2 momentary or latching (configurable via software), (1) 3.5 mm captive screw connector, 3 pole, 24 V, 1 A contact rating

Digital input: 1 configurable input, (1) 3.5 mm captive screw connector, 2 pole, 0-24 VDC range, 12k ohm impedance, 2k ohm pullup to +5 VDC

Program control: Extron configuration program for Windows; Extron Simple Instruction Set (SIS)

Power supply: External. Input: 100-240 VAC, 50-60 Hz. Output: 12 VDC, 0.5 A, 6 watts

Device power consumption: 2.1 watts, 12 VDC

Device + power supply consumption: 2.5 watts, 100-240 VAC, 50-60 Hz

Thermal dissipation (device): 7.0 BTU/hr

Thermal dissipation (device + PSU): 8.4 BTU/hr

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C), 10-90% noncondensing. Operating: +32 to +122 °F (0 to +50 °C), 10-90% noncondensing

Cooling: Convection, no vents

Mounting: Mounts in a standard 1 gang US electrical junction box or with the included mud ring

Enclosure type: Plastic

Faceplate: Fits the opening in a 1 gang decorator-style wallplate

Device dimensions: 4.19" H x 1.84" W x 1.5" D (106 mm H x 47 mm W x 37 mm D)

Product weight: 1.0 lb (0.5 kg)

Regulatory compliance: CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Class A. Complies with the appropriate requirements of RoHS, WEEE, and Section 508 of the Rehabilitation Act (29 U.S.C. 794d).

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

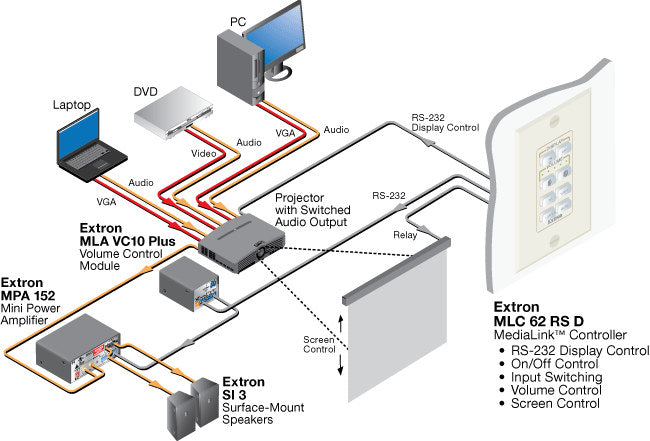

Diagram

Resources

Brochure | MLC 62 RS D 60-1005-02 | MLC 62 D (mlc_62_d_bro_revA4.pdf)

Brochure | MLC 62 RS D 60-1005-02 | Everlast Power Supplies

Brochure | MLC 62 RS D 60-1005-02 | Alimentatori Everlast

Brochure | MLC 62 RS D 60-1005-02 | Everlast 电源

Brochure | MLC 62 RS D 60-1005-02 | Everlast-Netzteile

Brochure | MLC 62 RS D 60-1005-02 | Fuentes de alimentación Everlast

Brochure | MLC 62 RS D 60-1005-02 | MLC 62 D (mlc62d_chRevA.pdf)

Brochure | MLC 62 RS D 60-1005-02 | Sources d'alimentation Everlast

Manual | MLC 62 RS D 60-1005-02 | Cleaning Instruction Card

Manual | MLC 62 RS D 60-1005-02 | MLC 60 D Series Setup Guide

Manual | MLC 62 RS D 60-1005-02 | MLC 60 Series User Guide

Specifications | MLC 62 RS D 60-1005-02 | MLC 62 Series

Panel Drawing | MLC 62 RS D 60-1005-02 | MLC 62 RS D

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron MLC 62 RS D RS-232/IR Keypad Controller 60-1005-02

Name: Extron MLC 62 RS D RS-232/IR Keypad Controller 60-1005-02
Brand: Extron
SKU: EXTRON-MLC62RSD-60100502
Availability: InStock

Manufacturer: Extron

Type: MediaLink Plus Controllers

Extron MLC 62 RS D RS-232/IR Keypad Controller

• Eight backlit, relabelable buttons for power, source, and volume control
• Unidirectional RS-232 (up to 115200 baud) plus 30-60 kHz IR output
• Two software-configurable relays (24 V, 1 A) and one digital input
• Draws 2.1 watts, 12 VDC at the device (7.0 BTU/hr heat load)
• Mounts in a standard 1 gang US electrical junction box or with the included mud ring
• Configured over USB with Extron's MLC 62 Series software and SIS commands
