Extron MIX 301 Line Level Audio Mixer
- • Three mono balanced or unbalanced line level inputs
- • Per-input gain trim from full mute to +20 dB
- • Frequency response 20 Hz to 20 kHz within 0.05 dB
- • THD+N 0.05% at 1 kHz; S/N better than 90 dB balanced
- • Output up to +25 dBu balanced into a 100k ohm load
- • One-eighth rack chassis, 1.7 x 2.2 x 3.0 in., 0.2 lb
- • 3 year warranty plus 7 year Everlast power supply warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

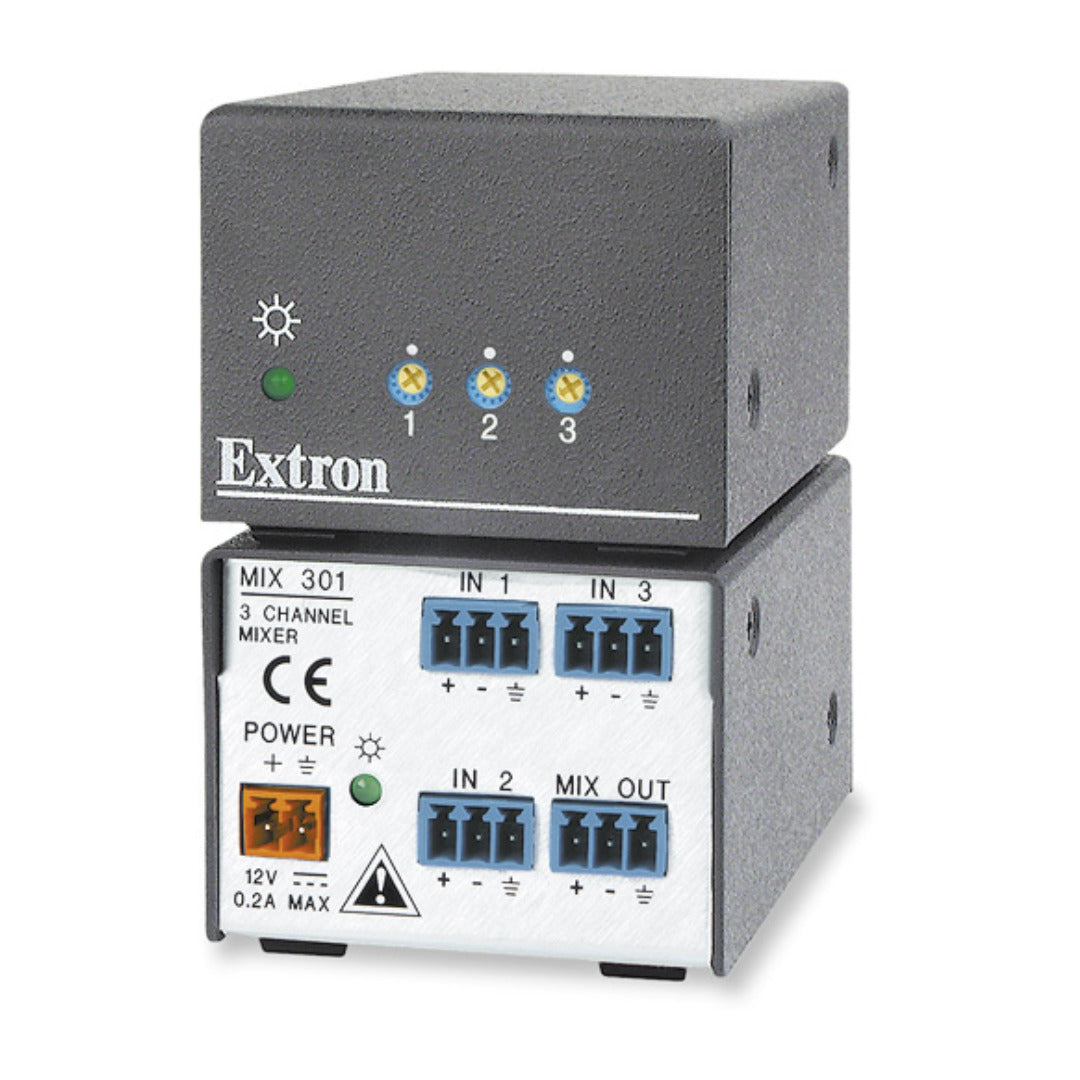

Extron MIX 301 (part number 60-737-01) — a three-input mono line level mixer in a one-eighth rack chassis, for the many rooms that need three sources combined and nothing more.
Each of the three inputs takes a mono balanced or unbalanced signal on a 3-pole 3.5 mm captive screw connector and has its own gain trim running from full mute up to +20 dB, so a quiet source can be lifted to sit alongside a hot one without touching the downstream amplifier. Inputs accept either -10 dBV or +4 dBu nominal levels and tolerate more than +18 dBV before clipping. The single mono output is balanced or unbalanced with adjustable nominal level and up to +25 dBu balanced into a 100k ohm load. Audio performance is transparent: 20 Hz to 20 kHz within 0.05 dB, 0.05 percent THD+N at 1 kHz, and better than 90 dB signal to noise.
Key Capabilities
- Three mono balanced or unbalanced inputs on 3-pole captive screw connectors
- Per-input gain trim from mute to +20 dB
- Frequency response 20 Hz to 20 kHz within 0.05 dB
- THD+N of 0.05 percent at 1 kHz; S/N better than 90 dB balanced
- Output up to +25 dBu balanced into a 100k ohm load
- One-eighth rack chassis, 1.7 in. H x 2.2 in. W x 3.0 in. D, only 0.2 lb
Where It Is Used

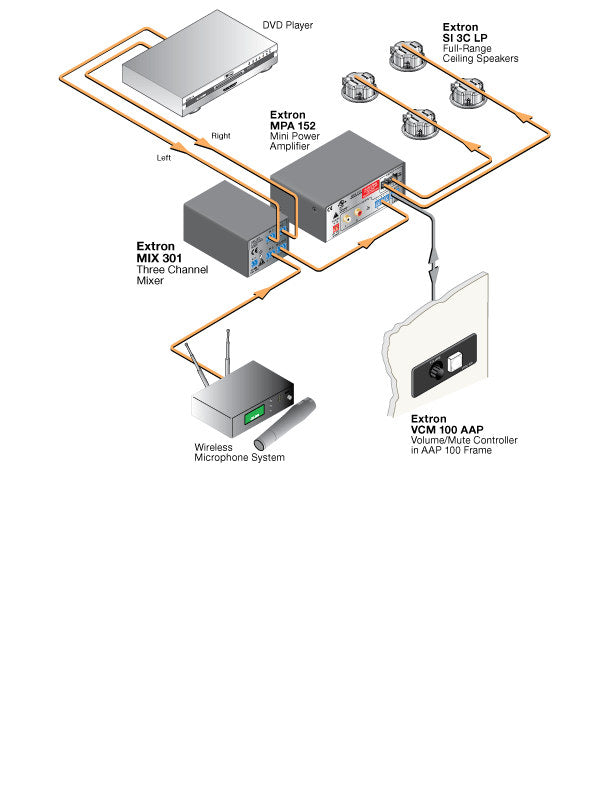

Classrooms and training rooms combining a program feed, a microphone preamp output and a paging source into one amplifier channel. Its tiny footprint also suits lectern interiors, under-desk mounts and equipment closets where a full mixer would never fit.
Specifications at a Glance
- Inputs: 3 mono balanced/unbalanced, above 10k ohms, -10 dBV or +4 dBu nominal
- Output: 1 mono balanced/unbalanced, 50 ohms unbalanced / 100 ohms balanced
- Audio: 20 Hz-20 kHz +/-0.05 dB, 0.05% THD+N, CMRR above 70 dB
- Enclosure: metal, 1.7 in. H x 2.2 in. W x 3.0 in. D, 0.2 lb (0.1 kg)
- Power: external 12 VDC; 3 year warranty, 7 year Everlast power supply warranty
Also referenced as Extron MIX301, MIX-301, part number 6073701.
