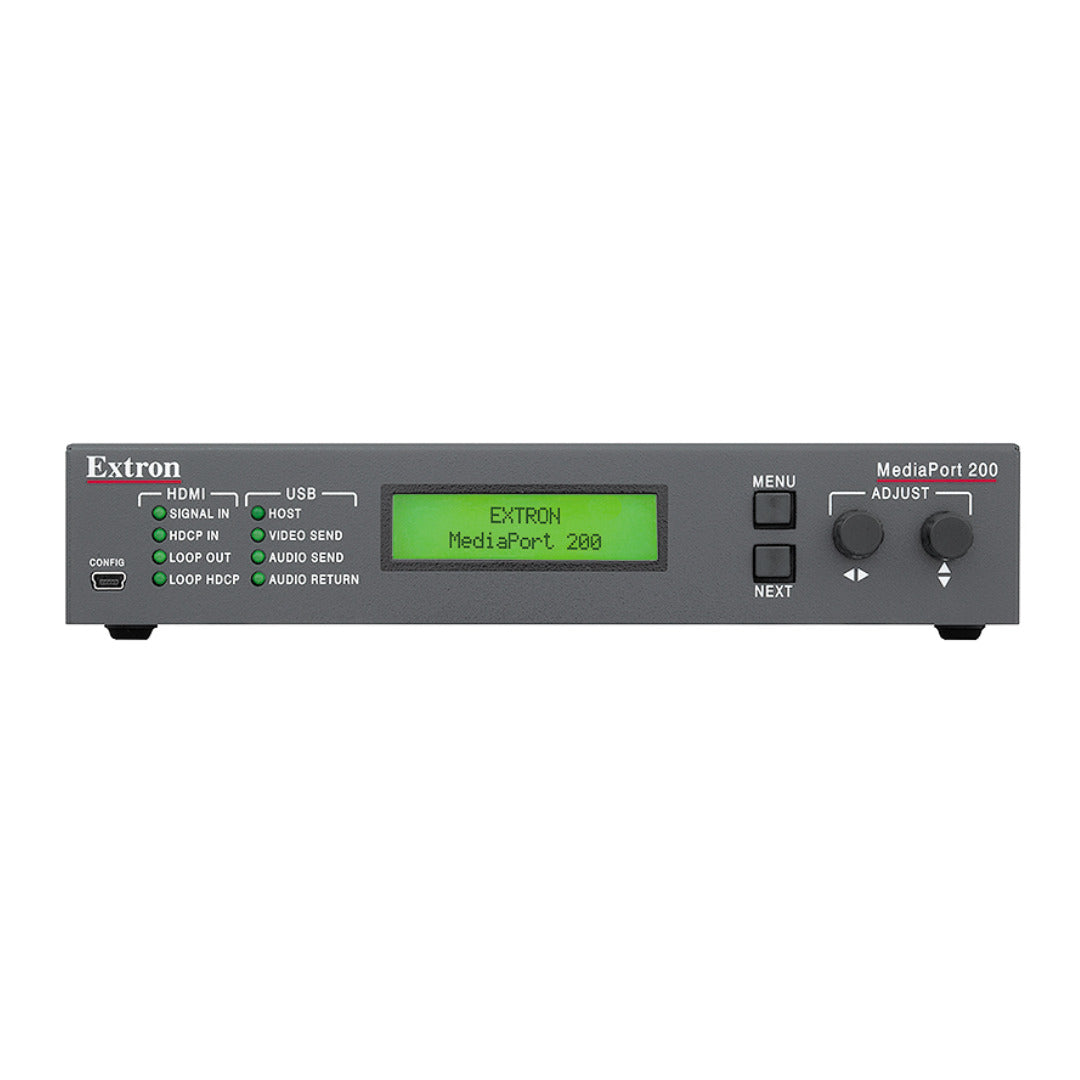

Extron MediaPort 200 HDMI/Audio to USB Scaling Bridge 60-1488-01

Details

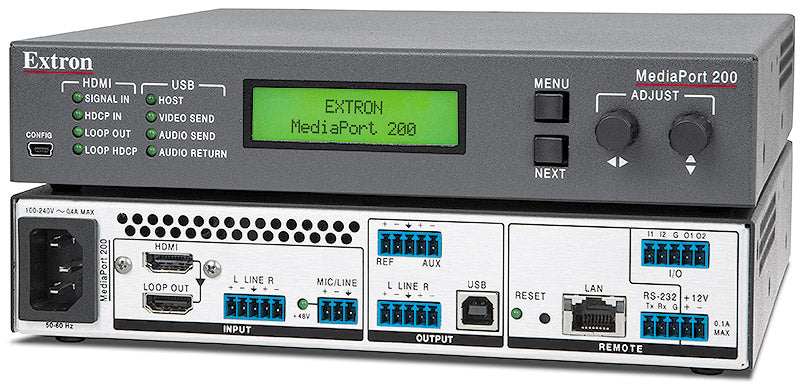

Extron MediaPort 200 (part number 60-1488-01) — an HDMI and audio to USB scaling bridge for connecting Pro AV sources to software conferencing codecs.

MediaPort 200 lets an HDMI source or full AV system feed a laptop's software conferencing app — Teams, Zoom, WebEx, and similar platforms — as a standard USB camera and microphone, using generic UVC/UAC drivers with no special software install. The HDMI input accepts signals up to 1920x1200 with HDCP-compliant loop-out, and the built-in scaler outputs 320x180 up to 1080p/15 over USB 2.0 to match what the software codec requests in real time. An onboard audio DSP handles mic and line inputs, HDMI audio de-embedding, gain, EQ, mixing, and AEC reference output, so the room's existing microphones and speakers work with the connected computer without extra hardware.

Key Capabilities

Scales HDMI input up to 1920x1200 down to a USB 2.0 output from 320x180 to 1080p/15
HDCP-compliant HDMI input and loop-out for pass-through to a display or codec
Onboard audio DSP: EQ, mixing, dynamics, ducking, plus AEC reference output
Program and mic inputs with switchable +48V phantom power
Ethernet, USB, and RS-232 remote configuration and control

Where It Is Used

MediaPort 200 is specified in huddle rooms and boardrooms that need to plug a laptop into an existing Pro AV system for Zoom, Teams, or WebEx calls, and in larger rooms that pair it with a hardware codec, DSP, or distribution system to extend videoconferencing to a fully equipped space.

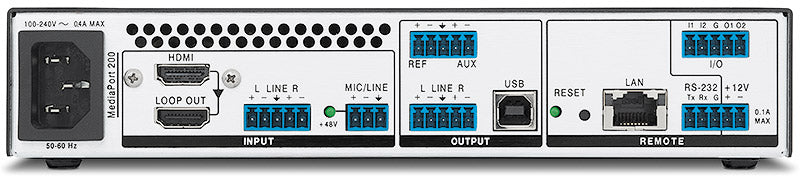

Specifications at a Glance

Video input: 1 HDMI (up to 1920x1200) with HDCP-compliant loop-out
Video output: USB 2.0, 320x180 to 1080p/15, MJPEG encoded
Audio: PCM 24-bit/48 kHz, mic + line inputs, USB bidirectional audio
Control: Ethernet, USB, RS-232; Extron PCS software
Enclosure: 1U half-rack, 1.66" H x 8.68" W x 9.5" D, 2.3 lbs (1.4 kg)

Also referenced as Extron MediaPort200, MediaPort-200, part number 60148801.

Specifications

Part Number: 60-1488-01

Manufacturer: Extron

Model: MediaPort 200

Condition: New

Video input: 1 HDMI/DVI, 1 HDMI/DVI loop-through; connectors: 1 female HDMI type A, 1 female HDMI type A loop-through

Horizontal frequency: 15 kHz to 100 kHz

Vertical frequency: 24 Hz to 75 Hz

Resolution range: 640x480 through 1600x1200, 1920x1200 (with reduced blanking), 480i, 576i, 480p, 720p, 1080i, and 1080p

Digital pixel data bit depth: 8, 10, and 12 bits per channel; 165 MHz pixel clock

Standards: DVI 1.0, HDMI 1.4, HDCP 1.3

Colors: 11 million (8-bit 4:2:2 processing)

Video output: 1 USB digital video; connector: 1 female USB type B

Power for active cables: 1.0 watts max for the HDMI loop-through

HDMI peripheral device power: 200 mA per output

USB scaled resolutions: 320x180, 320x240, 424x240, 640x360, 640x480, 848x480, 960x540 (at 15 or 30 Hz), 720p (at 15 or 30 Hz), 1080p (at 15 or 24 Hz)

USB device port: 1 USB peripheral port, 1 female USB 2.0 type B

Maximum built-in USB hubs: 0

Minimum built-in USB hubs: 0

USB encoding: 1 USB (scaled, non-HDCP compliant); vertical frequency 15 Hz, 24 Hz (1080p only), 30 Hz; video encoding MJPEG (4:2:2 or 4:2:0); resolution 320x180 through 1080p

Audio: PCM, 24-bit, 48 kHz

Bit rate: Up to 60 Mbps

USB standards: USB 2.0 high speed, USB 1.1 full speed

Gain: Unbalanced output, -6 dB; balanced output, 0 dB

Frequency response: 20 Hz to 20 kHz, ±0.2 dB

THD + Noise: <0.03%, 20 Hz to 20 kHz at maximum level

S/N: >90 dB, 20 Hz to 20 kHz at maximum balanced output (unweighted)

Crosstalk: ≤-90 dB @ 20 Hz to 20 kHz, fully loaded

Audio input: 1 stereo, de-embedded from HDMI (PCM only); 1 stereo line level, balanced or unbalanced; 1 mono mic/line level, balanced or unbalanced (with available phantom power); 2 stereo USB, embedded

Audio input connectors: 1 female HDMI; (1) 3.5 mm, 5 pole captive screw for line level (stereo); (1) 3.5 mm, 3 pole captive screw for mic/line level; 1 female USB B

Impedance: >10k ohms unbalanced, >20k ohms balanced

Nominal level: Line inputs: +4 dBu, -10 dBV, adjustable. Mic/line inputs: -60 dBV, +4 dBu, -10 dBV, adjustable

Maximum level: +21 dBu, balanced, when input gain is set to 0 dB, at rated THD+N

CMRR: >75 dB @ 1 kHz

Input gain adjustment: Line input: -18 dB to +24 dB, in 0.1 dB steps. Mic input: -18 dB to +60 dB in 0.1 dB steps

DC phantom power: +48 VDC ±10% (can be switched on or off for the mic/line input)

Audio output: 1 stereo, balanced or unbalanced (configurable as stereo or dual mono); 2 mono, balanced or unbalanced (variable); 1 stereo USB (embedded); 1 HDMI (loop output embedded)

Audio output connectors: (2) 3.5 mm, 5 pole captive screw; 1 female USB type B; 1 female HDMI

Output impedance: 50 ohms unbalanced, 100 ohms balanced

Gain error: ±0.1 dB channel to channel

THD: <0.03%, 20 Hz to 20 kHz at maximum level

Maximum level (Hi-Z): >+21 dBu, balanced; >+15 dBu, unbalanced

Output volume range: -100 dB to 0 dB, in 0.1 dB increments

Serial control port: 1 bidirectional RS-232 on (1) 3.5 mm, 5 pole captive screw connector, shared with +12 V remote power on rear panel

Serial control pin configuration: Pin 1 = Tx, pin 2 = Rx, pin 3 = ground

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Digital I/O control: 2 digital inputs and 2 digital outputs on (1) 3.5 mm, 5-pole captive screw connector, shared with a common ground

Remote power: (1) +12 V DC power on (1) 3.5 mm, 5 pole captive screw connector, shared with RS-232 port; 100 mA

USB control port: 1 female USB mini-B (front panel Config port)

Ethernet control port: 1 female RJ-45

Ethernet data rate: 10/100/1000Base-T, half/full duplex with autodetect

Ethernet protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, HTTPS, SSH, SFTP, SNMP, Telnet, IEEE 802.1X

Program control: Extron Product Configuration Software (PCS) for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer; Extron Toolbelt

Power supply: Internal; Input: 100-240 VAC, 50-60 Hz

Power consumption: 18.9 watts

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operation: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Passive; side and rear vents

Thermal dissipation: 59.2 BTU

Rack mount: Yes, with optional rack shelf

Furniture mount: Yes, with optional under-desk or through-desk mounting kit

Enclosure type: Metal

Enclosure dimensions: 1.66" H x 8.68" W x 9.5" D (1U high, half rack wide) (4.2 cm H x 22.1 cm W x 21.6 cm D). Depth excludes connectors.

Product weight: 2.3 lbs (1.4 kg)

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, KC, VCCI, RoHS, WEEE

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

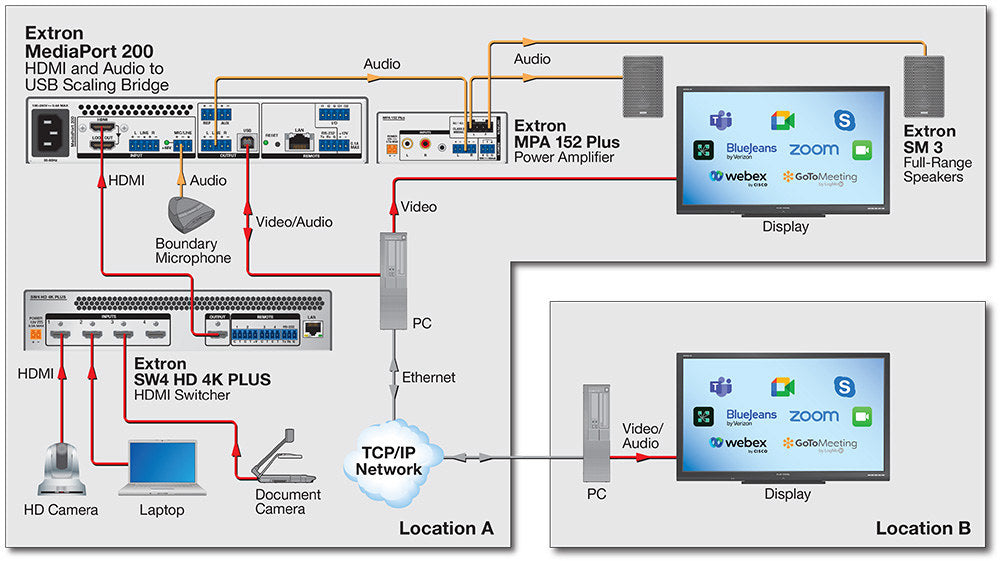

Diagram

Resources

Brochure | MediaPort 200 60-1488-01 | Everlast Power Supplies

Brochure | MediaPort 200 60-1488-01 | H.264 Recording & Streaming Solutions - Application Guide for Online Learning (International Version)

Brochure | MediaPort 200 60-1488-01 | MediaPort 200 (mediaport_200_revC3.pdf)

Brochure | MediaPort 200 60-1488-01 | MediaPort 200 (MediaPort-200_BR_A4_FR_RevC.pdf)

Brochure | MediaPort 200 60-1488-01 | MediaPort 200 (MediaPort-200_BR_A4_GE_RevC.pdf)

Brochure | MediaPort 200 60-1488-01 | MediaPort 200 (MediaPort-200_BR_A4_IT_RevC.pdf)

Brochure | MediaPort 200 60-1488-01 | MediaPort 200 (MediaPort-200_BR_A4_SP_RevC.pdf)

Brochure | MediaPort 200 60-1488-01 | MediaPort 200 (MediaPort-200_BR_A4_RU_RevC.pdf)

Brochure | MediaPort 200 60-1488-01 | MediaPort 200 (mediaport_200_REV_C2_cn_ONLINE.pdf)

Brochure | MediaPort 200 60-1488-01 | Alimentatori Everlast

Brochure | MediaPort 200 60-1488-01 | Collaborer en toute sécurité - Guide d'application pour les systèmes audiovisuels Extron

Brochure | MediaPort 200 60-1488-01 | Creación de experiencias de reunión más seguras - Guía de aplicación para sistemas AV Extron

Brochure | MediaPort 200 60-1488-01 | Everlast 电源

Brochure | MediaPort 200 60-1488-01 | Everlast-Netzteile

Brochure | MediaPort 200 60-1488-01 | Fuentes de alimentación Everlast

Brochure | MediaPort 200 60-1488-01 | H.264-Lösungen für Aufzeichnung und Streaming - Leitfaden für den Online-Unterricht (internationale Version)

Brochure | MediaPort 200 60-1488-01 | MediaPort 200 - SpecSheet

Brochure | MediaPort 200 60-1488-01 | Sichere Zusammenarbeit in Meetingbereichen - Leitfaden für Extrons AV-Systeme

Brochure | MediaPort 200 60-1488-01 | Soluciones H.264 para grabación y streaming - Guía de aplicación para el aprendizaje online (versión internacional)

Brochure | MediaPort 200 60-1488-01 | Solutions d'enregistrement et de streaming H.264 - Guide d'application pour l'apprentissage en ligne (version internationale)

Brochure | MediaPort 200 60-1488-01 | Soluzioni di registrazione e streaming H.264 - Guida applicativa per l’apprendimento online (versione internazionale)

Brochure | MediaPort 200 60-1488-01 | Sources d'alimentation Everlast

Brochure | MediaPort 200 60-1488-01 | Una collaborazione più sicura negli spazi meeting - Guida applicativa per i sistemi AV di Extron

Brochure | MediaPort 200 60-1488-01 | Решения с поддержкой H.264 для записи и потокового вещания в реальном времени - Руководство по применению для онлайн-обучения (международная версия)

Brochure | MediaPort 200 60-1488-01 | Создание более безопасных условий для проведения встреч - Руководство по применению для AV‑систем Extron

Manual | MediaPort 200 60-1488-01 | Cleaning Instruction Card

Manual | MediaPort 200 60-1488-01 | MediaPort 200 Audio Application Tutorial

Manual | MediaPort 200 60-1488-01 | MediaPort 200 Setup Guide

Manual | MediaPort 200 60-1488-01 | MediaPort 200 Soft Codec Configuration Guide

Manual | MediaPort 200 60-1488-01 | MediaPort 200 User Guide

Specifications | MediaPort 200 60-1488-01 | MediaPort 200

Panel Drawing | MediaPort 200 60-1488-01 | MediaPort 200
