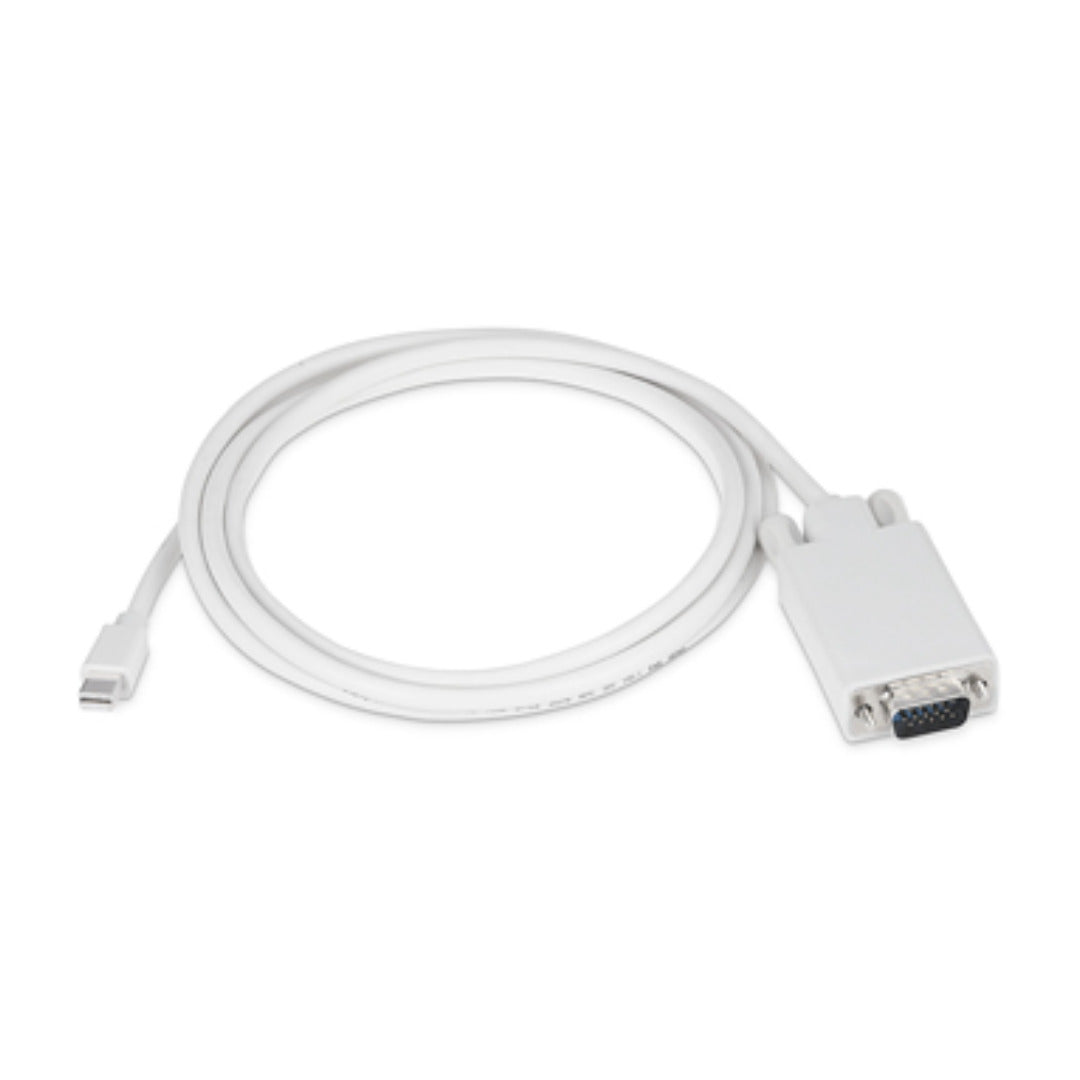

Extron MDP-VGA/6 (part number 26-672-06) — a 6 ft (1.8 m) active adapter cable that drives an analogue VGA display from a dual-mode Mini DisplayPort output.

Digital-to-analogue conversion happens inside the Mini DisplayPort connector shell, powered from the source, which is why the cable has to plug straight into the laptop or PC rather than sitting on the end of an extension. Traffic runs one way only: it will not make a VGA source appear as a Mini DisplayPort output. EDID from the VGA display is returned to the source so the machine offers sensible resolutions rather than guessing, and the run is rated to 1920 x 1200 at 60 Hz.

Key Capabilities

• Active Mini DisplayPort male to VGA male, one direction only
• Resolutions to 1920 x 1200 at 60 Hz
• DisplayPort 1.1 compliant
• Passes EDID from the VGA display back to the source
• 6 ft (1.8 m) run in a white jacket with moulded ends
• Certified for AVEdge, Cable Cubby and HSA surface access enclosures

Where It Is Used

Classrooms, training rooms and auditoriums with an installed VGA projector or VGA switcher input that still has years of service left, plus laboratory and industrial positions where an analogue monitor is part of a validated setup and cannot simply be replaced.

Specifications at a Glance

• Cable length: 6 ft (1.8 m)
• Connectors: male Mini DisplayPort to male VGA
• Complies with the VESA Interoperability Guideline
• White jacket and moulded ends for quick identification

Also referenced as Extron MDP-VGA/6, MDP-VGA-6, part number 2667206.
