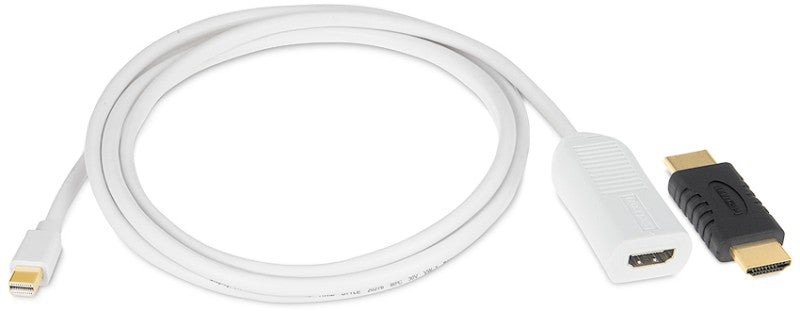

Extron MDP-HDMIF/6 (part number 26-679-06) — a 6 ft (1.8 m) active adapter cable that ends in an HDMI female connector, supplied with a male-to-male HDMI coupler and a LockIt Plus lacing bracket.

The female termination is the point. Instead of forcing the installer to reach a fixed HDMI plug into a recessed input, this cable presents a socket that a standard HDMI cable plugs into, and the included coupler covers the case where a male end is required after all. Because a coupled joint is exactly where a cable tends to work loose, Extron ships a LockIt Plus bracket with the coupler so the junction can be laced tight. Active circuitry at the Mini DisplayPort end performs the conversion; the cable runs source to display only and must sit directly on the source output.

Key Capabilities

• Active Mini DisplayPort male to HDMI female, 6 ft (1.8 m)
• Resolutions to 1920 x 1200 at 60 Hz, or 1080p at 60 Hz with audio
• Supports Standard HDMI speed and passes EDID from the sink
• DisplayPort 1.1 compliant with HDCP support
• HDMI male-to-male coupler included
• LockIt Plus cable lacing bracket supplied with the coupler

Where It Is Used

Table boxes and wall plates where the user-facing connection should be a socket rather than a captive plug, retrofit work into HDMI switchers with tightly spaced inputs, and lecterns where the same Mini DisplayPort feed has to serve whichever HDMI cable is on hand that day.

Specifications at a Glance

• Cable length: 6 ft (1.8 m); white jacket with moulded ends
• Connectors: male Mini DisplayPort to female HDMI, plus HDMI coupler
• Gold plating on all contact surfaces
• Certified for AVEdge, Cable Cubby and HSA surface access enclosures

Also referenced as Extron MDP-HDMIF/6, MDP-HDMIF-6, part number 2667906.
