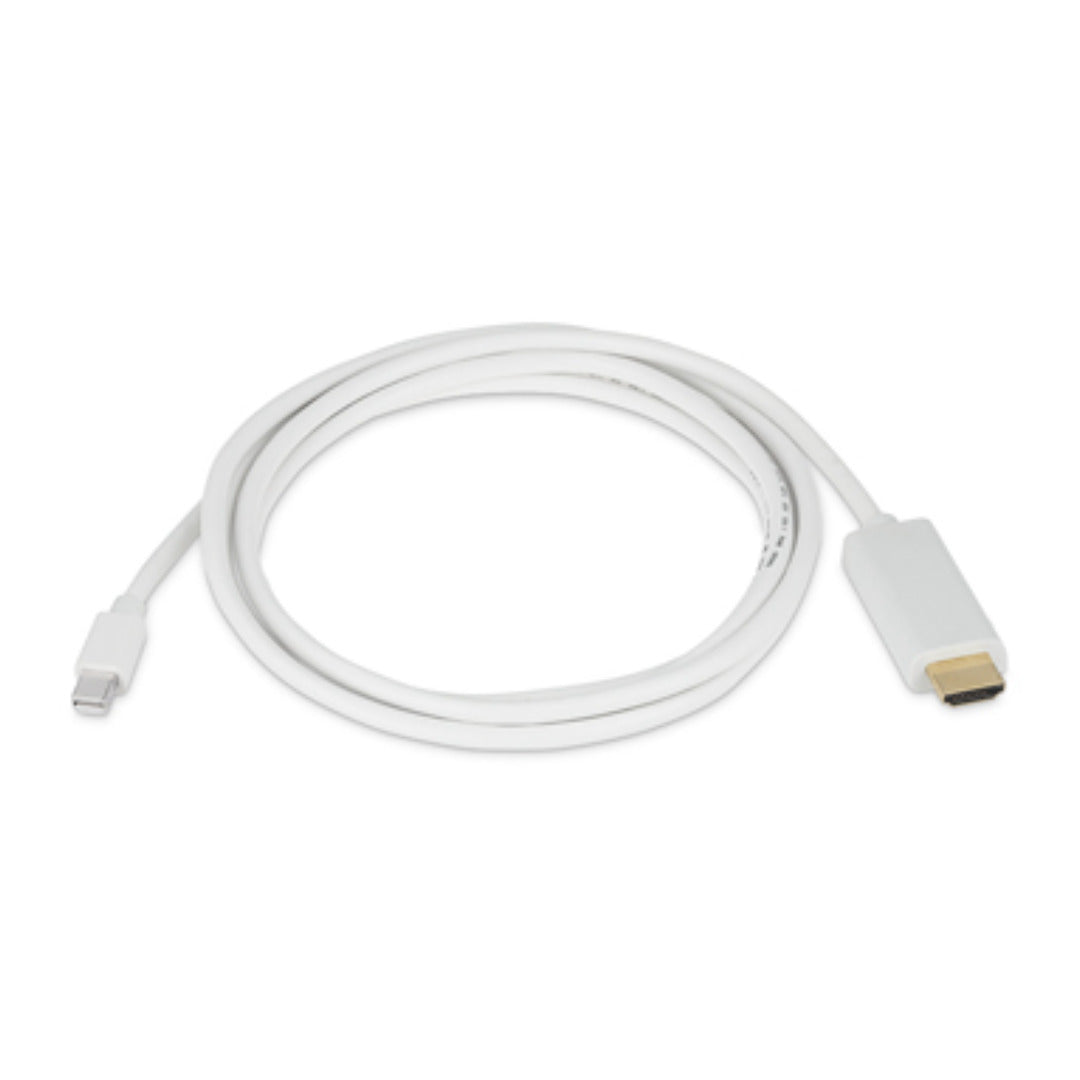

Extron MDP-HDMI/6 (part number 26-674-06) — a 6 ft (1.8 m) active adapter cable that connects a dual-mode Mini DisplayPort source to an HDMI display.

Active circuitry built into the Mini DisplayPort end converts the DisplayPort stream into HDMI, so the cable behaves like an ordinary HDMI lead once it is plugged in — no separate converter box, no external supply. EDID travels back from the display to the source, which is what stops a laptop offering a resolution the projector cannot show. Extron finishes the assembly in a white jacket with moulded ends so it is easy to pick out of a bundle in a table box, and every contact surface is gold plated.

Key Capabilities

• Active, one-way Mini DisplayPort male to HDMI male conversion
• 6 ft (1.8 m) length, matching the rest of the MDP Series
• EDID passed from the HDMI display back to the source
• Gold-plated contacts on both connectors
• White jacket and moulded ends for fast identification
• Certified for AVEdge, Cable Cubby and HSA surface access enclosures

Where It Is Used

Meeting rooms and classrooms where the room display or switcher input is HDMI and the guest device offers Mini DisplayPort, plus table boxes and lecterns stocked with a fixed set of source adapters for whatever laptop arrives.

Specifications at a Glance

• Cable length: 6 ft (1.8 m)
• Connectors: male Mini DisplayPort to male HDMI
• Complies with the VESA Interoperability Guideline
• Listed by Extron as a retired part number

Also referenced as Extron MDP-HDMI/6, MDP-HDMI-6, part number 2667406.
