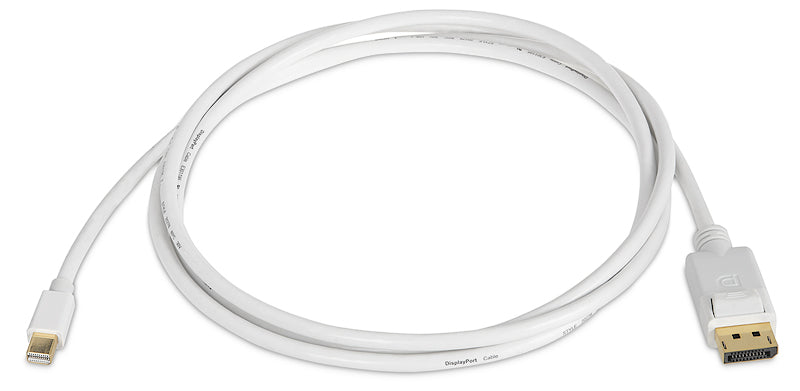

Extron MDP-DP/6 (part number 26-675-06) — a 6 ft (1.8 m) cable that connects a Mini DisplayPort source to a full-size DisplayPort input.

Of the MDP Series this is the one that stays inside the DisplayPort world, so it carries the highest resolution ceiling of the family: WQXGA, 2560 x 1600, with audio. The DisplayPort plug at the display end latches, which is worth having on a cable that lives in a table box and gets tugged sideways every time somebody stands up. EDID comes back from the sink device, HDCP is supported, and every contact surface is gold plated.

Key Capabilities

• Male Mini DisplayPort to male DisplayPort, 6 ft (1.8 m)
• Resolutions to WQXGA, 2560 x 1600, plus audio
• Latching mechanism on the DisplayPort plug secures the connection
• DisplayPort 1.1 compliant with HDCP support
• EDID passed back from the sink device
• Gold-plated contacts throughout

Where It Is Used

Workstation and control room positions running high-resolution DisplayPort monitors, boardrooms where laptops with Mini DisplayPort outputs meet a DisplayPort switcher input, and imaging or CAD suites that need more than 1080p from the table connection.

Specifications at a Glance

• Cable length: 6 ft (1.8 m); white jacket with moulded ends
• Max resolution: 2560 x 1600 (WQXGA) with audio
• Certified for AVEdge, Cable Cubby and HSA surface access enclosures
• Complies with the VESA Interoperability Guideline

Also referenced as Extron MDP-DP/6, MDP-DP-6, part number 2667506.
