Extron LockIt Plus (part number 101-039-01) — a package of 50 lacing brackets that hold USB-C and HDMI cables firmly against the connectors they plug into.

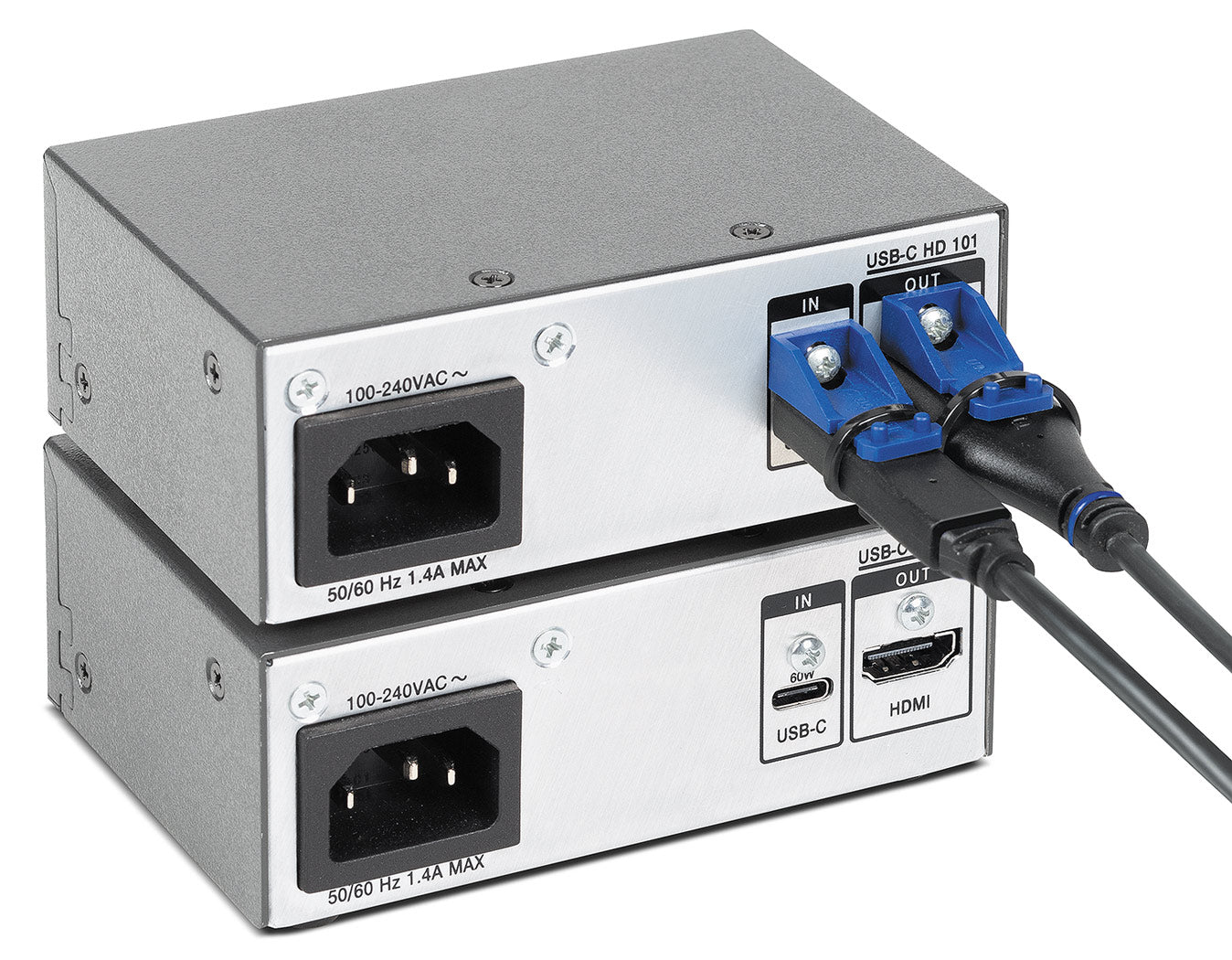

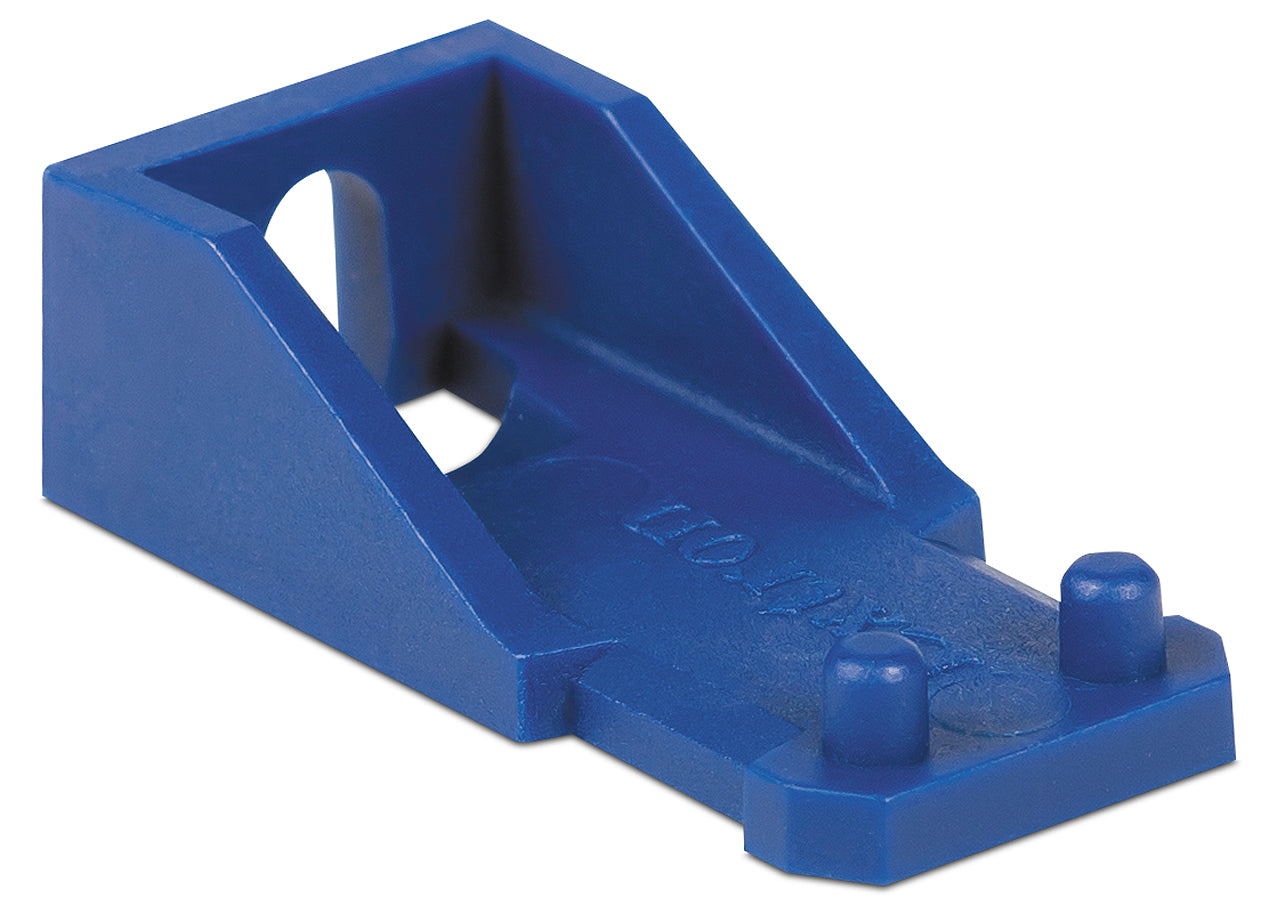

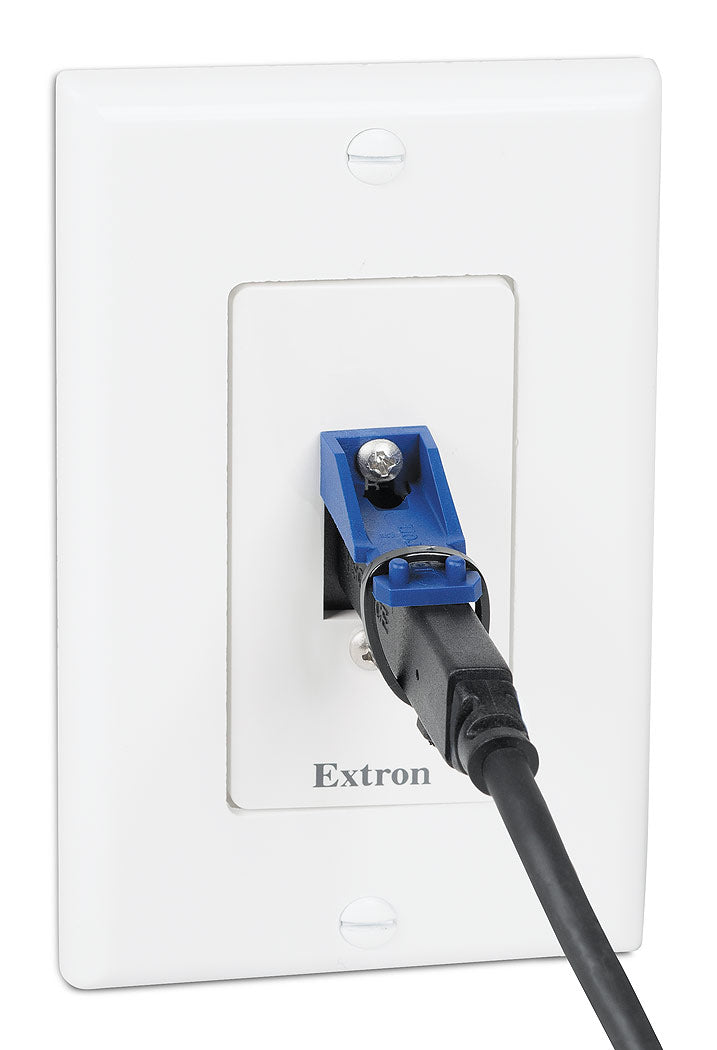

Neither USB-C nor HDMI has a latch. Gravity, cable weight and a knock from a cleaning trolley are all it takes to back a plug part-way out, and the resulting fault looks like a dead source rather than a loose cable. LockIt Plus removes that failure mode: the bracket sits behind the connector, a tie wrap runs through recessed lacing grooves, and guide posts stop the wrap sliding off under load. The moulded body is small enough to work where connectors are stacked, and it retrofits to cable that is already installed.

Key Capabilities

• Secures USB-C and HDMI cables to a product's connectors

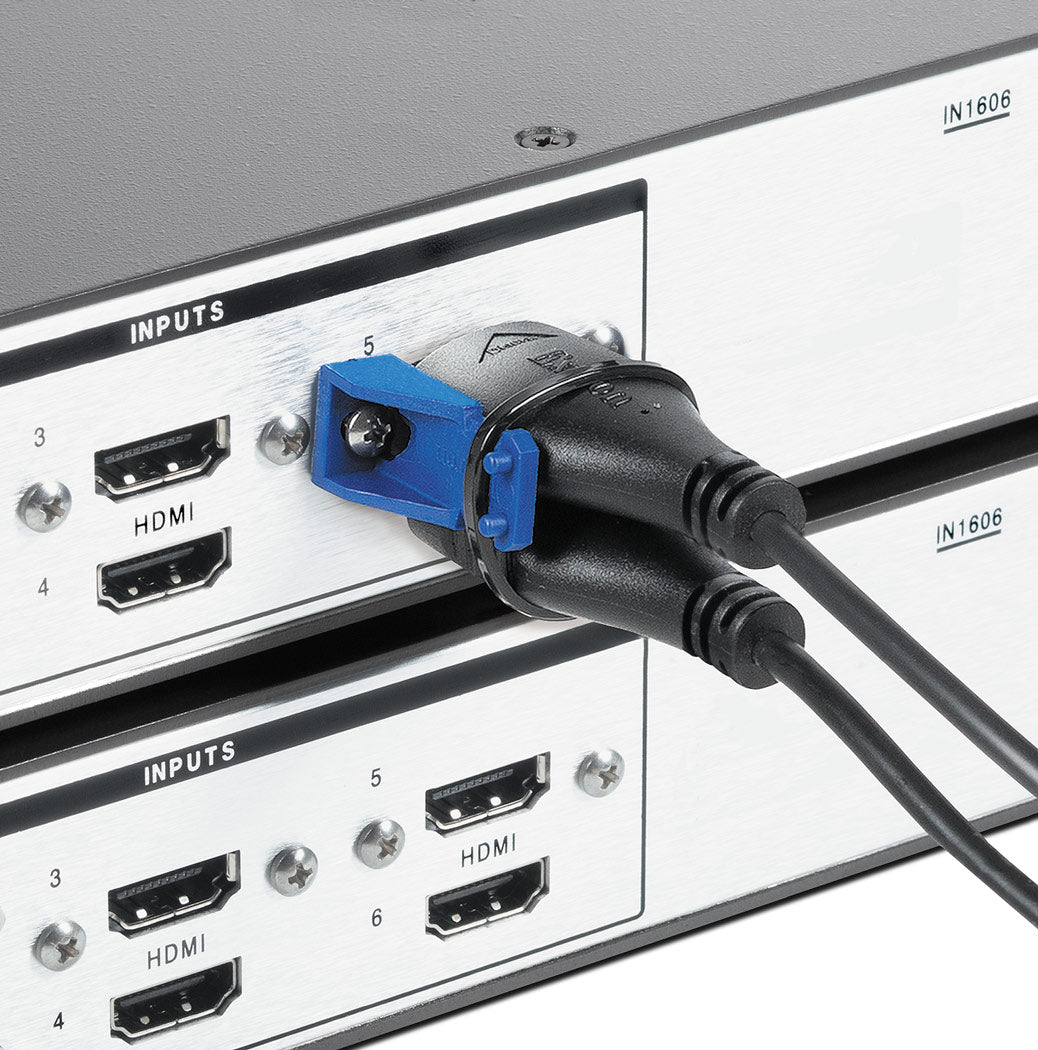

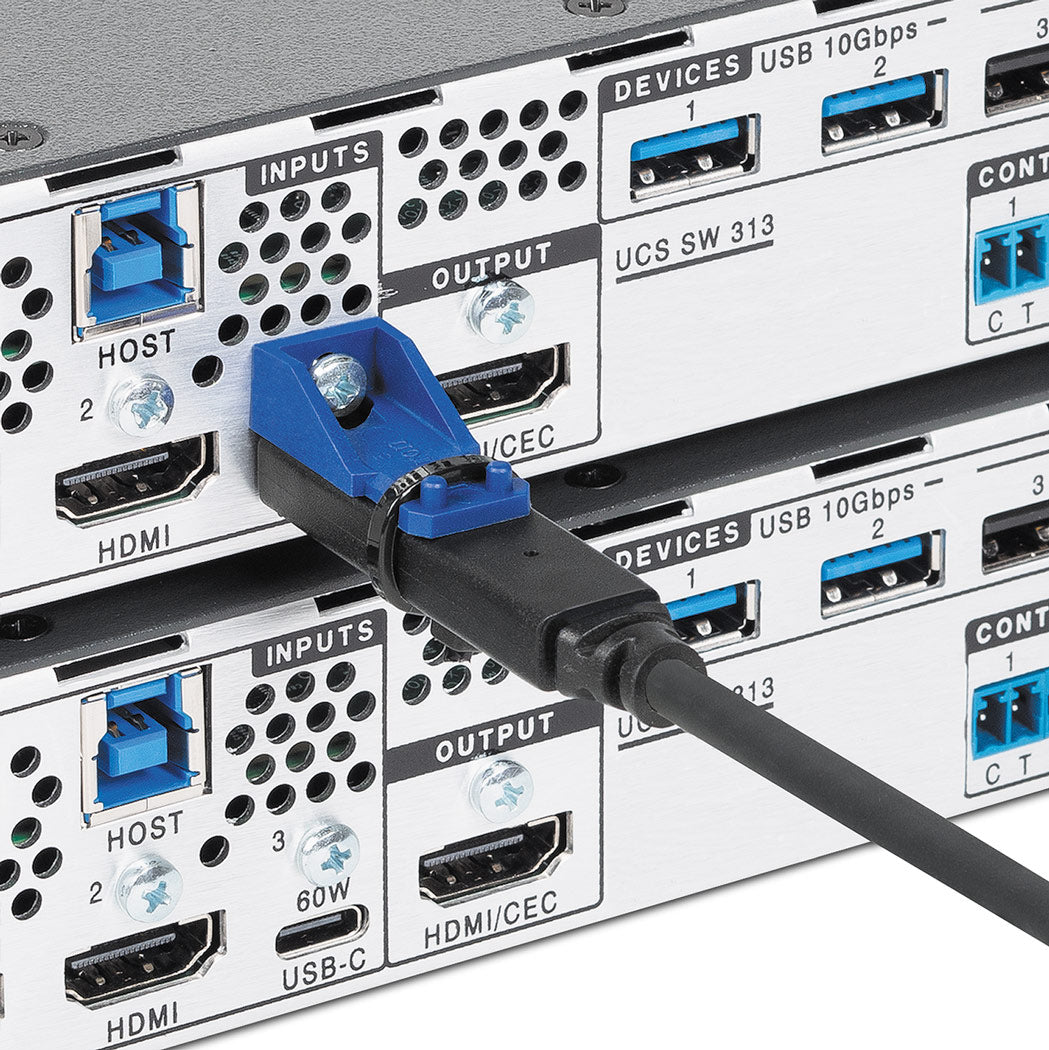

• Compact enough for single or stacked connector layouts
• Recessed grooves and guide posts keep the tie wrap seated
• Works on new installs or as a retrofit to existing cable
• Moulded in Zytel; each bracket weighs 0.003 lbs (1.36 g)

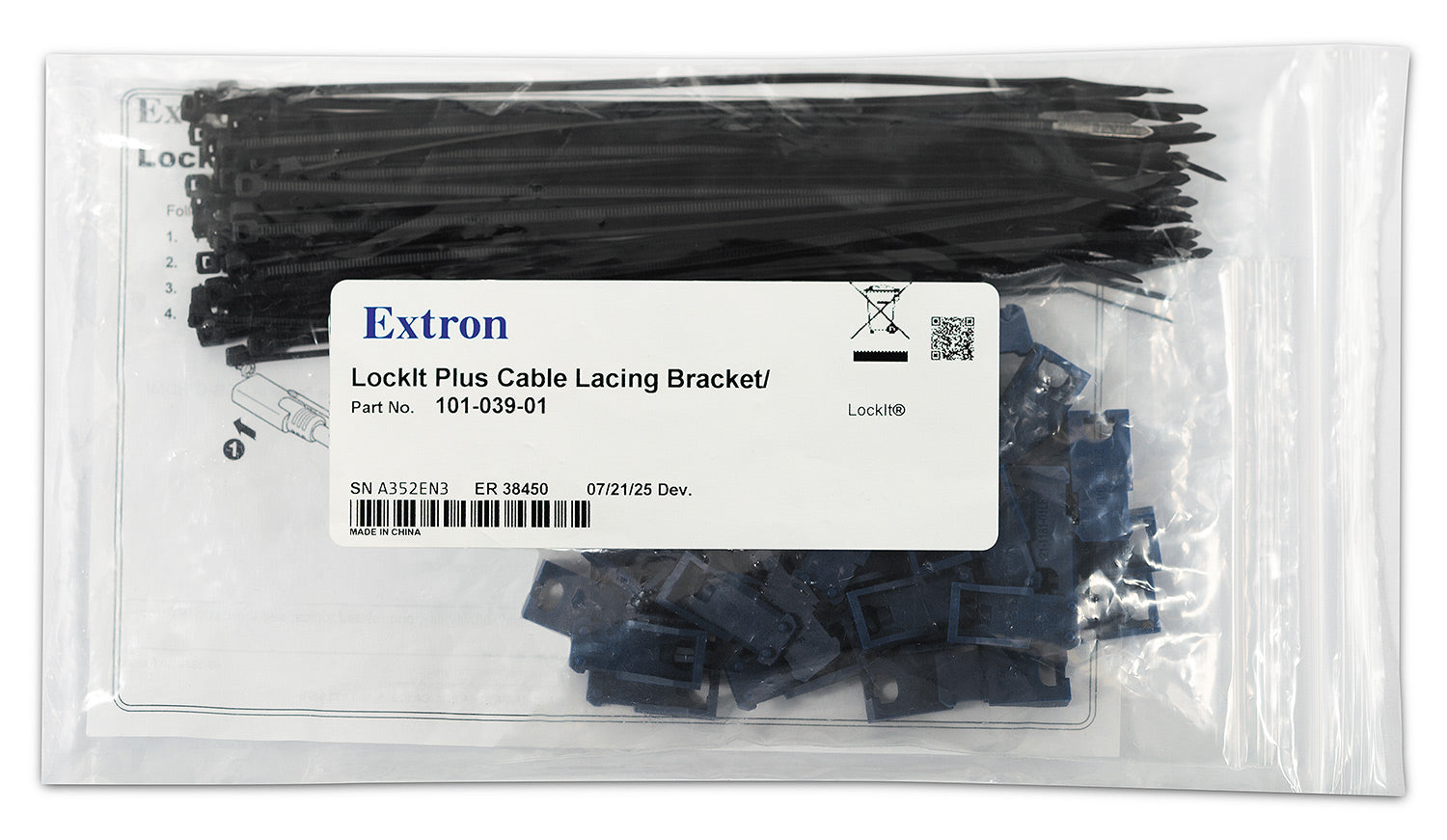

• Supplied in packages of 50 with tie wraps included

Where It Is Used

Equipment racks and AV furniture where HDMI and USB-C feeds terminate on switchers, extenders, scalers and displays. Common in classrooms, conference rooms, control rooms, digital signage cabinets and medical imaging carts, where a single loose plug can take a room out of service.

Specifications at a Glance

• Dimensions: 1.00 in L x 0.50 in W x 0.40 in H (25 x 13 x 10 mm)
• Material: Zytel; colour blue; mounting: rack mount
• Operating temperature: +32 to +122 °F (0 to +50 °C)
• Regulatory: RoHS, WEEE; Limited Lifetime Performance warranty

Also referenced as Extron LockItPlus, LockIt-Plus, part number 10103901.
