Extron LinkLicense (part number 79-2604-01) — the WC Pro Control Processor Upgrade, a software feature licence for Extron WC Pro Series workspace automation controllers.

Out of the box a WC Pro controller handles one display in a simple room. This licence lifts that ceiling. Once applied, the unit can be configured in Global Configurator Plus or Global Configurator Professional, or programmed outright with ControlScript, which means a single project can drive several displays and devices instead of one. It also opens the controller up to TouchLink Pro touchpanels, Network Button Panels and Secure Platform Devices, so a room can gain a proper user interface without a separate control processor being specified and installed.

Because it is delivered as a licence rather than hardware, the upgrade can be bought at the time of the original order or years later, when the room's requirements outgrow the original design. Licences are activated per system and need no central management.

Key Capabilities

• Configuration with Extron Global Configurator Plus or Professional
• Programming with the ControlScript Deployment Utility
• Allows more than one display or device in a single project
• Adds support for TouchLink Pro touchpanels and Network Button Panels
• Adds support for Secure Platform Devices

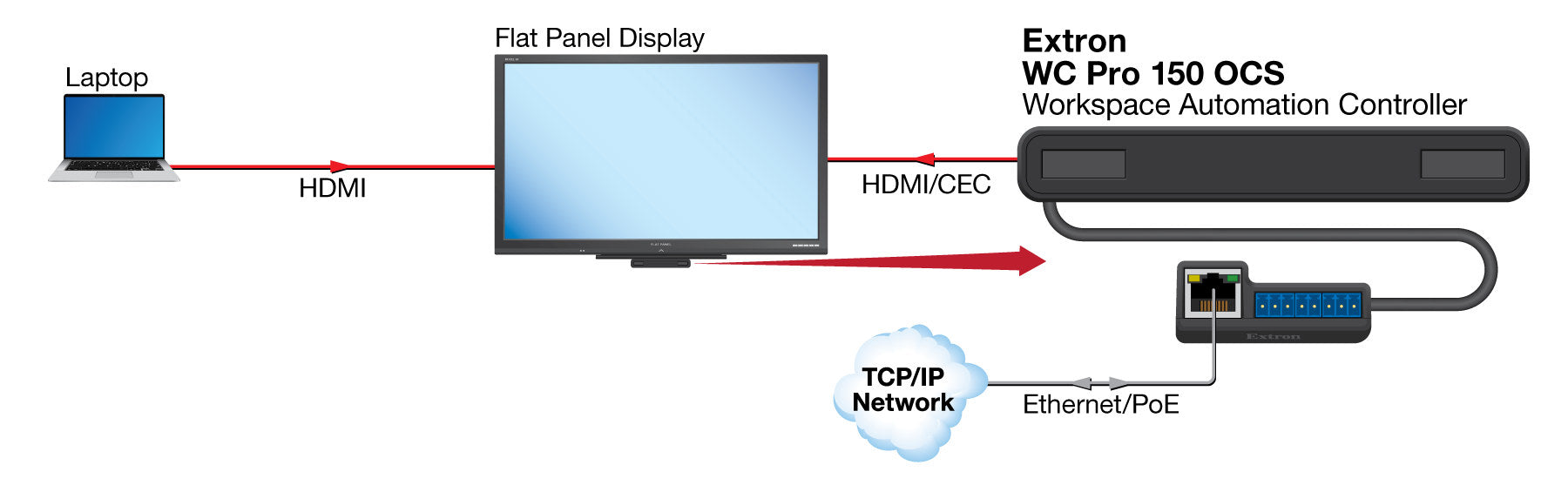

• Manage, monitor and control AV devices over a standard Ethernet network
• Access to the Pro Series driver and module library

Where It Is Used

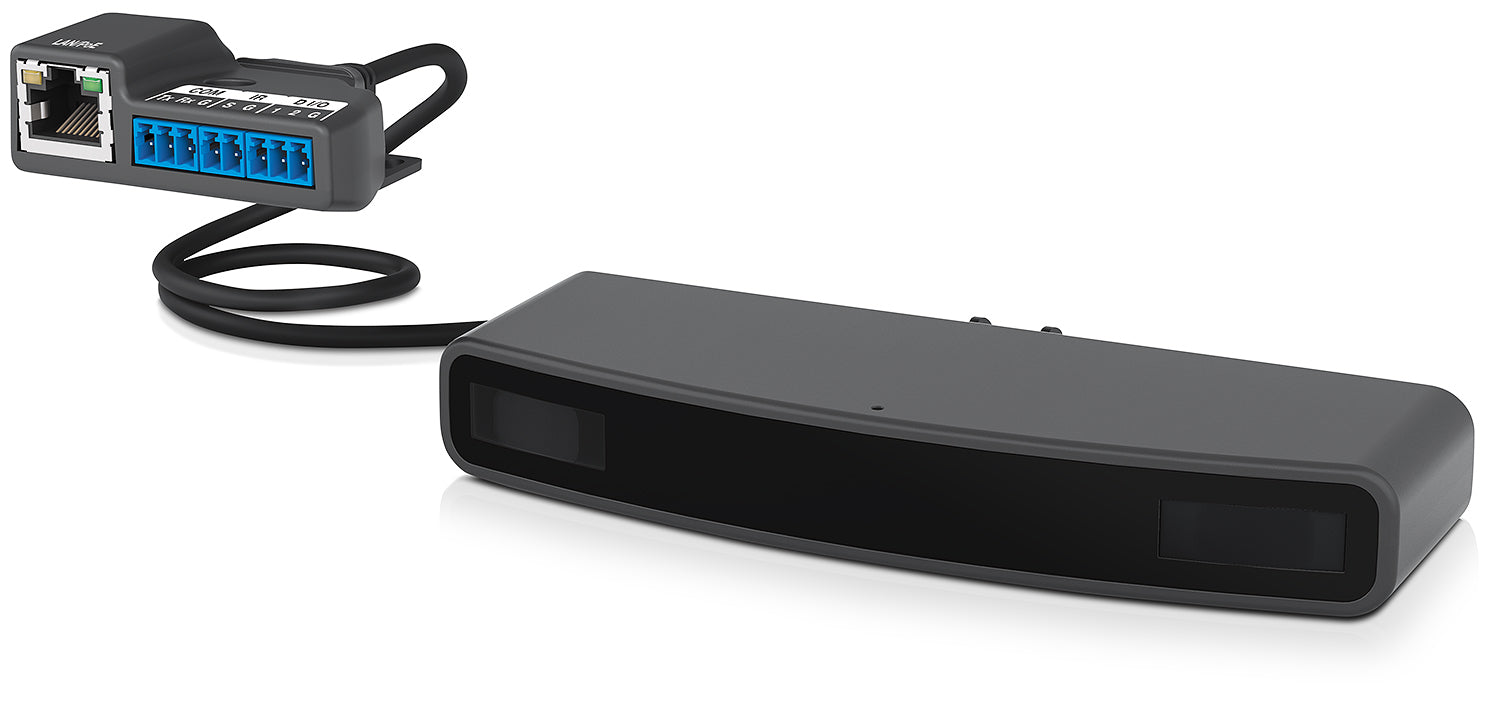

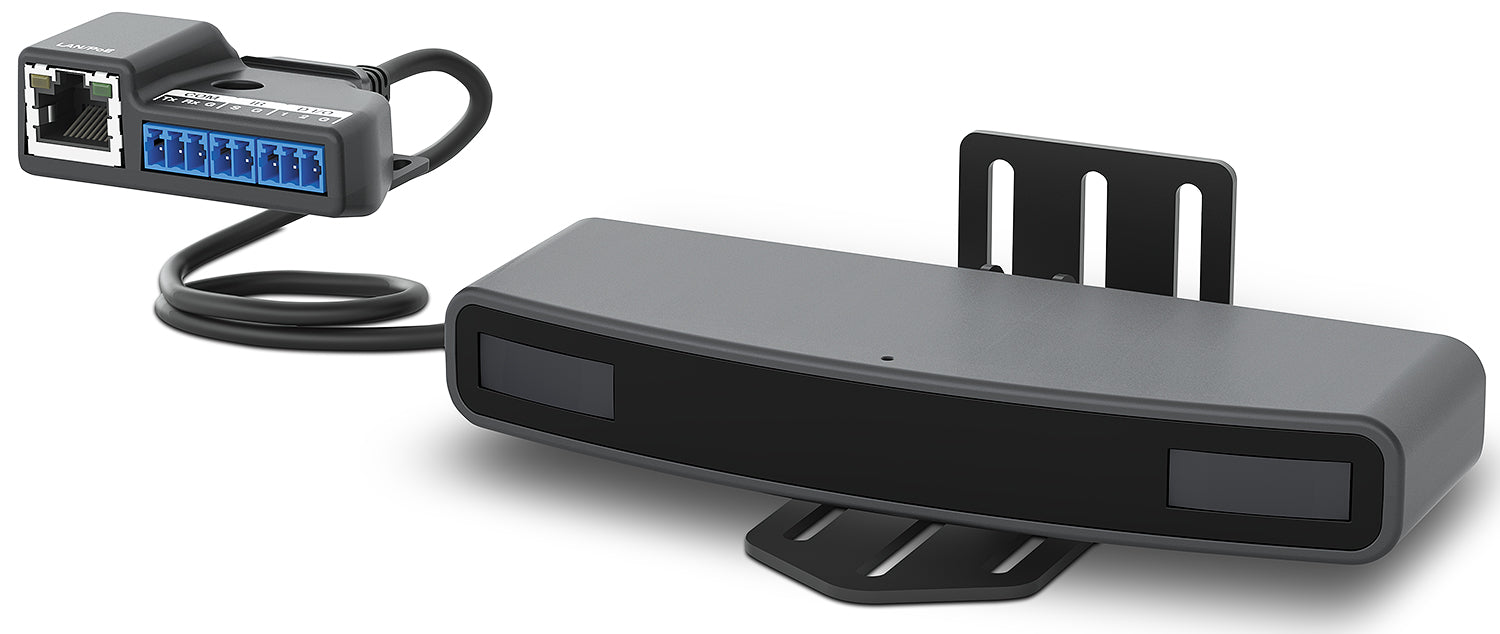

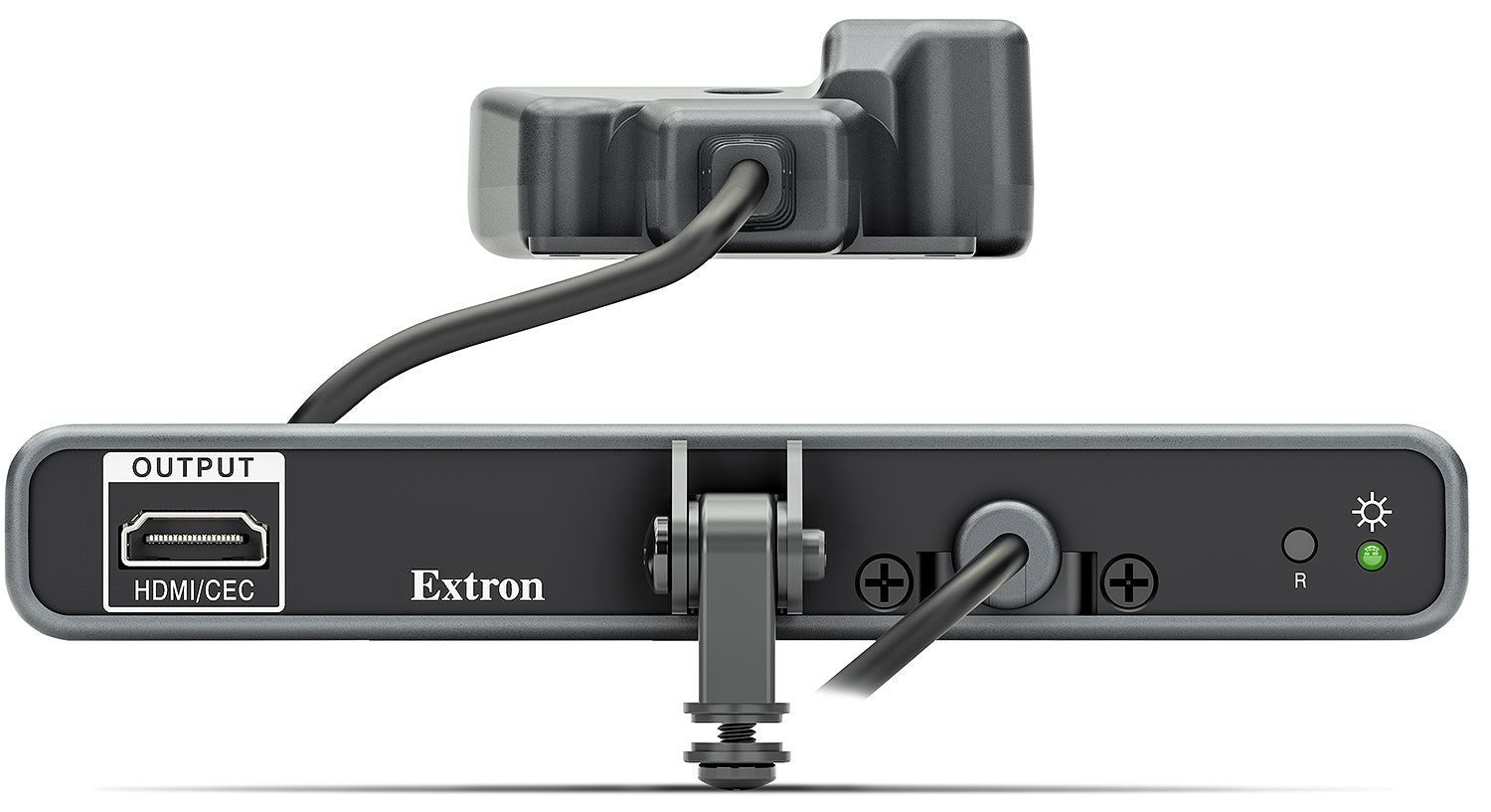

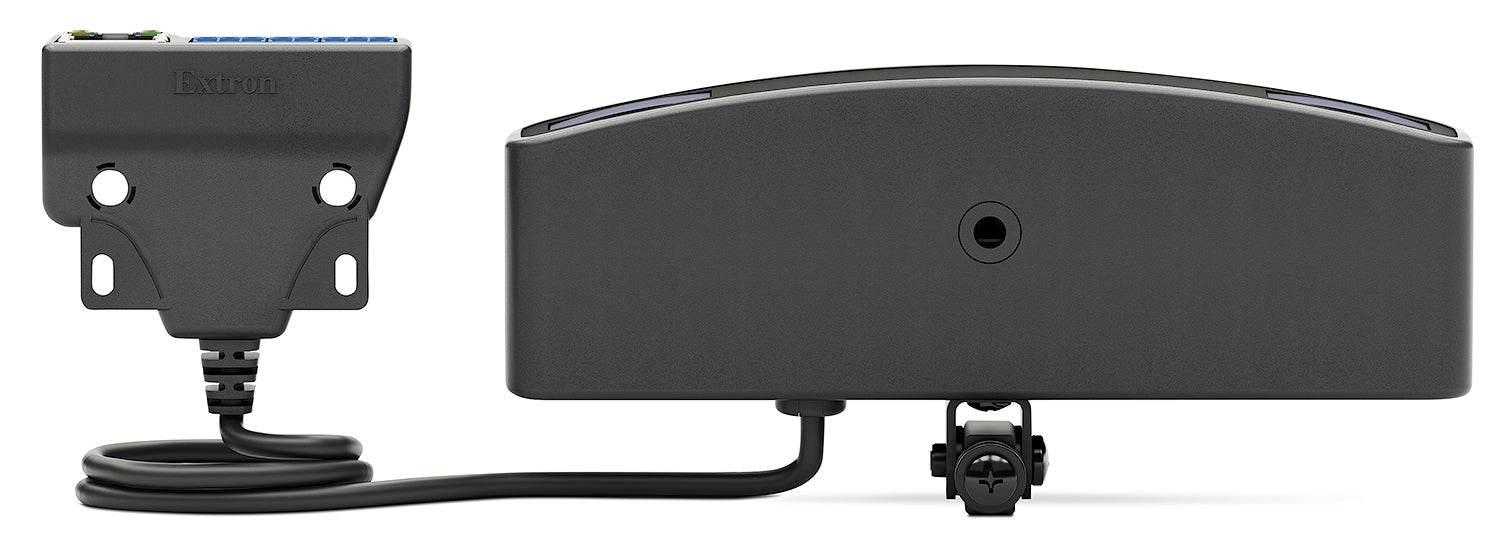

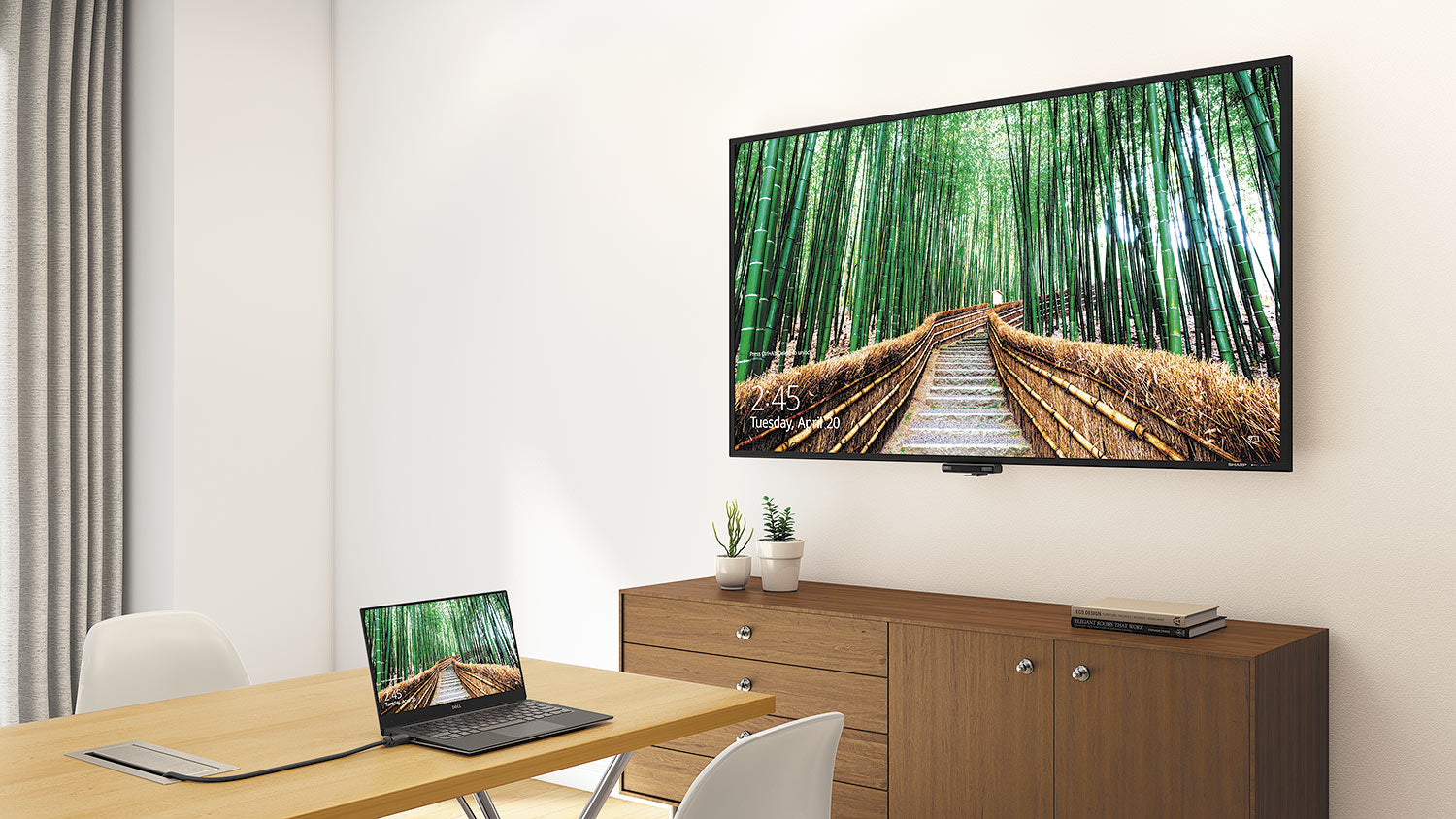

Applied to WC Pro 150 OCS and WC Pro 160 workspace automation controllers in huddle rooms, meeting rooms, classrooms and clinical consult spaces that started simple and later needed multi-device control or a touchpanel interface.

Specifications at a Glance

• Type: Control System LinkLicense, software feature upgrade
• Version description: WC Pro Control Processor Upgrade
• Compatible products: WC Pro 150 OCS, WC Pro 160
• Licensing: activated per system, no central management required
• Software: Global Configurator Plus and Professional, ControlScript

Also referenced as Extron LinkLicense, Link-License, part number 79260401.
