Manufacturer: Extron | Model: FOX LinkLicense | Part number: 79-2590-01 (also written 79259001)
The Extron FOX LinkLicense 79-2590-01 is a software feature upgrade for compatible Extron FOX3 System products. Activating this license expands system capability for FOX3 Matrix 840x installations, adding flexible USB control and enhanced signal management features. The upgrade is activated on a system-by-system basis in software with no additional hardware expense.
Specifications
Specifications
Part Number: 79-2590-01
Manufacturer: Extron
Condition: New
4096 x 2160 at 30 Hz1: 10 bit
4096 x 2160 at 30 Hz2: 4:4:4
4096 x 2160 at 60 Hz1: 4:4:4
4096 x 2160 at 60 Hz2: 4:2:2
AV LAN: Link speed and duplex level = autodetectedDHCP server = disabledSubnet mask = 255.255.255.0Gateway = 0.0.0.0
Ambient temperature/humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing
Audio format: 24 bit uncompressed at 48 kHz sampling rate
Baud rate and protocol: 300 to 115200 baud (default: 9600), 8 data bits, 1 stop bit, no parity
Bit depth: 16, 20, 24
CMRR: 65 dB @ 20 Hz to 20 kHz
Chroma sampling3: 4:4:4, 4:2:2
Color bit depth2,3: 8, 10, or 12 bits per color
Configuration software: Product Configuration Software (PCS)
Connector: 1 RJ-45
Connectors: 16 LC connectors per I/O board
Control apps: Extron Control
Cooling: Fan, right to left (as viewed from front panel)
Crosstalk: ≤-80 dB @ 1 kHz, fully loaded
DHCP server disabled: IP address = 192.168.254.250DNS = 127.0.0.1
DHCP server enabled: IP address = 192.168.254.1 DNS = 192.168.254.1 Dynamic leased IP address pool = 192.168.254.100 - 192.168.254.149 Maximum lease count = 50 Lease time = 24 hours
Data rate: 10/100/1000Base-T, half/full duplex with autodetect
Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.254 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off
EXP cable: Shielded CAT6 up to 10 meters
Enclosure dimensions: 50.72" H x 19.0" W x 22.0" D (no EMI) EMI ASSY 8.73" D (29U high, full rack wide) (129 cm H x 48 cm W x 56 cm D [no EMI] EMI ASSY 22 cm D) (Depth excludes connectors and handles. Width excludes rack ears.)
Enclosure type: Metal
Ethernet data rate: 10/100/1000Base-T, half/full duplex with autodetect
Ethernet port: 1 RJ-45 connector, female
Flash: 8 GB
Frame rate3: 24, 25, 30, 50, or 60 fps
Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Gain: Unbalanced output: -6 dB; balanced output 0 dB (default)
Gain error: ± 0.5 dB channel to channel
Gain range: Adjustable, -18 dB to +24 dB, 1 dB steps
Hardware: TouchLink® Pro touchpanels, Network Button Panels, or eBUS® button panels
Impedance: ≥10 k ohms unbalanced, ≥20 k ohms balanced
Inputs: Up to 32 stereo channels
LAN: Link speed and duplex level = autodetectedIP address = 192.168.253.250Subnet mask = 255.255.255.0Gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1
Latency: Deterministic, based on user selections: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms
Max. video data rate: 18.0 Gbps
Maximum built-in USB hubs: 1
Maximum channel data rate: 10 Gbps
Maximum level: +21 dBu balanced, +15 dBu unbalanced
Maximum level (Hi-Z): +21 dBu balanced, +15 dBu unbalanced
Minimum built-in USB hubs: 1
Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables
Network interface controllers (NICs): 2: 1 LAN, 1 AV LAN
Nominal level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)
Nominal peak wavelength: 850 nm for multimode (MM), 1310 nm for singlemode (SM)
Number/signal type: 4 analog stereo inputs, balanced/unbalanced 4 analog stereo outputs, balanced/unbalanced
Number/type: 8 singlemode or 8 multimode SFPs per board
Output impedance: 50 ohms unbalanced, 100 ohms balanced (analog only)
Outputs: Up to 32 stereo channels
Pin configurations, serial, 3-pole captive screw: Pin 1 = Tx, 2 = Rx, 3 = Gnd
Power consumption: Enclosure without boards: 350.0 watts Enclosure fully loaded with 105 MM boards: 2460.2 watts Enclosure fully loaded with 105 SM boards: 2775.2 watts Each MM board: 20.1 watts Each SM board: 23.1 watts
Power supply: Internal (IEC 60320 C20 inlet) North America: Input: 200-240 VAC, 50-60 Hz, 15A Other regions: Input: 200-240 VAC, 50-60 Hz, minimum 15A A redundant power supply is standard.
Product warranty: 3 years parts and labor
Product weight (fully loaded): 450 lbs (204 kg)
Program control: Extron Product Configuration Software Extron Simple Instruction Set (SIS™)
Programming software: Global Scripter®
Protocols: ARP, ICMP (Ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP
Quantity/type: 1 bidirectional RS-232
Rack mount: Yes
Regulatory compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCIComplies with the appropriate requirements of RoHS, WEEE.
Resolution and Refresh Rate: Chroma Sampling
Resource management software: GlobalViewer® Enterprise
Routing: 8 x 8 up to 840 x 840 unidirectional matrix or 4 x 4 up to 420 x 420 bidirectional matrix
S/N: >90 dB at maximum output (unweighted)
SDRAM: 2 GB
Sampling rate: 48 kHz
Serial control pin configuration: Captive screw: 1 = Tx, 2 = Rx, 3 = GND
Serial control port: 1 RS-232, 3.5 mm captive screw connector, 3-pole, female, rear panel
Signal Type: HDMI 2.0, HDCP 2.3
Singlemode: 20 km (12.4 miles) with singlemode (SM) cables
Source formats: 2 channel LPCM
Standard: Ethernet over USB
Stereo channel separation: >80 dB @ 1 kHz
THD + Noise: <0.1% @ 20 Hz to 20 kHz at nominal level
Thermal dissipation, full load: MM: 8396.7 BTU/hrSM: 9471.8 BTU/hr
Transmission type: Dante/AES-67, software selectable
Utilities: Toolbelt, embedded web page
Volume control range: -100 dB to 0 dB (control 0-100 in 1 dB steps)
Web server: Up to 200 simultaneous sessions7.0 MB non-volatile memory

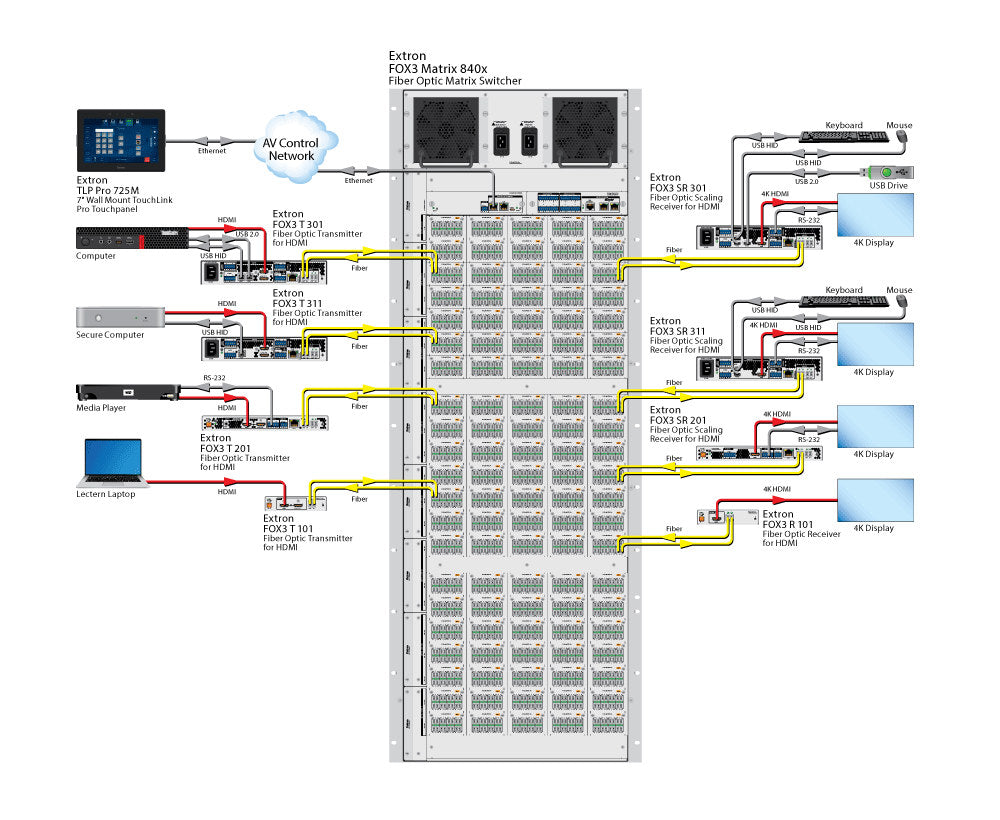

Diagram
Diagram
Resources
Resources
Brochure | LinkLicense 79-2590-01 | FOX3 Matrix 840x (fox3_matrix_840x_revA.pdf)
Brochure | LinkLicense 79-2590-01 | FOX3 Systems (fox3_matrix_series_vA5.pdf)
Brochure | LinkLicense 79-2590-01 | FOX3 Matrix 840x (FOX3-Matrix-840x_BR_A4_IT_RevA.pdf)
Brochure | LinkLicense 79-2590-01 | FOX3 Matrix 840x (FOX3-Matrix-840x_BR_A4_FR_RevA.pdf)
Brochure | LinkLicense 79-2590-01 | FOX3 Matrix 840x (FOX3-Matrix-840x_BR_A4_SP_RevA.pdf)
Brochure | LinkLicense 79-2590-01 | FOX3 Matrix 840x (FOX3-Matrix-840x_BR_A4_GE_RevA.pdf)
Brochure | LinkLicense 79-2590-01 | FOX3 Matrix 840x (FOX3_Matrix_840x_Rev_A_CN_Online.pdf)
Brochure | LinkLicense 79-2590-01 | FOX3 Systems (fox3_matrix_series_vA5_FR.pdf)
Brochure | LinkLicense 79-2590-01 | FOX3 Systems (fox3_matrix_series_vA5_SP.pdf)
Brochure | LinkLicense 79-2590-01 | FOX3 Systems (FOX3-Systems_BR_A4_EN_RevA3_Japanese.pdf)
Brochure | LinkLicense 79-2590-01 | FOX3 Systems (fox3_matrix_series_vA5_IT.pdf)
Brochure | LinkLicense 79-2590-01 | FOX3 Systems (FOX3_Systems_Rev_A5_Chinese.pdf)
Brochure | LinkLicense 79-2590-01 | FOX3 Systems (fox3_matrix_series_vA5_GE.pdf)
Manual | LinkLicense 79-2590-01 | Control Systems Network Ports, Protocols, and Licenses
Manual | LinkLicense 79-2590-01 | FOX3 Matrix Security Configuration Setup Guide
Manual | LinkLicense 79-2590-01 | FOX3 Matrix Series EMI Shield Installation Guide
Manual | LinkLicense 79-2590-01 | FOX3 Matrix Series Network Ports, Protocols, and Licenses Guide
Manual | LinkLicense 79-2590-01 | FOX3 Matrix Series Setup Guide
Manual | LinkLicense 79-2590-01 | FOX3 Matrix Series User Guide
Manual | LinkLicense 79-2590-01 | FOX3 Matrix System Map Setup Guide
Manual | LinkLicense 79-2590-01 | IPCP Pro Q xi and xi Series Setup Guide
Manual | LinkLicense 79-2590-01 | IPCP Pro Q xi and xi Series User Guide
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Extron LinkLicense 79-2590-01
Extron LinkLicense 79-2590-01
Manufacturer: Extron
Type: Fiber Optics

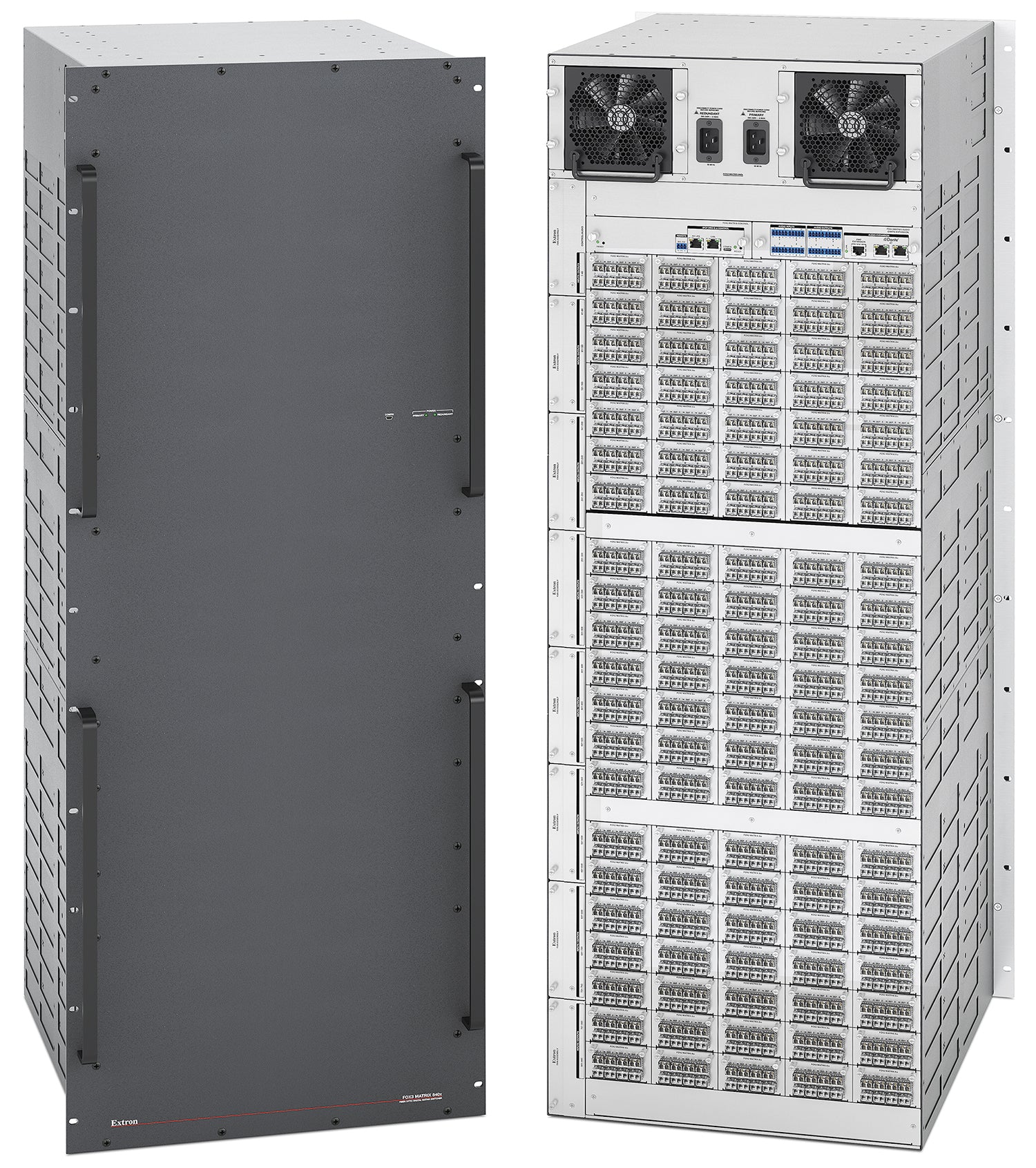

Extron FOX LinkLicense 79-2590-01 FOX3 840x Upgrade
- • FOX3 software upgrade for FOX3 Matrix 840x systems
- • Adds flexible USB control and enhanced signal management
- • System-by-system activation to deploy where needed
- • No additional hardware required
- • Part of the Extron FOX LinkLicense family for FOX3 systems
