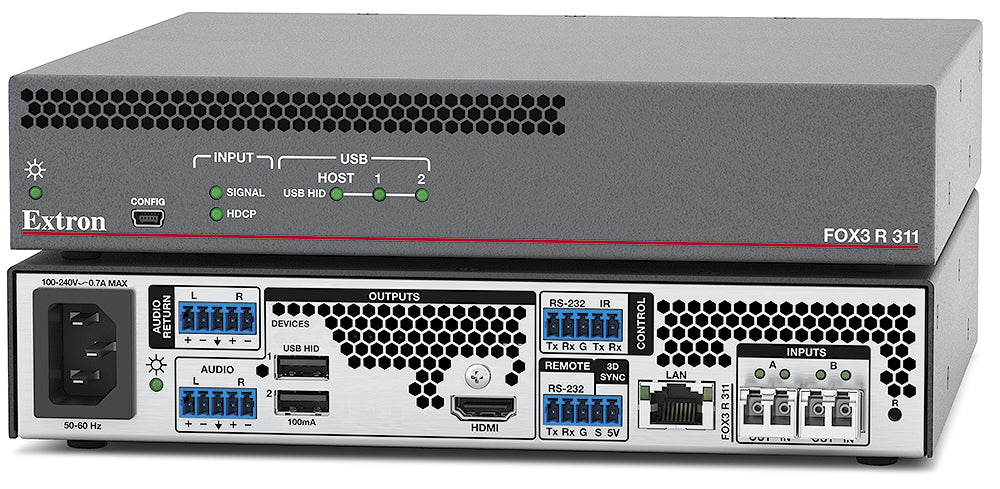

Part Number: 70-1098-12
Manufacturer: Extron
Condition: New
Ambient temperature/humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing
Analog: Analog stereo audio
Available USB power: USB 2.0 port = 500 mA USB HID ports = 100 mA
Bit depth: 16, 20, 24
CMRR: 65 dB @ 20 Hz to 20 kHz
Chroma sampling3: 4:4:4, 4:2:2
Color bit depth: 8, 10, and, 12 bits per color
Color bit depth2,3: 8, 10, or 12 bits per color
Color space: 4:4:4, 4:2:2
Connectors: 1, 2, or 3 LC connectors
Control: 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins are used), rear panel
Cooling: Fan, air flows from front to rear (vented)
Data rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)
Data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps) (FOX3 R 301 models only)
Data transfer types: Bulk, control, interrupt, and isochronous
Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.254 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off
Enclosure dimensions: 1.7" H x 8.75" W x 8.5" D (half rack wide) (4.4 cm H x 22.2 cm W x 21.6 cm D) (Depth excludes connectors.)
Enclosure type: Metal
Ethernet data rate: 10/100/1000Base-T, half/full duplex with autodetect
Ethernet port: 1 RJ-45 connector, female
Everlast power supply warranty: 7 years parts and labor
Format: RGB and YCbCr digital video
Frame rate: 24, 25, 30, 50, 60, or 120 fps
Frame rate3: 24, 25, 30, 50, or 60 fps
Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Furniture mount: Yes, with optional under desk mounting kit
Gain: Unbalanced output: -6dB; balanced output: 0 dB (default)
Gain error: ± 0.5 dB channel to channel
HDMI: 2 CH LPCM
Horizontal frequency: 24 kHz to 135 kHz for resolutions up to 18 Gbps
Host support: xHCI (USB 3.2 Gen 1/2, USB 3.1 Gen1/2, USB 3.0) (FOX3 R 301 models only), EHCI (USB 2.0) (FOX3 R 301 models only), OHCI/UHCI (USB 1.1)
IR control pin configuration: 3 = GND, 4 = IR Tx, 5 = IR Rx
IR control port: (1) 3.5 mm captive screw connector, 5 pole (connector is shared with RS-232 pass thru) TTL level (0 to 5V) modulated infrared control from 30 kHz to 56 kHz
Impedance: 50 ohms unbalanced, 100 ohms balanced (analog only)
Max. video data rate: 18.0 Gbps
Maximum built-in USB hubs: 0
Maximum data rate: 18.0 Gbps (6.0 Gbps per color)
Maximum level: +21 dBu balanced, +15 dBu unbalanced
Maximum level (Hi-Z): +21 dBu balanced, +15 dBu unbalanced
Maximum pixel clock: 594 MHz
Minimum built-in USB hubs: 0
Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables
Nominal level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)
Nominal peak wavelength: 850 nm for multimode, 1310 nm for singlemode
Number/signal type: 1 HDMI
Number/type: 1 or 2 SFPs
Pass-through: 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins are used), rear panel
Power consumption: 24.4 watts
Power for active cables: 1.1 W max. for the HDMI port
Power supply: Internal Input: 100-240 VAC, 50-60 Hz
Product warranty: 3 years parts and labor
Product weight: 2.4 lbs (1.1 kg)
Program control: Extron Product Configuration Software Extron Simple Instruction Set (SIS™)
Protocols: ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP
Rack mount: Yes, with optional rack shelf
Regulatory compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE.
Resolution range: 640x4808 up to 4096x21601,2,3,4,5,6,7,8, 480p7,8, 576p6, 720p3,4,5,6,7,8,9, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8,9, 2K1,2,3,4,5,6,7,8, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8 123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz, 9120 Hz
S/N: >90 dB at maximum output (unweighted)
Sampling rate: 48 kHz
Serial control pin configuration: Captive screw: 1 = Tx, 2 = Rx, 3 = GND
Signal Type: HDMI 2.0, HDCP 2.3
Singlemode: 20 km (12.4 miles) with singlemode (SM) cables
Standard: Ethernet over USB
Standards: HDMI 2.0, HDCP 2.3
Stereo channel separation: >80 dB @ 1 kHz
THD + Noise: <0.1% @ 20 Hz to 20 kHz at nominal level
Thermal dissipation: 71.0 BTU/hr
Vertical frequency: 24 Hz to 120 Hz for resolutions up to 18 Gbps
Volume control range: 100% to 0% (0-100 in 1dB steps)
