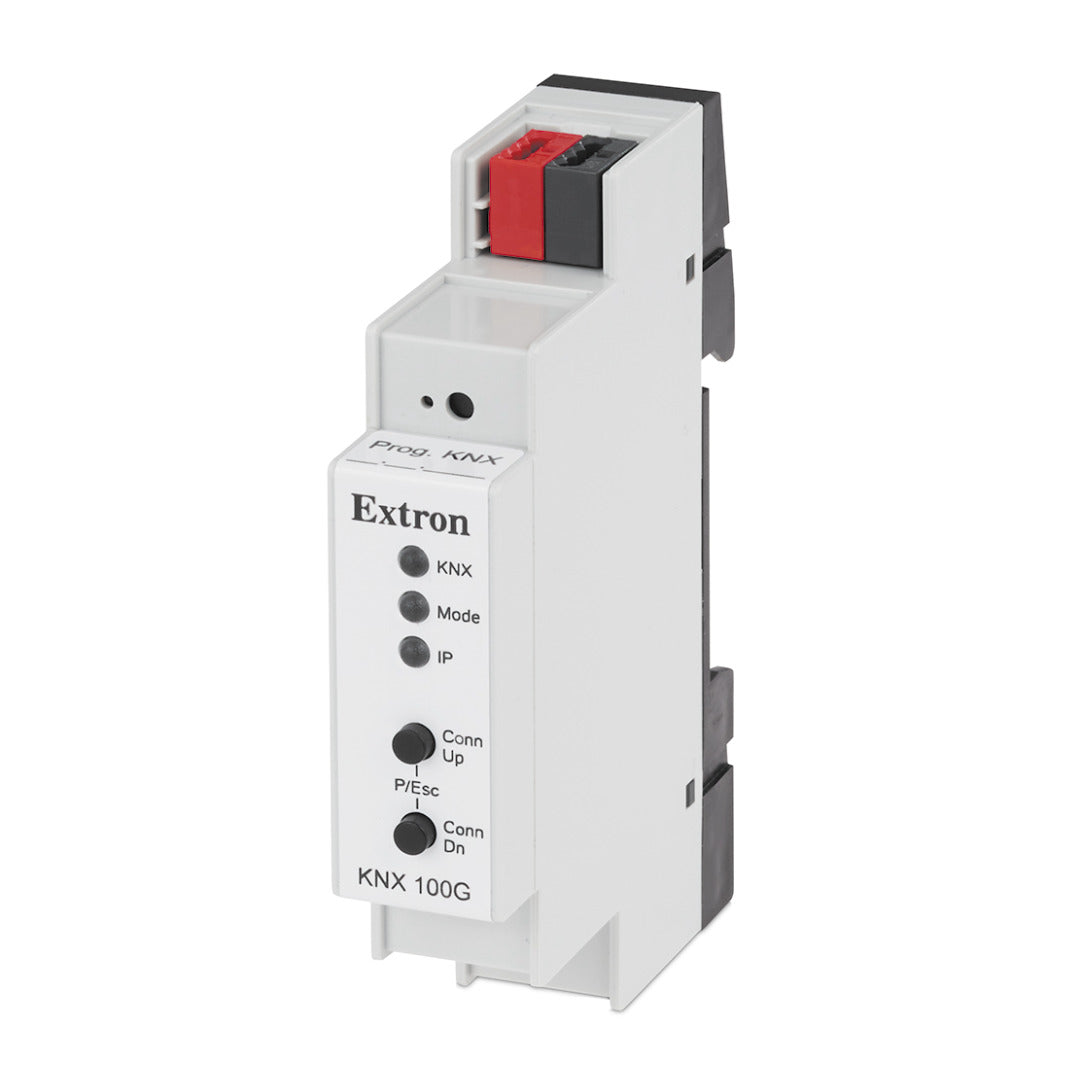

Extron KNX 100G (part number 60-1796-01) — a DIN rail gateway that puts a KNX building network within reach of an Extron control system.

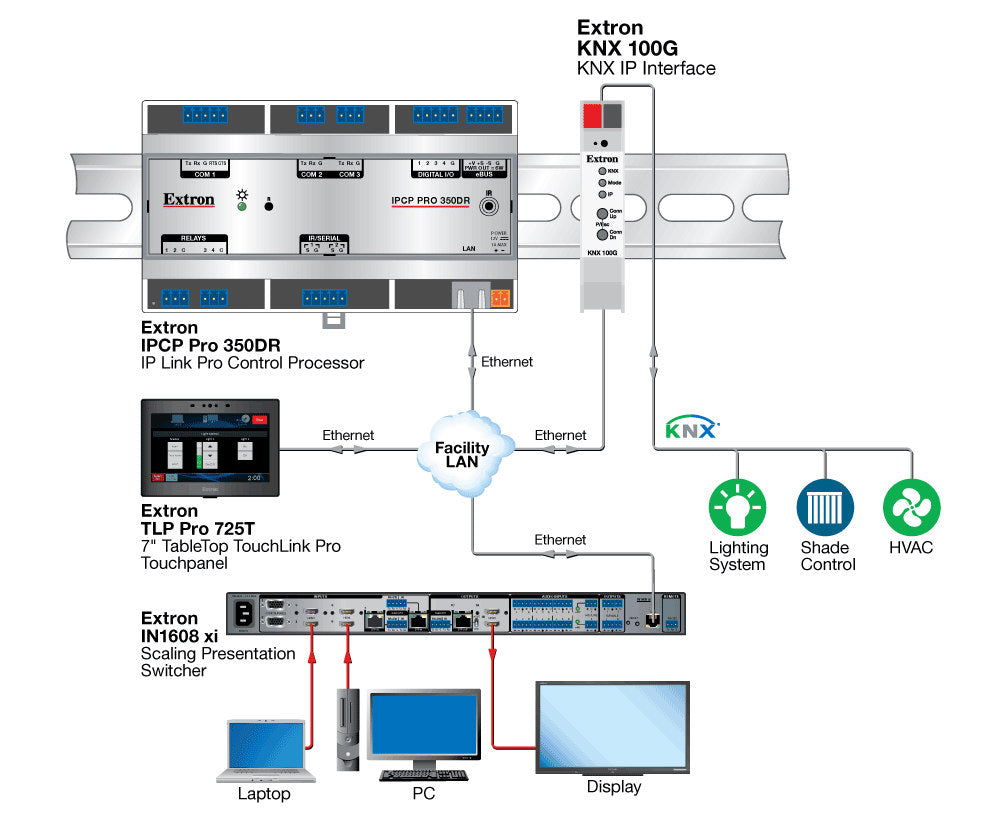

Rooms that already run lighting, blinds and temperature on KNX usually keep that world separate from the AV control system. The KNX 100G closes that gap: it sits on the KNX twisted-pair bus at one end and the LAN at the other, so an Extron control processor or touchpanel can issue and receive KNX telegrams. It is also the interface ETS uses for commissioning, since the bus becomes reachable from any point on the network rather than only from a physical bus tap.

Key Capabilities

• Up to five KNXnet/IP tunneling connections open at the same time, each with its own individual address.
• Drawn entirely from the KNX bus at 15 mA - no external power supply is required or supplied.

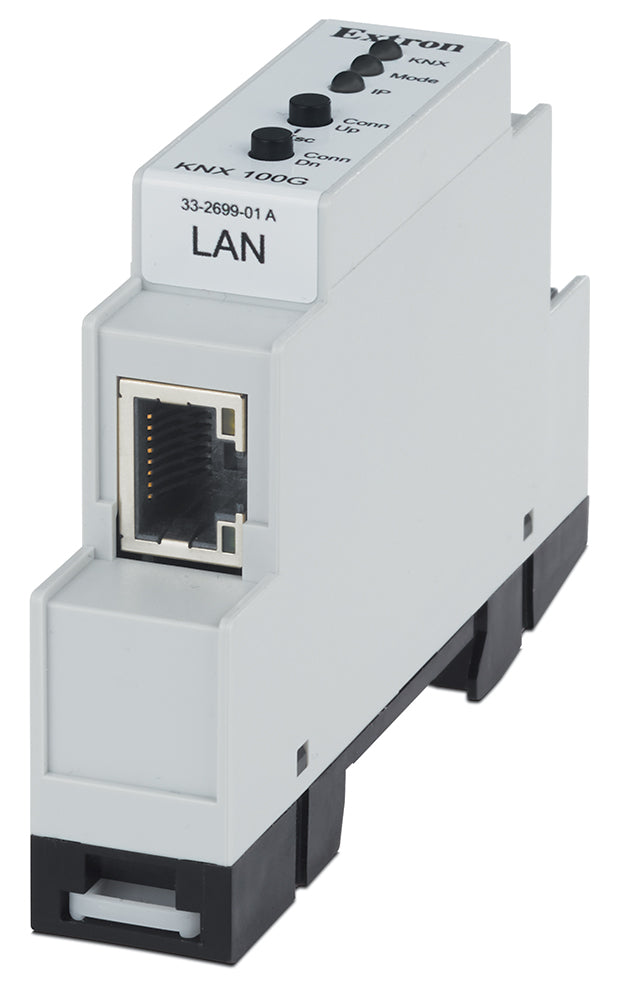

• 10Base-T Ethernet on a female RJ-45, speaking ARP, ICMP, IGMP, UDP/IP, DHCP and Auto IP.
• Configured and programmed through standard ETS software, over the bus or over KNXnet/IP tunneling.

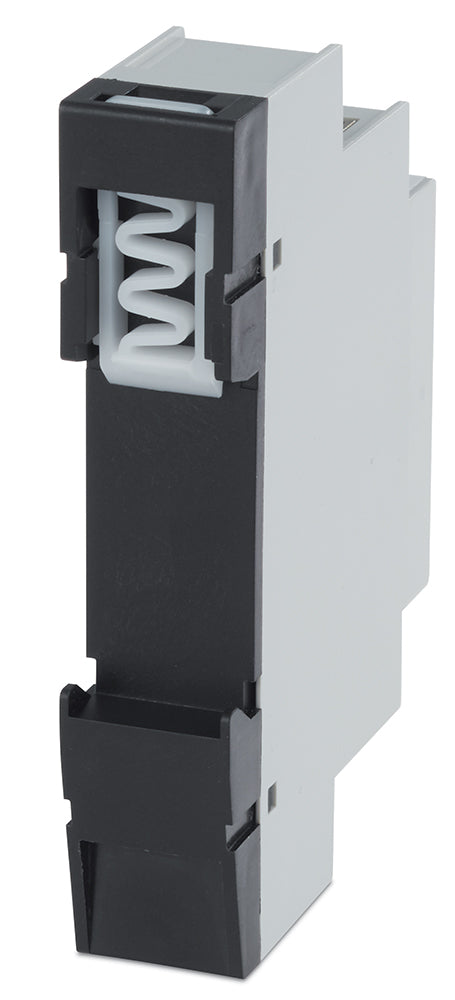

• Single-width 18 mm body that clips onto EN 50022 top hat DIN rail in a control enclosure.
• Multicolour KNX, Mode and IP status LEDs for at-a-glance link and telegram diagnostics.

Where It Is Used

Conference rooms, boardrooms, classrooms and lecture halls that share a building management backbone are the natural fit. Because the gateway is DIN rail mounted and bus powered, it lives in the electrical panel alongside KNX actuators rather than consuming rack space, letting a single touchpanel drive lighting, shades, dimming and thermostat groups.

Specifications at a Glance

• Tunneling: up to 5 simultaneous KNXnet/IP connections
• Ethernet: 10Base-T, 1 female RJ-45 connector
• Power: KNX bus, 15 mA device consumption
• Enclosure: plastic, 3.54 in H x 0.70 in W x 2.36 in D (90 x 18 x 60 mm)
• Operating range: -5 to 45 °C, 5% to 93% noncondensing

Also referenced as Extron KNX100G, KNX-100G, part number 60179601.
