Details

Extron J2KENC PRO (part number 79-550-02) — the professional edition of Extron's JPEG2000 encoding software, adding multi-core processing and advanced editing tools to the base J2KENC feature set for JMP 9600 media players.

Like the base edition, J2KENC PRO runs on a Windows PC and builds MXF-wrapped, DCI-compliant DCP files that transfer to a JMP 9600 over LAN via FTP. PRO adds multi-thread, 32-bit, multi-core processing for faster encoding, plus text overlay, timecode stamp, image cropping, and letterbox positioning tools not available in the base edition. It also supports batch encoding and up to 16 channels of audio when content is prepared for a single video output, or 8 channels across two outputs.

Key Capabilities

Multi-thread, 32-bit, multi-core processing for faster encoding than the base edition
Batch encoding of multiple source files
Up to 16 channels of audio for single-output content, or 8 channels across two outputs

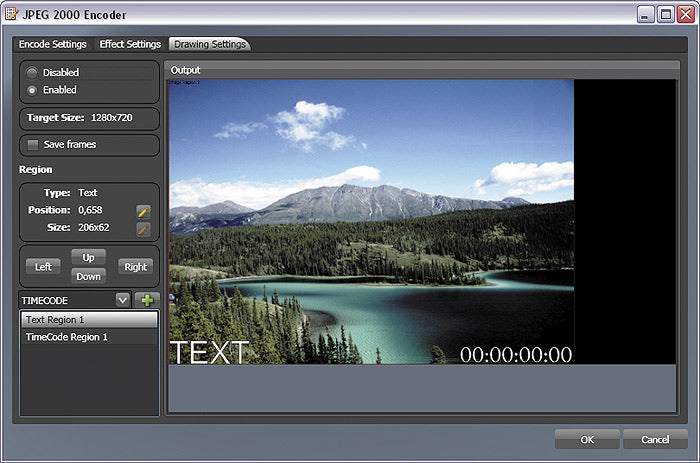

Advanced editing: text overlay, timecode stamp, image cropping, letterbox and positioning
Image adjustments for synchronized playback across multiple JMP 9600 2K players in 3D, 4K, or ultra-wide setups

Where It Is Used

J2KENC PRO is specified for higher-volume or multi-screen JPEG2000 encoding jobs — synchronized multi-projector 3D, 4K, and ultra-wide installations — where the base J2KENC's single-core processing and editing toolset are not sufficient.

Specifications at a Glance

Multi-core, multi-thread 32-bit processing on Microsoft Windows 7 or Windows XP SP3
Up to 16 audio channels (single output) or 8 channels (dual output)
Batch encoding plus text overlay, timecode stamp, cropping, and letterbox editing tools
Prepares unencrypted, DCI-compliant DCP files transferred to JMP 9600 via FTP

Also referenced as Extron J2KENC PRO, J2KENC-PRO, part number 79550-02.

Specifications

Part Number: 79-550-02

Manufacturer: Extron

Model: J2KENC PRO

Condition: New

Function: Professional JPEG2000 encoding software preparing HD or 2K video and multichannel audio content for playback on Extron JMP 9600 media players

Output Format: Unencrypted, DCI-compliant DCP (Digital Cinema Package), MXF wrapped video and audio streams (reels)

File Transfer: Transferred to the JMP 9600 over a LAN connection using FTP

Processing: Multi-thread, 32-bit, multi-core processing for increased encoding speed

Batch Encoding: Supported

Advanced Editing: Text overlay, timecode stamp, image cropping, letterbox, and letterbox positioning within the output frame

Audio Channels: Up to 16 channels for content prepared for a single video output, or up to 8 channels for content prepared for 2 video outputs

Encoding Resolutions: 720p, 1080i, 1080p, or 2K

Frame Rates: 25/50i, 30/60i, 29.97/59.94i, 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, and 60 frames per second

Image Encoding: Sequential frame BMP, DPX, PNG, TGA, and TIFF graphic files at 8, 10, or 16 bits per color

Audio Integration: Uncompressed 16- or 24-bit stereo 48 kHz broadcast WAV files

Color Space: YCrCb, RGB, or XYZ; 8, 10, or 12 bits per color channel; 4:2:2 or 4:4:4 color sampling

Multi-Screen Support: Image adjustments for content played back synchronized across multiple JMP 9600 2K players in 3D, 4K, or ultra-wide screen applications

Minimum System Requirements: Intel Pentium 4, 2.8 GHz single core processor; 2 GB RAM; 1 GB available hard disk space on system drive, 500 GB or more free space on media drive for DCP output storage; network capable computer; Windows 7 or Windows XP SP3, 32 or 64 bit

Recommended System: Intel Core i5, 3.4 GHz dual-core, 4-thread or greater; 4 GB RAM or greater; Microsoft .NET Framework 3.5 SP1; Windows 7, 64 bit

Diagram

Resources

Brochure | J2KENC-PRO 79-550-02 | J2KENC, J2KENC PRO

Manual | J2KENC-PRO 79-550-02 | JPEG 2000 Encoder User Guide
