Details

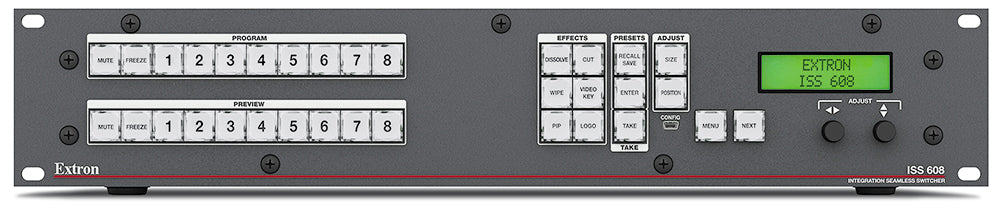

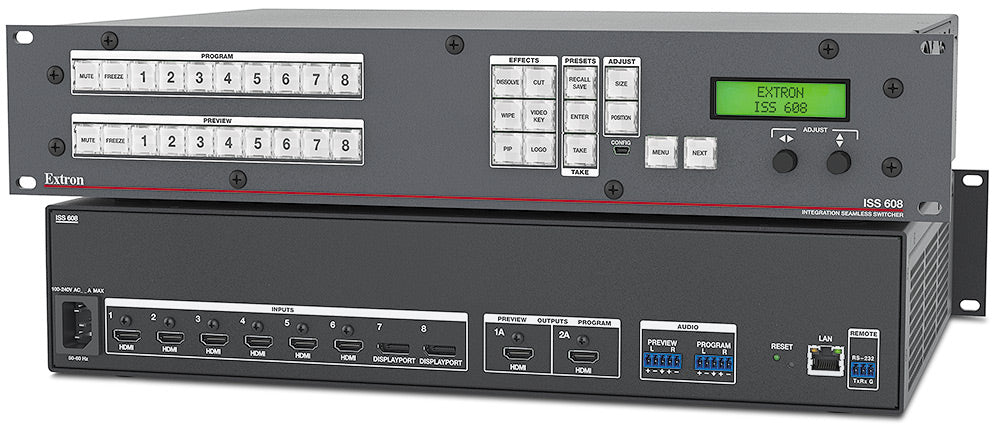

Extron ISS 608 (part number 60-1684-01) is a true seamless switcher with six HDMI and two DisplayPort inputs for live presentations and production environments.

Vector 4K scaling processes every source up to 4K/60 4:4:4, and independent Preview and Program video buses let an operator confirm a source on a local monitor before sending it to the audience with a cut, dissolve, or wipe transition. Two HDMI outputs mirror the Preview and Program buses, embedded HDMI and DisplayPort audio switches along with video, and de-embedded two-channel analog audio feeds a separate sound system. Logo insertion, video keying, and picture-in-picture round out the toolset for polished live switching.

Key Capabilities

Six HDMI 2.0 and two DisplayPort 1.2 inputs, HDCP 2.3 compliant
Independent Preview and Program HDMI outputs with cut, dissolve, and wipe effects
Vector 4K scaling up to 4096x2160 at 60 Hz, 4:4:4 chroma
Logo insertion, video keying, and picture-in-picture (PIP)
De-embedded 2-channel analog audio outputs for Preview and Program
2U rack-mount metal enclosure, 8.6 lbs

Where It Is Used

Ampronix places the ISS 608 in corporate boardrooms, auditoriums, houses of worship, and other live presentation venues where an operator needs to preview a source before it goes live and apply a professional transition when switching it to the audience.

Specifications at a Glance

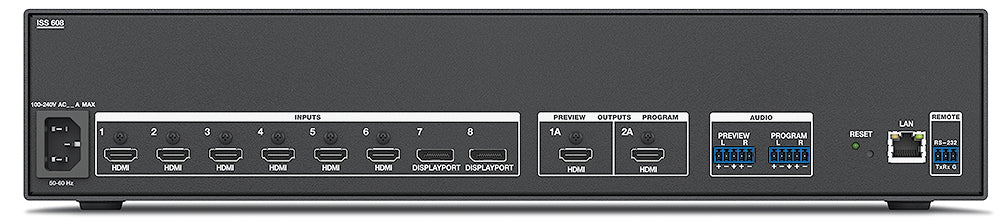

Inputs: 6 HDMI 2.0, 2 DisplayPort 1.2
Outputs: 2 HDMI (Preview + Program), 2 analog audio
Video: Vector 4K scaling, 4K/60 4:4:4
Enclosure: 3.5 in (2U) high, 8.6 lbs
Warranty: 3-year product, 7-year Everlast power supply

Also referenced as Extron ISS608, ISS-608, part number 60168401.

Specifications

Part Number: 60-1684-01

Manufacturer: Extron

Model: ISS 608 (Six HDMI & Two DisplayPort Inputs)

Condition: New

Video input number/signal type: 6 HDMI/DVI, 2 DisplayPort

Video input connectors: 6 female HDMI Type A, 2 female DisplayPort

Horizontal frequency: 15 kHz to 270 kHz

Vertical frequency: 24 Hz to 240 Hz

Resolution range: 640x480 to 4096x2160; 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2K, 4K; 3840x2160 (up to 60 Hz) to 4096x2160 (up to 60 Hz)

Digital sampling: 8 or 10 bits per color maximum; 600 MHz pixel clock

Colors: 1 billion (10-bit 4:4:4 processing)

Video output number/signal type: 2 HDMI/DVI (HDCP compliant)

Video output connectors: 2 female HDMI Type A

Power for active cables: 2.2 W total for all HDMI ports, 1.1 W per HDMI port max

Scaled resolution: 640x4808, 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x10248, 1360x7688, 1366x7688, 1440x9008, 1400x10508, 1600x9008, 1600x12008, 1920x12008, 2048x12008, 2048x15368, 2560x10808, 2560x14408, 2560x16008, 3840x21601-8, 4096x21601-8; 480p, 576p, 720p, 1080i, 1080p, 2K; Custom 1 through 10

Frame rate: 24, 25, 30, 50, or 60 fps

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8 or 10 bits per color

Signal type / Standards: DVI 1.0, HDMI 1.4 and 2.0, DisplayPort 1.2, HDCP 1.4 and 2.3

Max. video data rate (HDMI): 18 Gbps (6 Gbps per color)

Max. video data rate (DisplayPort): 21.6 Gbps (5.4 Gbps per lane)

Audio frequency response: 20 Hz to 20 kHz, ±0.05 dB

THD + Noise: <0.1% @ 1 kHz, 20 kHz bandwidth at nominal level

S/N: >90 dB at maximum output (unweighted)

Stereo channel separation: >80 dB @ 1 kHz

Analog de-embedding: LPCM-2Ch

HDMI pass-through audio: LPCM up to 7.2/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel

Audio input number/signal type: 6 HDMI embedded audio, 2 DisplayPort embedded audio

Audio input connectors: 6 female HDMI, 2 female DisplayPort

Audio output number/signal type: Stereo/mono, balanced/unbalanced; 2 analog (1 program, 1 preview); 2 HDMI embedded

Audio output connectors: (2) 3.5 mm captive screw connector, 5 pole; 2 HDMI female Type A

Serial control port: 1 bidirectional RS-232, 3.5 mm 3-pole captive screw connector (rear panel)

Baud rate and protocol: 9600, 8 data bits, 1 stop bit, no parity

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Ethernet control port: 1 RJ-45 female connector (rear panel)

Ethernet data rate: 10/100Base-T, half/full duplex with autodetect

Ethernet default settings: Autodetected link speed/duplex; IP address 192.168.254.254; subnet mask 255.255.0.0; gateway 0.0.0.0; DHCP off

Ethernet protocol: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

USB control port: 1 female USB Mini-B (front panel)

Program control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS); Extron Internal Web Page

Power supply: Internal, 100-240 VAC, 50-60 Hz

Power consumption: 59.1 watts

Temperature/humidity: Storage -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing; operating +32 to +122°F (0 to +50°C), 10% to 90% noncondensing

Cooling: 2 fans, air flows right to left as viewed from the front panel

Thermal dissipation: 179 BTU/hr

Rack mount: Yes

Enclosure type: Metal

Enclosure dimensions: 3.5" H x 17.5" W x 12.75" D (2U high, full rack wide) (8.9 cm H x 44.4 cm W x 32.4 cm D). Depth excludes connectors and knobs; width excludes rack ears.

Product weight: 8.6 lbs (3.9 kg)

Regulatory compliance: CE, c-UL, C-Tick, FCC Class A, ICES, KC, UL, VCCI

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

Diagram

Resources

Brochure | ISS 608 60-1684-01 | Everlast Power Supplies

Brochure | ISS 608 60-1684-01 | ISS 608 and ISS 612

Brochure | ISS 608 60-1684-01 | Vector 4K Scaling (vector_4k_scaling_brochure.pdf)

Brochure | ISS 608 60-1684-01 | ISS 608、ISS 612

Brochure | ISS 608 60-1684-01 | Alimentatori Everlast

Brochure | ISS 608 60-1684-01 | Everlast 电源

Brochure | ISS 608 60-1684-01 | Everlast-Netzteile

Brochure | ISS 608 60-1684-01 | Fuentes de alimentación Everlast

Brochure | ISS 608 60-1684-01 | ISS 608 e ISS 612 (ISS-608-ISS-612_BR_A4_IT_RevA2.pdf)

Brochure | ISS 608 60-1684-01 | ISS 608 e ISS 612 (ISS-608-ISS-612_BR_A4_SP_RevA2.pdf)

Brochure | ISS 608 60-1684-01 | ISS 608 et ISS 612

Brochure | ISS 608 60-1684-01 | ISS 608 und ISS 612

Brochure | ISS 608 60-1684-01 | ISS 608 и ISS 612

Brochure | ISS 608 60-1684-01 | ISS 608 和 ISS 612

Brochure | ISS 608 60-1684-01 | Sources d'alimentation Everlast

Brochure | ISS 608 60-1684-01 | Vector 4K Scaling (Vector-4K-Scaling_BR_A4_IT_RevA.pdf)

Brochure | ISS 608 60-1684-01 | Vector 4K Scaling (Vector-4K-Scaling_BR_A4_SP_RevA.pdf)

Brochure | ISS 608 60-1684-01 | Vector 4K Scaling (vector_4k_scaling_REV_A_cn_ONLINE.pdf)

Brochure | ISS 608 60-1684-01 | Vector 4K Scaling (Vector-4K-Scaling_BR_A4_GE_RevA.pdf)

Brochure | ISS 608 60-1684-01 | Vector 4K Scaling (Vector-4K-Scaling_BR_A4_RU_RevA.pdf)

Brochure | ISS 608 60-1684-01 | Vector 4K Scaling (vector_4k_scaling_brochure_REV_A_jp_ONLINE.pdf)

Brochure | ISS 608 60-1684-01 | Vector 4K Scaling (Vector-4K-Scaling_BR_A4_FR_RevA.pdf)

Manual | ISS 608 60-1684-01 | Cleaning Instruction Card

Manual | ISS 608 60-1684-01 | ISS 608 and ISS 612 Setup Guide

Manual | ISS 608 60-1684-01 | ISS 608 and ISS 612 User Guide

Specifications | ISS 608 60-1684-01 | ISS 608

Panel Drawing | ISS 608 60-1684-01 | ISS 608
