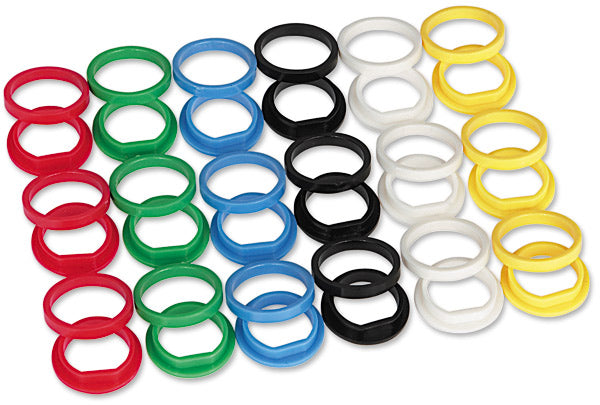

Extron Isolation Bushings (part number 100-360-01) — a 60-piece pack of colour-coded plastic bushings that keep connectors electrically isolated from the metal of an AAP or MAAP AV connectivity module.

They solve two problems at once. Electrically, each bushing separates the connector body from the module plate, giving the ground isolation that keeps a shared chassis from becoming a shared ground path. Visually, the six colours let an installer read a populated plate at a glance and tell one signal type from another without tracing cable. The shape is a precision "D" cut, so once a bushing is seated in the module opening it locks in position rather than turning with the connector.

Key Capabilities

• Provides ground isolation between connectors and AAP or MAAP modules
• Colour-coded for fast identification of signal types on a busy plate
• Precision "D"-cut profile locks each bushing into place for correct fitment
• Manufactured from durable plastic
• Supplied 60 to a pack — 10 each of red, white, yellow, green, blue and black
• Suits both AAP AV Connectivity Modules and MAAP Mini AV Connectivity Modules

Where It Is Used

Anywhere an AAP or MAAP plate carries more than one signal type: table boxes with audio and video positions side by side, rack plates that mix control and network runs, lecterns and wall plates in classrooms and boardrooms. Integrators who commission a lot of plate work tend to keep a pack on the truck, because the isolation is easier to build in than to retrofit after a ground loop shows up.

Specifications at a Glance

• Function: ground isolation between connectors and AAP/MAAP modules
• Colours: red, white, yellow, green, blue, black
• Pack quantity: 60 pieces, 10 of each colour
• Material: durable plastic
• Profile: precision "D" cut

Extron does not publish an individual bushing dimension or a warranty term for this accessory, so none is quoted here.

Also listed as Isolation-Bushings, IsolationBushings, Extron part number 10036001.
