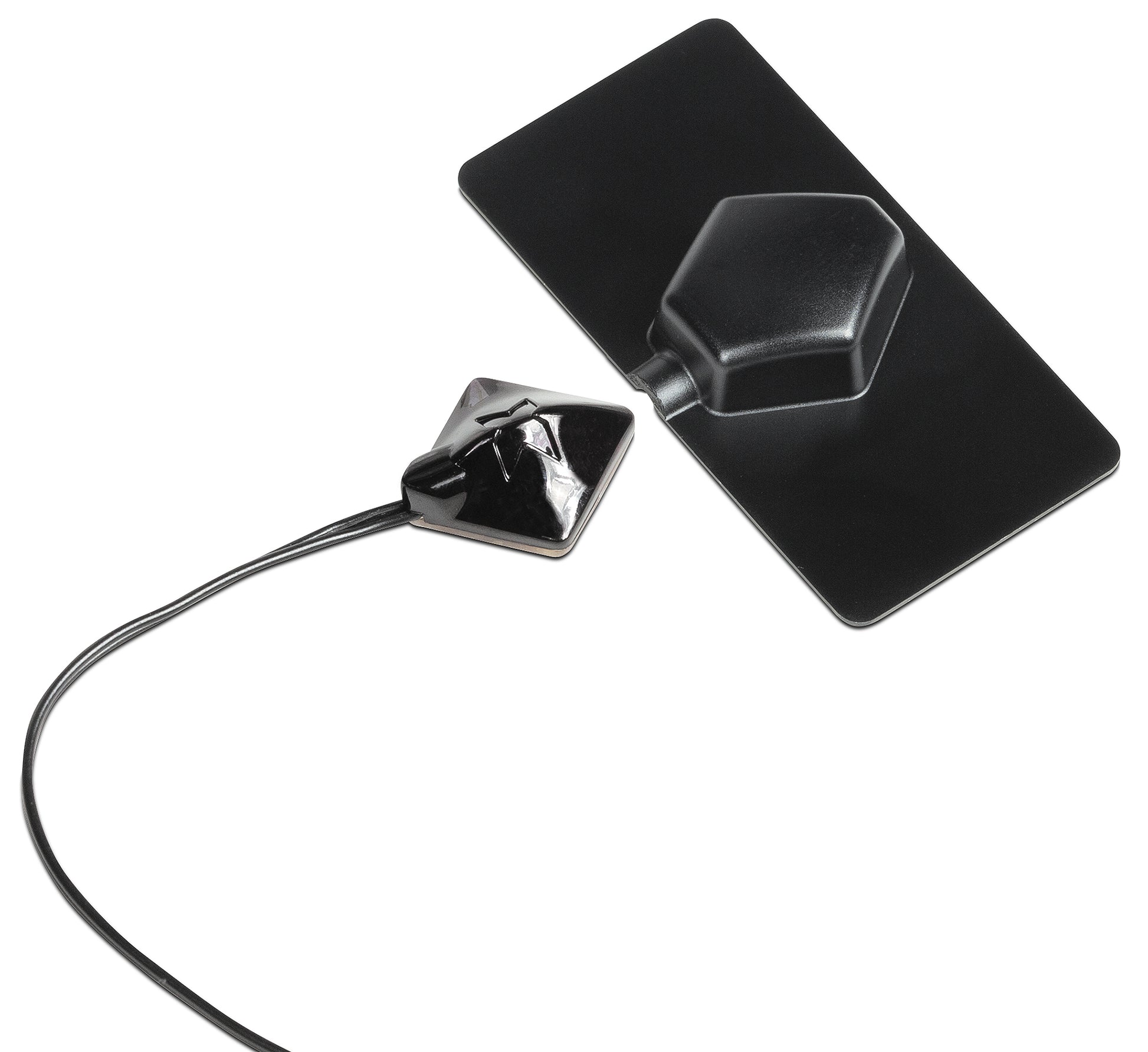

Extron IR Emitter and Shield Kit (part number 70-283-01) — the single-emitter accessory for any Extron product that puts out an IR control signal.

Gear that lives inside a rack or a closed cabinet still has to take remote commands, and its front-panel IR window is usually facing a piece of plywood. This kit closes that gap. A blinking IR emitting diode on a 10 foot lead sticks straight onto the IR window of the controlled device, the supplied shield keeps stray room IR and sunlight from confusing it, and the adhesive holds the assembly in place for the life of the install. Extron's installation guide caps each controller or switcher IR port at two emitters.

Key Capabilities

• IR emitting diode terminated on a 10 ft (3 m) wire lead.
• Emitter shield included to block ambient infrared interference.
• Mounting adhesive supplied for direct attachment to the IR window.
• Works with any Extron product that provides an IR emitter output.
• Blinking emitter gives a visual confirmation that commands are firing.
• Extron permits up to two emitters on a single controller or switcher IR port.

Where It Is Used

Equipment racks in classrooms and lecture halls, credenza-mounted sources in boardrooms, display closets in digital signage networks, and any control system where a Blu-ray player, tuner or projector has to be driven by IR from behind a closed door.

Specifications at a Glance

• Extron version description: IR Emitter Kit
• Kit contents: IR emitting diode, IR emitter shield, mounting adhesive
• Lead length: 10 ft (3 m)
• Wiring: IR signal (+) and ground (-)
• Maximum emitters per IR port: 2

Also referenced as Extron IREmitterandShieldKit, IR-Emitter-and-Shield-Kit, part number 7028301.
