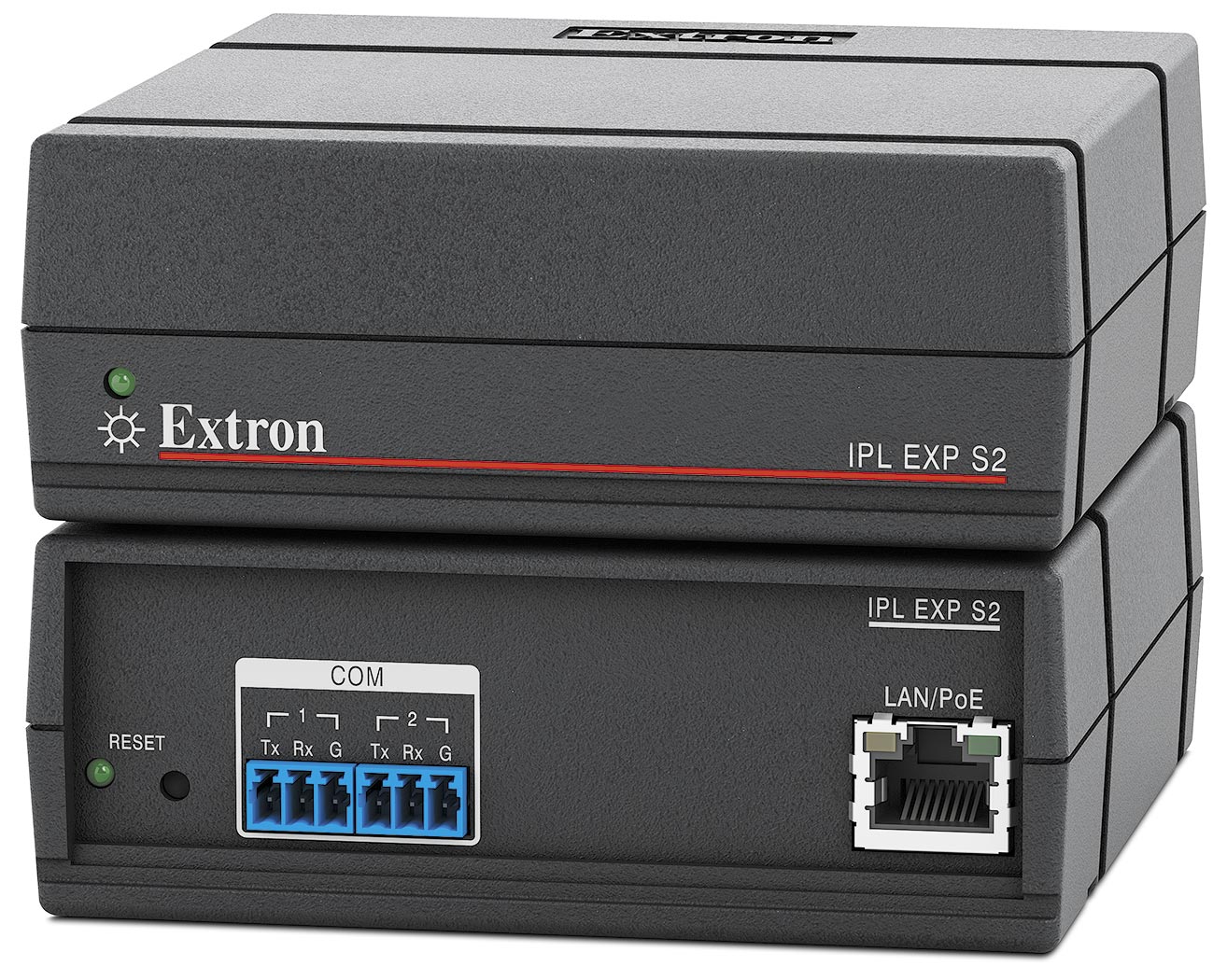

Extron IPL EXP S2 (part number 60-1905-01) — a PoE-powered control system expansion interface that adds two bidirectional RS-232 serial ports to any IP Link Pro system over a single Ethernet cable.

The S2 drops in near serial-controlled equipment that's too far from the main processor for a direct cable run, then connects back over the network. It draws power entirely over Ethernet (802.3af, Class 3), so no local power supply is required, and mounts to a rack, furniture, or pole using the included ZipClip 200 clip.

Key Capabilities

• 2 bidirectional RS-232 serial ports
• Powers entirely over Ethernet (PoE 802.3af, Class 3) — no local power supply needed
• Mounts to rack, furniture, or pole with the included ZipClip 200 clip
• Compact quarter-rack plastic enclosure, just 0.45 lbs
• Works with Global Configurator, Global Scripter, and GlobalViewer Enterprise

Where It Is Used

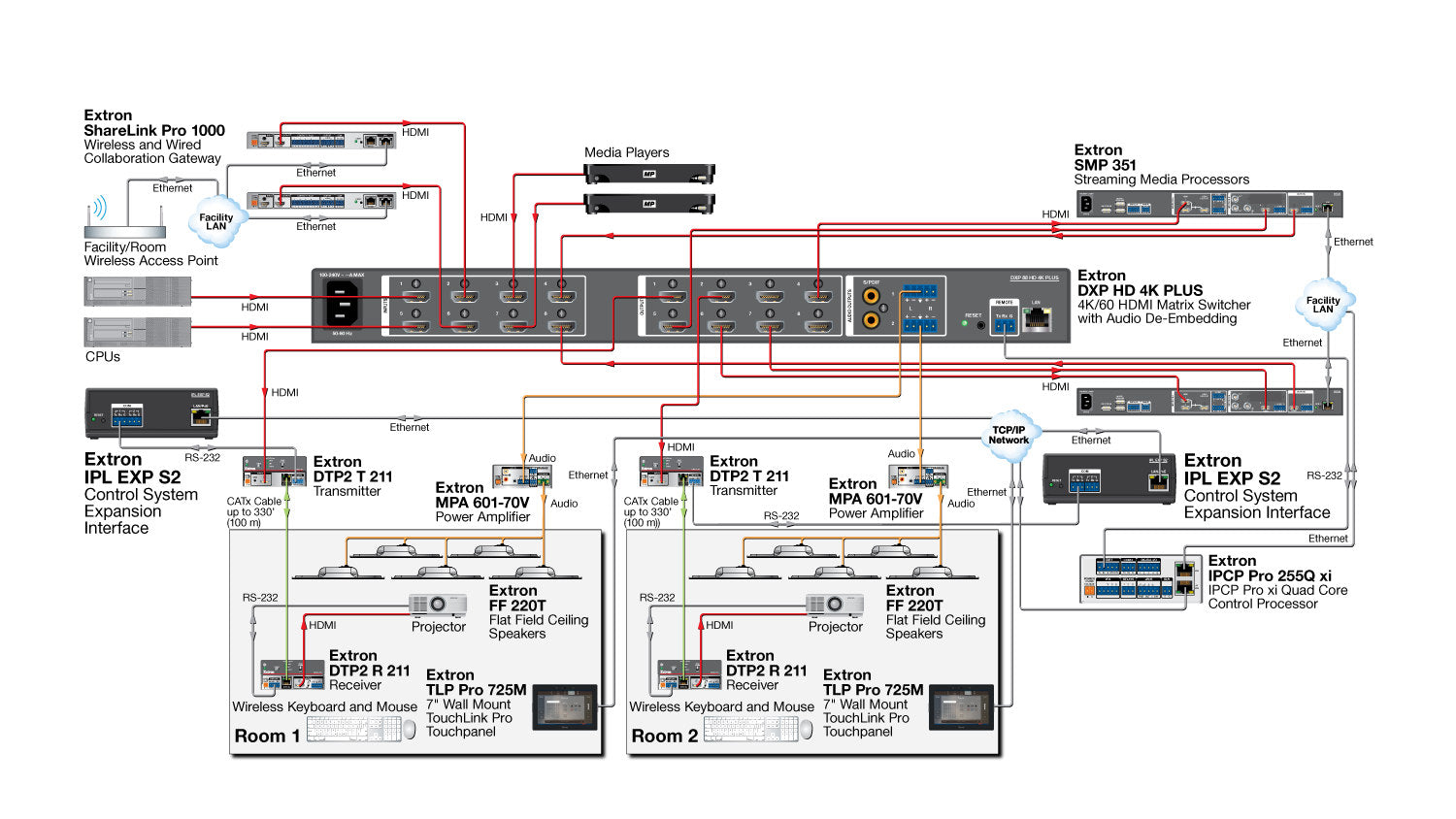

Installations with serial-controlled displays or equipment located far from the main control processor use the S2 to add local RS-232 ports over the existing network instead of running dedicated serial cable.

Specifications at a Glance

• Serial: 2 bidirectional RS-232 ports
• Network: 1 NIC, PoE 802.3af Class 3 powered
• Memory: 512 MB SDRAM / 512 MB flash
• Enclosure: Plastic, quarter rack wide, 0.45 lbs

Also referenced as Extron IPLEXPS2, IPL-EXP-S2, part number 60190501.
