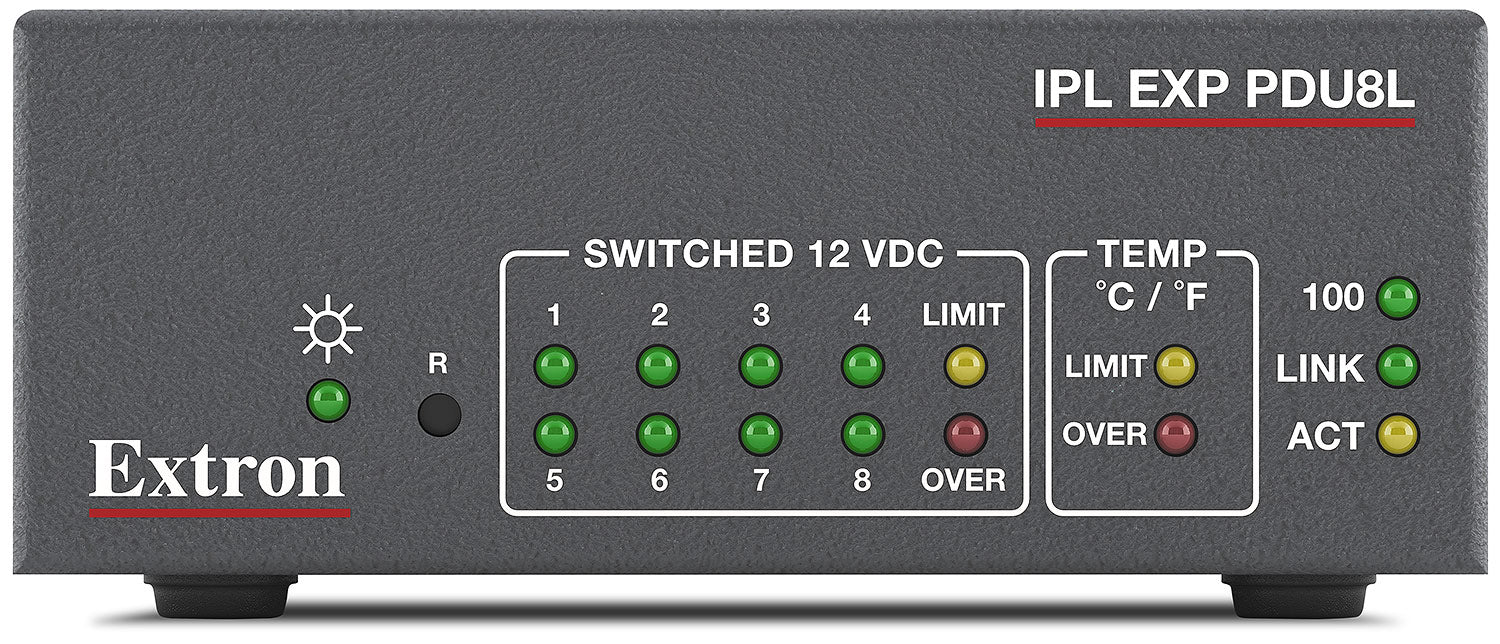

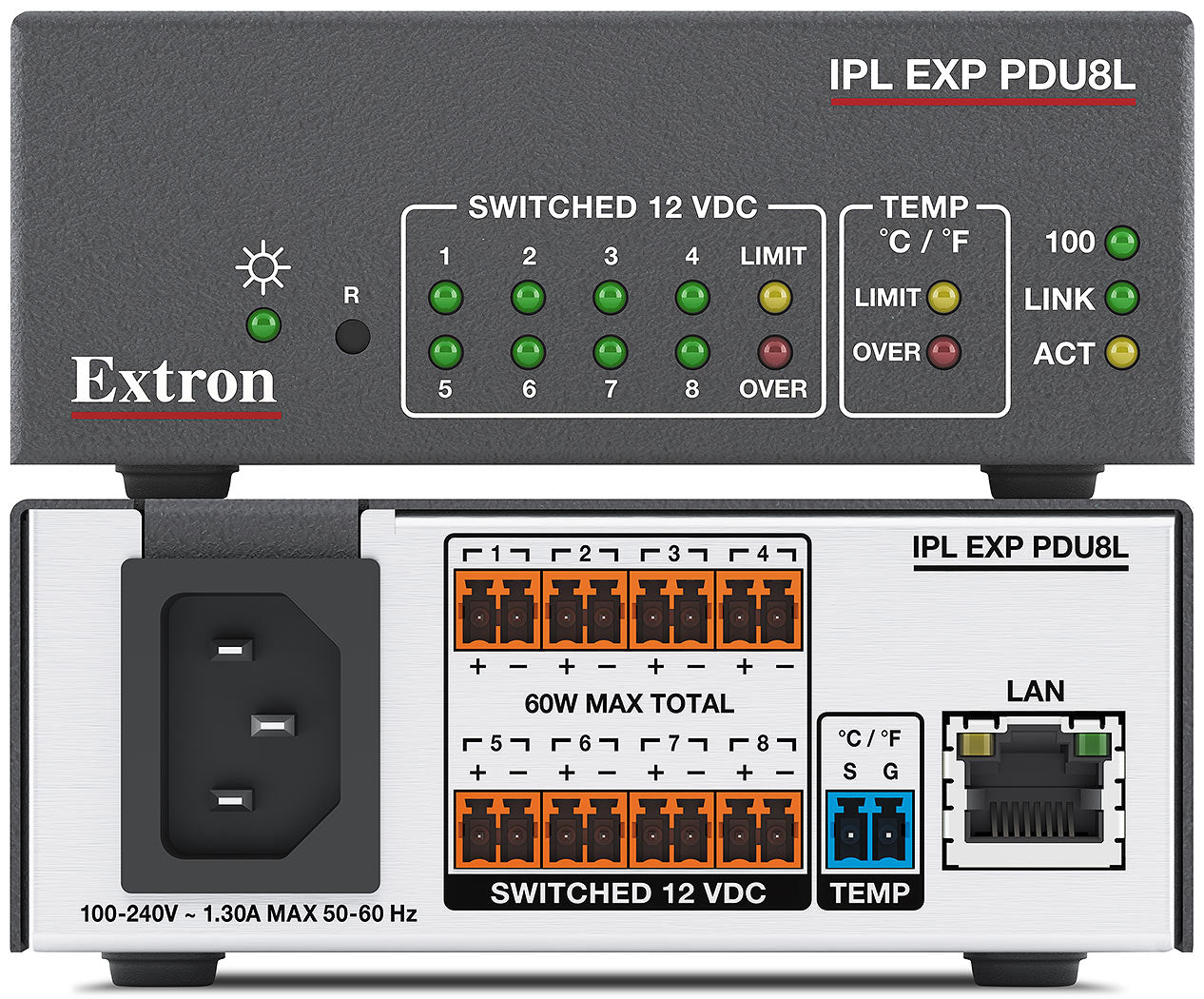

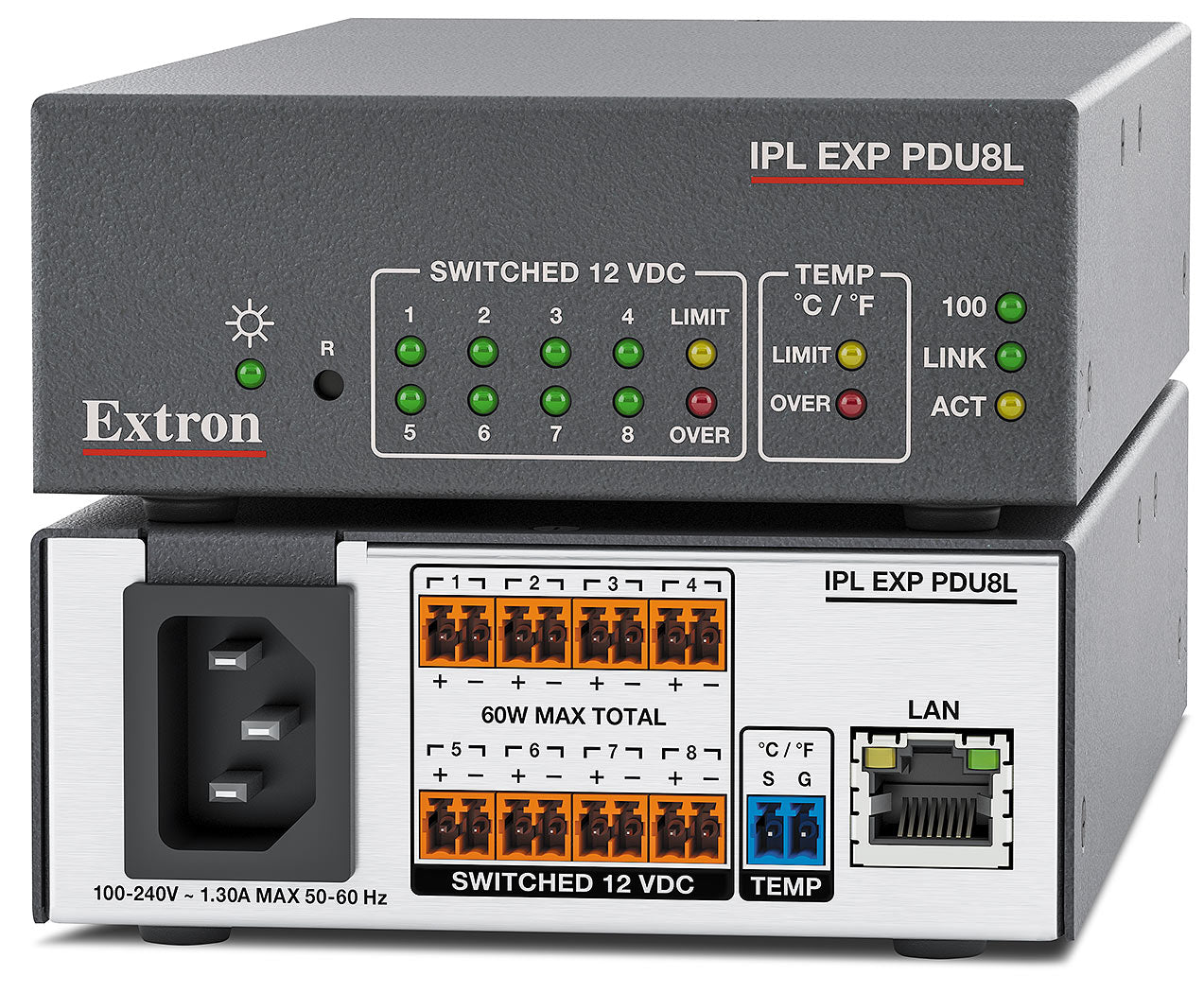

Extron IPL EXP PDU8L (part number 60-1928-01) — a quarter-rack IP Link power expansion interface with eight switched 12 VDC outputs and a temperature sensing input for monitoring equipment racks.

The PDU8L switches low-voltage DC power to up to eight peripherals — cameras, sensors, small displays, or other 12 VDC devices — under program control, with per-output power sensing so a control system can monitor connected load. A dedicated thermistor port lets the same unit report rack temperature back to the control processor.

Key Capabilities

• 8 switched 12 VDC outputs (60 W max total) with individual power sensing

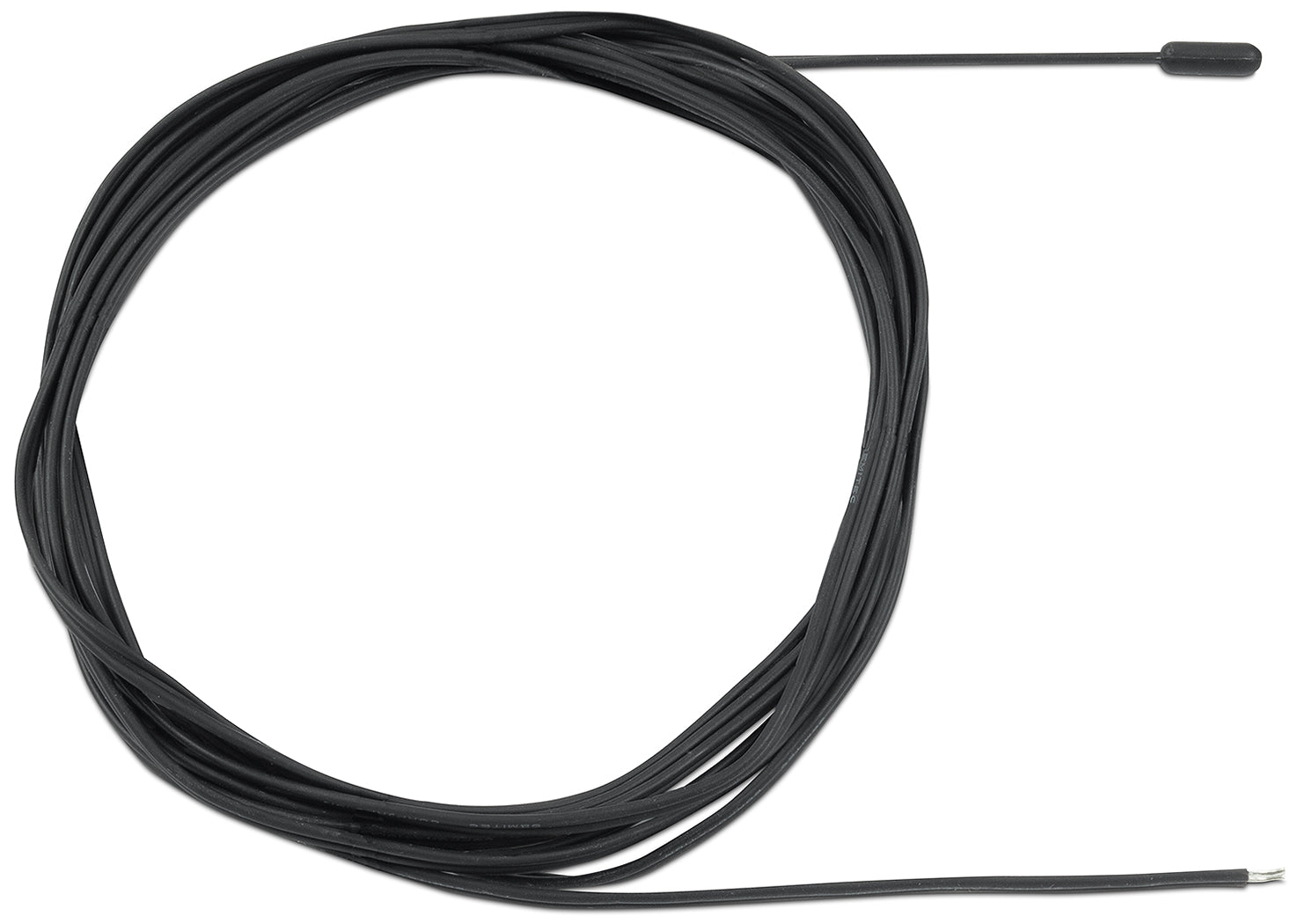

• 1 thermistor port for equipment rack temperature monitoring (-50 to 105 °C range)
• Internal power supply, no external brick to manage
• Compact quarter-rack metal enclosure
• Works with Global Scripter and ControlScript Deployment Utility

Where It Is Used

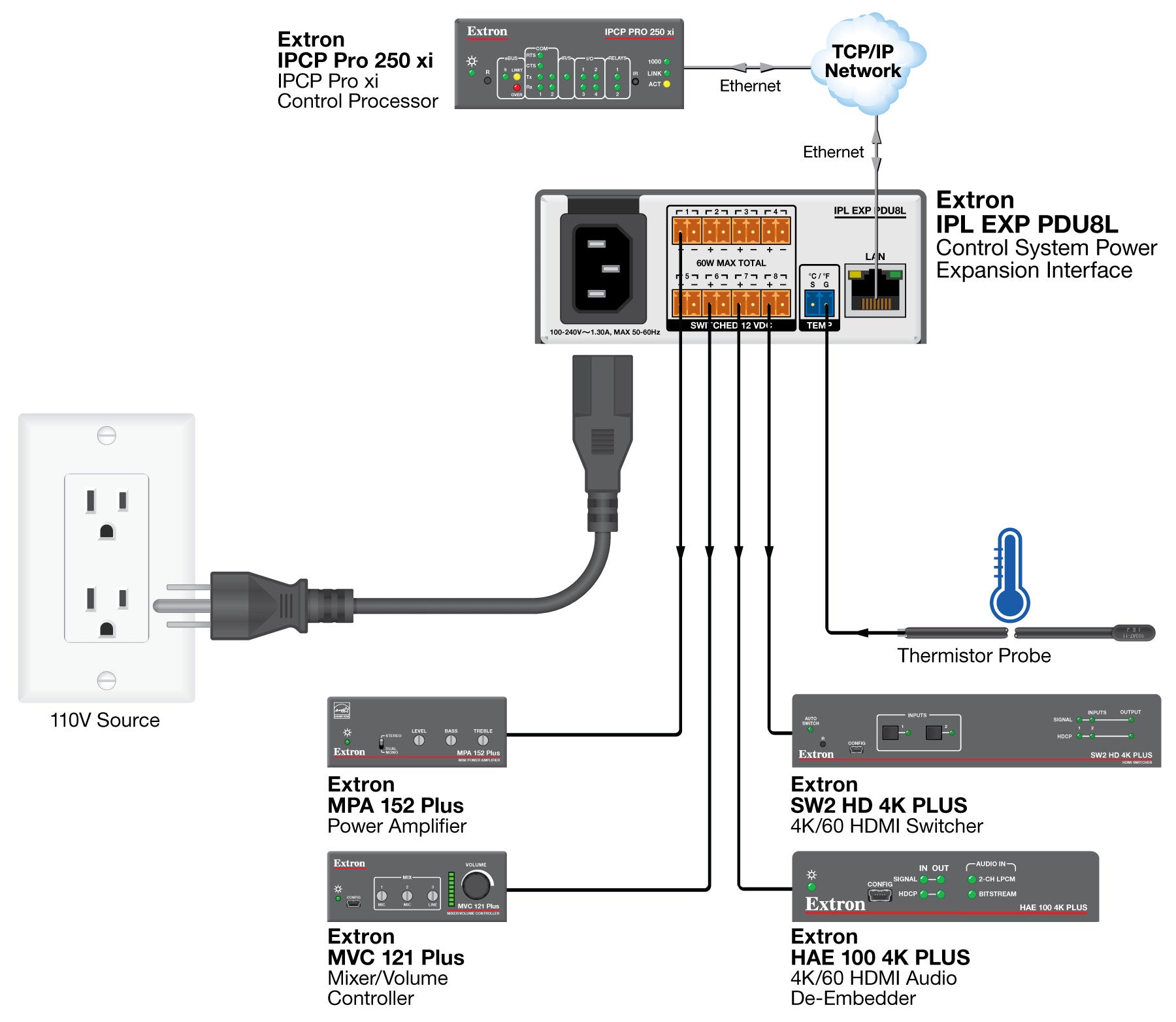

Equipment racks with multiple low-voltage DC peripherals — cameras, sensors, or small displays — use the PDU8L to switch power to each device individually while also monitoring rack temperature from the same unit.

Specifications at a Glance

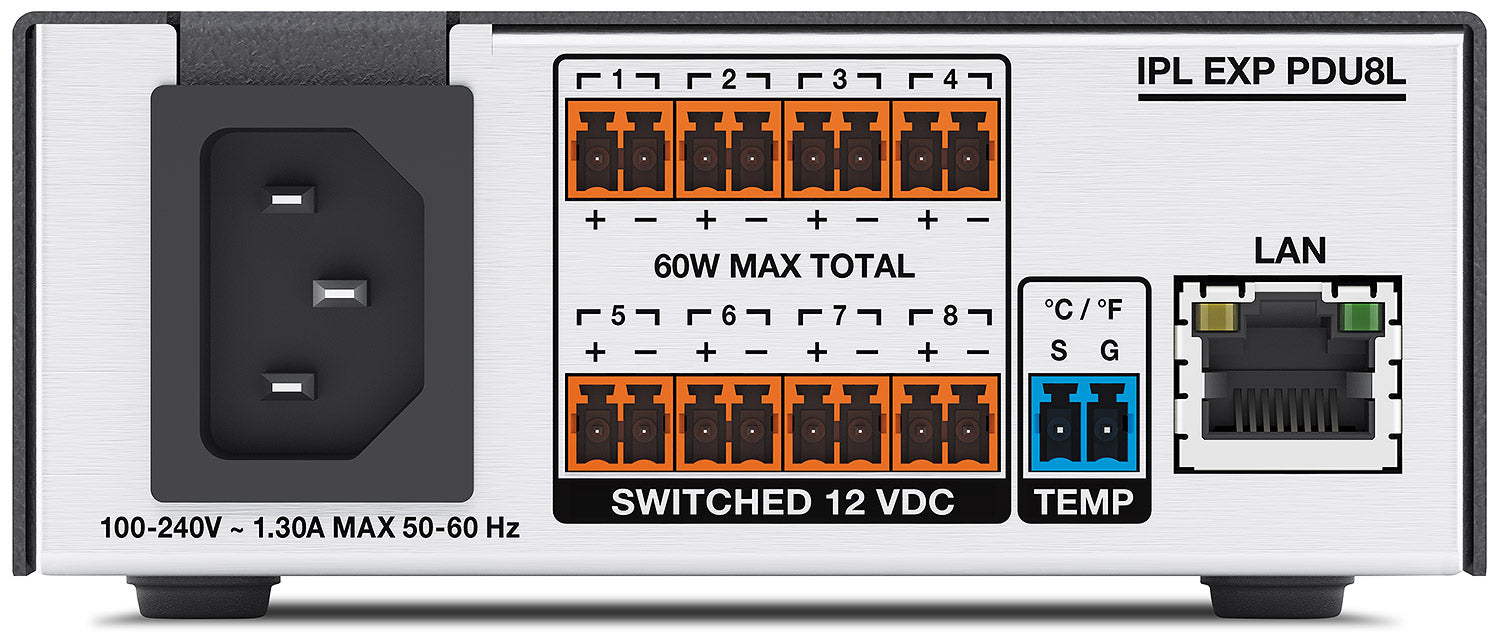

• Switched DC Output: 8 x 12 VDC, 60 W max total, individually power-sensed
• Temperature Sensing: 1 thermistor port, -50 to 105 °C
• Memory: 512 MB SDRAM / 512 MB flash
• Enclosure: Metal, quarter rack wide, internal power supply

Also referenced as Extron IPLEXPPDU8L, IPL-EXP-PDU8L, part number 60192801.
