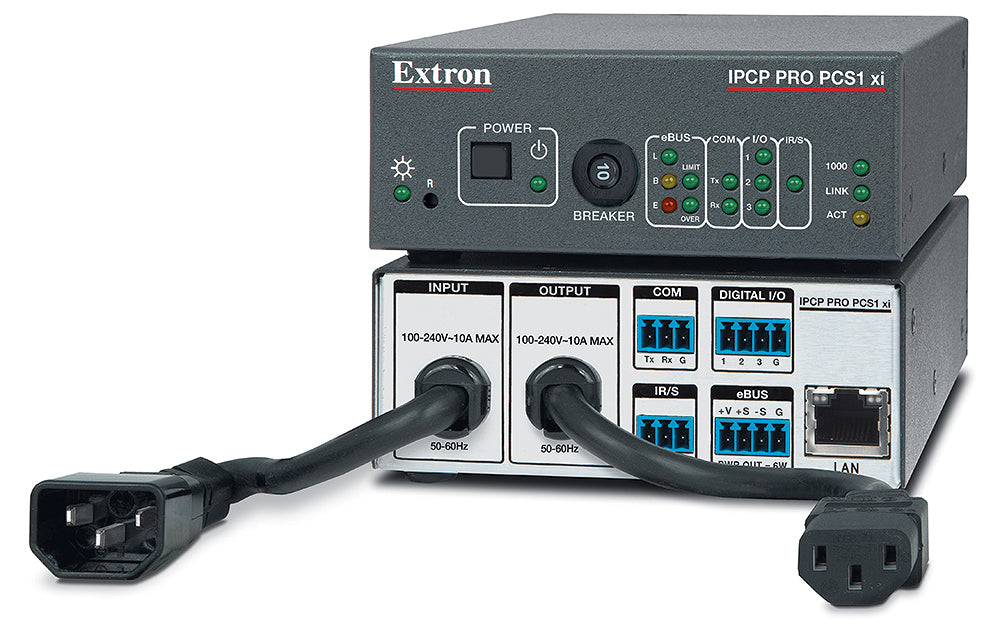

Extron IPCP Pro PCS1 xi (part number 60-1910-01A) — a quarter-rack IP Link control processor with a built-in switched AC power outlet for cycling power to a single connected device.

Unlike other IPCP Pro models, the PCS1 xi passes AC power through its own IEC input/output connectors, letting Global Scripter programs or button panels switch power to a projector, display, or other device without a separate relay-controlled outlet strip. It also provides a single RS-232 serial port, three configurable digital I/O, one programmable IR/serial port, and an eBUS port for button panels.

Key Capabilities

• Built-in switched AC power outlet (IEC in/out, 10 A / 6.0 W max load) with included IEC-to-Edison adapter
• Current sensing on the switched outlet (0-10 A, 100 mA resolution)
• 1 bidirectional RS-232 serial port
• 3 configurable digital I/O plus 1 programmable IR/serial port
• eBUS port powers up to 6 W of button panels over a single cable run

Where It Is Used

Single-display huddle spaces and kiosks that need scheduled or programmatic power cycling for one device use the PCS1 xi's built-in switched AC outlet to control power directly from the same processor handling serial and digital I/O control.

Specifications at a Glance

• Switched AC Output: 1 IEC outlet, 10 A / 6.0 W max at 120V or 220V
• Serial: 1 RS-232; Digital I/O: 3 configurable; IR/Serial: 1 port
• Memory: 1 GB SDRAM / 8 GB flash
• Internal power supply, quarter-rack enclosure

Also referenced as Extron IPCPProPCS1xi, IPCP-Pro-PCS1-xi, part number 60191001A.
