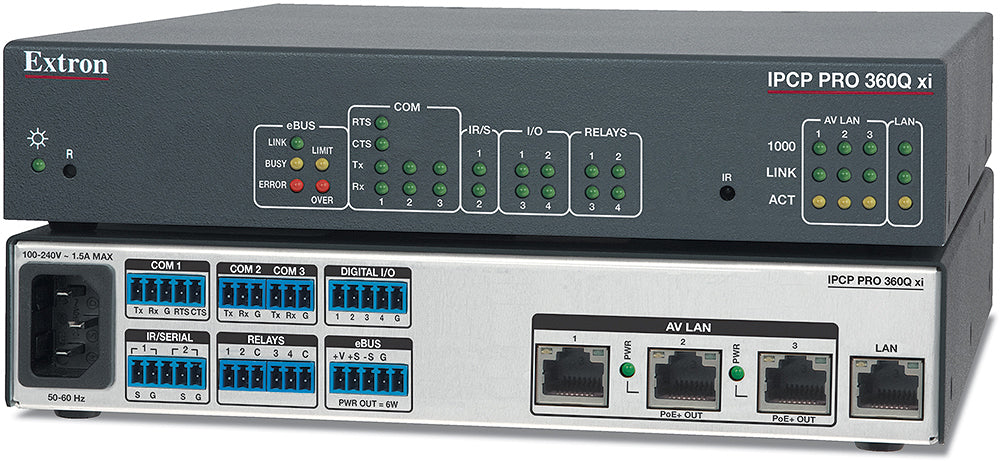

Extron IPCP Pro 360Q xi (part number 60-1916-01) — a half-rack-wide IP Link control processor with a built-in 3-port AV LAN switch and switched PoE+ outputs for powering AV-over-IP endpoints directly.

The 360Q xi pairs a dedicated AV LAN with its own unmanaged 3-port switch and two switched PoE+ outputs (up to 30 W per port) so AV-over-IP encoders or decoders can be powered and controlled without a separate PoE injector. It also carries 2 GB of SDRAM, four RJ-45 connectors total, three serial ports, two programmable IR/serial ports, four relays, and four configurable digital I/O.

Key Capabilities

• 2 switched PoE+ outputs (up to 30 W per port) power AV-over-IP endpoints directly from the AV LAN
• Built-in 3-port unmanaged AV LAN switch plus a separate general LAN NIC
• 2 GB SDRAM / 8 GB flash for larger Global Scripter programs
• 3 serial ports, 2 programmable IR/serial ports, 4 relays, 4 configurable digital I/O
• Internal power supply, no external brick to manage

Where It Is Used

AV-over-IP deployments with NAV encoders/decoders near the rack use the 360Q xi's switched PoE+ ports to power those endpoints directly while keeping general control traffic on a separate LAN, all from a single half-rack-wide processor.

Specifications at a Glance

• Network: 2 NICs (1 LAN, 1 AV LAN via built-in 3-port switch), 4 RJ-45 total
• Switched PoE+: 2 outputs, up to 30 W per port
• Memory: 2 GB SDRAM / 8 GB flash
• Serial: 1 RS-232/422/485 + 2 RS-232; Relays: 4 normally open

Also referenced as Extron IPCPPro360Qxi, IPCP-Pro-360Q-xi, part number 60191601.
