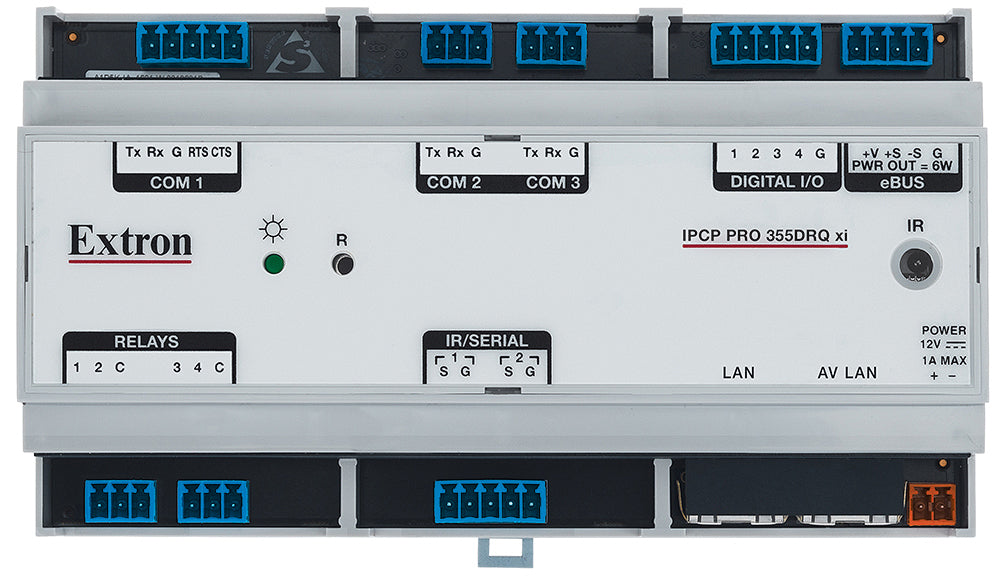

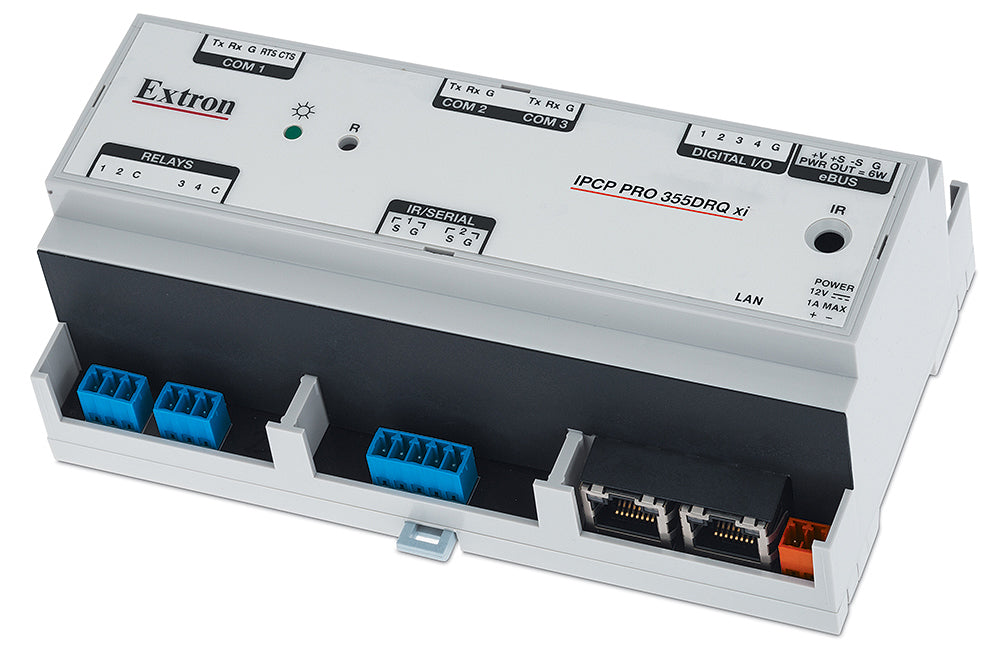

Extron IPCP Pro 355DRQ xi (part number 60-1915-01) — a DIN-rail-mount IP Link control processor with a dedicated AV LAN port, combining the compact panel-mount form factor of the 355DR with the doubled memory of the Q xi series.

Clipping onto standard 35 mm DIN rail instead of a rack shelf, the 355DRQ xi splits general LAN traffic from a dedicated AV LAN, carries 2 GB of SDRAM for larger Global Scripter programs, and provides the same three serial ports, two programmable IR/serial ports, four relays, and four configurable digital I/O found on other mid-tier IPCP Pro models.

Key Capabilities

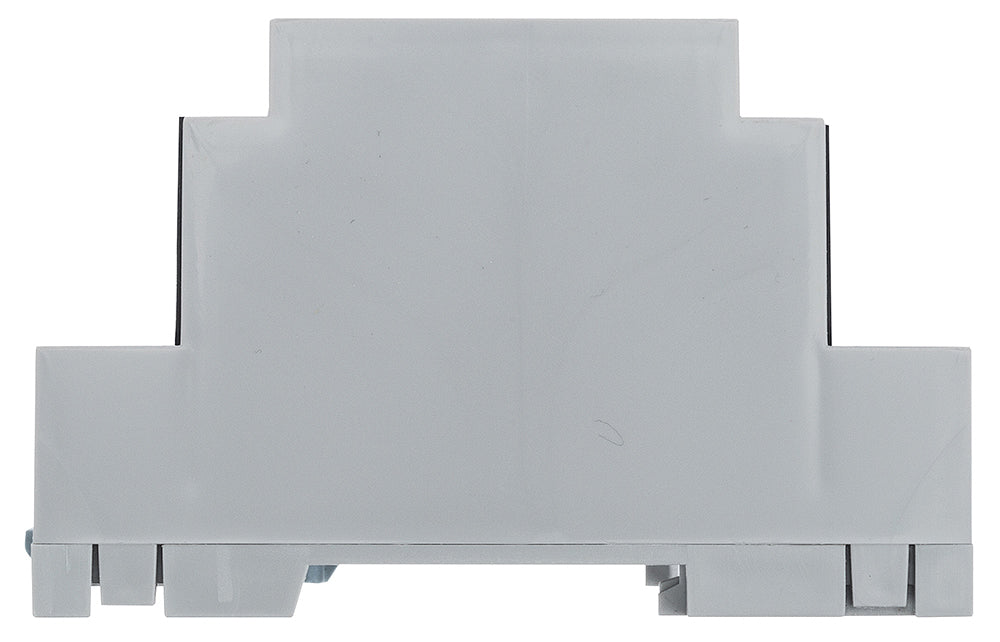

• Snaps onto standard 35 mm DIN rail — no rack space required
• 2 Gigabit NICs: 1 LAN plus 1 dedicated AV LAN for network segmentation
• 2 GB SDRAM / 8 GB flash for larger Global Scripter programs
• 3 serial ports plus 2 programmable IR/serial ports with IR-learning support
• 4 normally open relays (24 VDC, 1 A) and 4 configurable digital I/O

Where It Is Used

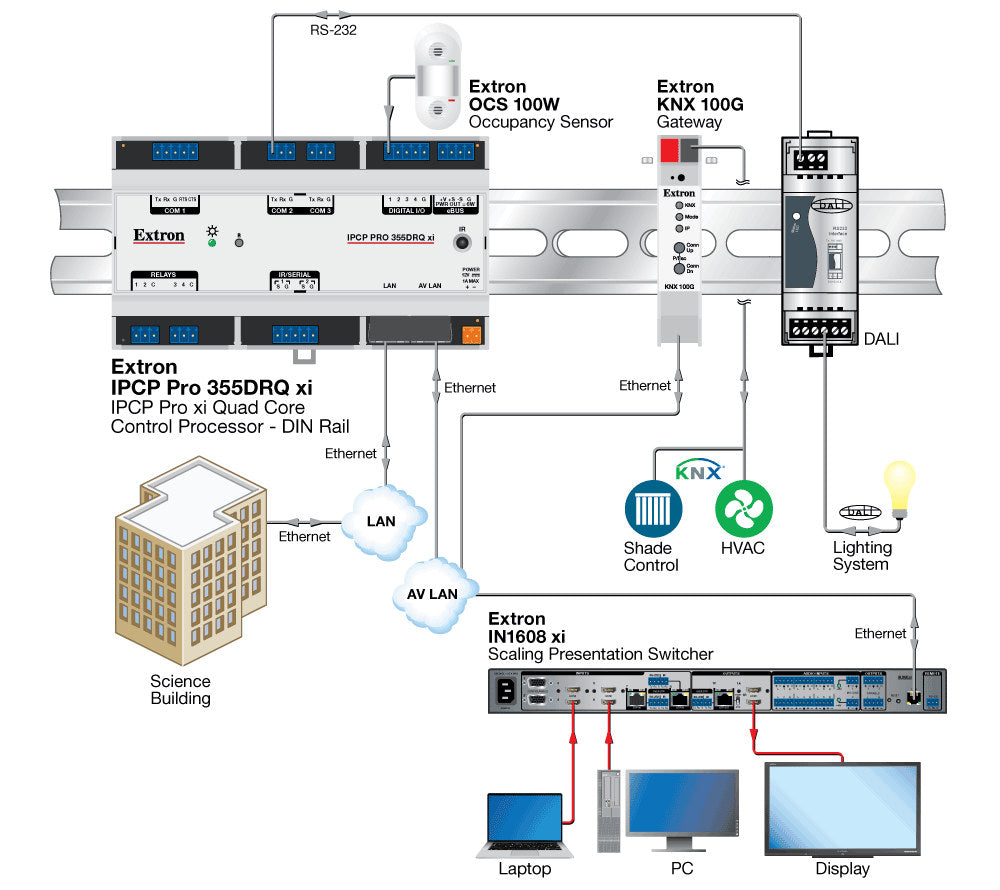

Panel-mounted control installations that need AV network isolation use the 355DRQ xi's dedicated AV LAN alongside its DIN-rail form factor to keep streaming or NAV traffic separated from the general network while driving displays, relays, and IR-controlled equipment from inside an equipment cabinet.

Specifications at a Glance

• Network: 2 Gigabit NICs (1 LAN, 1 AV LAN)
• Memory: 2 GB SDRAM / 8 GB flash
• Serial: 1 RS-232/422/485 + 2 RS-232; IR/Serial: 2 ports; Relays: 4 normally open
• Mounting: DIN rail only (no rack mount)

Also referenced as Extron IPCPPro355DRQxi, IPCP-Pro-355DRQ-xi, part number 60191501.
