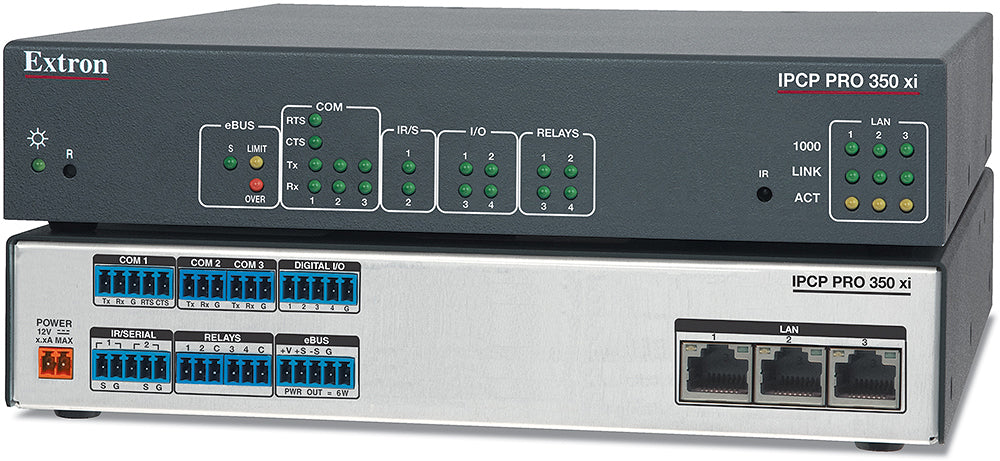

Extron IPCP Pro 350 xi (part number 60-1912-01) — a quarter-rack IP Link control processor with a built-in 3-port unmanaged network switch for compact multi-room control installations.

The 350 xi steps up from the 250 xi with three RJ-45 LAN ports on a built-in unmanaged switch, doubled serial and IR/serial connectivity, and four relays instead of two — all while staying in the same quarter-rack enclosure footprint. It handles a bidirectional RS-232/RS-422/RS-485 port plus two additional bidirectional RS-232 ports, two programmable IR/serial ports, and four configurable digital I/O.

Key Capabilities

• Built-in 3-port unmanaged Ethernet switch simplifies wiring to nearby network devices
• 1 GB SDRAM / 8 GB flash for Global Scripter programs
• 3 serial ports: 1 RS-232/RS-422/RS-485 plus 2 dedicated RS-232
• 4 normally open relays (24 VDC, 1 A) and 4 configurable digital I/O
• 2 programmable IR/serial ports for driving legacy AV gear

Where It Is Used

Classrooms and huddle rooms that need to control several nearby network devices without a separate switch use the 350 xi's built-in 3-port switch to consolidate wiring while still driving displays, shades, and audio gear through its serial, IR, relay, and digital I/O ports.

Specifications at a Glance

• Network: 1 Gigabit NIC through a built-in 3-port unmanaged switch (3 RJ-45)
• Memory: 1 GB SDRAM / 8 GB flash
• Serial: 1 RS-232/422/485 + 2 RS-232; IR/Serial: 2 ports; Relays: 4 normally open
• Power: 12.0 W device, external 12 VDC supply

Also referenced as Extron IPCPPro350xi, IPCP-Pro-350-xi, part number 60191201.
