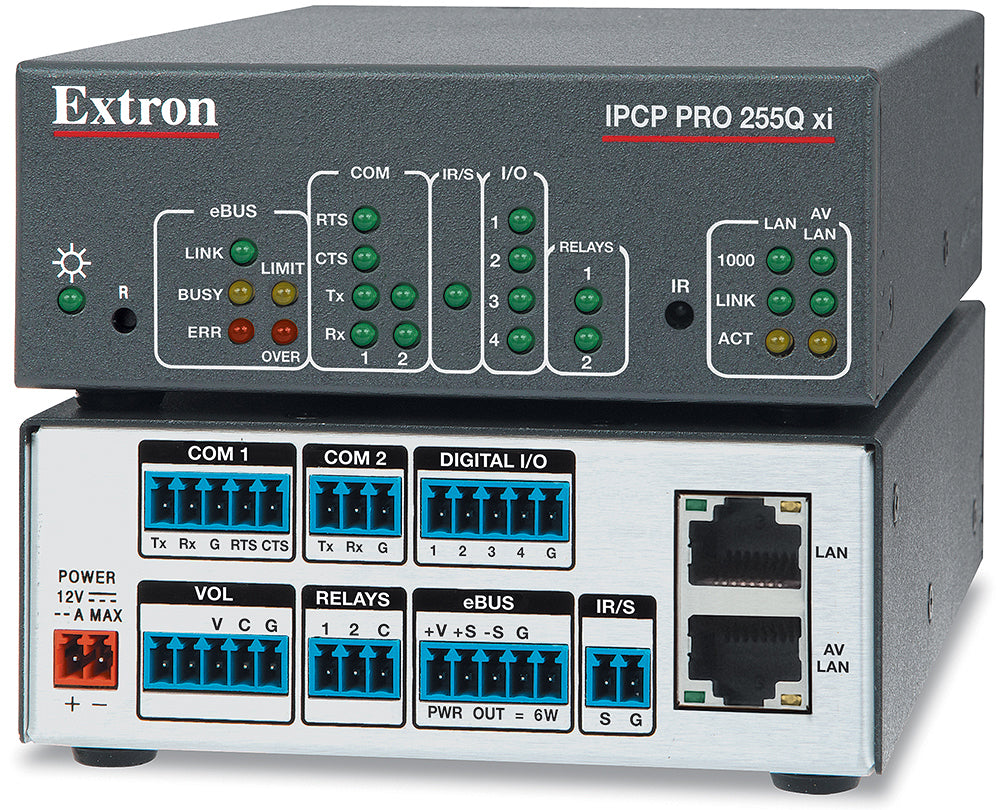

Extron IPCP Pro 255Q xi (part number 60-1914-01) — a quarter-rack IP Link control processor with a dedicated AV LAN port for isolating control and AV network traffic.

The 255Q xi builds on the 250 xi platform with a second Gigabit NIC, splitting general LAN traffic from a dedicated AV LAN for streaming or NAV endpoints, plus double the SDRAM for larger Global Scripter programs. It still carries four configurable digital I/O, two relays, an amplifier volume control output, and an eBUS port in the same compact quarter-rack metal enclosure.

Key Capabilities

• Two Gigabit NICs: 1 LAN plus 1 dedicated AV LAN for network segmentation
• 2 GB SDRAM / 8 GB flash, double the 250 xi's program memory
• 4 configurable digital I/O ports plus 2 normally open relays (24 VDC, 1 A)
• Dedicated volume control output for compatible Extron amplifiers
• eBUS port powers up to 6 W of button panels over a single cable run

Where It Is Used

Rooms running AV-over-IP endpoints alongside standard control traffic use the 255Q xi's separate AV LAN to keep streaming traffic isolated from the corporate network, while still driving displays, switchers, and amplifiers from one processor.

Specifications at a Glance

• Network: 2 Gigabit NICs (1 LAN, 1 AV LAN)
• Memory: 2 GB SDRAM / 8 GB flash
• Digital I/O: 4 configurable ports; Relays: 2 normally open
• Power: 10.6 W device, external 12 VDC supply

Also referenced as Extron IPCPPro255Qxi, IPCP-Pro-255Q-xi, part number 60191401.
