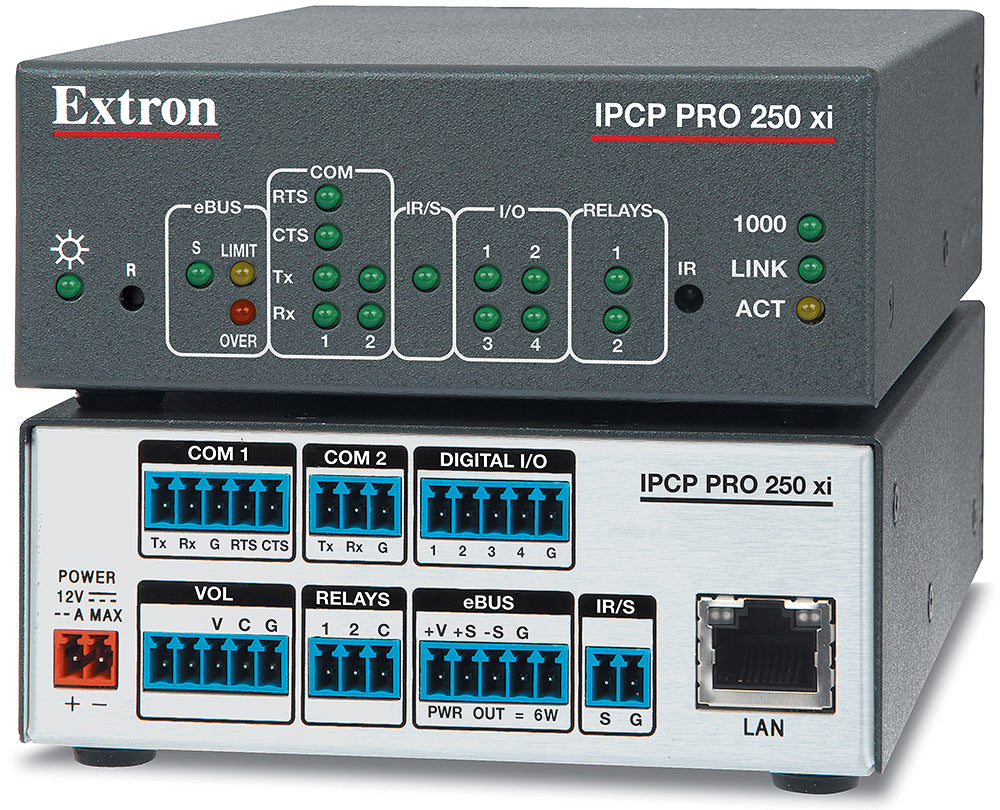

Extron IPCP Pro 250 xi (part number 60-1911-01) — a compact quarter-rack IP Link control processor with digital I/O, relay, and volume control ports for single-room AV systems.

The 250 xi packs a full control I/O set into a 1U quarter-rack metal enclosure: two serial ports (one RS-232/422/485, one RS-232), four configurable digital I/O, two relays, an amplifier volume control output, and an eBUS port for TouchLink Pro and button panels, all reachable over a single Gigabit LAN port. It runs the same Global Configurator Plus/Professional and Global Scripter toolchain as the rest of the IP Link Pro xi family, so programs built for larger processors scale down cleanly to single-room installs.

Key Capabilities

• 4 configurable digital I/O ports plus 2 normally open relays (24 VDC, 1 A)
• Dedicated volume control output for compatible Extron amplifiers
• 1 GB SDRAM / 8 GB flash for Global Scripter programs and GUI assets
• eBUS port powers up to 6 W of button panels over a single cable run
• Draws just 9.6 W, in a compact 1.7" x 4.3" x 6.0" metal enclosure

Where It Is Used

Huddle rooms, classrooms, and small conference rooms that need dependable IP-based control of a display, switcher, and amplifier without the port count of a full-size processor use the 250 xi as the room's control brain.

Specifications at a Glance

• Digital I/O: 4 configurable ports
• Relays: 2 normally open, 24 VDC / 1 A
• Network: 1 Gigabit LAN (RJ-45)
• Power: 9.6 W device, external 12 VDC supply

Also referenced as Extron IPCPPro250xi, IPCP-Pro-250-xi, part number 60191101.
