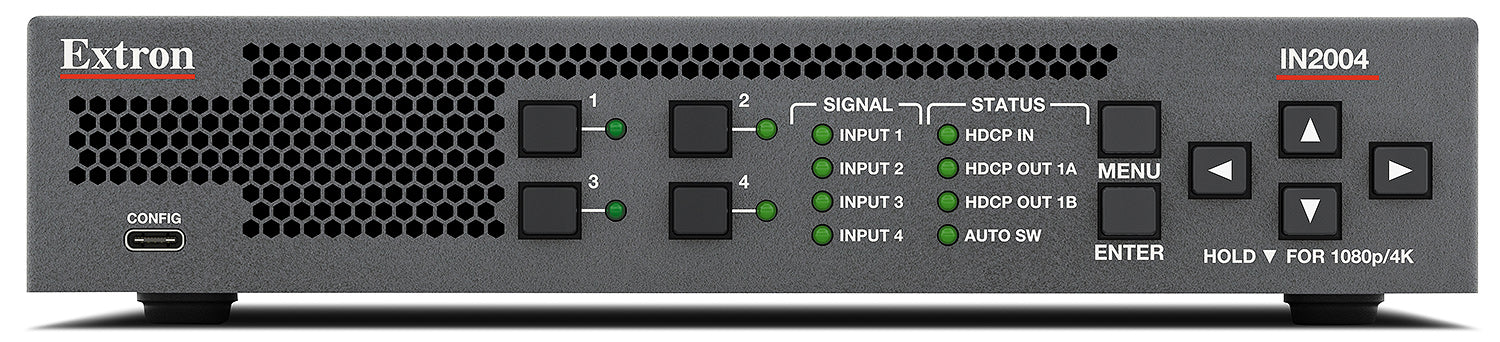

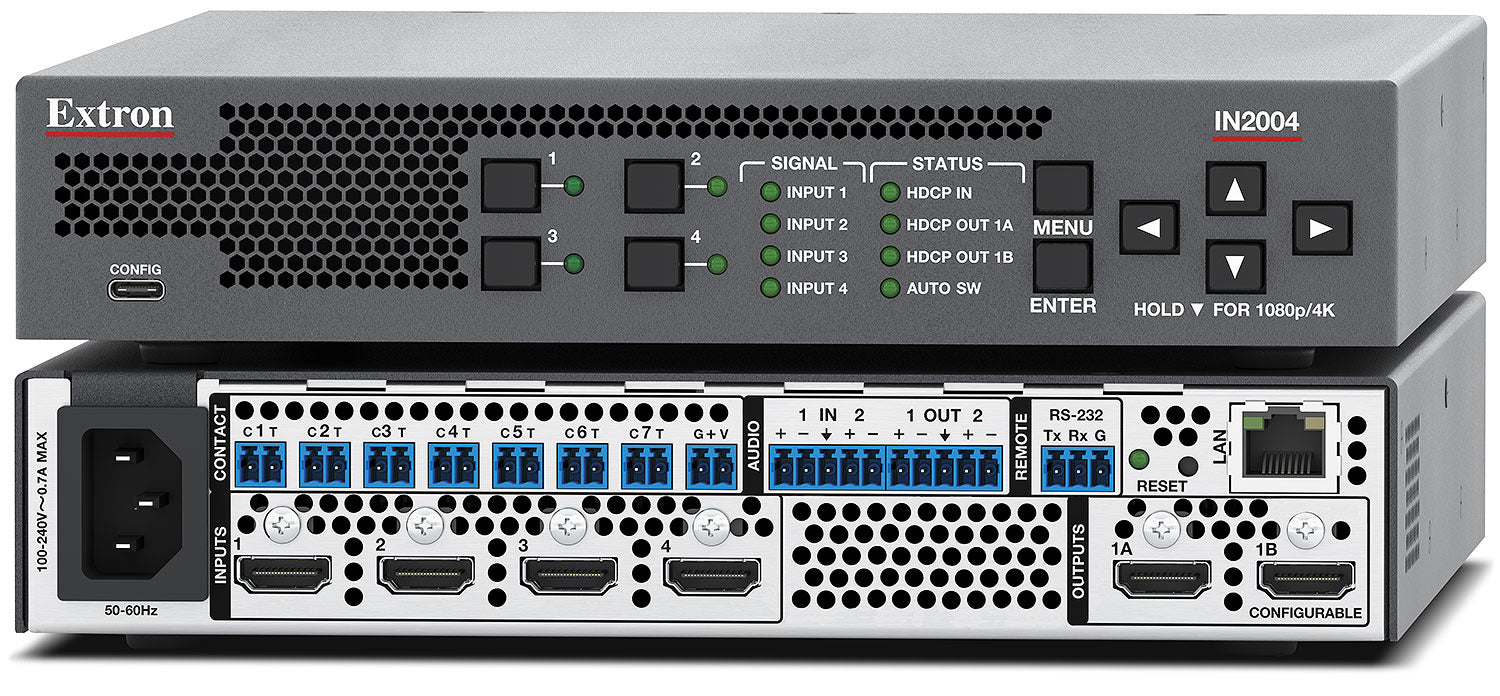

Extron IN2004 (part number 60-1962-01) — a four-input, two-output 4K/60 seamless scaling presentation switcher in a 1U half-rack chassis.

This is the HDMI-only member of the IN2004 family: four female HDMI type A inputs, two female HDMI type A outputs, and no twisted pair endpoint. Every source is scaled through 10-bit 4:4:4 processing to a chosen output rate, so a mixed set of laptops, media players and document cameras all reach the display at one resolution with no black frame between switches. Output 1B mirrors the scaler by default but can be reassigned as a non-scaled loop of any input, which is useful for recording or streaming feeds. Control spans gigabit Ethernet, RS-232 and a front USB-C port that presents as Ethernet over USB.

Key Capabilities

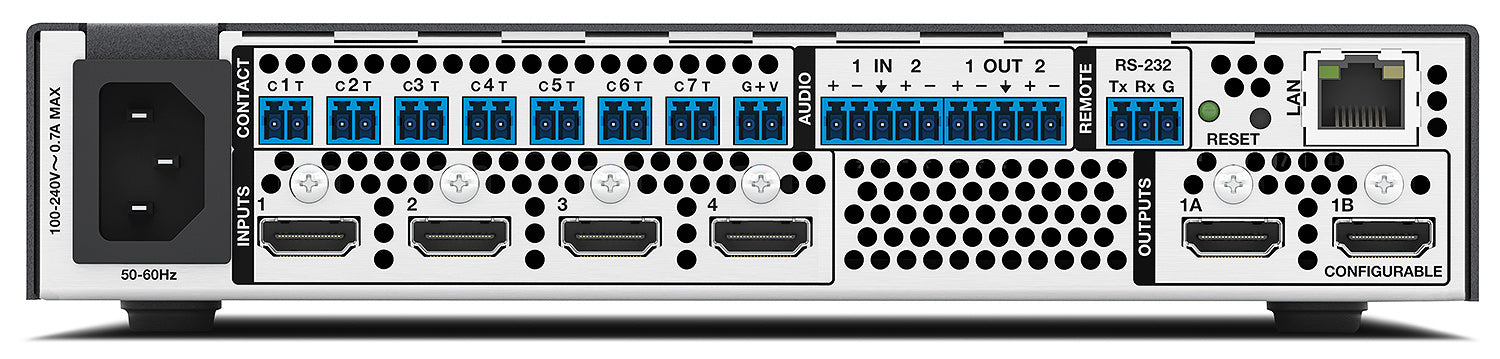

4 female HDMI type A inputs and 2 female HDMI type A outputs on one 1U chassis.
Handles 18 Gbps (6 Gbps per color) with a 600 MHz maximum pixel clock.
1.07 billion colours from 10-bit 4:4:4 video processing.
Output 1B is switchable between mirrored scaler output and non-scaled loop.
10/100/1000Base-T Ethernet with HTTPS, SSH, SNMP, NTP, SFTP and 802.1X.
Seven contact and tally port pairs plus a +5 VDC 0.2 A tally supply.
512 MB of user memory for logos and stored configurations.

Where It Is Used

Designed for rooms where several people present in sequence: boardrooms, divisible training suites, lecture theatres, courtrooms and briefing centres. The tally and contact ports make it straightforward to trigger screens, lifts or lighting scenes as inputs change.

Specifications at a Glance

Standards: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3
Power consumption: 34 watts at full power from an internal 100-240 VAC supply
Enclosure: 1.66 in H x 8.68 in W x 11.5 in D, 1U high half rack wide
Product weight: 2.6 lbs (1.2 kg)
Thermal dissipation: 103 BTU/hr, cooled by 2 front-to-rear fans

Also referenced as Extron IN2004, IN-2004, part number 60196201.

Specifications

Part Number: 60-1962-01

Manufacturer: Extron

Model: IN2004

Condition: New

Signal Type: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3

Maximum Video Data Rate: 18 Gbps (6 Gbps per color)

Chroma Sampling: 4:4:4, 4:2:2, and 4:2:0; 3840x2160 and 4096x2160 at 50-60 Hz in 4:2:0 are supported at input only

Color Bit Depth: 8 or 10 bits per color

Frame Rate: 24, 25, 30, 50, 60, 120, 144, or 240 fps

Video Input: 4 HDMI on 4 female HDMI type A connectors

Horizontal Frequency: 15 kHz to 270 kHz

Vertical Frequency: 24 Hz to 240 Hz

Resolution Range: 640x480 to 4096x2160; 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 2K up to 60 Hz; 3840x2160 up to 60 Hz to 4096x2160 up to 60 Hz

Input Cable Equalization: Automatic

Input Cable Length: At 4096x2160 @ 60 Hz, 4:4:4, 8 color bits: HDMI Ultra up to 12 ft (3.6 m); HDMI Pro up to 25 ft (7.6 m)

Standards: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3

Digital Sampling: 8 or 10 bits per color, 600 MHz pixel clock maximum

Colors: 1.07 billion (10 bit 4:4:4 processing)

Video Output: 2 HDMI on 2 female HDMI type A connectors; HDMI output 1B can mirror the scaler output (default) or be configured as a non-scaled loop output of any video input

Peripheral Device Power: 250 mA per output (HDMI outputs only)

Output Cable Length: At 4096x2160 @ 60 Hz, 4:4:4, 8 color bits: HDMI Ultra up to 12 ft (3.6 m); HDMI Pro up to 25 ft (7.6 m)

Scaled Resolutions: 640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1600x900, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2160, 4096x2160, plus 480p, 576p, 720p, 1080p and 2K

Audio Gain: Unbalanced output -6 dB; balanced output 0 dB

Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.5 dB

THD + Noise: Less than 0.1%, 20 Hz to 20 kHz at nominal level

Signal to Noise: Greater than 90 dB at maximum balanced output, unweighted

Crosstalk: Less than or equal to -80 dB @ 1 kHz, fully loaded

Stereo Channel Separation: Greater than 80 dB @ 1 kHz

Analog De-embedding: LPCM up to 2.0/24-bit/96 kHz

HDMI Pass-Through Audio: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD and Dolby legacy formats; DTS:X, DTS-HD Master Audio, DTS 96/24 and DTS legacy formats

Audio Input: 1 stereo or 2 independent mono line level, balanced or unbalanced, on a 3.5 mm 5-pole captive screw; plus 4 stereo de-embedded from HDMI (LPCM 2-channel only) on the 4 female HDMI type A inputs

Audio Input Impedance: Greater than 10k ohms unbalanced, greater than 20k ohms balanced

Audio Nominal Level: Line input +4 dBu (1.23 Vrms) or -10 dBV (316 mVrms), adjustable

Audio Maximum Level: +21 dBu balanced, +15 dBu unbalanced

CMRR: Greater than 65 dB @ 1 kHz

Input Gain Adjustment: -18 dB to +24 dB

Audio Output: 1 stereo or 2 independent mono line level, balanced or unbalanced, on a 3.5 mm 5-pole captive screw; plus 2 HDMI embedded on the 2 female HDMI type A outputs

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Gain Error: Plus or minus 0.5 dB channel to channel

Audio Maximum Level (Hi-Z): Greater than +21 dBu balanced; greater than +15 dBu unbalanced

Output Volume Range: 0 to -100 dB in 1 dB steps

Serial Control Port: 1 bidirectional RS-232, 3.5 mm, 3-pole captive screw, rear panel

Baud Rate and Protocol: 9600, 8 data bits, 1 stop bit, no parity (default)

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd

USB Control Port: 1 USB C, front panel, using Ethernet over USB (RNDIS)

USB Port Fixed Ethernet Settings: IP address 203.0.113.22, subnet mask 255.255.255.0, gateway 0.0.0.0, DHCP off, DHCP server on

Ethernet Connector: 1 female RJ-45

Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with autodetect

Ethernet Protocols: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP (ping), IP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

Ethernet Default Settings: Link speed and duplex level autodetected; IP address 192.168.254.254; subnet mask 255.255.0.0; gateway 0.0.0.0; DHCP off

Storage: 512 MB user memory, minimum

Contact/Tally Ports: 7 sets (2 pins each) of contact and tally ports; 1 set (1 pin each) of +V and G; tally output power +5 VDC, 0.2 A

Program Control: Extron Product Configuration Software (PCS) for Windows and Extron Simple Instruction Set (SIS)

Power Supply: Internal. Input 100-240 VAC, 50-60 Hz

Power Consumption: 34 watts at full power

Thermal Dissipation: 103 BTU/hr at full power

Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing; operating +32 to +113 degrees F (0 to +45 degrees C), 10% to 90% noncondensing

Cooling: 2 fans, air flows front to rear

Mounting: Rack mountable with an optional rack shelf; furniture mountable with an optional under-desk or through-desk kit

Enclosure Type: Metal

Enclosure Dimensions: 1.66 in H x 8.68 in W x 11.5 in D, 1U high half rack wide (42 mm H x 220 mm W x 292 mm D); depth excludes connectors and buttons

Product Weight: 2.6 lbs (1.2 kg)

Regulatory Compliance: CE, c-UL, UL, AS/NZS, ICES, PSE, VCCI, RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | IN2004 60-1962-01 | DTP3 IN2004 Series

Brochure | IN2004 60-1962-01 | Everlast Power Supplies

Brochure | IN2004 60-1962-01 | Vector 4K Scaling

Brochure | IN2004 60-1962-01 | Alimentatori Everlast

Brochure | IN2004 60-1962-01 | DTP3 IN2004 系列

Brochure | IN2004 60-1962-01 | DTP3 IN2004-Serie

Brochure | IN2004 60-1962-01 | Everlast-Netzteile

Brochure | IN2004 60-1962-01 | Fuentes de alimentación Everlast

Brochure | IN2004 60-1962-01 | Gamme DTP3 IN2004

Brochure | IN2004 60-1962-01 | Serie DTP3 IN2004 (dtp3_in2004_di_do_revB2_IT.pdf)

Brochure | IN2004 60-1962-01 | Serie DTP3 IN2004 (dtp3_in2004_di_do_revB2_SP.pdf)

Brochure | IN2004 60-1962-01 | Sources d'alimentation Everlast

Manual | IN2004 60-1962-01 | DTP Compatibility Guide

Manual | IN2004 60-1962-01 | IN2004 Series Setup Guide

Manual | IN2004 60-1962-01 | IN2004 Series User Guide

Specifications | IN2004 60-1962-01 | IN2004 Series
