Part Number: 60-1615-92
Manufacturer: Extron

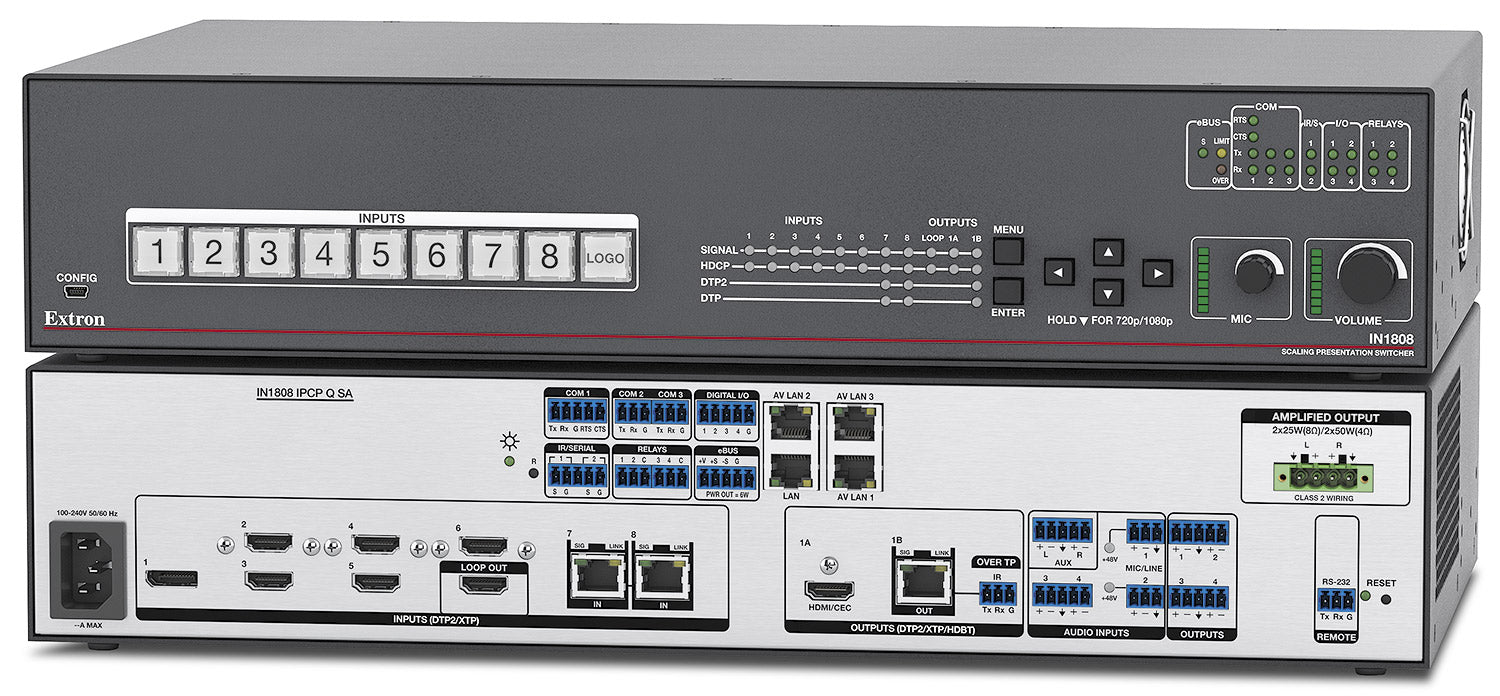

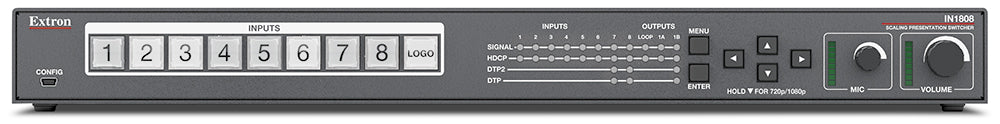

Model: IN1808 IPCP Q SA (Control Processor and Stereo Amp)
Condition: New

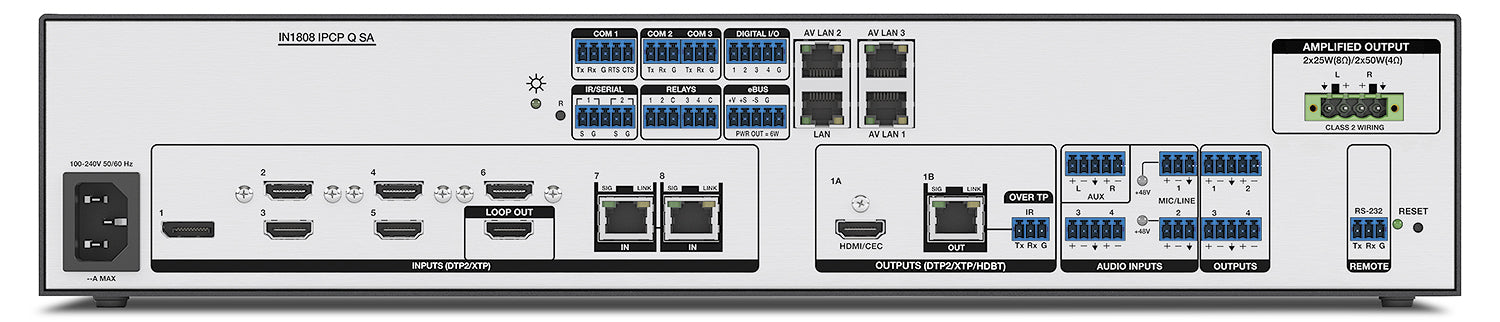

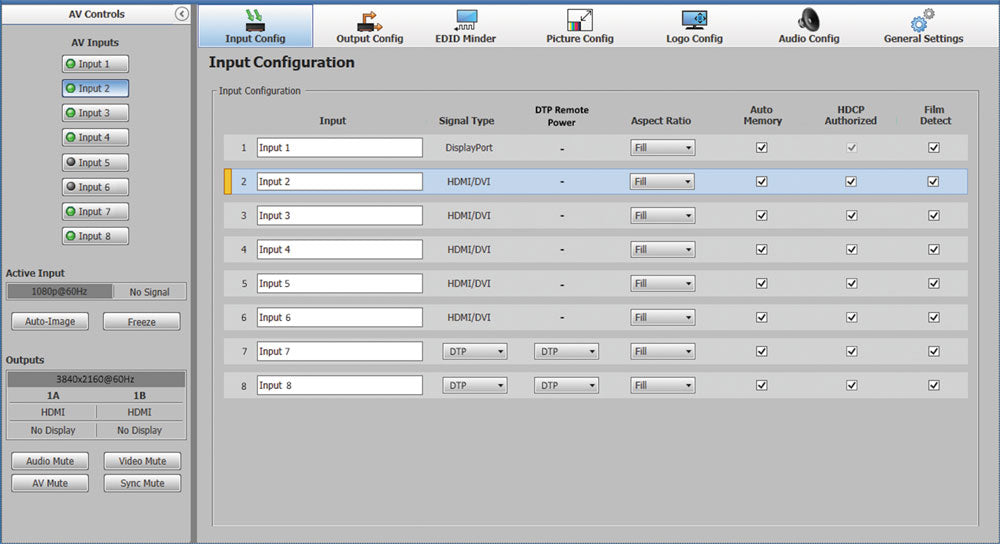

Video input number/signal type: 1 DisplayPort, 5 HDMI/DVI, 1 HDMI/DVI loop-out (non-scaled, with CEC), 2 DTP2/XTP-configurable
Video input connectors: 1 female DisplayPort, 5 female HDMI type A, 1 female HDMI type A loop-out, 2 female RJ-45
Resolution range: 640x480 @ 60 Hz through 4096x2160 @ 60 Hz with 4:4:4 chroma sampling; includes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2K, and 4K
Digital sampling: 8 or 10 bits per color; 600 MHz pixel clock maximum
Colors: 1.07 billion (10-bit 4:4:4 processing)
Video output number/signal type: 1 HDMI/DVI (with CEC), 1 DTP2/XTP/HDBT configurable (with CEC)
Video output connectors: 1 female HDMI type A, 1 female RJ-45
Frame rate: 24, 25, 30, 50, 60, 120, 144, or 240 fps
Signal type / Standards: DVI 1.0, HDMI 1.4 and 2.0, DisplayPort 1.2, HDCP 1.4 and 2.3
Max. video data rate (HDMI): 18 Gbps (6 Gbps per color)
Max. video data rate (DisplayPort): 21.6 Gbps (5.4 Gbps per lane)

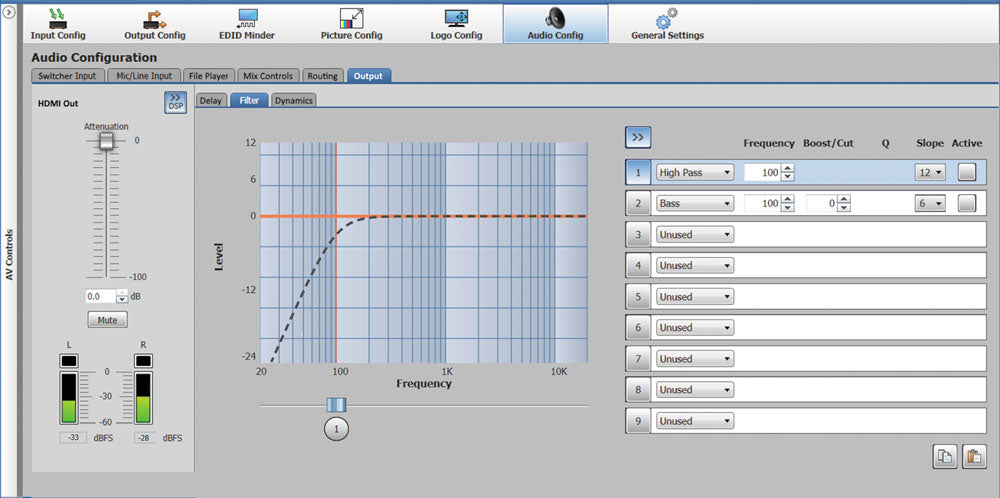

Audio frequency response (line): 20 Hz to 20 kHz, ±0.5 dB
S/N (line): >90 dB at maximum balanced output (unweighted)
Analog de-embedding: LPCM up to 2.0/24-bit/96 kHz
HDMI pass-through audio: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats; DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats
Audio input number/signal type: 2 stereo line level; 2 mono mic/line level (available phantom power); 6 stereo de-embedded from HDMI/DisplayPort (PCM only); 2 DTP2/XTP
Audio input connectors: (2) 3.5 mm 5-pole captive screw for line; (2) 3.5 mm 3-pole captive screw for mic/line; 5 female HDMI type A; 1 female DisplayPort; 2 female RJ-45
CMRR: 70 dB @ 1 kHz
DC phantom power: +48 VDC ±10%, switchable on or off per mic/line input
Audio output (line out) number/signal type: 2 stereo or 4 mono, balanced/unbalanced; 2 HDMI embedded; 1 DTP2/XTP/HDBT embedded digital plus remote analog in DTP mode
Output volume range: 0 to -100 dB in 0.1 dB steps (volume control not available on loop output)
Amplifier type: Class D
Amplifier number/signal type: SA model: 1 stereo (default) or 2 mono (2 channels total)
Amplifier connector: (1) 5 mm 4-pole, screw-lock captive screw
Amplifier load impedance: 4 ohms minimum
Amplifier output power: 25 watts per channel @ 8 ohms, 1 kHz, 0.1% THD, or 50 watts per channel @ 4 ohms, 1 kHz, 0.1% THD
Amplifier protection: Clip limiting, thermal, short circuit, DC output
Amplifier frequency response: 20 Hz to 20 kHz, -3 dB to +1 dB @ 1 W
Amplifier THD + Noise: <0.1% @ 1 kHz, 3 dB below clipping
Amplifier S/N: >90 dB, 20 Hz to 20 kHz, unweighted
Serial control port: 1 bidirectional RS-232, 3.5 mm 3-pole captive screw connector (rear panel)
Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity (default)
USB control port: 1 female mini USB B (front panel)
Storage: 512 MB user memory

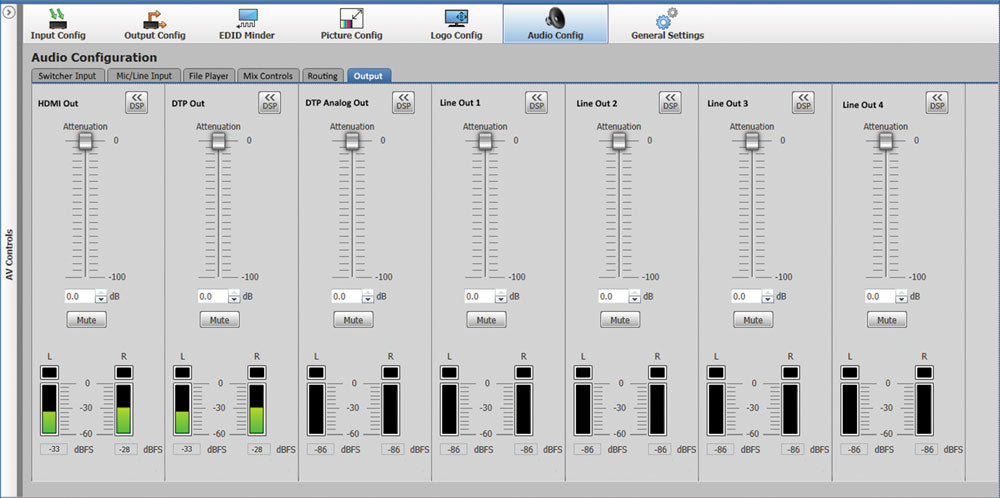

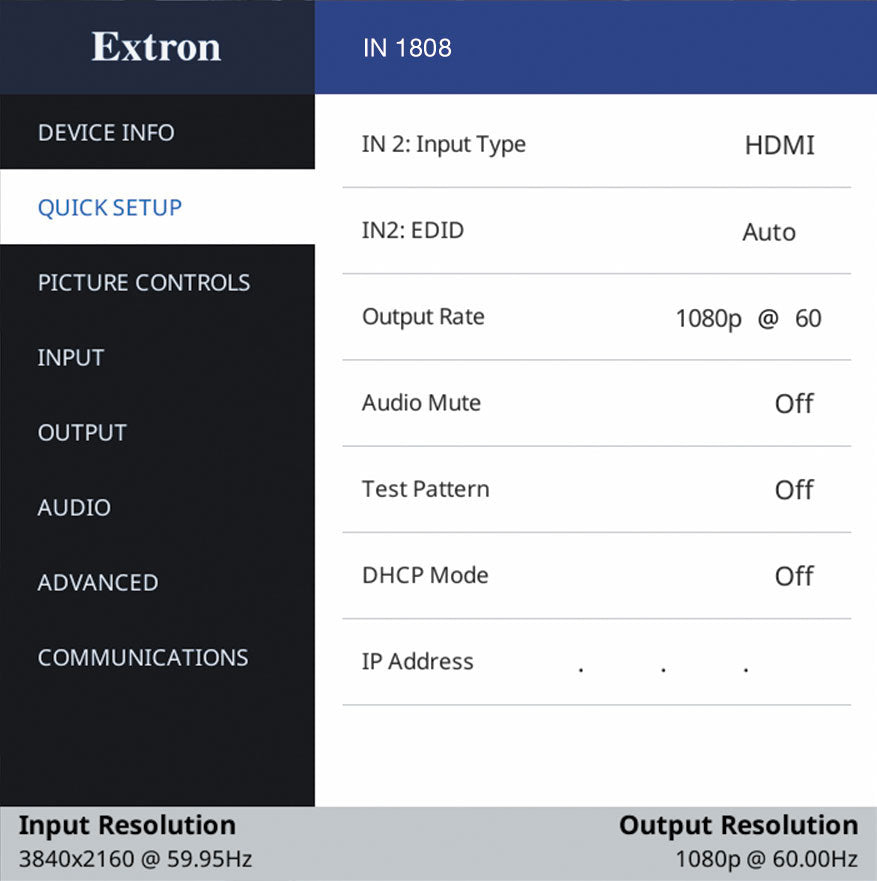

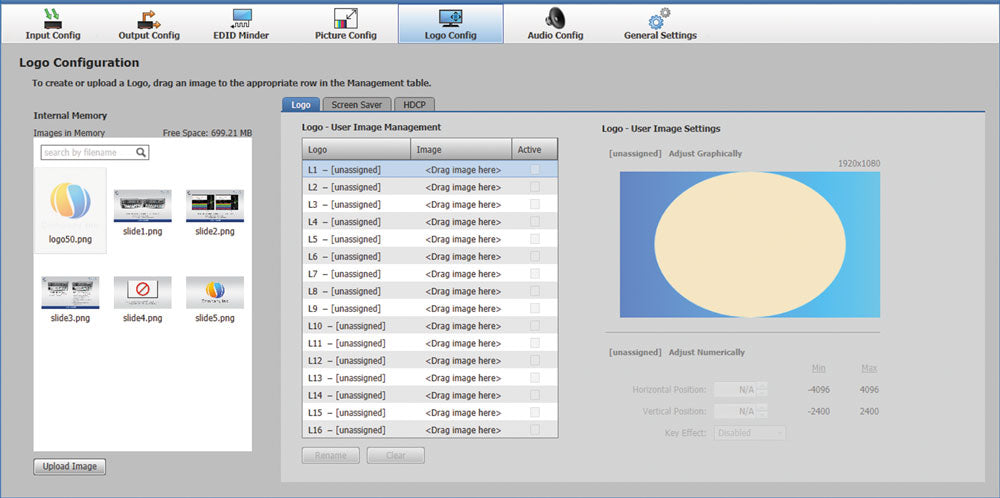

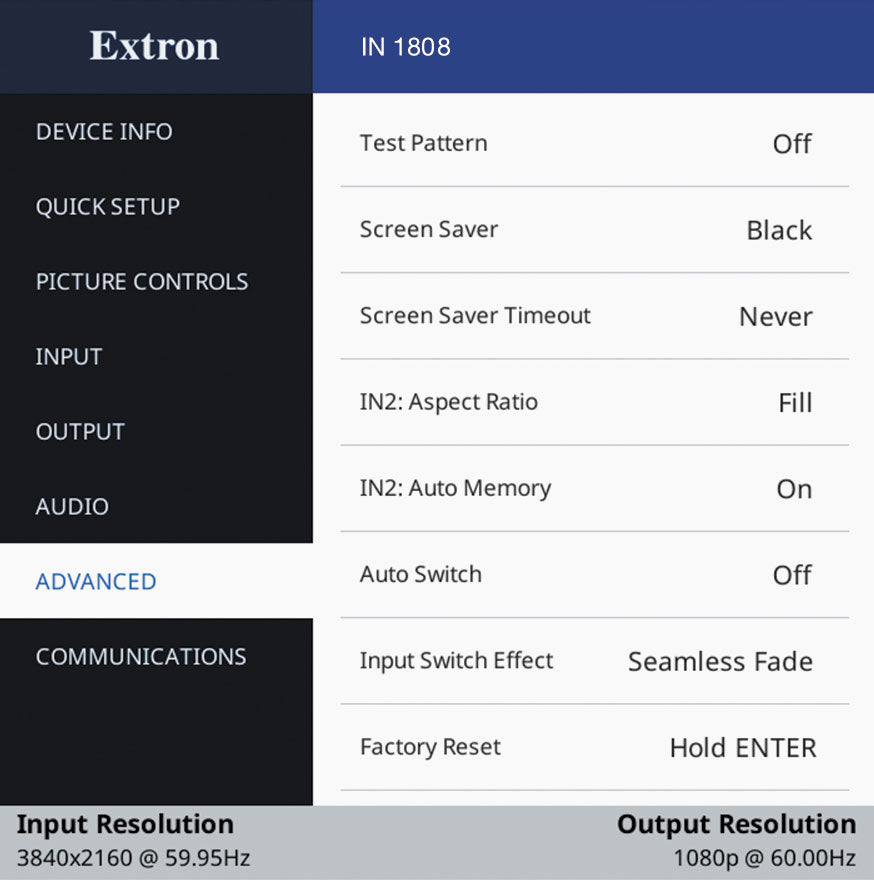

Program control: Extron Product Configuration Software (PCS) for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer
Control processor: IPCP Pro 355MQ xi
Memory (SDRAM / Flash): 2.0 GB SDRAM / 8 GB Flash
Configuration software: Extron Global Configurator Plus and Professional for Windows
Programming software: Global Scripter
Control applications: GlobalViewer, eBus, TouchLink for Web, TouchLink for iPad, or TouchLink Pro touchpanels
Resource management software: GlobalViewer Enterprise
Utilities: Toolbelt, embedded web page
Hardware user interface: TouchLink Pro touchpanels, NBP button panels, or eBUS button panels
Network interface controllers (NICs): 2 (1 LAN, 1 AV LAN)
AV LAN network switch: 1 unmanaged 3-port switch
AV LAN connectors: 3 female RJ-45
LAN connector (control processor): 1 female RJ-45
Ethernet data rate: 10/100/1000Base-T, half/full duplex with autodetect
Serial (control processor) quantity/type: 1 bidirectional RS-232/RS-422/RS-485 (port 1); 2 bidirectional RS-232 (ports 2 and 3)
Serial (control processor) baud rate/protocol: 300 to 115200 baud (9600 default); 8 or 7 data bits; 1 or 2 stop bits; no, even, or odd parity
Digital I/O quantity/type: 4 digital input/output, configurable
Digital input voltage range: 0 to 24 VDC, clamped at +30 VDC
Digital outputs: 250 mA sink from 24 VDC max.
IR/serial quantity/type: 2 programmable, unidirectional RS-232 (±5 V) or TTL level (0 to 5 V) infrared up to 300 kHz
IR output carrier frequency: 30 kHz to 300 kHz
Relay quantity/type: 4 normally open relays
Relay contact rating: 24 VDC, 1 A
eBUS control ports: (1) 3.5 mm captive screw connector, 5 pole (uses 4 poles)
eBUS recommended cable: Extron STP20-2/1000 or STP20-2P/1000
eBUS power output: 6 watts
Serial control pass-through: RS-232 can be inserted to/from a DTP2 Tx/XTP matrix, or from the IN1808 to a DTP2/HDBT Rx/XTP matrix, via Ethernet insertion
IR control pass-through port: IN1808 to TP Rx, (1) 3.5 mm 3-pole captive screw connector, TTL level (0 to 5 V) modulated infrared from 30 kHz to 60 kHz
Power supply: Internal, 100-240 VAC, 50-60 Hz
Power consumption (full power): 140 watts
Power consumption (power save mode): 70 watts (95 watts for Psav2)
Temperature/humidity: Storage -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing; operating +32 to +122°F (0 to +50°C), 10% to 90% noncondensing
Cooling: 1 fan, air flow right to left when viewed from the front
Thermal dissipation (full power): 313 BTU/hr
Thermal dissipation (power save mode): 177 BTU/hr (190 BTU/hr for Psav2)
Rack mount: Yes, with included, preinstalled brackets
Enclosure type: Metal
Enclosure dimensions: 3.50" H x 17.5" W x 10.5" D (89 mm x 444 mm x 267 mm), 2U high, full rack wide
Regulatory compliance: CE, c-UL, UL, PSE, RoHs, and WEEE
Product warranty: 3 years parts and labor
Everlast power supply warranty: 7 years parts and labor
