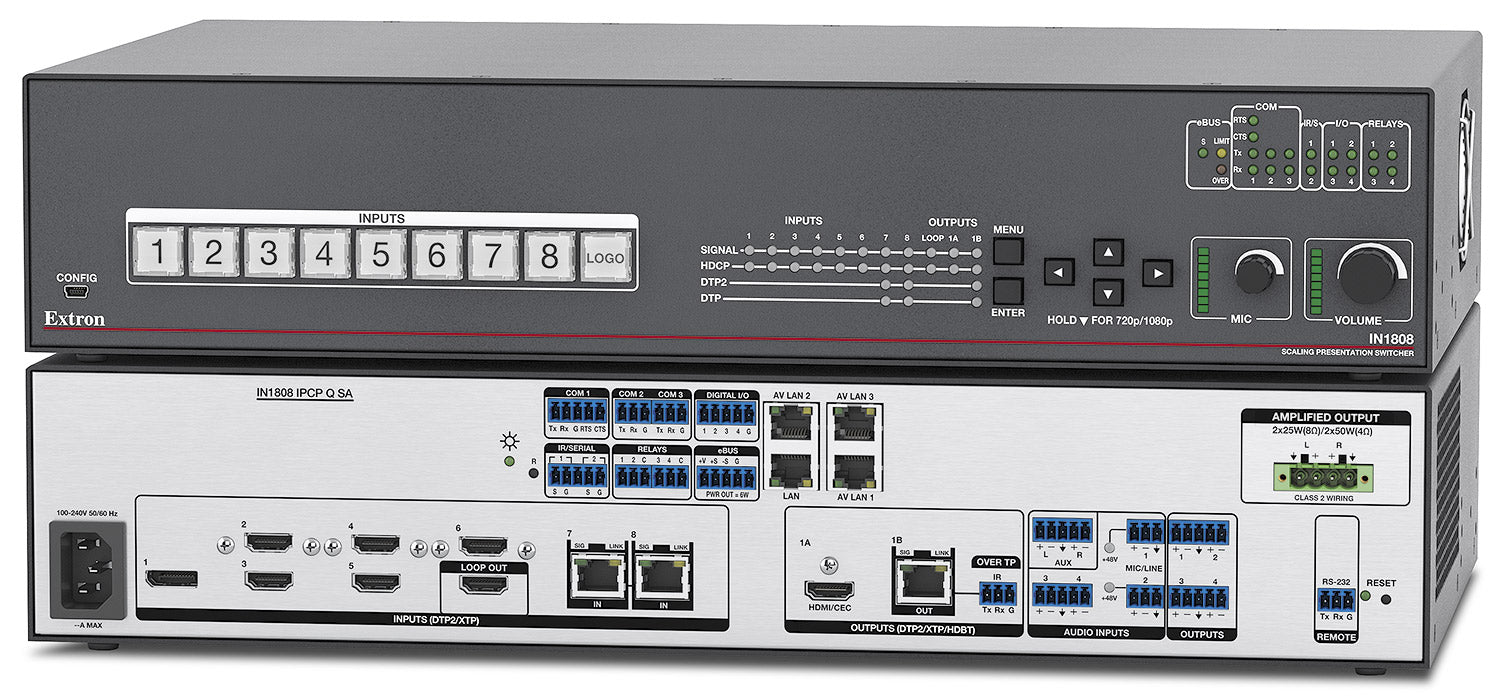

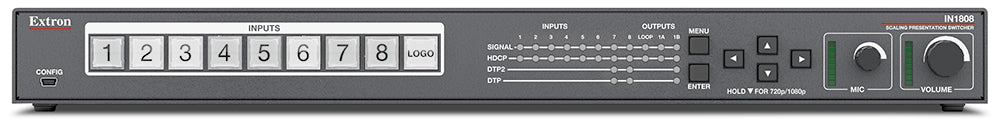

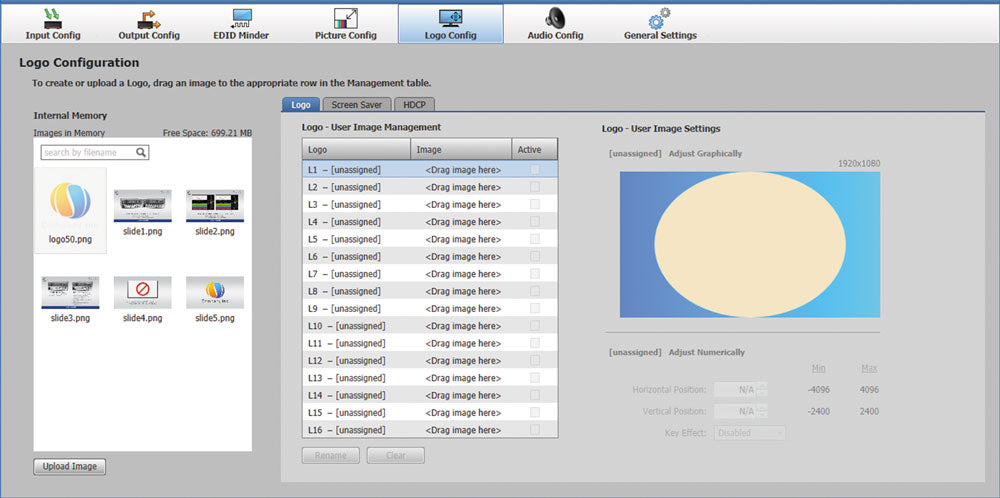

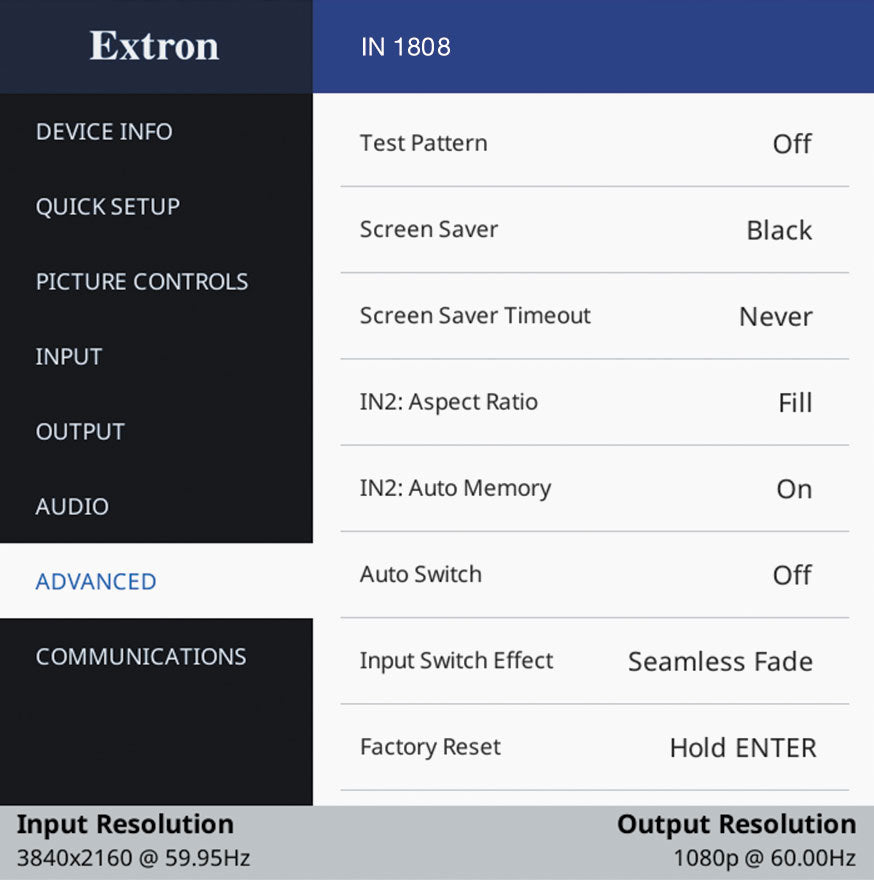

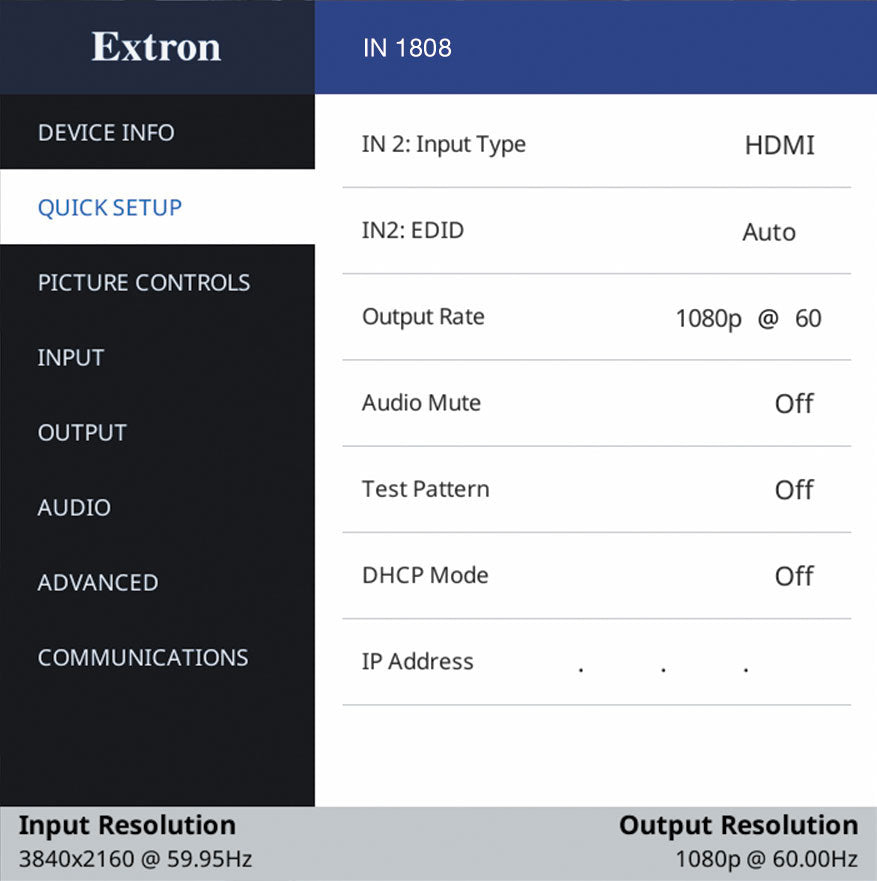

Extron IN1808 IPCP MA 70 (part number 60-1615-03) folds a control processor and a 70V mono power amplifier into the IN1808 eight-input seamless presentation switcher.

Alongside the Vector 4K scaling, DisplayPort/HDMI switching, and DTP2 extension found in every IN1808, this 2U model adds a built-in IPCP Pro 355M control processor with its own AV LAN switch, plus a Class D amplifier delivering 100 watts into a 70V line. That combination lets integrators drive distributed ceiling or wall speakers and run full room control from the same chassis, cutting a separate amplifier and control processor out of the rack. Note: this non-Q part number has been retired by Extron in favor of the IPCP Q MA 70 line; confirm current availability before specifying it.

Key Capabilities

Built-in IPCP Pro 355M control processor with 3-port AV LAN switch
Class D 70V mono amplifier, 100 watts (rms) at 1 kHz, 0.1% THD
Vector 4K scaling up to 4096x2160 at 60 Hz, 4:4:4 chroma
DTP2 signal, audio, and control extension to 330 ft over shielded CATx
Four digital I/O, four relays, and eBUS control ports for room automation
2U rack-mount metal enclosure, 8.0 lbs

Where It Is Used

This configuration suits classrooms, lecture halls, and boardrooms with distributed 70V ceiling speakers where Ampronix's customers want switching, control, and amplification consolidated in a single 2U chassis rather than three separate boxes.

Specifications at a Glance

Control: Built-in IPCP Pro 355M with AV LAN switch
Amplifier: 100 W Class D, 70V mono line
Video: DisplayPort/HDMI inputs, 4K/60 4:4:4 scaling
Enclosure: 3.50 in (2U) high, 8.0 lbs
Warranty: 3-year product, 7-year Everlast power supply

Also referenced as Extron IN1808IPCPMA70, IN1808-IPCP-MA-70, part number 60161503.

Specifications

Part Number: 60-1615-03

Manufacturer: Extron

Model: IN1808 IPCP MA 70 (Control Processor and 70 V Mono Amp) — retired part number

Condition: New

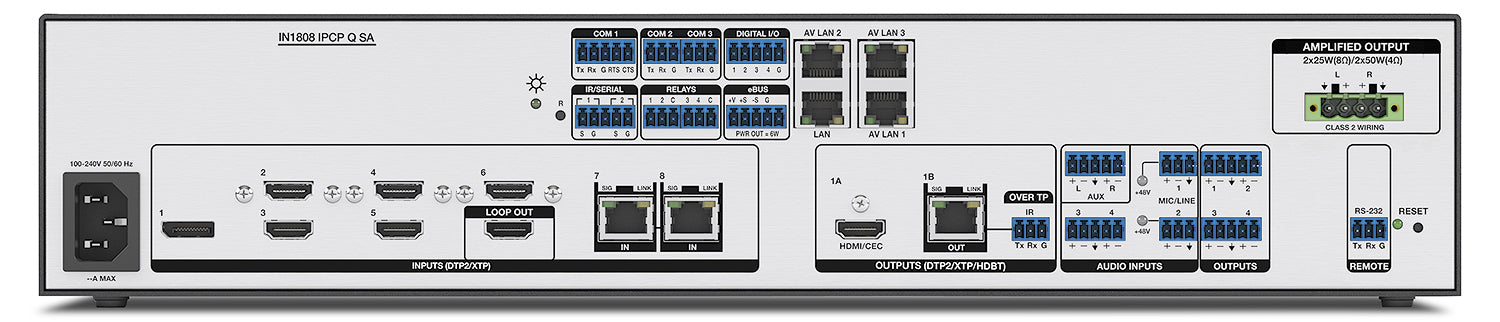

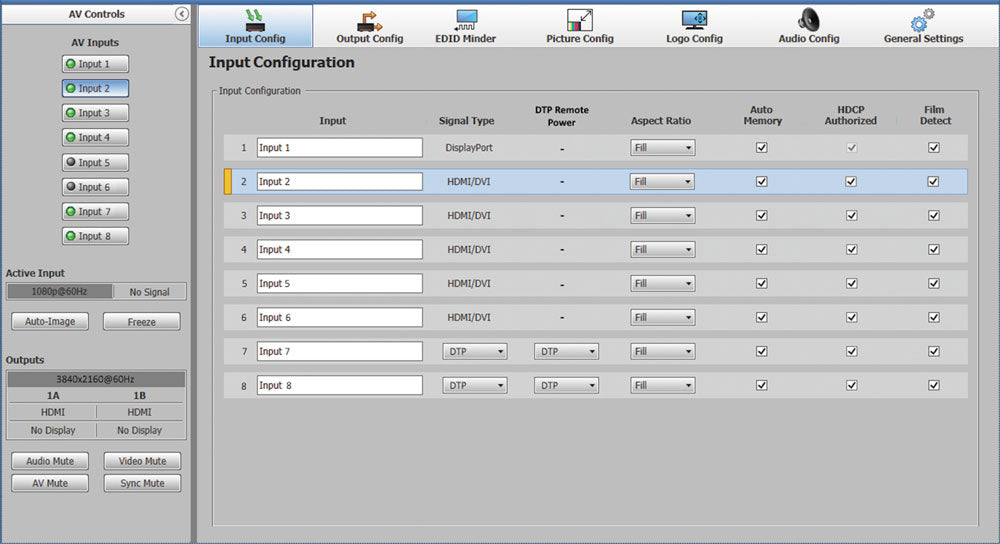

Video input number/signal type: 1 DisplayPort, 5 HDMI/DVI, 1 HDMI/DVI loop-out (non-scaled, with CEC), 2 DTP2/XTP-configurable

Video input connectors: 1 female DisplayPort, 5 female HDMI type A, 1 female HDMI type A loop-out, 2 female RJ-45

Resolution range: 640x480 @ 60 Hz through 4096x2160 @ 60 Hz with 4:4:4 chroma sampling; includes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2K, and 4K

Digital sampling: 8 or 10 bits per color; 600 MHz pixel clock maximum

Colors: 1.07 billion (10-bit 4:4:4 processing)

Video output number/signal type: 1 HDMI/DVI (with CEC), 1 DTP2/XTP/HDBT configurable (with CEC)

Video output connectors: 1 female HDMI type A, 1 female RJ-45

Frame rate: 24, 25, 30, 50, 60, 120, 144, or 240 fps

Signal type / Standards: DVI 1.0, HDMI 1.4 and 2.0, DisplayPort 1.2, HDCP 1.4 and 2.3

Max. video data rate (HDMI): 18 Gbps (6 Gbps per color)

Max. video data rate (DisplayPort): 21.6 Gbps (5.4 Gbps per lane)

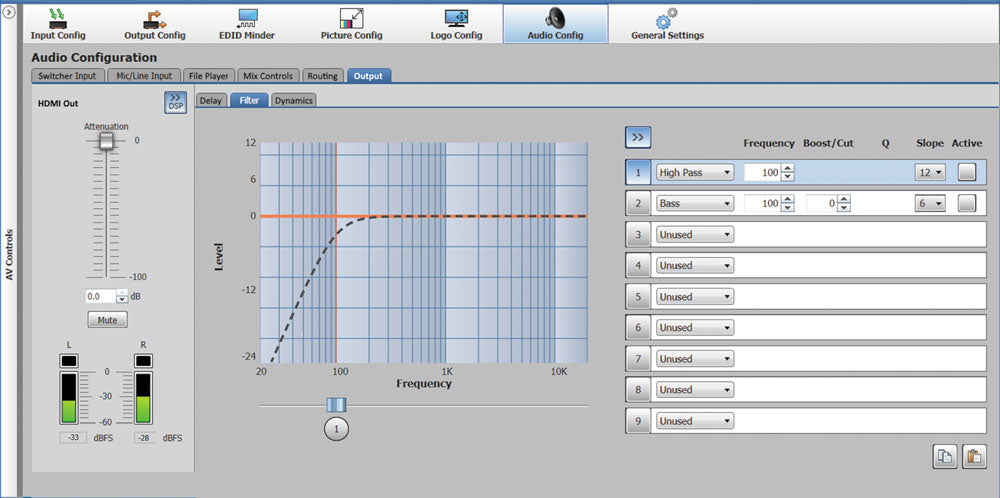

Audio frequency response (line): 20 Hz to 20 kHz, ±0.5 dB

S/N (line): >90 dB at maximum balanced output (unweighted)

Crosstalk: ≤-80 dB @ 1 kHz, fully loaded

Analog de-embedding: LPCM up to 2.0/24-bit/96 kHz

HDMI pass-through audio: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats; DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats

Audio input number/signal type: 2 stereo line level; 2 mono mic/line level (available phantom power); 6 stereo de-embedded from HDMI/DisplayPort (PCM only); 2 DTP2/XTP

Audio input connectors: (2) 3.5 mm 5-pole captive screw for line; (2) 3.5 mm 3-pole captive screw for mic/line; 5 female HDMI type A; 1 female DisplayPort; 2 female RJ-45

CMRR: 70 dB @ 1 kHz

DC phantom power: +48 VDC ±10%, switchable on or off per mic/line input

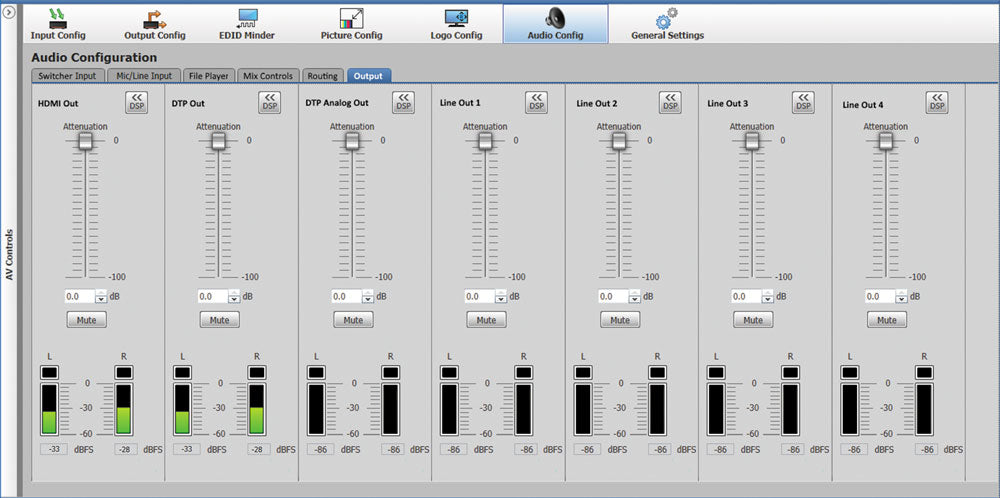

Audio output (line out) number/signal type: 2 stereo or 4 mono, balanced/unbalanced; 2 HDMI embedded; 1 DTP2/XTP/HDBT embedded digital plus remote analog in DTP mode

Output volume range: 0 to -100 dB in 0.1 dB steps (volume control not available on loop output)

Amplifier type: Class D

Amplifier number/signal type: MA 70 model: 1 mono, 70 V line

Amplifier connector: (1) 5 mm 2-pole, screw-lock captive screw

Amplifier load impedance: 50 ohms minimum

Amplifier output power: 100 watts (rms) @ 70 V, 1 kHz, 0.1% THD

Amplifier protection: Clip limiting, thermal, short circuit, DC output

Amplifier frequency response: 20 Hz to 20 kHz, -3 dB to +1 dB @ 1 W

Amplifier THD + Noise: <0.1% @ 1 kHz, 3 dB below clipping

Amplifier S/N: >90 dB, 20 Hz to 20 kHz, unweighted

Serial control port: 1 bidirectional RS-232, 3.5 mm 3-pole captive screw connector (rear panel)

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity (default)

USB control port: 1 female mini USB B (front panel)

Storage: 512 MB user memory

Program control: Extron Product Configuration Software (PCS) for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer

Control processor: IPCP Pro 355M

Memory (SDRAM / Flash): 512 MB SDRAM / 4.5 GB Flash

Configuration software: Extron Global Configurator Plus and Professional for Windows

Programming software: Global Scripter

Control applications: GlobalViewer, eBus, TouchLink for Web, TouchLink for iPad, or TouchLink Pro touchpanels

Resource management software: GlobalViewer Enterprise

Utilities: Toolbelt, embedded web page

Hardware user interface: TouchLink Pro touchpanels, NBP button panels, or eBUS button panels

Network interface controllers (NICs): 2 (1 LAN, 1 AV LAN)

AV LAN network switch: 1 unmanaged 3-port switch

AV LAN connectors: 3 female RJ-45

LAN connector (control processor): 1 female RJ-45

Ethernet data rate: 10/100/1000Base-T, half/full duplex with autodetect

Serial (control processor) quantity/type: 1 bidirectional RS-232/RS-422/RS-485 (port 1); 2 bidirectional RS-232 (ports 2 and 3)

Serial (control processor) baud rate/protocol: 300 to 115200 baud (9600 default); 8 or 7 data bits; 1 or 2 stop bits; no, even, or odd parity

Digital I/O quantity/type: 4 digital input/output, configurable

Digital input voltage range: 0 to 24 VDC, clamped at +30 VDC

Digital outputs: 250 mA sink from 24 VDC max.

IR/serial quantity/type: 2 programmable, unidirectional RS-232 (±5 V) or TTL level (0 to 5 V) infrared up to 300 kHz

IR output carrier frequency: 30 kHz to 300 kHz

Relay quantity/type: 4 normally open relays

Relay contact rating: 24 VDC, 1 A

eBUS control ports: (1) 3.5 mm captive screw connector, 5 pole (uses 4 poles)

eBUS recommended cable: Extron STP20-2/1000 or STP20-2P/1000

eBUS power output: 6 watts

Serial control pass-through: RS-232 can be inserted to/from a DTP2 Tx/XTP matrix, or from the IN1808 to a DTP2/HDBT Rx/XTP matrix, via Ethernet insertion

IR control pass-through port: IN1808 to TP Rx, (1) 3.5 mm 3-pole captive screw connector, TTL level (0 to 5 V) modulated infrared from 30 kHz to 60 kHz

Power supply: Internal, 100-240 VAC, 50-60 Hz

Power consumption (full power): 140 watts

Power consumption (power save mode): 70 watts (95 watts for Psav2)

Temperature/humidity: Storage -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing; operating +32 to +122°F (0 to +50°C), 10% to 90% noncondensing

Cooling: 1 fan, air flow right to left when viewed from the front

Thermal dissipation (full power): 313 BTU/hr

Thermal dissipation (power save mode): 177 BTU/hr (190 BTU/hr for Psav2)

Rack mount: Yes, with included, preinstalled brackets

Enclosure type: Metal

Enclosure dimensions: 3.50" H x 17.5" W x 10.5" D (89 mm x 444 mm x 267 mm), 2U high, full rack wide

Product weight: 8.0 lbs (3.6 kg)

Regulatory compliance: CE, c-UL, UL, PSE, RoHs, and WEEE

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor
