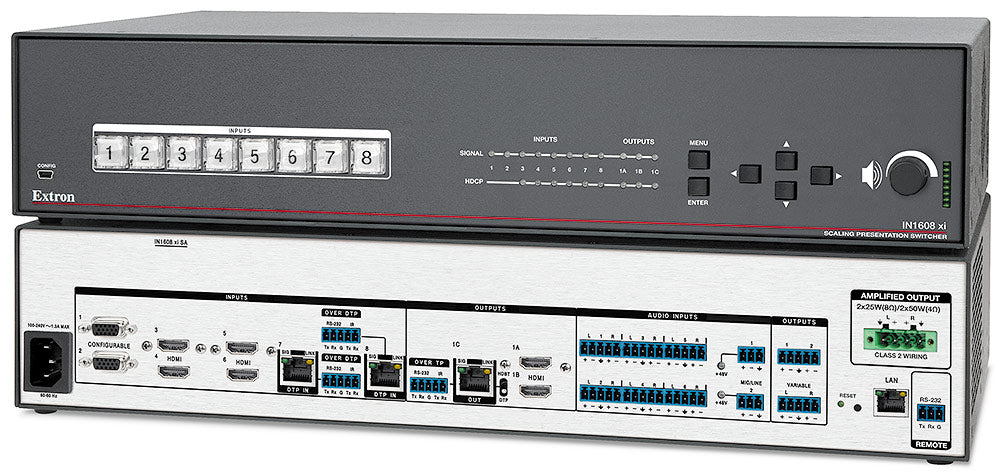

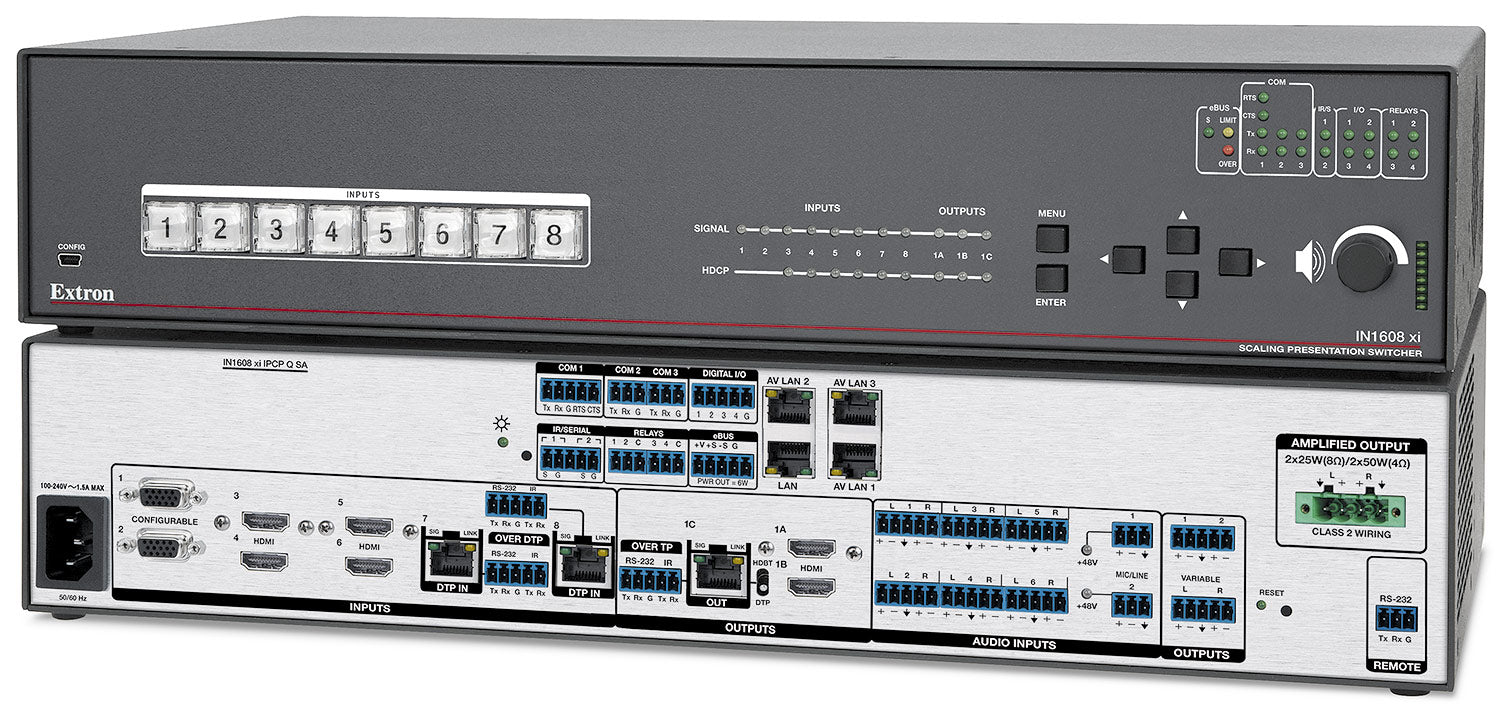

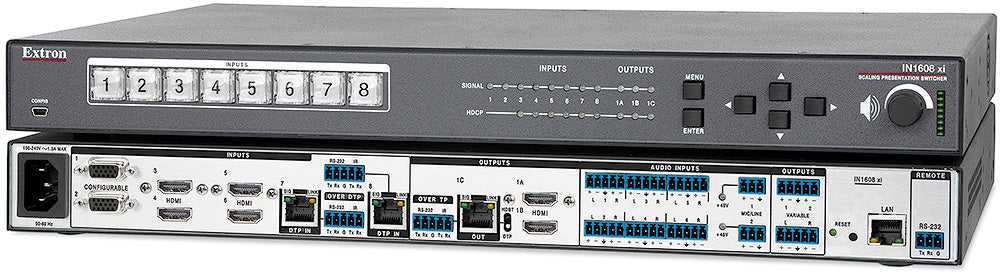

Extron IN1608 xi IPCP Q SA (part number 60-1238-95A) — the same 8-input scaling switcher and stereo amplifier as 60-1238-95, with an Extron LinkLicense UI upgrade bundled in at the factory.
This configuration pairs an 8-input scaling switcher (four HDMI, two analog, two DTP), a 2x50-watt Class D stereo amplifier, and a quad-core IPCP Pro 355MQ xi control processor with a dedicated AV LAN. The bundled LinkLicense UI upgrade — sold separately on the base 60-1238-95 — lets a tablet, phone, or laptop serve as a primary control interface for the AV system without a follow-on license purchase, easing BYOD deployment.
Key Capabilities
- Scales 4 HDMI/DVI, 2 analog, and 2 DTP inputs to 2 HDMI and 1 DTP/HDBaseT output
- Integrated 2x50W (4 ohm) / 2x25W (8 ohm) Class D stereo amplifier
- Quad-core IPCP Pro 355MQ xi control processor with dedicated 3-port AV LAN
- Factory-bundled LinkLicense UI upgrade for tablet or laptop control, no add-on license needed
- DTP/HDBaseT output reaches up to 330 ft (100 m)
Where It Is Used
Rooms planning BYOD control from day one — training rooms, huddle spaces, and boardrooms — specify the 95A configuration to skip a separate LinkLicense purchase while getting the same scaling, stereo audio, and control as the base Q SA model.
Specifications at a Glance
- 8 inputs: 4 HDMI/DVI, 2 analog, 2 DTP; 3 simultaneous outputs
- 2x50 watts @ 4 ohms (2x25 watts @ 8 ohms) stereo amplifier output
- IPCP Pro 355MQ xi control processor, 2 GB SDRAM / 8 GB flash
- Bundled LinkLicense UI upgrade for BYOD control interfaces
- 3-year Extron warranty, 7-year Everlast power supply warranty
Also referenced as Extron IN1608xiIPCPQSAA, IN1608-xi-IPCP-Q-SA, part number 60123895A.
Specifications
Specifications
Part Number: 60-1238-95A
Manufacturer: Extron
Model: IN1608 xi IPCP Q SA
Condition: New
Video Input Number/signal type: Local input: 2 RGB, RGBcvS, component video (YUVi/YUVp/HDTV), S-video, composite; 4 HDMI/DVI. Remote inputs: 2 DTP 330
Video Input Connectors: 2 female 15-pin HD, 4 female HDMI type A, 2 female RJ-45 connectors
HDMI equalization: Automatic
HDMI input cable length: Up to 75' (22.9 m) for all supported input rates
Nominal level: 1 Vp-p for Y of component video and S-video, and for composite; 0.7 Vp-p for RGB and for R-Y/B-Y of component video; 0.3 Vp-p for C of S-video
Minimum/maximum levels: Analog: 0.0 V to 1.0 Vp-p with no offset at unity gain
Video Input Impedance: 75 ohms
Horizontal frequency: 15 kHz to 100 kHz
Vertical frequency: 24 Hz to 75 Hz
Resolution range: 640x480 to 1600x1200 and 1920x1200, NTSC, PAL, SECAM, 480i-1080p, and 2K (reduced blanking)
Return loss: greater than 30 dB @ 5 MHz
DC offset (max. allowable): 1.5 V
Video Input Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM, DVI 1.0, HDMI 1.3, HDCP 1.4
Decoder: 12 bit digital (3D adaptive comb filter)
Analog sampling: 12 bits per color; 13.5 MHz standard (video), 170 MHz standard (RGB)
Digital pixel data bit depth: 8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI)
Colors: 1 billion (10 bit processing)
Video Output Number/signal type: Local output: 2 HDMI/DVI. Remote output: 1 DTP 330 or HDBaseT, configurable
Video Output Connectors: 2 female HDMI type A, 1 female RJ-45 connector
HDMI peripheral device power: 200 mA per output
Video Output Standards: DVI 1.0, HDMI 1.3, HDCP 1.4
Sync Input type: RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video
Sync Input standards: NTSC 3.58, NTSC 4.43, PAL, SECAM
Sync Input level: 2.75 V to 5.0 Vp-p for RGBHV or RGBS; 0.6 Vp-p for tri-level sync; 0.3 Vp-p for bi-level sync or RGsB
Sync Input impedance: Horizontal: 510 ohms; Vertical: 510 ohms
Max. input voltage: 5.0 Vp-p
STP Interconnection Connectors: 3 female RJ-45
Termination standard: TIA/EIA-T568B
DTP 330 transmission distance: Up to 330' (100 m) using shielded twisted pair cable or XTP DTP 24 STP cable
HDBaseT transmission distance: Up to 330' (100 m) using shielded twisted pair cable or XTP DTP 24 STP cable
Cable requirements: Solid conductor, 24 AWG or better
Cable recommendations: 400 MHz bandwidth, STP (shielded twisted pair)
Line Audio Gain: Unbalanced output: -6 dB; balanced output: 0 dB
Line Audio Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Line Audio THD + Noise: less than 0.1%, 20 Hz to 20 kHz at nominal level
Line Audio S/N: greater than 90 dB at maximum balanced output (unweighted)
Crosstalk: -80 dB or better @ 1 kHz, fully loaded
Stereo channel separation: greater than 80 dB @ 1 kHz
Bass: +12 dB to -24 dB @ 100 Hz
Treble: +12 dB to -24 dB @ 8 kHz
Analog de-embedding: LPCM up to 2.0/24-bit/96 kHz
HDMI pass-through: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats; DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats
Audio Input Number/signal type: 8 stereo line level balanced or unbalanced; 2 mono mic/line level balanced or unbalanced (with available phantom power); 4 stereo, de-embedded from HDMI (PCM only); 2 DTP (de-embedded from HDMI [PCM only], or remote balanced/unbalanced analog)
Audio Input Connectors: (6) 3.5 mm captive screw connectors, 5 pole for line; (2) 3.5 mm captive screw connectors, 3 pole for mic/line; 4 female HDMI type A; 2 female RJ-45 connectors
Audio Input Impedance: greater than 10k ohms unbalanced, greater than 20k ohms balanced
Audio Input Nominal level: Line inputs: +4 dBu, -10 dBV, adjustable. Mic/line inputs: -60 dBV, +4 dBu, -10 dBV, adjustable
Audio Input Maximum level: +21 dBu at rated THD+N when input gain is set to 0 dB
Audio CMRR: greater than 80 dB @ 1 kHz
Input gain adjustment: Line inputs: -18 dB to +24 dB, 1 dB steps, per input. Mic/line inputs: -18 dB to +60 dB, 1 dB steps, per input. LPCM-2Ch: -18 dB to +24 dB, 0.1 dB steps, per input
DC phantom power: +48 VDC ±10% (switchable per mic/line input)
Line Audio Output Number/signal type: Local outputs: 1 balanced/unbalanced stereo (variable); 1 balanced/unbalanced stereo, configurable as stereo or two independently mixed mono channels; 2 HDMI embedded. Remote output: 1 DTP (embedded digital and remote balanced/unbalanced analog) or 1 HDBaseT (embedded digital)
Line Audio Output Connectors: (2) 3.5 mm captive screw connectors, 5 pole; 2 female HDMI type A; 1 RJ-45 connector
Line Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced
Gain error: ±0.5 dB channel to channel
Line Audio Output Maximum level (Hi-Z): greater than +20 dBu balanced, greater than +14 dBu unbalanced
Output volume range: 0 to -100 dB in 1 dB steps
Amp Output Number/signal type: 1 stereo (default) or 2 mono (2 channels total)
Amp Output Connectors: (1) 5 mm screw lock captive screw connector, 4 pole (accepts wires 22 AWG to 12 AWG)
Amp Load impedance: 4 ohms minimum
Amp Frequency response: 20 Hz to 20 kHz, -3 dB to +1 dB @ 1 W
Amp Output power: 25 watts per channel, 8 ohms, 1 kHz, 0.1% THD; 50 watts per channel, 4 ohms, 1 kHz, 0.1% THD
Amp THD + Noise: less than 0.1% @ 1 kHz, 3 dB below clipping
Amp S/N: greater than 90 dB, 20 Hz to 20 kHz, unweighted
Amplifier type: Class D
Amplifier Protection: Clip limiting, thermal, short circuit, DC output
Serial control port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3 pole (rear panel)
Baud rate and protocol: 9600, 8 data bits, 1 stop bit, no parity (default)
Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd
USB control port: 1 front panel female mini USB B
USB standards: USB 2.0, high speed
Pass-through Serial control ports: IN1608 xi input/DTP Tx: RS-232 via (2) 3.5 mm, 5 pole captive screw connectors (shared with IR ports). IN1608 xi output/TP Rx: RS-232 via (1) 3.5 mm, 5 pole captive screw connector (shared with IR port)
Pass-through Baud rates: Up to 115200 baud
Pass-through Protocol: 6-8 data bits, 1 or 2 stop bits, no parity (default), even or odd parity, flow control = XON, XOFF, none
IR pass-through control ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz
IR control pin configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx
Control processor: IPCP Pro 355MQ xi
SDRAM: 2 GB
Flash memory: 8 GB
Software: Extron Global Configurator Plus and Professional for Windows
Control options: GlobalViewer, Extron control for iPad and web, TouchLink Pro touchpanels, or eBUS button panels
Network interface controllers (NICs): 2: 1 LAN, 1 AV LAN
Network switch: 1 AV unmanaged 3 port switch
Ethernet Connectors: LAN: 1 female RJ-45 connector. AV LAN: 3 female RJ-45 connectors
Ethernet Data rate: 10/100/1000Base-T, half/full duplex with autodetect
Ethernet Protocols: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
LAN default settings: Link speed and duplex level = autodetected. IP address = 192.168.253.250. Subnet mask = 255.255.255.0. Gateway = 0.0.0.0. DHCP = off. DNS: 127.0.0.1
AV LAN default settings: Link speed and duplex level = autodetected. IP address = 192.168.254.250. Subnet mask = 255.255.255.0. Gateway = 0.0.0.0. DHCP server = disabled. DNS: 127.0.0.1
DHCP server enabled: IP address = 192.168.254.1. Dynamic leased IP address pool = 192.168.254.100-192.168.254.149. Maximum lease count = 50. Lease time = 24 hours
Serial control Quantity/type: 1 bidirectional RS-232, RS-422, RS-485 (port 1); 2 bidirectional RS-232 (ports 2 and 3)
Serial control Connectors: (1) 3.5 mm captive screw connector, 5 pole; (2) 3.5 mm captive screw connectors, 3 pole
Serial control Baud rate and protocol: 300 to 115200 baud (9600 default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity
RS-232 pin configuration (default): Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS
RS-422 pin configuration: Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+
RS-485 pin configuration: Pins 1 and 2 (tied) = data-, 3 = Gnd, 4 and 5 (tied) = data+
3-pole serial pin configuration: Pin 1 = Tx, 2 = Rx, 3 = Gnd
Digital I/O Quantity/type: 4 digital input/output, configurable
Digital I/O Connectors: (1) 3.5 mm captive screw connector, 5 pole
Digital input voltage range: 0 to 24 VDC, clamped at +30 VDC
Digital input impedance: greater than 10k ohms
Programmable pullup: 1k ohms to +5 VDC
Threshold low to high: greater than 2.8 VDC
Threshold high to low: less than 2.0 VDC
Digital outputs: 250 mA sink from 24 VDC max.
Digital I/O pin configurations: 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd
IR/serial programmable port Quantity/type: 2 programmable: unidirectional RS-232 (±5 V), or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz
IR output carrier frequency: 30 kHz to 300 kHz
Relay control Quantity/type: 4 normally open relays
Relay control connectors: (1) 3.5 mm captive screw connector, 6 pole
Relay control contact rating: 24 VDC, 1 A
eBUS control ports: (1) 3.5 mm captive screw connector, 5 pole (uses 4 poles)
eBUS pin configuration: +V = +12 VDC; +S = + signal; -S = - signal; G = ground
Recommended cable type: Extron STP20-2/1000 or STP20-2P/1000 cable
Maximum system cable length: 1000 feet (305 meters) sum total for the eBUS system, regardless of topology
eBUS power output: 6 watts
Power supply: Internal; Input: 100-240 VAC, 50-60 Hz
Power consumption (full load, amp at 1/8 power): 76 watts
Power consumption (power save mode): less than 47 watts
Remote power capability (HDBaseT mode): Supports up to two endpoints (two DTP Tx)
Remote power capability (DTP mode): Supports up to three endpoints (two DTP Tx, one DTP Rx)
Temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling: Fans, air flow right to left (as viewed from front panel)
Thermal dissipation (full load, amp at 1/8 power): 179 BTU/hr
Thermal dissipation (power save mode): less than 144 BTU/hr
Mounting: Rack mount, yes, with included pre-installed brackets
Enclosure type: Metal
Enclosure dimensions: 3.47" H x 17.5" W x 9.5" D (2U high, full rack wide) (depth excludes connectors and knobs; width excludes rack ears)
Product weight: 7.9 lbs (3.6 kg)
Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE
Warranty: 3 years parts and labor
Everlast power supply warranty: 7 years parts and labor
Diagram
Diagram
Resources
Resources
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (in1608xi_revA1.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | Everlast Power Supplies
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (IN1608-xi_BR_A4_IT_RevA1.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (IN1608-xi_BR_A4_FR_RevA1.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (IN1608-xi_BR_A4_GE_RevA1.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (IN1608-xi_BR_A4_SP_RevA1.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | Alimentatori Everlast
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | Everlast 电源
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | Everlast-Netzteile
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | Fuentes de alimentación Everlast
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (IN1608-xi_BR_A4_EN_RevA1_Japanese.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (IN1608_xi_Rev_A1_CN_Online.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi IPCP SA - Spec Sheet
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | Sources d'alimentation Everlast
Manual | IN1608 xi IPCP Q SA 60-1238-95A | Cleaning Instruction Card
Manual | IN1608 xi IPCP Q SA 60-1238-95A | Control Systems Network Ports, Protocols, and Licenses
Manual | IN1608 xi IPCP Q SA 60-1238-95A | DTP Compatibility Guide
Manual | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi Series User Guide
Manual | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi Setup Guide
Manual | IN1608 xi IPCP Q SA 60-1238-95A | IPCP Pro Q xi and xi Series User Guide
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Extron IN1608 xi IPCP Q SA LinkLicense Switcher 60-1238-95A
Extron IN1608 xi IPCP Q SA LinkLicense Switcher 60-1238-95A
Manufacturer: Extron
Extron IN1608 xi IPCP Q SA LinkLicense 60-1238-95A
- • 8-input scaler: 4 HDMI/DVI, 2 analog, 2 DTP to 2 HDMI + 1 DTP/HDBaseT output
- • Built-in 2x50W (4 ohm) Class D stereo power amplifier
- • Quad-core IPCP Pro 355MQ xi control processor, 2 GB SDRAM / 8 GB flash
- • Factory-bundled LinkLicense UI upgrade for tablet/laptop control, no add-on
- • Dedicated 3-port AV LAN isolates AV traffic from the corporate network
- • DTP/HDBaseT output extends signal up to 330 ft (100 m)
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron IN1608 xi IPCP Q SA (part number 60-1238-95A) — the same 8-input scaling switcher and stereo amplifier as 60-1238-95, with an Extron LinkLicense UI upgrade bundled in at the factory.
This configuration pairs an 8-input scaling switcher (four HDMI, two analog, two DTP), a 2x50-watt Class D stereo amplifier, and a quad-core IPCP Pro 355MQ xi control processor with a dedicated AV LAN. The bundled LinkLicense UI upgrade — sold separately on the base 60-1238-95 — lets a tablet, phone, or laptop serve as a primary control interface for the AV system without a follow-on license purchase, easing BYOD deployment.
Key Capabilities
- Scales 4 HDMI/DVI, 2 analog, and 2 DTP inputs to 2 HDMI and 1 DTP/HDBaseT output
- Integrated 2x50W (4 ohm) / 2x25W (8 ohm) Class D stereo amplifier
- Quad-core IPCP Pro 355MQ xi control processor with dedicated 3-port AV LAN
- Factory-bundled LinkLicense UI upgrade for tablet or laptop control, no add-on license needed
- DTP/HDBaseT output reaches up to 330 ft (100 m)
Where It Is Used
Rooms planning BYOD control from day one — training rooms, huddle spaces, and boardrooms — specify the 95A configuration to skip a separate LinkLicense purchase while getting the same scaling, stereo audio, and control as the base Q SA model.
Specifications at a Glance
- 8 inputs: 4 HDMI/DVI, 2 analog, 2 DTP; 3 simultaneous outputs
- 2x50 watts @ 4 ohms (2x25 watts @ 8 ohms) stereo amplifier output
- IPCP Pro 355MQ xi control processor, 2 GB SDRAM / 8 GB flash
- Bundled LinkLicense UI upgrade for BYOD control interfaces
- 3-year Extron warranty, 7-year Everlast power supply warranty
Also referenced as Extron IN1608xiIPCPQSAA, IN1608-xi-IPCP-Q-SA, part number 60123895A.
Specifications
Specifications
Part Number: 60-1238-95A
Manufacturer: Extron
Model: IN1608 xi IPCP Q SA
Condition: New
Video Input Number/signal type: Local input: 2 RGB, RGBcvS, component video (YUVi/YUVp/HDTV), S-video, composite; 4 HDMI/DVI. Remote inputs: 2 DTP 330
Video Input Connectors: 2 female 15-pin HD, 4 female HDMI type A, 2 female RJ-45 connectors
HDMI equalization: Automatic
HDMI input cable length: Up to 75' (22.9 m) for all supported input rates
Nominal level: 1 Vp-p for Y of component video and S-video, and for composite; 0.7 Vp-p for RGB and for R-Y/B-Y of component video; 0.3 Vp-p for C of S-video
Minimum/maximum levels: Analog: 0.0 V to 1.0 Vp-p with no offset at unity gain
Video Input Impedance: 75 ohms
Horizontal frequency: 15 kHz to 100 kHz
Vertical frequency: 24 Hz to 75 Hz
Resolution range: 640x480 to 1600x1200 and 1920x1200, NTSC, PAL, SECAM, 480i-1080p, and 2K (reduced blanking)
Return loss: greater than 30 dB @ 5 MHz
DC offset (max. allowable): 1.5 V
Video Input Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM, DVI 1.0, HDMI 1.3, HDCP 1.4
Decoder: 12 bit digital (3D adaptive comb filter)
Analog sampling: 12 bits per color; 13.5 MHz standard (video), 170 MHz standard (RGB)
Digital pixel data bit depth: 8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI)
Colors: 1 billion (10 bit processing)
Video Output Number/signal type: Local output: 2 HDMI/DVI. Remote output: 1 DTP 330 or HDBaseT, configurable
Video Output Connectors: 2 female HDMI type A, 1 female RJ-45 connector
HDMI peripheral device power: 200 mA per output
Video Output Standards: DVI 1.0, HDMI 1.3, HDCP 1.4
Sync Input type: RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video
Sync Input standards: NTSC 3.58, NTSC 4.43, PAL, SECAM
Sync Input level: 2.75 V to 5.0 Vp-p for RGBHV or RGBS; 0.6 Vp-p for tri-level sync; 0.3 Vp-p for bi-level sync or RGsB
Sync Input impedance: Horizontal: 510 ohms; Vertical: 510 ohms
Max. input voltage: 5.0 Vp-p
STP Interconnection Connectors: 3 female RJ-45
Termination standard: TIA/EIA-T568B
DTP 330 transmission distance: Up to 330' (100 m) using shielded twisted pair cable or XTP DTP 24 STP cable
HDBaseT transmission distance: Up to 330' (100 m) using shielded twisted pair cable or XTP DTP 24 STP cable
Cable requirements: Solid conductor, 24 AWG or better
Cable recommendations: 400 MHz bandwidth, STP (shielded twisted pair)
Line Audio Gain: Unbalanced output: -6 dB; balanced output: 0 dB
Line Audio Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Line Audio THD + Noise: less than 0.1%, 20 Hz to 20 kHz at nominal level
Line Audio S/N: greater than 90 dB at maximum balanced output (unweighted)
Crosstalk: -80 dB or better @ 1 kHz, fully loaded
Stereo channel separation: greater than 80 dB @ 1 kHz
Bass: +12 dB to -24 dB @ 100 Hz
Treble: +12 dB to -24 dB @ 8 kHz
Analog de-embedding: LPCM up to 2.0/24-bit/96 kHz
HDMI pass-through: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats; DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats
Audio Input Number/signal type: 8 stereo line level balanced or unbalanced; 2 mono mic/line level balanced or unbalanced (with available phantom power); 4 stereo, de-embedded from HDMI (PCM only); 2 DTP (de-embedded from HDMI [PCM only], or remote balanced/unbalanced analog)
Audio Input Connectors: (6) 3.5 mm captive screw connectors, 5 pole for line; (2) 3.5 mm captive screw connectors, 3 pole for mic/line; 4 female HDMI type A; 2 female RJ-45 connectors
Audio Input Impedance: greater than 10k ohms unbalanced, greater than 20k ohms balanced
Audio Input Nominal level: Line inputs: +4 dBu, -10 dBV, adjustable. Mic/line inputs: -60 dBV, +4 dBu, -10 dBV, adjustable
Audio Input Maximum level: +21 dBu at rated THD+N when input gain is set to 0 dB
Audio CMRR: greater than 80 dB @ 1 kHz
Input gain adjustment: Line inputs: -18 dB to +24 dB, 1 dB steps, per input. Mic/line inputs: -18 dB to +60 dB, 1 dB steps, per input. LPCM-2Ch: -18 dB to +24 dB, 0.1 dB steps, per input
DC phantom power: +48 VDC ±10% (switchable per mic/line input)
Line Audio Output Number/signal type: Local outputs: 1 balanced/unbalanced stereo (variable); 1 balanced/unbalanced stereo, configurable as stereo or two independently mixed mono channels; 2 HDMI embedded. Remote output: 1 DTP (embedded digital and remote balanced/unbalanced analog) or 1 HDBaseT (embedded digital)
Line Audio Output Connectors: (2) 3.5 mm captive screw connectors, 5 pole; 2 female HDMI type A; 1 RJ-45 connector
Line Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced
Gain error: ±0.5 dB channel to channel
Line Audio Output Maximum level (Hi-Z): greater than +20 dBu balanced, greater than +14 dBu unbalanced
Output volume range: 0 to -100 dB in 1 dB steps
Amp Output Number/signal type: 1 stereo (default) or 2 mono (2 channels total)
Amp Output Connectors: (1) 5 mm screw lock captive screw connector, 4 pole (accepts wires 22 AWG to 12 AWG)
Amp Load impedance: 4 ohms minimum
Amp Frequency response: 20 Hz to 20 kHz, -3 dB to +1 dB @ 1 W
Amp Output power: 25 watts per channel, 8 ohms, 1 kHz, 0.1% THD; 50 watts per channel, 4 ohms, 1 kHz, 0.1% THD
Amp THD + Noise: less than 0.1% @ 1 kHz, 3 dB below clipping
Amp S/N: greater than 90 dB, 20 Hz to 20 kHz, unweighted
Amplifier type: Class D
Amplifier Protection: Clip limiting, thermal, short circuit, DC output
Serial control port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3 pole (rear panel)
Baud rate and protocol: 9600, 8 data bits, 1 stop bit, no parity (default)
Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd
USB control port: 1 front panel female mini USB B
USB standards: USB 2.0, high speed
Pass-through Serial control ports: IN1608 xi input/DTP Tx: RS-232 via (2) 3.5 mm, 5 pole captive screw connectors (shared with IR ports). IN1608 xi output/TP Rx: RS-232 via (1) 3.5 mm, 5 pole captive screw connector (shared with IR port)
Pass-through Baud rates: Up to 115200 baud
Pass-through Protocol: 6-8 data bits, 1 or 2 stop bits, no parity (default), even or odd parity, flow control = XON, XOFF, none
IR pass-through control ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz
IR control pin configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx
Control processor: IPCP Pro 355MQ xi
SDRAM: 2 GB
Flash memory: 8 GB
Software: Extron Global Configurator Plus and Professional for Windows
Control options: GlobalViewer, Extron control for iPad and web, TouchLink Pro touchpanels, or eBUS button panels
Network interface controllers (NICs): 2: 1 LAN, 1 AV LAN
Network switch: 1 AV unmanaged 3 port switch
Ethernet Connectors: LAN: 1 female RJ-45 connector. AV LAN: 3 female RJ-45 connectors
Ethernet Data rate: 10/100/1000Base-T, half/full duplex with autodetect
Ethernet Protocols: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
LAN default settings: Link speed and duplex level = autodetected. IP address = 192.168.253.250. Subnet mask = 255.255.255.0. Gateway = 0.0.0.0. DHCP = off. DNS: 127.0.0.1
AV LAN default settings: Link speed and duplex level = autodetected. IP address = 192.168.254.250. Subnet mask = 255.255.255.0. Gateway = 0.0.0.0. DHCP server = disabled. DNS: 127.0.0.1
DHCP server enabled: IP address = 192.168.254.1. Dynamic leased IP address pool = 192.168.254.100-192.168.254.149. Maximum lease count = 50. Lease time = 24 hours
Serial control Quantity/type: 1 bidirectional RS-232, RS-422, RS-485 (port 1); 2 bidirectional RS-232 (ports 2 and 3)
Serial control Connectors: (1) 3.5 mm captive screw connector, 5 pole; (2) 3.5 mm captive screw connectors, 3 pole
Serial control Baud rate and protocol: 300 to 115200 baud (9600 default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity
RS-232 pin configuration (default): Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS
RS-422 pin configuration: Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+
RS-485 pin configuration: Pins 1 and 2 (tied) = data-, 3 = Gnd, 4 and 5 (tied) = data+
3-pole serial pin configuration: Pin 1 = Tx, 2 = Rx, 3 = Gnd
Digital I/O Quantity/type: 4 digital input/output, configurable
Digital I/O Connectors: (1) 3.5 mm captive screw connector, 5 pole
Digital input voltage range: 0 to 24 VDC, clamped at +30 VDC
Digital input impedance: greater than 10k ohms
Programmable pullup: 1k ohms to +5 VDC
Threshold low to high: greater than 2.8 VDC
Threshold high to low: less than 2.0 VDC
Digital outputs: 250 mA sink from 24 VDC max.
Digital I/O pin configurations: 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd
IR/serial programmable port Quantity/type: 2 programmable: unidirectional RS-232 (±5 V), or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz
IR output carrier frequency: 30 kHz to 300 kHz
Relay control Quantity/type: 4 normally open relays
Relay control connectors: (1) 3.5 mm captive screw connector, 6 pole
Relay control contact rating: 24 VDC, 1 A
eBUS control ports: (1) 3.5 mm captive screw connector, 5 pole (uses 4 poles)
eBUS pin configuration: +V = +12 VDC; +S = + signal; -S = - signal; G = ground
Recommended cable type: Extron STP20-2/1000 or STP20-2P/1000 cable
Maximum system cable length: 1000 feet (305 meters) sum total for the eBUS system, regardless of topology
eBUS power output: 6 watts
Power supply: Internal; Input: 100-240 VAC, 50-60 Hz
Power consumption (full load, amp at 1/8 power): 76 watts
Power consumption (power save mode): less than 47 watts
Remote power capability (HDBaseT mode): Supports up to two endpoints (two DTP Tx)
Remote power capability (DTP mode): Supports up to three endpoints (two DTP Tx, one DTP Rx)
Temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling: Fans, air flow right to left (as viewed from front panel)
Thermal dissipation (full load, amp at 1/8 power): 179 BTU/hr
Thermal dissipation (power save mode): less than 144 BTU/hr
Mounting: Rack mount, yes, with included pre-installed brackets
Enclosure type: Metal
Enclosure dimensions: 3.47" H x 17.5" W x 9.5" D (2U high, full rack wide) (depth excludes connectors and knobs; width excludes rack ears)
Product weight: 7.9 lbs (3.6 kg)
Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE
Warranty: 3 years parts and labor
Everlast power supply warranty: 7 years parts and labor
Diagram
Diagram
Resources
Resources
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (in1608xi_revA1.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | Everlast Power Supplies
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (IN1608-xi_BR_A4_IT_RevA1.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (IN1608-xi_BR_A4_FR_RevA1.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (IN1608-xi_BR_A4_GE_RevA1.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (IN1608-xi_BR_A4_SP_RevA1.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | Alimentatori Everlast
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | Everlast 电源
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | Everlast-Netzteile
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | Fuentes de alimentación Everlast
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (IN1608-xi_BR_A4_EN_RevA1_Japanese.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi (IN1608_xi_Rev_A1_CN_Online.pdf)
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi IPCP SA - Spec Sheet
Brochure | IN1608 xi IPCP Q SA 60-1238-95A | Sources d'alimentation Everlast
Manual | IN1608 xi IPCP Q SA 60-1238-95A | Cleaning Instruction Card
Manual | IN1608 xi IPCP Q SA 60-1238-95A | Control Systems Network Ports, Protocols, and Licenses
Manual | IN1608 xi IPCP Q SA 60-1238-95A | DTP Compatibility Guide
Manual | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi Series User Guide
Manual | IN1608 xi IPCP Q SA 60-1238-95A | IN1608 xi Setup Guide
Manual | IN1608 xi IPCP Q SA 60-1238-95A | IPCP Pro Q xi and xi Series User Guide
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
