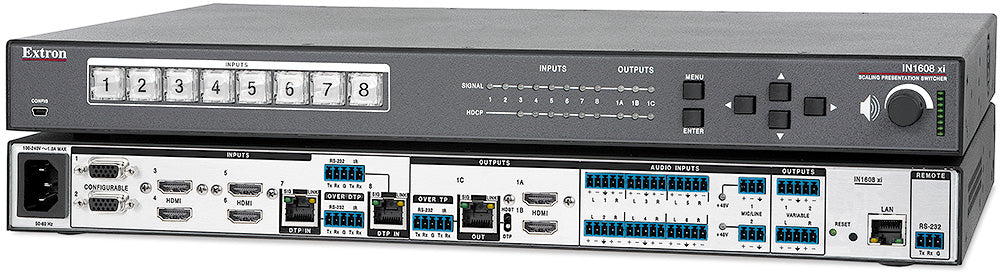

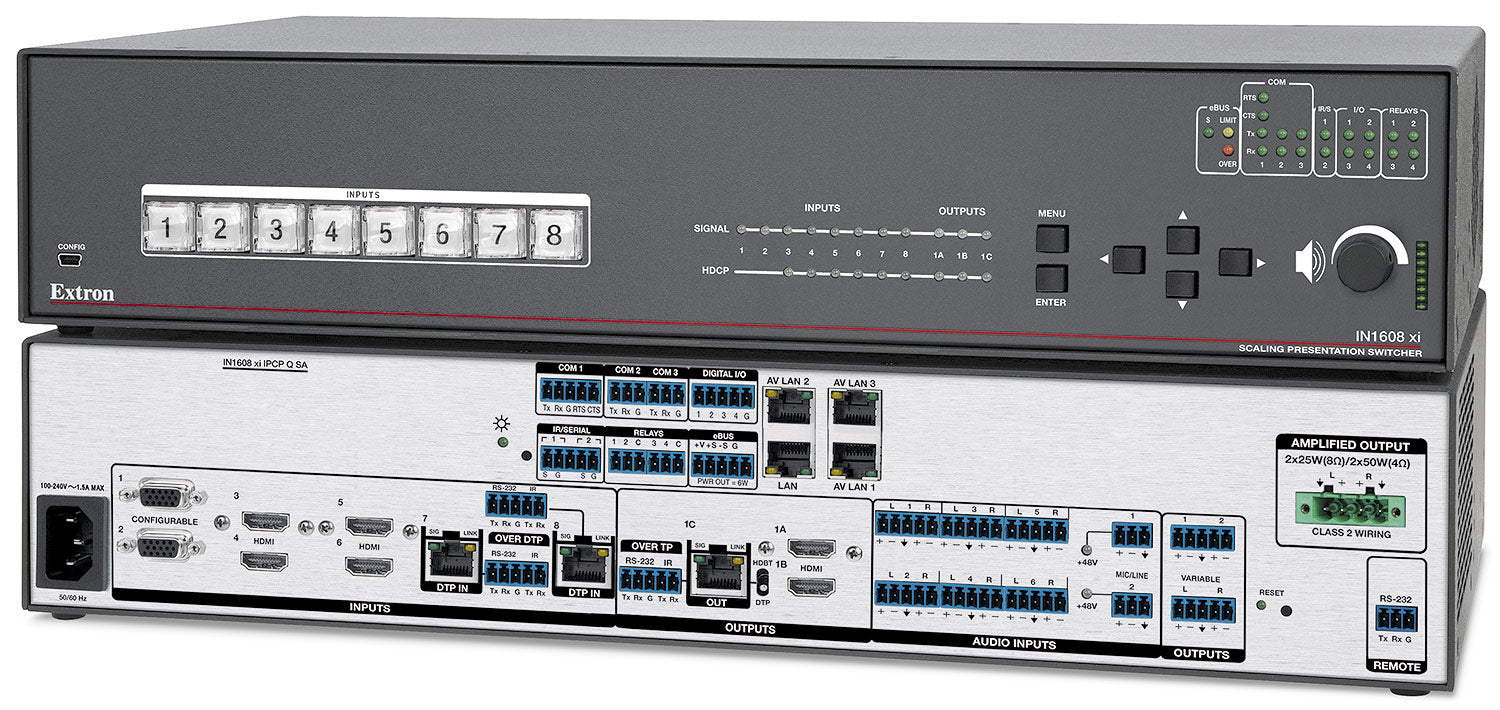

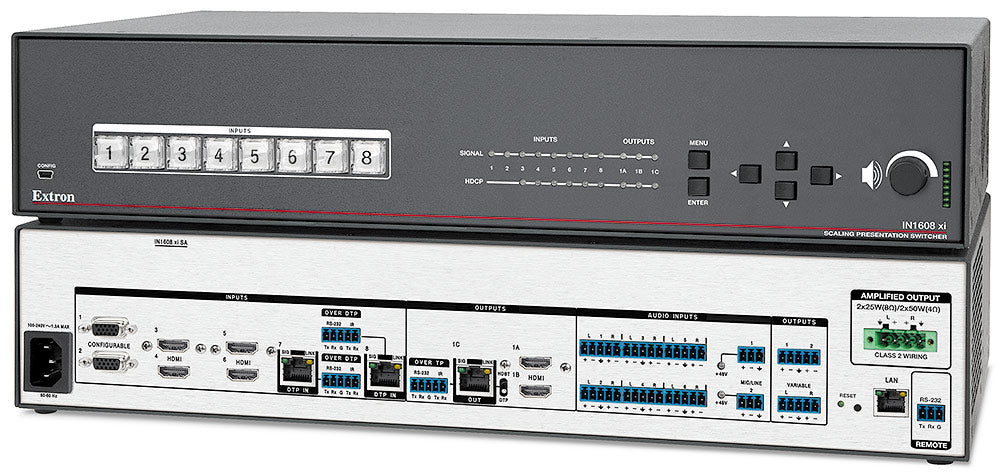

Extron IN1608 xi IPCP Q MA 70 (part number 60-1238-96) — an 8-input scaling presentation switcher with a built-in 70V mono power amplifier and a quad-core IPCP Pro 355MQ xi control processor with a dedicated AV LAN.
The IN1608 xi IPCP Q MA 70 pairs an 8-input scaling switcher (four HDMI, two analog, two DTP) with a 100-watt 70V mono amplifier and Extron's IP Link Pro xi quad-core control processor, including a secure three-port AV LAN switch that isolates local AV devices from the rest of the network. It is built for rooms that need switching, distributed 70V audio, and full-system control from one chassis.
Key Capabilities
- Scales 4 HDMI/DVI, 2 analog, and 2 DTP inputs to 2 HDMI and 1 DTP/HDBaseT output
- Integrated 100-watt, 70V mono Class D amplifier for distributed audio
- Quad-core IPCP Pro 355MQ xi control processor with dedicated 3-port AV LAN
- Compatible with TouchLink Pro touchpanels, eBUS panels, and IPL EXP I/O expansion
- DTP/HDBaseT output reaches up to 330 ft (100 m)
Where It Is Used
Classrooms, boardrooms, and multipurpose rooms that need scaling, switching, 70V program audio, and a full AV control system — including lighting, shades, and occupancy sensing — lean on the IN1608 xi IPCP Q MA 70 as the single rack-mount hub.
Specifications at a Glance
- 8 inputs: 4 HDMI/DVI, 2 analog, 2 DTP; 3 simultaneous outputs
- 100 watts (rms) @ 70V mono amplifier output
- IPCP Pro 355MQ xi control processor, 2 GB SDRAM / 8 GB flash
- DTP/HDBaseT extension up to 330 ft (100 m)
- 3-year Extron warranty, 7-year Everlast power supply warranty
Also referenced as Extron IN1608xiIPCPQMA70, IN1608-xi-IPCP-Q-MA-70, part number 60123896.
Specifications
Specifications
Part Number: 60-1238-96
Manufacturer: Extron
Model: IN1608 xi IPCP Q MA 70
Condition: New
Video Input Number/signal type: Local input: 2 RGB, RGBcvS, component video (YUVi/YUVp/HDTV), S-video, composite; 4 HDMI/DVI. Remote inputs: 2 DTP 330
Video Input Connectors: 2 female 15-pin HD, 4 female HDMI type A, 2 female RJ-45 connectors
HDMI equalization: Automatic
HDMI input cable length: Up to 75' (22.9 m) for all supported input rates
Nominal level: 1 Vp-p for Y of component video and S-video, and for composite; 0.7 Vp-p for RGB and for R-Y/B-Y of component video; 0.3 Vp-p for C of S-video
Minimum/maximum levels: Analog: 0.0 V to 1.0 Vp-p with no offset at unity gain
Video Input Impedance: 75 ohms
Horizontal frequency: 15 kHz to 100 kHz
Vertical frequency: 24 Hz to 75 Hz
Resolution range: 640x480 to 1600x1200 and 1920x1200, NTSC, PAL, SECAM, 480i-1080p, and 2K (reduced blanking)
Return loss: greater than 30 dB @ 5 MHz
DC offset (max. allowable): 1.5 V
Video Input Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM, DVI 1.0, HDMI 1.3, HDCP 1.4
Decoder: 12 bit digital (3D adaptive comb filter)
Analog sampling: 12 bits per color; 13.5 MHz standard (video), 170 MHz standard (RGB)
Digital pixel data bit depth: 8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI)
Colors: 1 billion (10 bit processing)
Video Output Number/signal type: Local output: 2 HDMI/DVI. Remote output: 1 DTP 330 or HDBaseT, configurable
Video Output Connectors: 2 female HDMI type A, 1 female RJ-45 connector
HDMI peripheral device power: 200 mA per output
Video Output Standards: DVI 1.0, HDMI 1.3, HDCP 1.4
Sync Input type: RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video
Sync Input standards: NTSC 3.58, NTSC 4.43, PAL, SECAM
Sync Input level: 2.75 V to 5.0 Vp-p for RGBHV or RGBS; 0.6 Vp-p for tri-level sync; 0.3 Vp-p for bi-level sync or RGsB
Sync Input impedance: Horizontal: 510 ohms; Vertical: 510 ohms
Max. input voltage: 5.0 Vp-p
STP Interconnection Connectors: 3 female RJ-45
Termination standard: TIA/EIA-T568B
DTP 330 transmission distance: Up to 330' (100 m) using shielded twisted pair cable or XTP DTP 24 STP cable
HDBaseT transmission distance: Up to 330' (100 m) using shielded twisted pair cable or XTP DTP 24 STP cable
Cable requirements: Solid conductor, 24 AWG or better
Cable recommendations: 400 MHz bandwidth, STP (shielded twisted pair)
Line Audio Gain: Unbalanced output: -6 dB; balanced output: 0 dB
Line Audio Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Line Audio THD + Noise: less than 0.1%, 20 Hz to 20 kHz at nominal level
Line Audio S/N: greater than 90 dB at maximum balanced output (unweighted)
Crosstalk: -80 dB or better @ 1 kHz, fully loaded
Stereo channel separation: greater than 80 dB @ 1 kHz
Bass: +12 dB to -24 dB @ 100 Hz
Treble: +12 dB to -24 dB @ 8 kHz
Analog de-embedding: LPCM up to 2.0/24-bit/96 kHz
HDMI pass-through: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats; DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats
Audio Input Number/signal type: 8 stereo line level balanced or unbalanced; 2 mono mic/line level balanced or unbalanced (with available phantom power); 4 stereo, de-embedded from HDMI (PCM only); 2 DTP (de-embedded from HDMI [PCM only], or remote balanced/unbalanced analog)
Audio Input Connectors: (6) 3.5 mm captive screw connectors, 5 pole for line; (2) 3.5 mm captive screw connectors, 3 pole for mic/line; 4 female HDMI type A; 2 female RJ-45 connectors
Audio Input Impedance: greater than 10k ohms unbalanced, greater than 20k ohms balanced
Audio Input Nominal level: Line inputs: +4 dBu, -10 dBV, adjustable. Mic/line inputs: -60 dBV, +4 dBu, -10 dBV, adjustable
Audio Input Maximum level: +21 dBu at rated THD+N when input gain is set to 0 dB
Audio CMRR: greater than 80 dB @ 1 kHz
Input gain adjustment: Line inputs: -18 dB to +24 dB, 1 dB steps, per input. Mic/line inputs: -18 dB to +60 dB, 1 dB steps, per input. LPCM-2Ch: -18 dB to +24 dB, 0.1 dB steps, per input
DC phantom power: +48 VDC ±10% (switchable per mic/line input)
Line Audio Output Number/signal type: Local outputs: 1 balanced/unbalanced stereo (variable); 1 balanced/unbalanced stereo, configurable as stereo or two independently mixed mono channels; 2 HDMI embedded. Remote output: 1 DTP (embedded digital and remote balanced/unbalanced analog) or 1 HDBaseT (embedded digital)
Line Audio Output Connectors: (2) 3.5 mm captive screw connectors, 5 pole; 2 female HDMI type A; 1 RJ-45 connector
Line Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced
Gain error: ±0.5 dB channel to channel
Line Audio Output Maximum level (Hi-Z): greater than +20 dBu balanced, greater than +14 dBu unbalanced
Output volume range: 0 to -100 dB in 1 dB steps
Amp Output Number/signal type: 1 mono, 70 V line
Amp Output Connectors: (1) 5 mm screw lock captive screw connector, 2 pole (accepts wires 22 AWG to 12 AWG)
Amp Load impedance: 50 ohms minimum
High pass filter (MA models only): 100 Hz, 12 dB/octave roll off
Amp Frequency response: 100 Hz to 20 kHz, -3 dB to +1 dB @ 1 W
Amp Output power: 100 watts (rms) @ 70 V, 1 kHz, 0.1% THD
Amp THD + Noise: less than 0.1% @ 1 kHz, 3 dB below clipping
Amp S/N: greater than 90 dB, 20 Hz to 20 kHz, unweighted
Amplifier type: Class D
Amplifier Protection: Clip limiting, thermal, short circuit, DC output
Serial control port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3 pole (rear panel)
Baud rate and protocol: 9600, 8 data bits, 1 stop bit, no parity (default)
Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd
USB control port: 1 front panel female mini USB B
USB standards: USB 2.0, high speed
Pass-through Serial control ports: IN1608 xi input/DTP Tx: RS-232 via (2) 3.5 mm, 5 pole captive screw connectors (shared with IR ports). IN1608 xi output/TP Rx: RS-232 via (1) 3.5 mm, 5 pole captive screw connector (shared with IR port)
Pass-through Baud rates: Up to 115200 baud
Pass-through Protocol: 6-8 data bits, 1 or 2 stop bits, no parity (default), even or odd parity, flow control = XON, XOFF, none
IR pass-through control ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz
IR control pin configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx
Control processor: IPCP Pro 355MQ xi
SDRAM: 2 GB
Flash memory: 8 GB
Software: Extron Global Configurator Plus and Professional for Windows
Control options: GlobalViewer, Extron control for iPad and web, TouchLink Pro touchpanels, or eBUS button panels
Network interface controllers (NICs): 2: 1 LAN, 1 AV LAN
Network switch: 1 AV unmanaged 3 port switch
Ethernet Connectors: LAN: 1 female RJ-45 connector. AV LAN: 3 female RJ-45 connectors
Ethernet Data rate: 10/100/1000Base-T, half/full duplex with autodetect
Ethernet Protocols: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
LAN default settings: Link speed and duplex level = autodetected. IP address = 192.168.253.250. Subnet mask = 255.255.255.0. Gateway = 0.0.0.0. DHCP = off. DNS: 127.0.0.1
AV LAN default settings: Link speed and duplex level = autodetected. IP address = 192.168.254.250. Subnet mask = 255.255.255.0. Gateway = 0.0.0.0. DHCP server = disabled. DNS: 127.0.0.1
DHCP server enabled: IP address = 192.168.254.1. Dynamic leased IP address pool = 192.168.254.100-192.168.254.149. Maximum lease count = 50. Lease time = 24 hours
Serial control Quantity/type: 1 bidirectional RS-232, RS-422, RS-485 (port 1); 2 bidirectional RS-232 (ports 2 and 3)
Serial control Connectors: (1) 3.5 mm captive screw connector, 5 pole; (2) 3.5 mm captive screw connectors, 3 pole
Serial control Baud rate and protocol: 300 to 115200 baud (9600 default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity
RS-232 pin configuration (default): Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS
RS-422 pin configuration: Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+
RS-485 pin configuration: Pins 1 and 2 (tied) = data-, 3 = Gnd, 4 and 5 (tied) = data+
3-pole serial pin configuration: Pin 1 = Tx, 2 = Rx, 3 = Gnd
Digital I/O Quantity/type: 4 digital input/output, configurable
Digital I/O Connectors: (1) 3.5 mm captive screw connector, 5 pole
Digital input voltage range: 0 to 24 VDC, clamped at +30 VDC
Digital input impedance: greater than 10k ohms
Programmable pullup: 1k ohms to +5 VDC
Threshold low to high: greater than 2.8 VDC
Threshold high to low: less than 2.0 VDC
Digital outputs: 250 mA sink from 24 VDC max.
Digital I/O pin configurations: 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd
IR/serial programmable port Quantity/type: 2 programmable: unidirectional RS-232 (±5 V), or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz
IR output carrier frequency: 30 kHz to 300 kHz
Relay control Quantity/type: 4 normally open relays
Relay control connectors: (1) 3.5 mm captive screw connector, 6 pole
Relay control contact rating: 24 VDC, 1 A
eBUS control ports: (1) 3.5 mm captive screw connector, 5 pole (uses 4 poles)
eBUS pin configuration: +V = +12 VDC; +S = + signal; -S = - signal; G = ground
Recommended cable type: Extron STP20-2/1000 or STP20-2P/1000 cable
Maximum system cable length: 1000 feet (305 meters) sum total for the eBUS system, regardless of topology
eBUS power output: 6 watts
Power supply: Internal; Input: 100-240 VAC, 50-60 Hz
Power consumption (full load, amp at 1/8 power): 76 watts
Power consumption (power save mode): less than 47 watts
Remote power capability (HDBaseT mode): Supports up to two endpoints (two DTP Tx)
Remote power capability (DTP mode): Supports up to three endpoints (two DTP Tx, one DTP Rx)
Temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling: Fans, air flow right to left (as viewed from front panel)
Thermal dissipation (full load, amp at 1/8 power): 179 BTU/hr
Thermal dissipation (power save mode): less than 144 BTU/hr
Mounting: Rack mount, yes, with included pre-installed brackets
Enclosure type: Metal
Enclosure dimensions: 3.47" H x 17.5" W x 9.5" D (2U high, full rack wide) (depth excludes connectors and knobs; width excludes rack ears)
Product weight: 7.9 lbs (3.6 kg)
Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE
Warranty: 3 years parts and labor
Everlast power supply warranty: 7 years parts and labor
