Part Number: 60-1238-86
Manufacturer: Extron

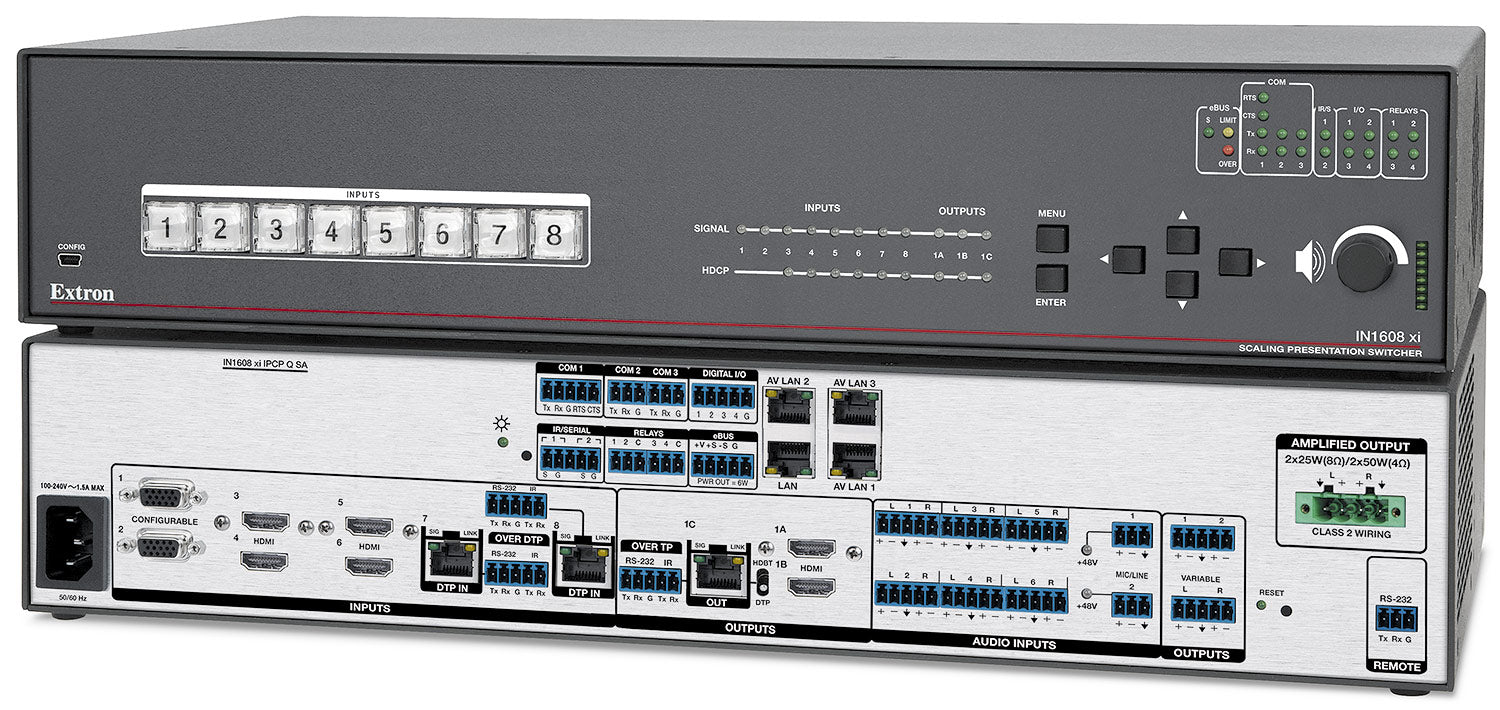

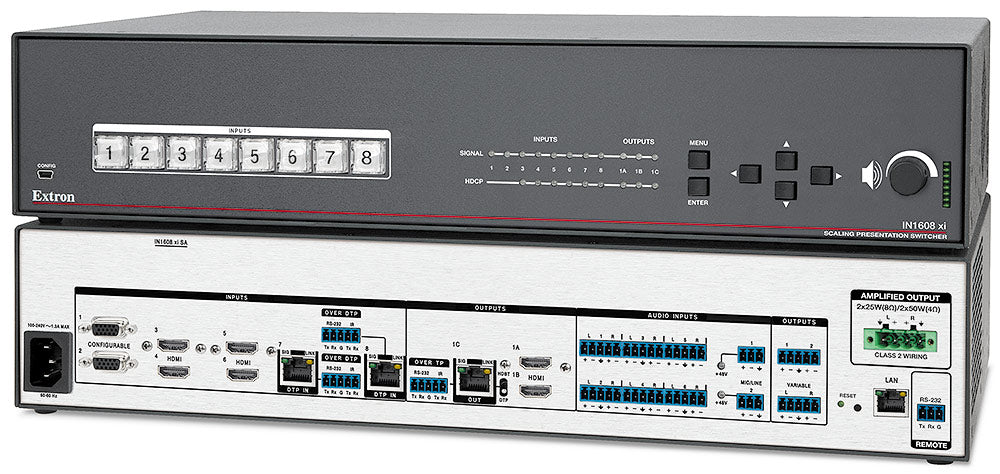

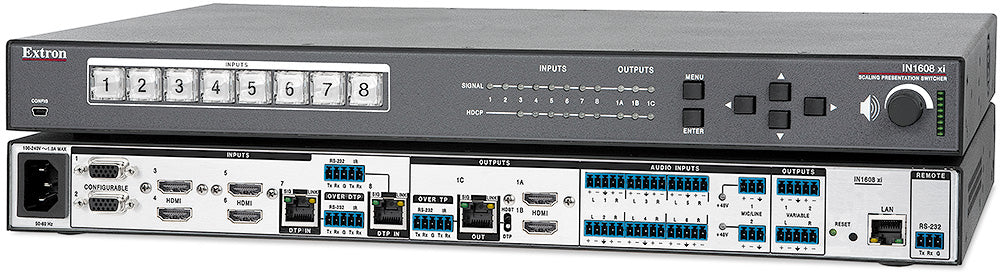

Model: IN1608 xi IPCP MA 70 (100 Watt 70 V Mono Amp, AV LAN) - Retired
Condition: New
Local Video Inputs: 2 RGB, RGBcvS, component video (YUVi/YUVp/HDTV), S-video, composite; 4 HDMI/DVI
Remote Video Inputs: 2 DTP 330
Video Input Connectors: 2 female 15-pin HD, 4 female HDMI type A, 2 female RJ-45
HDMI Equalization: Automatic
HDMI Input Cable Length: Up to 75 ft (22.9 m) for all supported input rates
Video Input Impedance: 75 ohms
Horizontal Frequency: 15 kHz to 100 kHz
Vertical Frequency: 24 Hz to 75 Hz
Input Resolution Range: 640x480 to 1600x1200 and 1920x1200 (reduced blanking); NTSC, PAL, SECAM, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 2K
Return Loss: Greater than 30 dB at 5 MHz
Video Input Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM, DVI 1.0, HDMI 1.3, HDCP 1.4
Decoder: 12 bit digital (3D adaptive comb filter)
Analog Sampling: 12 bits per color; 13.5 MHz standard (video), 170 MHz standard (RGB)
Digital Pixel Data Bit Depth: 8, 10 or 12 bits per channel; 165 MHz pixel clock (HDMI)
Colors: 1 billion (10 bit processing)
Local Video Outputs: 2 HDMI/DVI
Remote Video Output: 1 DTP 330 or HDBaseT (configurable)
Video Output Connectors: 2 female HDMI type A, 1 female RJ-45
HDMI Peripheral Device Power: 200 mA per output
Scaled Output Resolutions: 640x480 through 1920x1200, plus HDTV 480p, 576p, 720p, 1080i, 1080p and 2048x1080
Video Output Standards: DVI 1.0, HDMI 1.3, HDCP 1.4
Sync Input Type: RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video
Sync Input Level: 2.75 V to 5.0 Vp-p for RGBHV or RGBS; 0.6 Vp-p tri-level component; 0.3 Vp-p bi-level component or RGsB
Sync Input Impedance: Horizontal 510 ohms, Vertical 510 ohms
Maximum Sync Input Voltage: 5.0 Vp-p
Twisted Pair Connectors: 3 female RJ-45
Termination Standard: TIA/EIA-T568B
DTP 330 Transmission Distance: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 STP cable
HDBaseT Transmission Distance: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 STP cable
Cable Requirements: Solid conductor, 24 AWG or better; 400 MHz bandwidth shielded twisted pair recommended
Audio Gain: Unbalanced output -6 dB; balanced output 0 dB
Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.5 dB
Audio THD + Noise: Less than 0.1%, 20 Hz to 20 kHz at nominal level
Audio S/N: Greater than 90 dB at maximum balanced output (unweighted)
Audio Crosstalk: -80 dB or less at 1 kHz, fully loaded
Stereo Channel Separation: Greater than 80 dB at 1 kHz
Bass: +12 dB to -24 dB at 100 Hz
Treble: +12 dB to -24 dB at 8 kHz
Analog De-embedding: LPCM up to 2.0/24-bit/96 kHz
HDMI Audio Pass-Through: LPCM up to 7.1/24-bit/192 kHz; Dolby Atmos, Dolby TrueHD and legacy Dolby formats; DTS:X, DTS-HD Master Audio, DTS 96/24 and legacy DTS formats
Audio Inputs: 8 stereo line level balanced or unbalanced; 2 mono mic/line level balanced or unbalanced with available phantom power; 4 stereo de-embedded from HDMI (PCM only); 2 DTP
Audio Input Connectors: (6) 3.5 mm captive screw, 5 pole for line; (2) 3.5 mm captive screw, 3 pole for mic/line; 4 female HDMI type A; 2 female RJ-45
Audio Input Impedance: Greater than 10k ohms unbalanced, greater than 20k ohms balanced
Audio Input Nominal Level: Line inputs +4 dBu or -10 dBV, adjustable; mic/line inputs -60 dBV, +4 dBu or -10 dBV, adjustable
Audio Input Maximum Level: +21 dBu at rated THD+N with input gain set to 0 dB
CMRR: Greater than 80 dB at 1 kHz
Input Gain Adjustment: Line inputs -18 dB to +24 dB in 1 dB steps; mic/line inputs -18 dB to +60 dB in 1 dB steps; LPCM-2Ch -18 dB to +24 dB in 0.1 dB steps
DC Phantom Power: +48 VDC plus or minus 10%, switchable on or off per mic/line input
Local Audio Outputs: 1 balanced or unbalanced stereo (variable); 1 balanced or unbalanced stereo configurable as stereo or two independently mixed mono channels; 2 HDMI embedded
Remote Audio Output: 1 DTP (embedded digital plus remote balanced/unbalanced analog) or 1 HDBaseT (embedded digital)
Audio Output Connectors: (2) 3.5 mm captive screw, 5 pole; 2 female HDMI type A; 1 RJ-45
Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced
Gain Error: Plus or minus 0.5 dB channel to channel
Maximum Level (Hi-Z): Greater than +20 dBu balanced; greater than +14 dBu unbalanced
Output Volume Range: 0 to -100 dB in 1 dB steps
Amplifier Type: Class D
Amplifier Channels: 1 mono, 70 V line
Amplifier Output Power: 100 watts (rms) at 70 V, 1 kHz, 0.1% THD
Amplifier Load Impedance: 50 ohms minimum
Amplifier Connector: (1) 5 mm screw lock captive screw connector, 2 pole; accepts 22 AWG to 12 AWG wire
Amplifier High Pass Filter: 100 Hz, 12 dB/octave roll off
Amplifier Frequency Response: 100 Hz to 20 kHz, -3 dB to +1 dB at 1 W
Amplifier THD + Noise: Less than 0.1% at 1 kHz, 3 dB below clipping
Amplifier S/N: Greater than 90 dB, 20 Hz to 20 kHz, unweighted
Amplifier Protection: Clip limiting, thermal, short circuit, DC output
Switcher Serial Control Port: 1 bidirectional RS-232 on 3.5 mm captive screw connector, 3 pole (rear panel); 9600 baud, 8 data bits, 1 stop bit, no parity (default); 1 = Tx, 2 = Rx, 3 = Gnd
USB Control Port: 1 front panel female mini USB B; USB 2.0, high speed
Program Control: Extron control and configuration program for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer
Serial Pass-Through, Input/DTP Tx: RS-232 via (2) 3.5 mm captive screw connectors, 5 pole, shared with the IR ports
Serial Pass-Through, Output/TP Rx: RS-232 via (1) 3.5 mm captive screw connector, 5 pole, shared with the IR port
Pass-Through Baud Rates: Up to 115200 baud; 6-8 data bits; 1 or 2 stop bits; no, even or odd parity; flow control XON, XOFF or none
IR Pass-Through Control Ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz; 3 = Gnd, 4 = IR Tx, 5 = IR Rx
Control Processor: IPCP Pro 355M
Control Processor Memory: 512 MB SDRAM; 4.5 GB flash
Configuration Software: Extron Global Configurator Plus and Professional for Windows
Control Options: GlobalViewer, Extron control for iPad and web, TouchLink Pro touchpanels, or eBUS button panels
Network Interface Controllers: 2: 1 LAN, 1 AV LAN
Network Switch: 1 AV unmanaged 3 port switch
Network Connectors: LAN: 1 female RJ-45 connector; AV LAN: 3 female RJ-45 connectors
Network Data Rate: 10/100/1000Base-T, half/full duplex with autodetect
Network Protocols: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UPD/IP
LAN Default Settings: Link speed and duplex autodetected; IP address 192.168.253.250; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; DNS 127.0.0.1
AV LAN Default Settings: Link speed and duplex autodetected; IP address 192.168.254.250; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP server disabled; DNS 127.0.0.1
AV LAN DHCP Server Enabled: IP address 192.168.254.1; dynamic leased IP pool 192.168.254.100 to 192.168.254.149; maximum lease count 50; lease time 24 hours
Control Serial Ports: 1 bidirectional RS-232, RS-422, RS-485 (port 1); 2 bidirectional RS-232 (ports 2 and 3)
Control Serial Connectors: (1) 3.5 mm captive screw connector, 5 pole; (2) 3.5 mm captive screw connectors, 3 pole
Control Serial Baud Rate: 300 to 115200 baud (9600 default); 8 or 7 data bits; 1 or 2 stop bits; no, even or odd parity
RS-232 Pin Configuration (5-pole): Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS
RS-422 Pin Configuration: Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+
RS-485 Pin Configuration: Pins 1 and 2 tied together = data-, 3 = Gnd, 4 and 5 tied together = data+
Serial Pin Configuration (3-pole): Pin 1 = Tx, 2 = Rx, 3 = Gnd
Digital I/O Control: 4 digital input/output (configurable) on (1) 3.5 mm captive screw connector, 5 pole
Digital Input Voltage Range: 0 to 24 VDC, clamped at +30 VDC
Digital Input Impedance: Greater than 10k ohms
Programmable Pullup: 1k ohms to +5 VDC
Digital Input Thresholds: Low to high greater than 2.8 VDC; high to low less than 2.0 VDC
Digital Outputs: 250 mA sink from 24 VDC max.
Digital I/O Pin Configuration: 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd
IR/Serial Control Ports: 2 programmable: unidirectional RS-232 (plus or minus 5 V) or TTL level (0 to 5 V) infrared, carrier and non-carrier, up to 300 kHz; (1) 3.5 mm captive screw connector, 5-pole
IR/Serial Baud Rate: 300 to 115200 baud (9600 default); 8 or 7 data bits; 1 or 2 stop bits; no, even or odd parity
IR Output Carrier Frequency: 30 kHz to 300 kHz
Relay Control: 4 normally open relays on (1) 3.5 mm captive screw connector, 6 pole; rated 24 VDC, 1 A
eBUS Control Port: (1) 3.5 mm captive screw connector, 5 pole (uses 4 poles); +V = +12 VDC, +S = + signal, -S = - signal, G = ground
eBUS Recommended Cable: Extron STP20-2/1000 or STP20-2P/1000 cable
eBUS Maximum System Cable Length: 1000 feet (305 meters) sum total for the eBUS system, regardless of topology
eBUS Power Output: 6 watts
Power Supply: Internal; input 100-240 VAC, 50-60 Hz
Power Consumption: 76 watts at full load (amplifier output at 1/8 power)
Power Save Mode: Less than 47 watts
Thermal Dissipation: 179 BTU/hr at full load
Remote Power Capability, DTP Mode: Supports up to three endpoints (two DTP Tx, one DTP Rx)
Remote Power Capability, HDBaseT Mode: Supports up to two endpoints (two DTP Tx)
Ambient Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C); Operating +32 to +122 degrees F (0 to +50 degrees C); 10% to 90% noncondensing
Cooling: Fans, air flows right to left as viewed from the front panel
Mounting: Rack mount with included, pre-installed brackets
Enclosure Type: Metal
Enclosure Dimensions: 3.47 in H x 17.5 in W x 9.5 in D (2U high, full rack wide); 88 mm H x 444 mm W x 241 mm D
Product Weight: 7.9 lbs (3.6 kg)
Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE
Product Warranty: 3 years parts and labor
Everlast Power Supply Warranty: 7 years parts and labor
